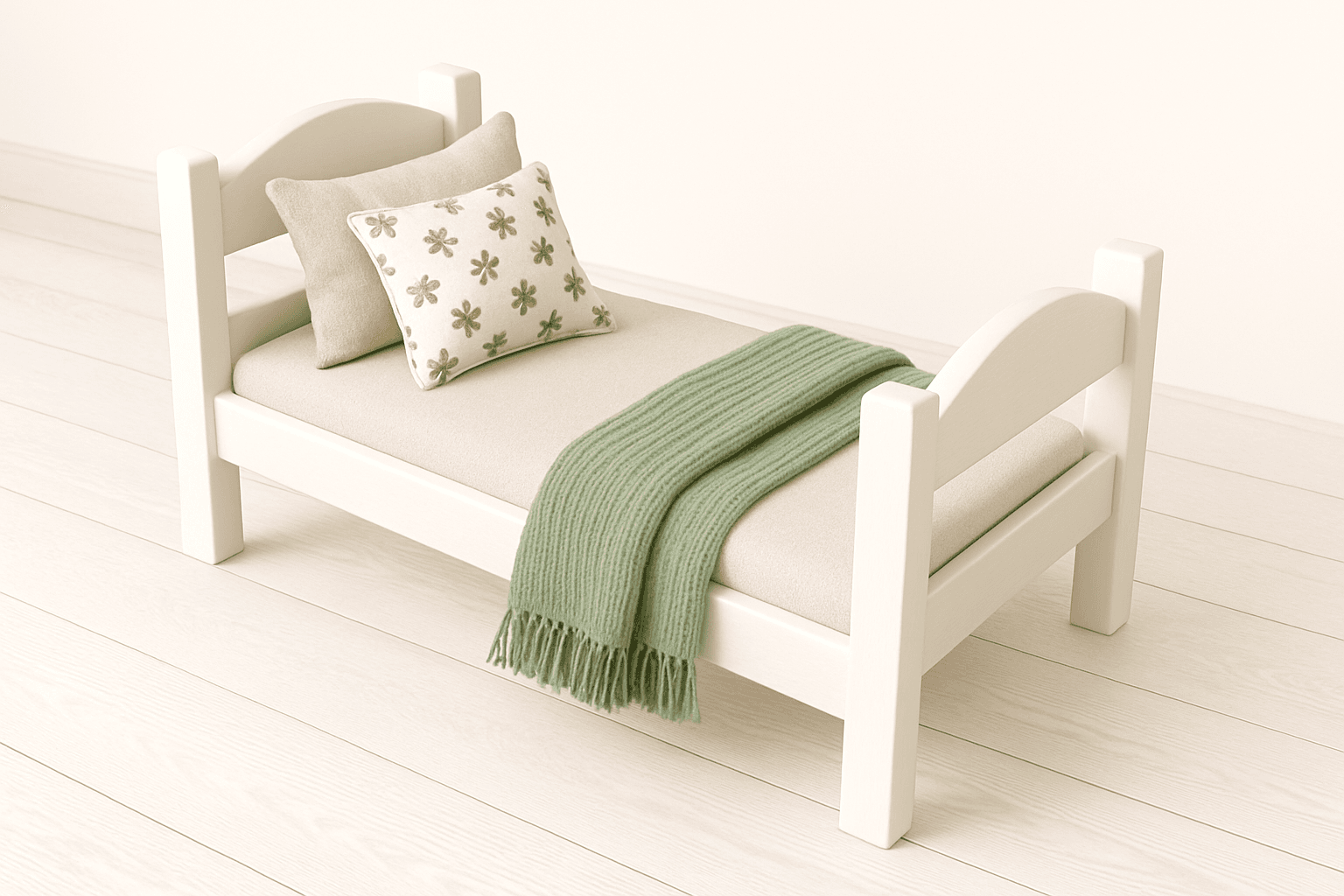

This doll bed is deliberately built from the cheapest lumber available — 1x2 furring strips for nearly everything — and deliberately simple enough that a kid can help with final assembly. Build the two headboard/footboard ends first, each one just four boards joined into a small frame; the plan notes hot glue works fine here if you don't want to deal with screws or nails on a project this small, though screws or brad nails and glue both work too.
Once both end panels are built, attach the side rails between them to form the bed's basic shape. A wider single board (1x6 or 1x8) works as a genuine substitute for the built-up end panels if you'd rather skip a step, though the plan notes this raises material cost slightly since wider boards cost more per linear foot than furring strips.
The mattress platform is intentionally left open-ended: sturdy cardboard, cut and measured by the kids themselves, is the plan's own suggested material rather than a dedicated wood or plywood panel — a genuinely kid-friendly way to finish the last step of an otherwise adult-built frame.
| Item | Qty |
|---|---|
| 1x2, 12 ft total (furring strips) | 12 ft |
| 1x3, 16 in | 1 each |
| 1/4" plywood or sturdy cardboard, for mattress support | 1 each |
| Wood screws, 1-5/8" to 2" | 20 each |
| Hot glue, or brad nails, 1-1/4", and glue | 1 each |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| End panel verticals1x2, 12 ft total (furring strips) | 4 | 3/4" × 1 1/2" × 9 1/2" |
| End panel top rails1x3, 16 in | 2 | 3/4" × 2 1/2" × 8" |
| End panel bottom rails1x2, 12 ft total (furring strips) | 2 | 3/4" × 1 1/2" × 8" |
| Side rails, upper1x2, 12 ft total (furring strips) | 2 | 3/4" × 1 1/2" × 18 1/2" |
| Side rails, lower1x2, 12 ft total (furring strips) | 2 | 3/4" × 1 1/2" × 17 3/4" |
| Mattress platform1/4" plywood or sturdy cardboard, for mattress support | 1 | 1/4" × 17" × 18" |
Buy 4 boards at 8 ft.
1 board
2 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Build two end panels, joining the verticals and top/bottom rails with screws, nails, or hot glue.
Attach the bed base support side rails to the two end panels with screws, nails, or hot glue.
Have kids measure and cut a mattress platform from sturdy cardboard (or 1/4" plywood) and place inside the assembled bed frame.
