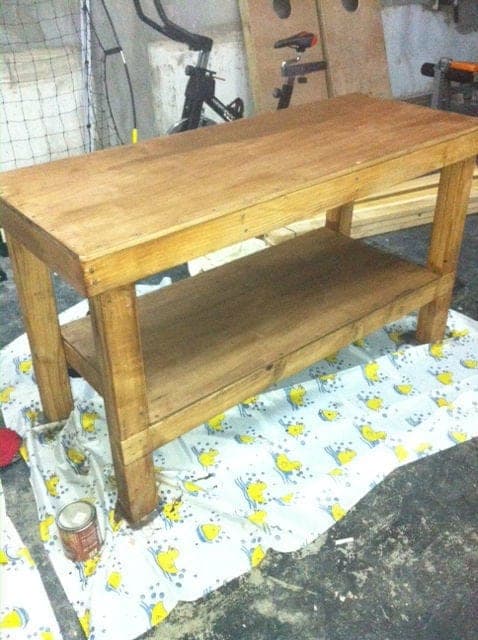

This bench earns its name from what it leaves out: no drawers, no vises, no fussy joinery — just a square 2x4 frame carrying a plywood top and a full lower shelf, built to take a beating. Clamping the whole frame together and checking it for square before building the top is the one step worth not skipping, since a top built onto a frame that's slightly out of square will telegraph that error into every straightedge cut you ever make on this bench.
Worth deciding before you cut: if you own heavy stationary tools you'll mount permanently, position one of the under-shelf 2x4s closer to one end rather than centering everything evenly, so it lands under the tool's footprint as a mounting stud. It's a small asymmetry in an otherwise plain frame, and it's the difference between a bench that flexes under a mounted tool and one that doesn't. Countersinking the top screws and skipping the wood filler is a fair call on a bench — this surface is going to take hits regardless.
| Item | Qty |
|---|---|
| Pine, 2x4, 8 ft | 7 each |
| Plywood, 3/4", 4x8 sheetRipped into 24"-wide, 8 ft strips for both the shelf and the top. | 1 each |
| Construction screws, 1-1/2" | 1 box |
| Wood fillerOptional — a workbench top takes enough abuse that filling screw holes is skippable. | 1 can |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| LegsPine 2x4 | 4 | 1 1/2" × 3 1/2" × 33" |
| Lower shelf stretchersPine 2x4 | 4 | 1 1/2" × 3 1/2" × 17 1/2" |
| Corner feet blocksPine 2x4Approximate — measure your own 2x4 stock, since actual dimensions vary by supplier. | 4 | 1 1/2" × 3 1/2" × 8 1/2" |
| Long stretchersPine 2x4 | 2 | 1 1/2" × 3 1/2" × 57" |
| Under-top supportsPine 2x4Space evenly, except position one off-center as a mounting stud if you plan to bolt down a stationary tool. | 7 | 1 1/2" × 3 1/2" × 21" |
| Top end railsPine 2x4 | 2 | 1 1/2" × 3 1/2" × 60" |
| Shelf and top panelsPlywood, 3/4"Cut the shelf and tabletop pieces from these ripped strips. | 2 | 3/4" × 24" × 96" |
Some parts are longer than a 8 ft board, so there is no honest board count to show here. Open the board plan to pick a longer stock length — it names every part that does not fit.
7 boards
0 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Assemble the four legs with the lower shelf stretchers and corner feet blocks. Measure your own 2x4 stock before cutting — actual dimensions vary by region and supplier.
Assemble the shelf frame from the long stretchers, then cut the plywood shelf panel to fit. Measure once, then measure again before cutting.
Before building the top frame, clamp everything together and check width, length, and vertical measurements for square. If you plan to mount heavy stationary tools, position one under-top support closer to one end rather than centering all of them evenly — that support then doubles as a mounting stud for the tool.
Screw the plywood top panel down with 1-1/2" construction screws, countersinking the heads so nothing catches your hand while working. Filling the countersunk holes with wood filler is optional on a bench top that's going to take hits regardless.
Sand any rough edges smooth. A shop bench doesn't need a fussy finish — a coat of something to seal the plywood edges is enough.
