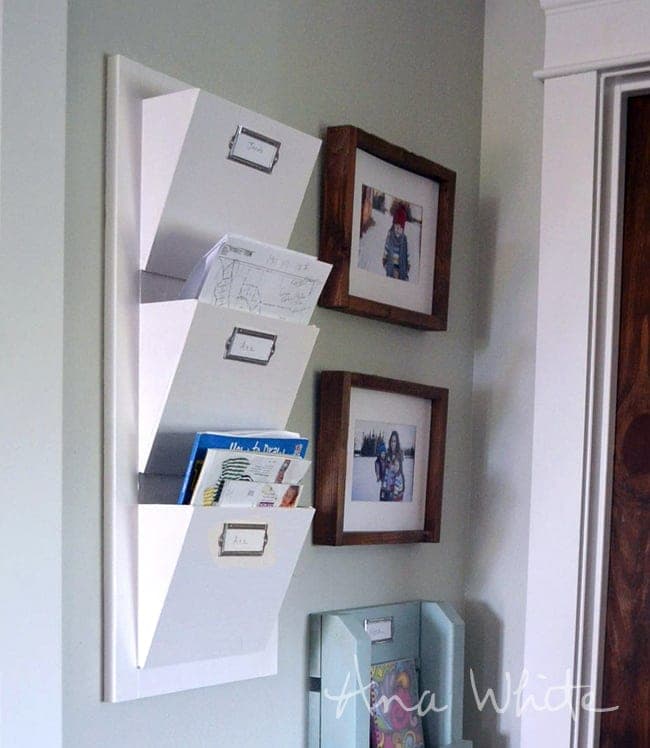

This little organizer tames the pile of mail by the door: a 1x2 frame holding three angled 1/4" plywood bins, mountable on a wall. It uses almost nothing — one 10-foot 1x2 and an off-the-shelf 24"x48" sheet of thin plywood or hardboard — so it's an ideal use for scraps and a genuinely quick build.
The only cut worth thinking about is the angled bin sides. The tip in the plan is the clean way to do it: rip a strip of plywood 7-1/4" wide and at least 16" long, set your saw to a 25° angle, and crosscut the bin sides off it, leaving 3/4" on the short end. That 25° is what tips the bins back so mail sits in them instead of falling out. Batch-cutting them off one strip keeps all six identical.
Assembly is forgiving. Build the 1x2 frame with pocket holes, and use the bin sides themselves as spacers to set the middle rails so you don't have to measure. Staple or nail the bin sides flush to the back, then glue the front panels on with cyanoacrylate (Krazy) glue and let it fully cure before moving the piece. Add a plywood back if you want it fully enclosed.
| Item | Qty |
|---|---|
| 1x2 board, 10 ftThe frame. | 1 each |
| 1/4" plywood or hardboard, 24" x 48"Bin sides and fronts. Sold this size off the shelf. | 1 each |
| Pocket-hole screws, 1-1/4" | 20 each |
| Brad nails or staples, 3/4"–1" | 30 each |
| Wood glue and cyanoacrylate glue | 3 oz |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Frame stiles1x2 | 2 | 3/4" × 1 1/2" × 27 3/4" |
| Frame rails1x2 | 4 | 3/4" × 1 1/2" × 11" |
| Bin sides1/4" plywoodCut at 25° leaving 3/4" on the short end — rip a 7-1/4" strip and crosscut them off it. | 6 | 1/4" × 7 1/4" × 4 1/8" |
| Bin fronts1/4" plywood | 3 | 1/4" × 8" × 11" |
Buy 4 boards at 8 ft.
2 boards
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Build the 1x2 frame with 3/4" pocket holes and 1-1/4" screws. Use the bin sides themselves as spacers to set the middle rails, so you don't have to measure the spacing.
Cut the angled bin sides (25°, 3/4" short end) and glue-and-nail or staple them to the frame, flush to the back, with 3/4" or 1" fasteners. The angle tips each bin back so contents stay put.
Glue the bin fronts on with cyanoacrylate glue and let it fully cure before moving the piece. Add a 1/4" plywood back with glue and short nails if you want it enclosed. Finish and hang on the wall.
