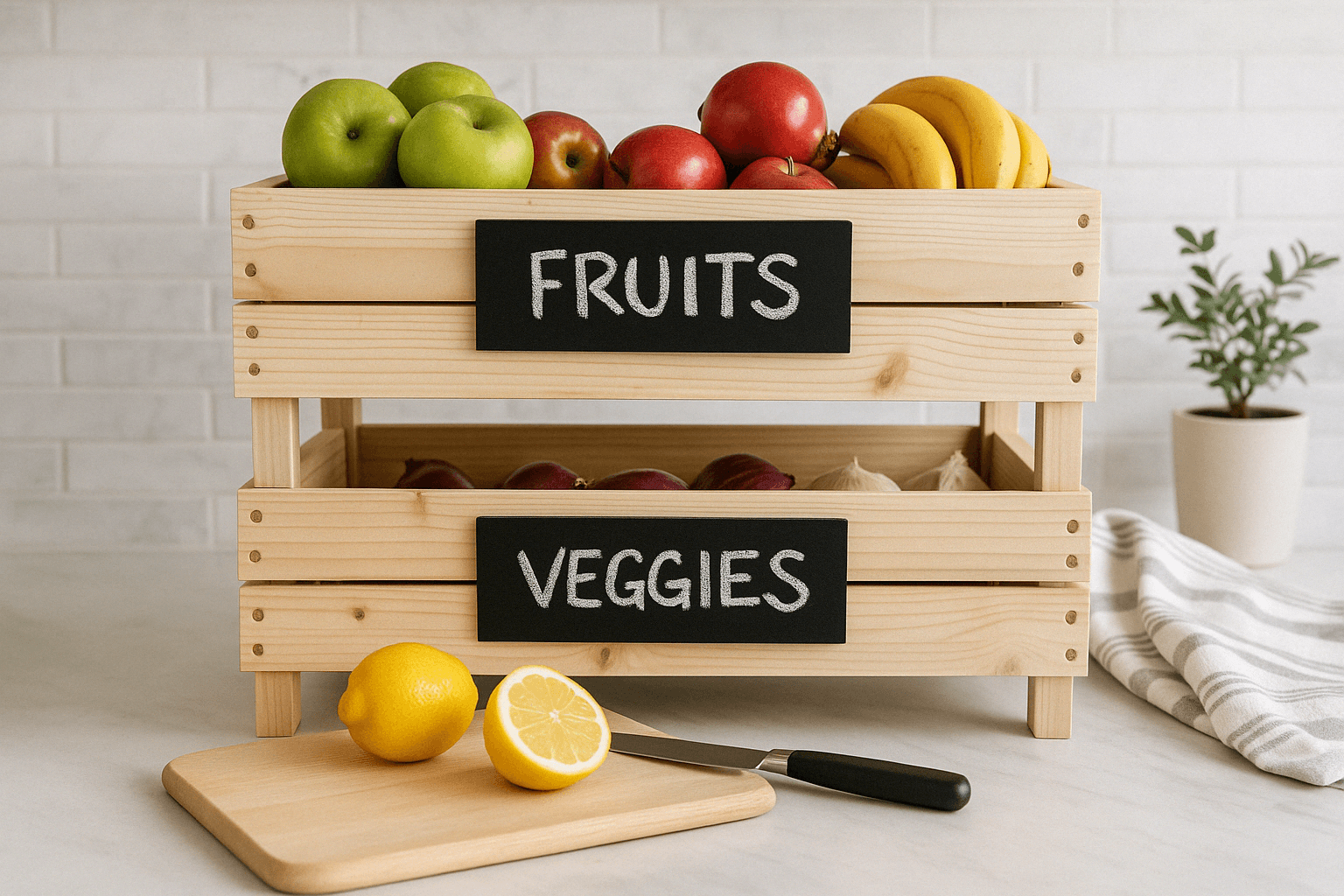

This is the crate you build five of, not one — the whole point is stacking a produce shelf's worth of identical bins from the cheapest materials in the lumber aisle: one 1x2 and a bundle of wood lath (the same thin strips used for plaster backing, sold in bulk and nearly free per piece).
The legs and bottom-support frame get pocket holes and glue, but everything above that — the end slats, side slats, and bottom slats — is nailed with 3/4" brads, because a produce crate takes daily handling and brad-and-glue joints are fast to build in volume and easy to replace a board on if one splits.
The bottom slats are the one deliberate exception to "glue everything": they sit loose inside the frame, unfastened. Pull them out to dump wilted lettuce or rinse dirt off potatoes, then drop them back in. A glued-in bottom would turn every cleaning into a scraping job.
Build the end slats first, then cut the side slats to fit the actual box you built rather than to a fixed number — lath thickness varies enough between pieces that "cut to fit" beats a spec measurement here. Stack a few crates and the 2-1/2" starting gap above the legs (called out in the cut sequence) is what lets one crate nest cleanly on the one below it.
| Item | Qty |
|---|---|
| 1x2, 8 ftLegs and bottom supports, per crate. | 1 each |
| Wood lath, 4 ft piecesSold in bulk bundles of ~50 — this is the per-crate usage. 1x2 scrap works as a substitute. | 5 each |
| Pocket hole screws, 1-1/4" | 8 each |
| Brad nails, 3/4" | 30 each |
| Wood glue | 1 oz |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Legs1x2 | 4 | 3/4" × 1 1/2" × 6 1/2" |
| Bottom supports1x2Joins the legs at the bottom, pocket-holed. | 2 | 3/4" × 1 1/2" × 13 3/4" |
| End slatsWood lath | 6 | 1/4" × 1 3/8" × 8 3/4" |
| Side slatsWood lathCut to fit the assembled box rather than to this exact length — lath dimensions vary. | 6 | 1/4" × 1 3/8" × 15 3/4" |
| Bottom slatsWood lathLoose, unfastened — lifts out for cleaning. | 8 | 1/4" × 1 3/8" × 8 3/4" |
Buy 4 boards at 8 ft.
1 board
3 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Drill pocket holes in the bottom of the two longer 1x2 support pieces and attach them to the four legs with 1-1/4" pocket screws and glue, forming a low rectangular frame that stands on four short feet.
Nail the six end slats to the frame with 3/4" brads and glue, starting 2-1/2" up from the bottom of the legs — that gap is what lets one crate nest into the top of another when you stack them.
With the end slats holding the legs together, measure your actual box and cut the side slats to fit rather than to a fixed length. Nail on the same way, brads and glue.
Set the eight bottom slats inside the crate, resting on the bottom supports. Leave them unfastened — the whole point is being able to lift them out to dump and rinse the crate without disassembling anything.
