Small Parts Organizer

I wanted to take the time to come up with a small parts organizing solution.

Cut list

Part	Qty	T × W × L	Material	✓
Dividers, shelves, back	1	1" × 4" × 4"	—	☐
Top, Sides, Bottom	1	3" × 4" × 4"	—	☐

Item	Qty	✓
Plywood, 1/4" Thick Half Sheet	1 board	☐
Plywood, 3/4" Thick Half Sheet	1 board	☐
Husky Small Parts Organizers	6 each	☐
Stackable Storage Bins	6 each	☐

Overall cost: $$. Lumber varies by region, species, and season, so we give a band rather than a figure.

1. Breaking Down Plywood

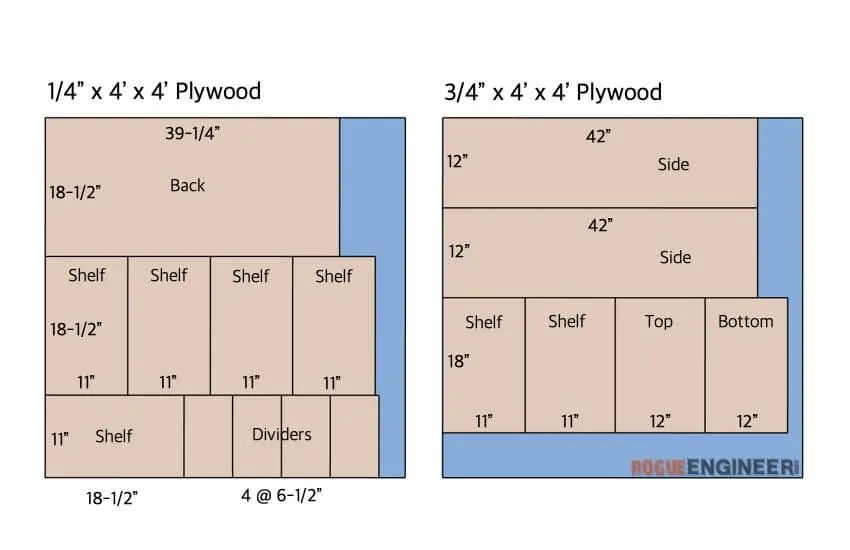

Break down the plywood using the cut list provided below.
2. Cutting the Dados

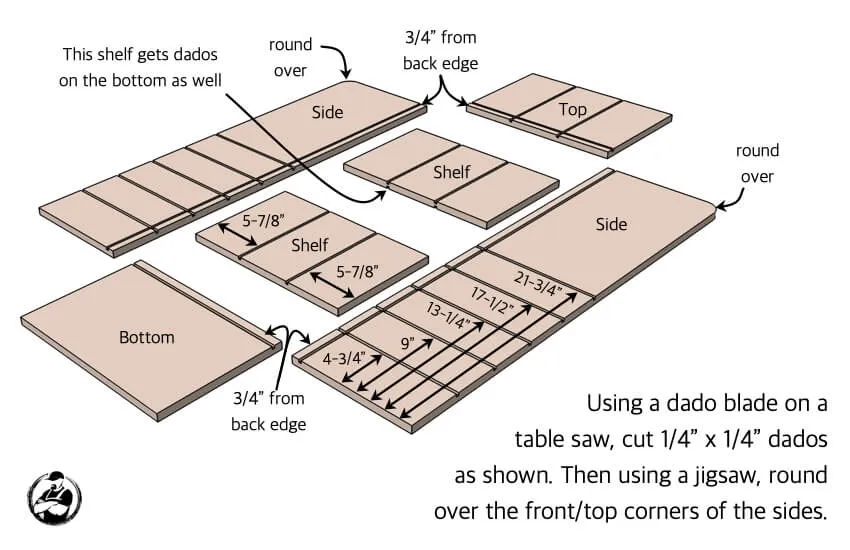

- After breaking down the plywood per the cut list, start by layout out all the 3/4″ thick parts as shown.
- Then, swap out the table saw blade for a blade(s) with a similar thickness to the 1/4″ plywood dividers.
- Then cut the dados per the diagram below.
3. Install Top and Shelves

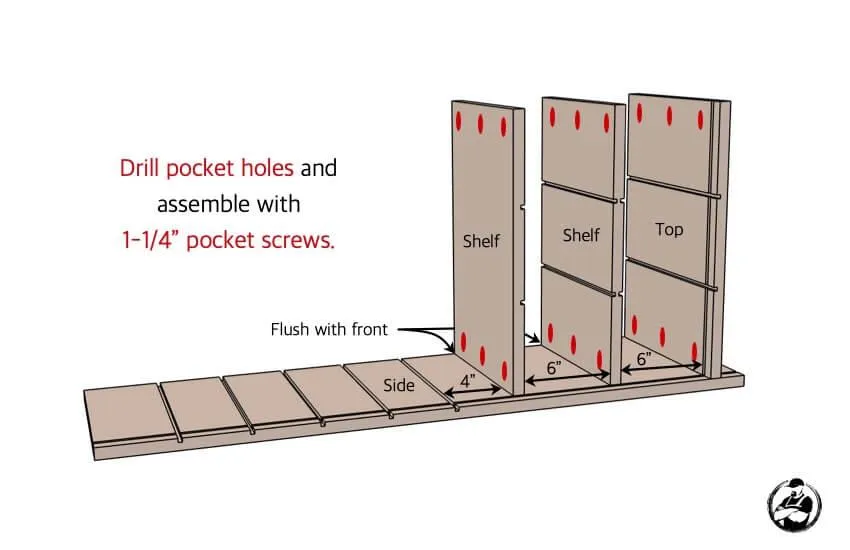

Per the diagram below, drill the pocket holes and attach the top and shelves to the side, as shown, with 1-1/4″ pocket hole screws.
4. Attach Other Side

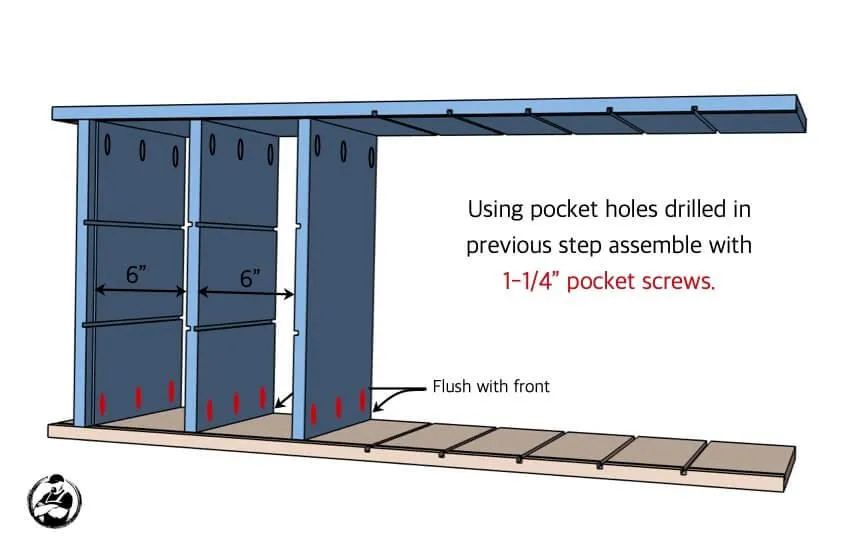

Per the diagram below, use the pocket holes drilled in the last step to attach the other side with 1-1/4″ pocket hole screws.
5. Install Back and Bottom

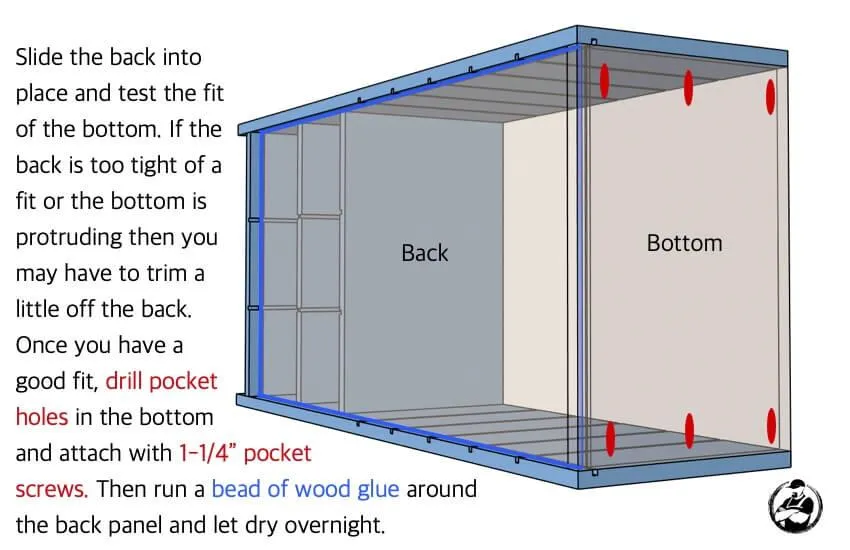

- Slide the back into place and test the fit of the bottom. If the back is too tight of a fit or the bottom is protruding then you may have to trim a little off the back.
- Once you have a a good fit, drill pocket holes in the bottom and attach with 1-1/4" pocket screws.
- Then run a bead of wood glue around the back panel and let dry overnight.
6. Inserting the Dividers

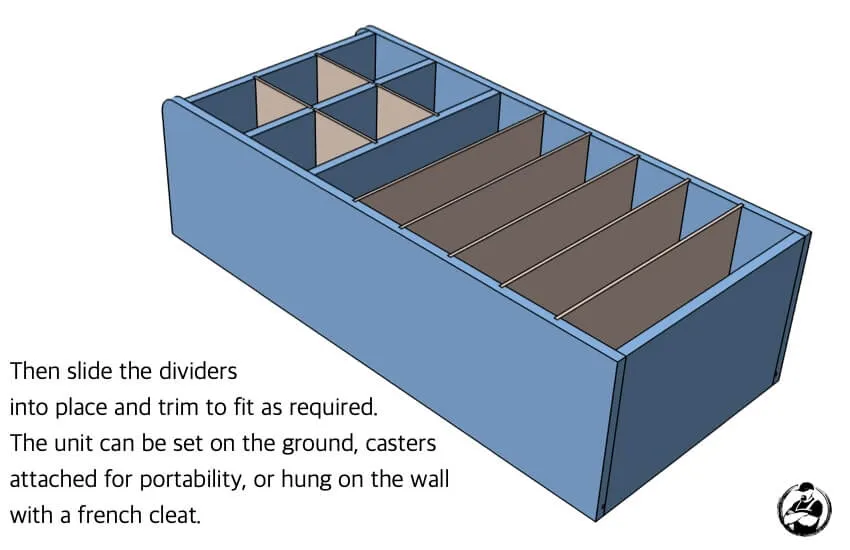

Then slide the dividers into place and trim to fit as required. The unit can be set on the ground, casters attached for portability, or hung on the wall with a french cleat.
