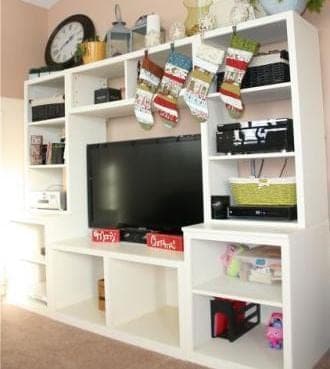

This is a tall, narrow open hutch — a component of a larger modular storage wall — built from one sheet of 3/4" plywood or MDF ripped into 15-1/2" wide strips. It's a simple box with adjustable shelves on pins and a crown-moulding cap that dresses up the top and ties it to the rest of the collection.
The construction detail worth internalizing is that the side trim does structural work, not just decoration. After you build the basic box (bottom and top fastened between the two sides), you wrap 1x2 trim around the sides and fasten it into the top, bottom, and sides — the plan says outright that 'the trim reinforces the joints on the hutch.' On a tall box made of sheet goods, that added stiffness across the corners is what keeps it from racking.
The shelves are finished separately and dropped onto shelf pins, so they stay adjustable — set them to whatever you'll store after the cabinet's built and painted. The crown moulding across the front top is the signature of the collection; mitre its returns cleanly. If you built from plywood, edge-band the exposed front edges before finishing. Designed for paint.
| Item | Qty |
|---|---|
| Plywood or MDF, 3/4 in, 4x8 sheetRipped into 15-1/2" strips for sides, top, shelves. | 1 each |
| 1x2, 8 ftSide and back top trim. | 1 each |
| 1x3, 2 ftFront top trim. | 1 each |
| Crown moulding, 2-1/2 inAt least 24" of run for the top. | 3 ft |
| Shelf pins | 1 set |
| Edge banding, iron-onFor plywood builds. | 1 roll |
| Pocket-hole screws, 1-1/4 in | 1 box |
| Brad nails, 1-1/4 in and 2 in | 1 box |
| Wood glue | 1 bottle |
| Primer and paint | 1 quart |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Sides3/4 in plywood | 2 | 3/4" × 15 1/2" × 44 1/4" |
| Top3/4 in plywood | 1 | 3/4" × 15 1/2" × 24" |
| Bottom and shelves3/4 in plywood | 3 | 3/4" × 15 1/2" × 22 1/2" |
| Side trim1x2 | 4 | 3/4" × 1 1/2" × 45" |
| Front top trim1x3 | 1 | 3/4" × 2 1/2" × 21" |
| Back top trim1x2 | 1 | 3/4" × 1 1/2" × 21" |
| Crown mouldingmouldingMitre the returns. | 1 | 3/4" × 2 1/2" × 24" |
Buy 6 boards at 8 ft.
2 boards
1 board
3 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Fasten the bottom to the two sides, then the top to the sides, with glue and 2" fasteners. Check the box for square — a tall sheet-goods box that racks now will fight every later step. Use the plan's measurements to set the bottom position.
Attach the 1x2 trim around the sides, outside edges flush, fastening into the top, bottom, and sides. This isn't just cosmetic: the side trim reinforces the corner joints and is what keeps a tall box from racking. Don't skip fastening it into all three.
Fasten the front top trim (1x3), also driving through the sides into its end edges — use the 2" fasteners when going through the sides. Then attach the back top trim (1x2) the same way. This frames the top and gives the crown moulding a surface to land on.
Mitre and attach the crown moulding across the front top — clean returns are what make it look bought rather than tacked on. Edge-band any exposed plywood edges, then prime and paint.
Finish the shelves separately, then set them on shelf pins so they stay adjustable to whatever you store.
