This record player storage cabinet is made completely out of plywood.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Bottom | 1 | 3/4" × 18" × 47" | — | ☐ |
| Sides | 2 | 3/4" × 18" × 27" | — | ☐ |
| Inside Panel | 1 | 3/4" × 18" × 22 1/4" | — | ☐ |
| Record Display Base | 1 | 3/4" × 14" × 28 1/4" | — | ☐ |
| Left Permanent Shelf | 1 | 3/4" × 18" × 18" | — | ☐ |
| Record Display Mid Piece | 1 | 3/4" × 7 3/4" × 14" | — | ☐ |
| Record Display Back | 1 | 3/4" × 7 3/4" × 13 3/4" | — | ☐ |
| Top Left | 1 | 3/4" × 18" × 18" | — | ☐ |
| Back Top Piece | 1 | 3/4" × 4" × 28 1/4" | — | ☐ |

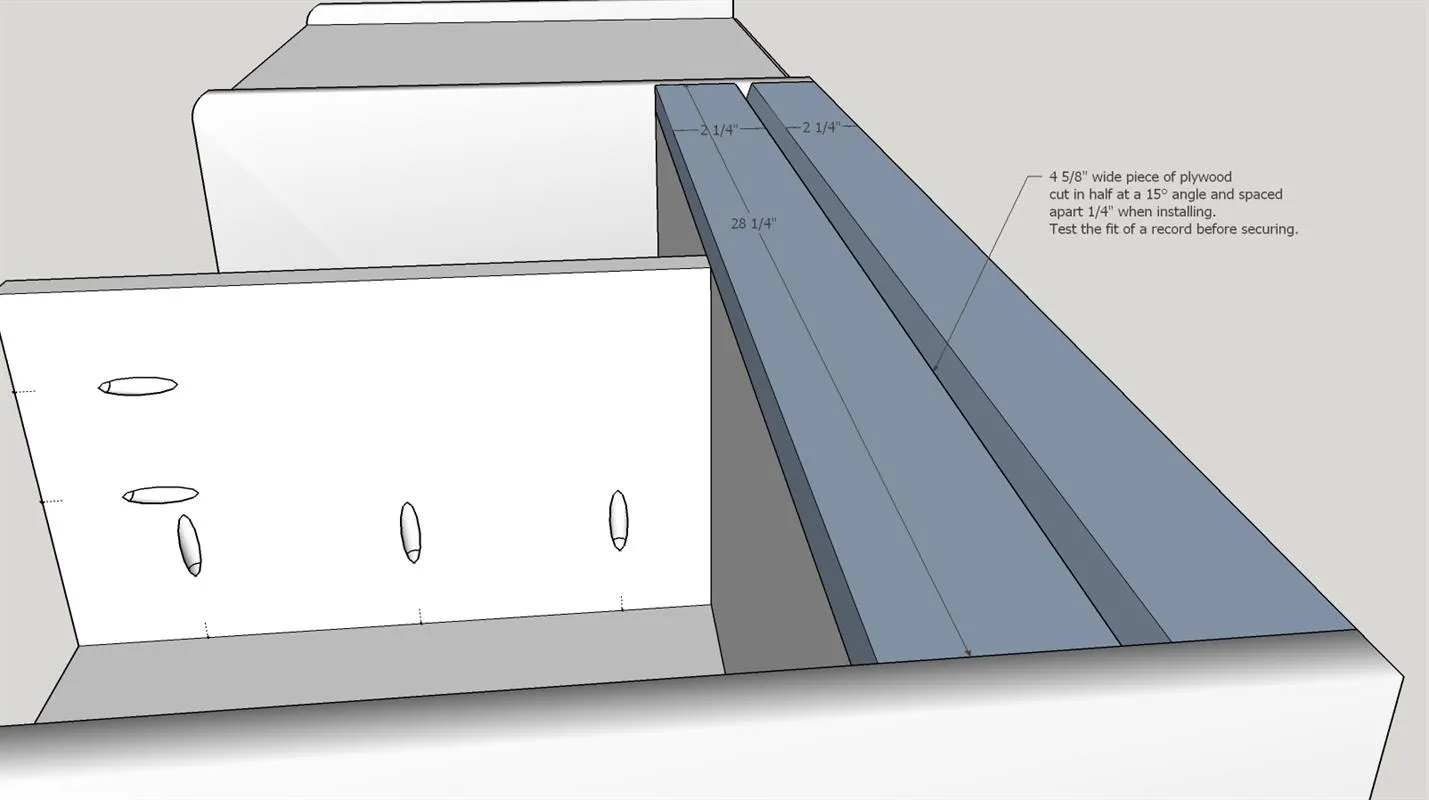

| Record Holder Piece | 1 | 3/4" × 4 5/8" × 28 1/4" | — | ☐ |
| Record Storage Front | 1 | 3/4" × 8 1/2" × 29 3/4" | — | ☐ |

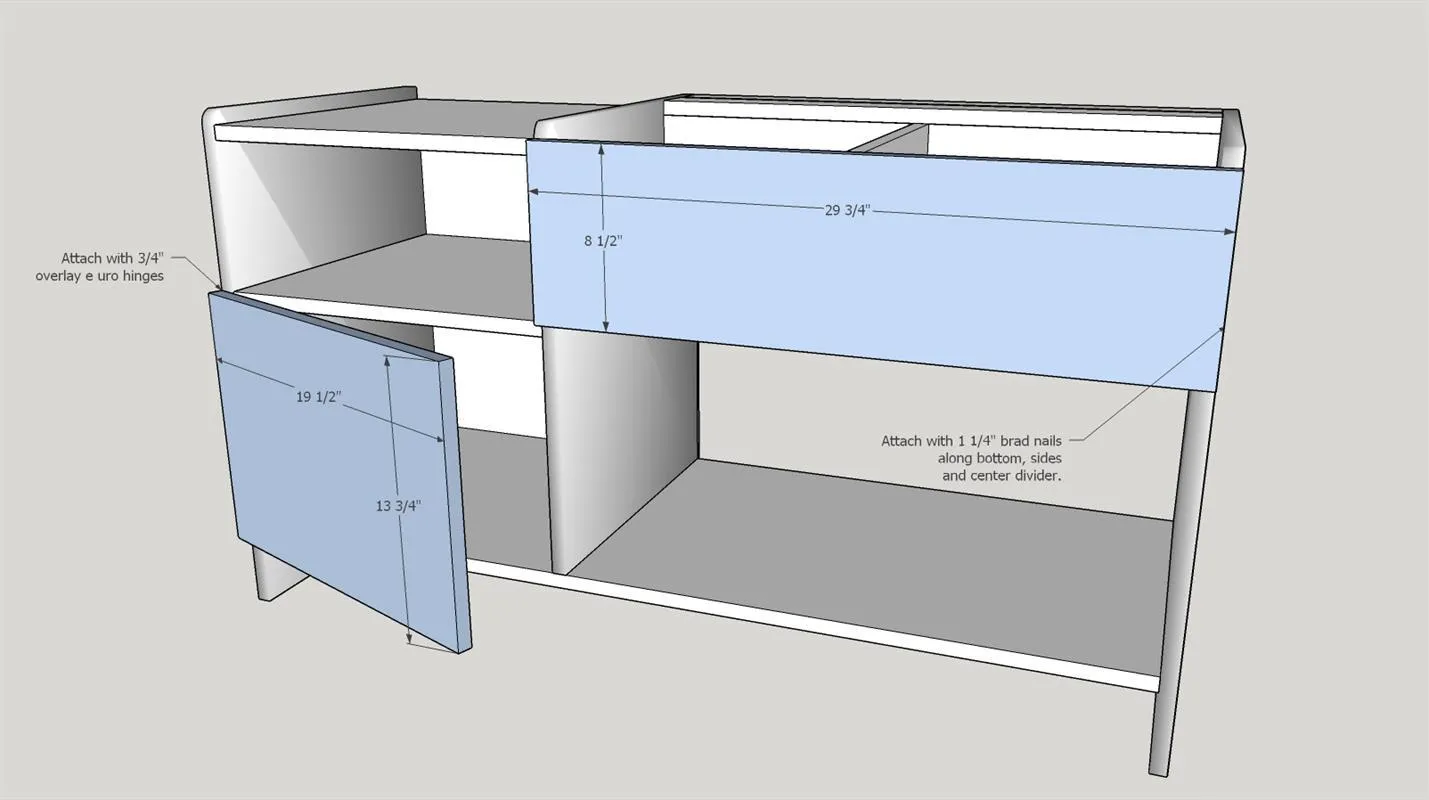

| Left Door | 1 | 3/4" × 13 3/4" × 19 1/2" | — | ☐ |

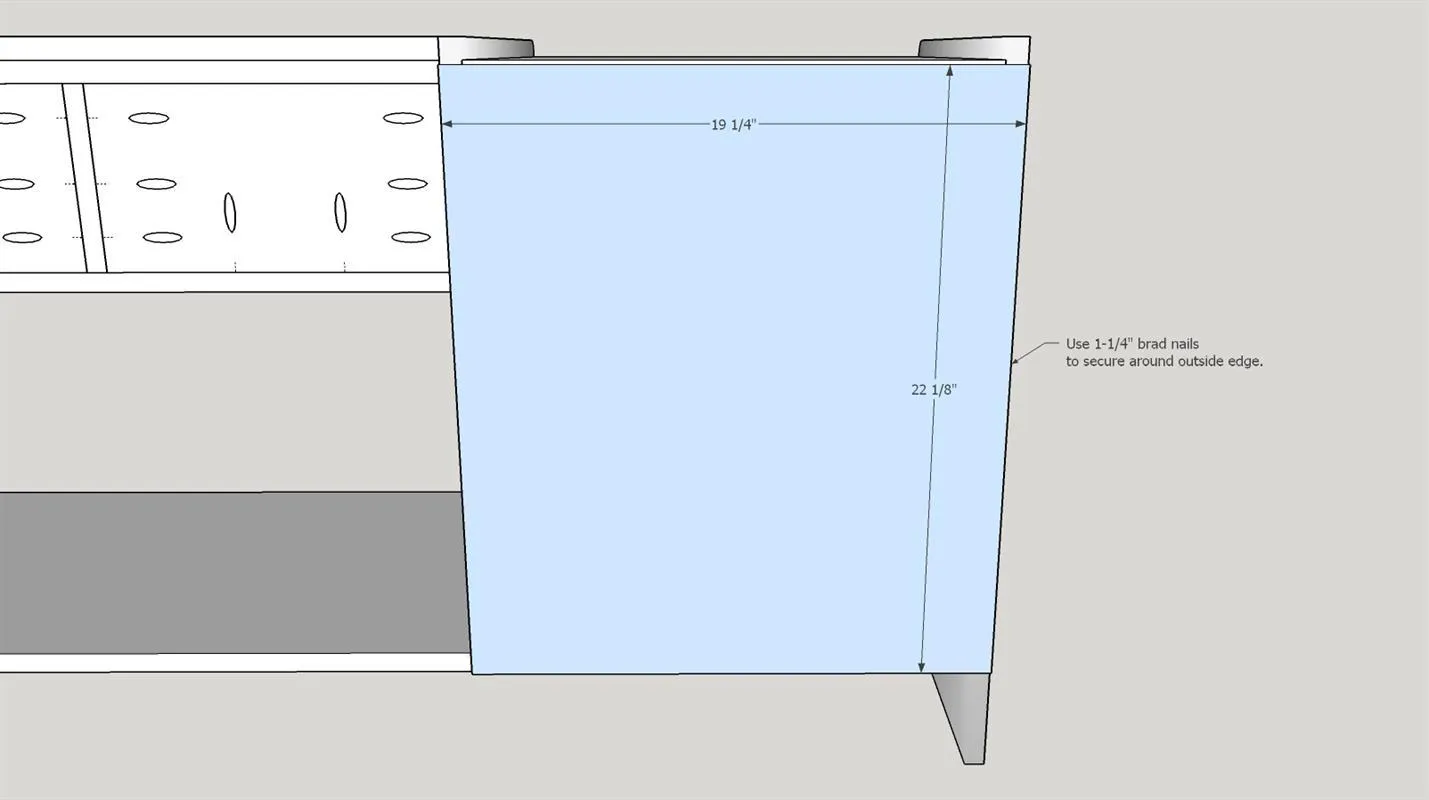

| Left Back | 1 | 1/4" × 19 1/4" × 22 1/8" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Plywood, 3/4" Thick Full Sheet | 1 board | ☐ |
| Plywood, 3/4" Thick Half Sheet | 1 board | ☐ |
| 1 1/4" Kreg Pocket Hole Screws | 63 each | ☐ |
| 1 1/4" Brad nails | 40 each | ☐ |
| Set of Concealed Hinges | 1 each | ☐ |
| Knob | 1 each | ☐ |
| Wood Glue | 1 each | ☐ |
| Wood Filler | 1 each | ☐ |
Overall cost: $$$. Lumber varies by region, species, and season, so we give a band rather than a figure.

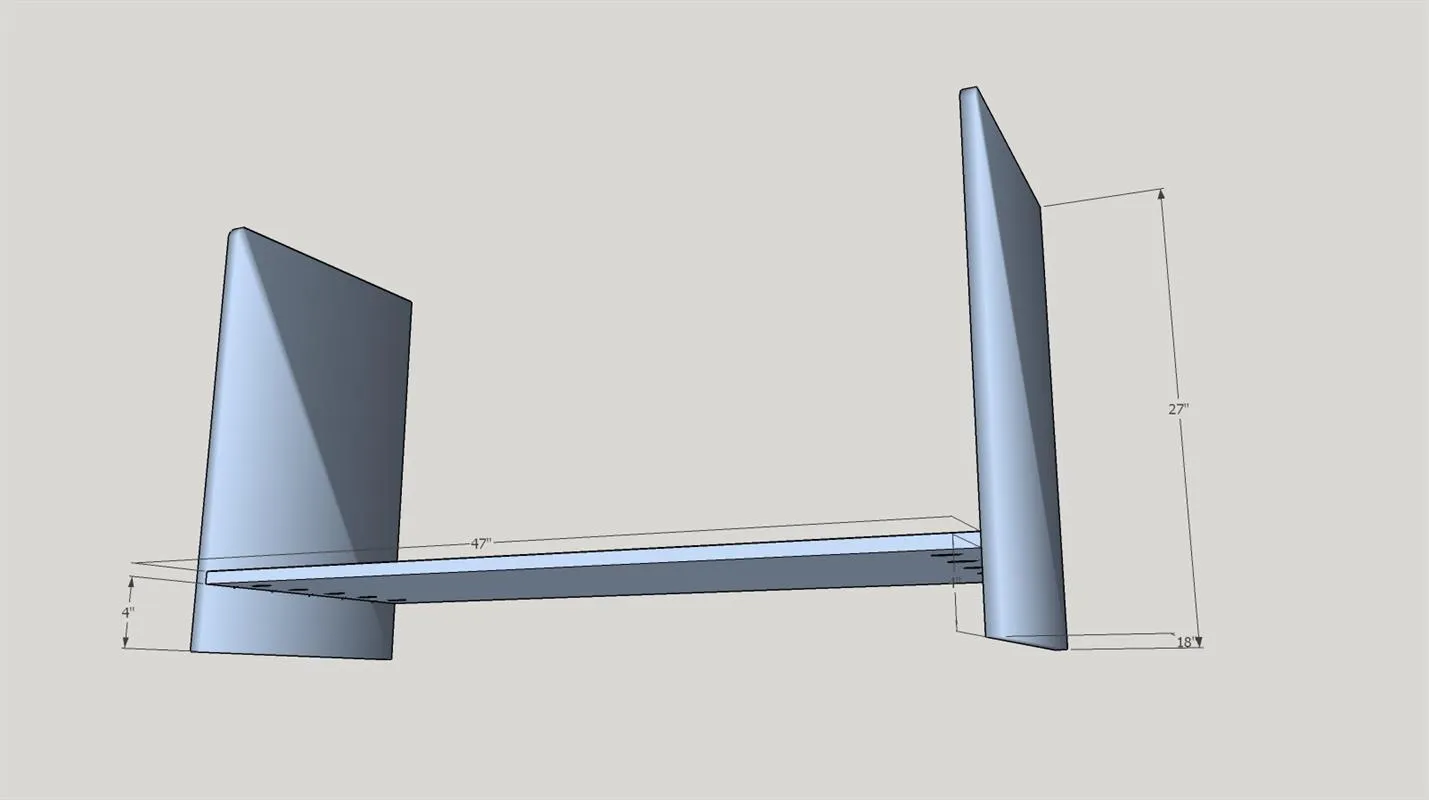

Drill pocket five holes on each end of the BOTTOM, as shown. Attach BOTTOM to SIDES, 4" from the bottom of each side using wood glue and 1-1/4" pocket hole screws.

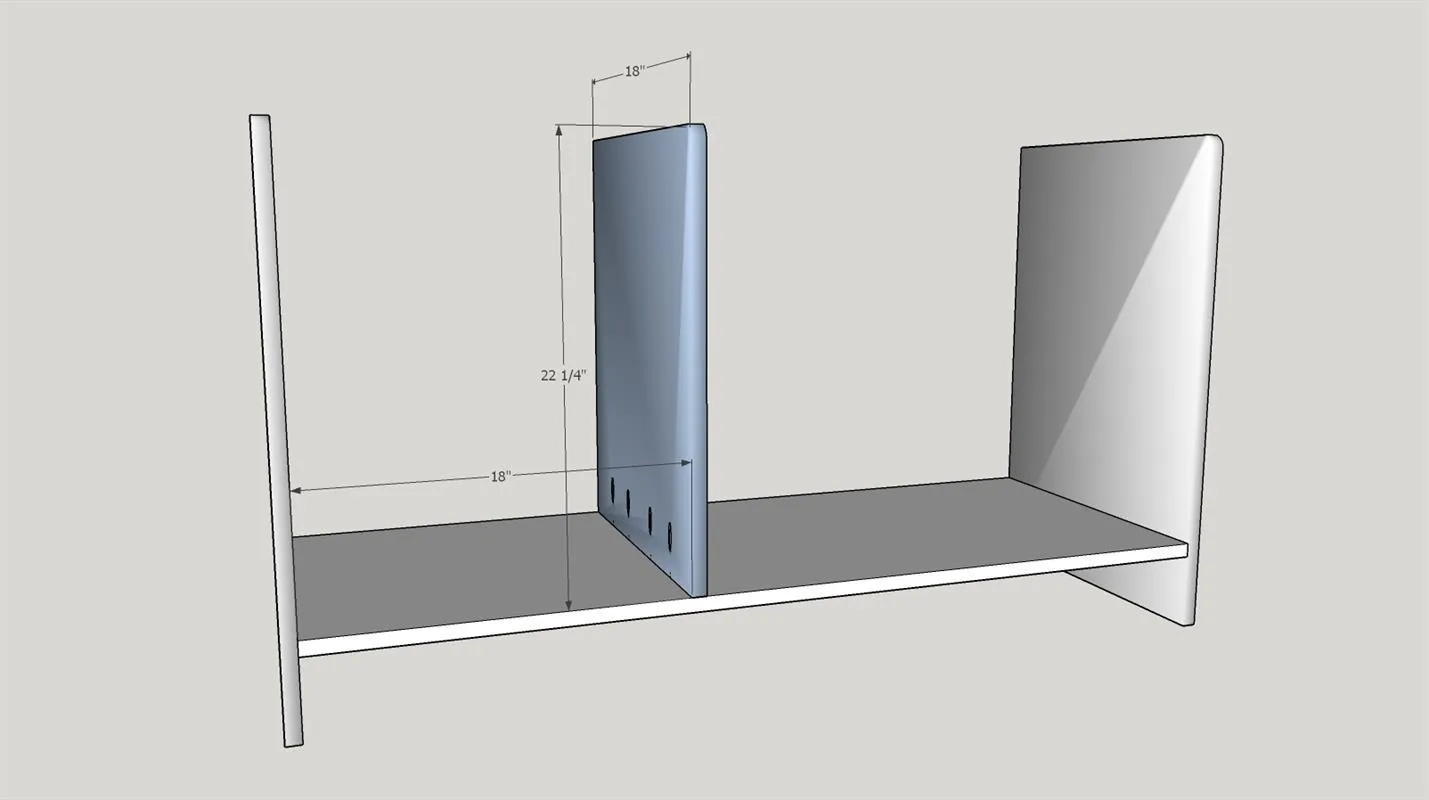

Drill four pocket holes along one of the 18" edges of the INSIDE PANEL. Attach 18" from the left SIDE with wood glue and 1-1/4" pocket hole screws.
Drill pocket holes as shown on the RECORD DISPLAY BASE and LEFT PERMANENT SHELF. Attach the LEFT PERMANENT SHELF 12-1/4" from the BOTTOM piece, and the RECORD DISPLAY BASE 13" from the bottom piece, and flush with the front of the cabinet, using wood glue and 1-1/4" pocket hole screws.

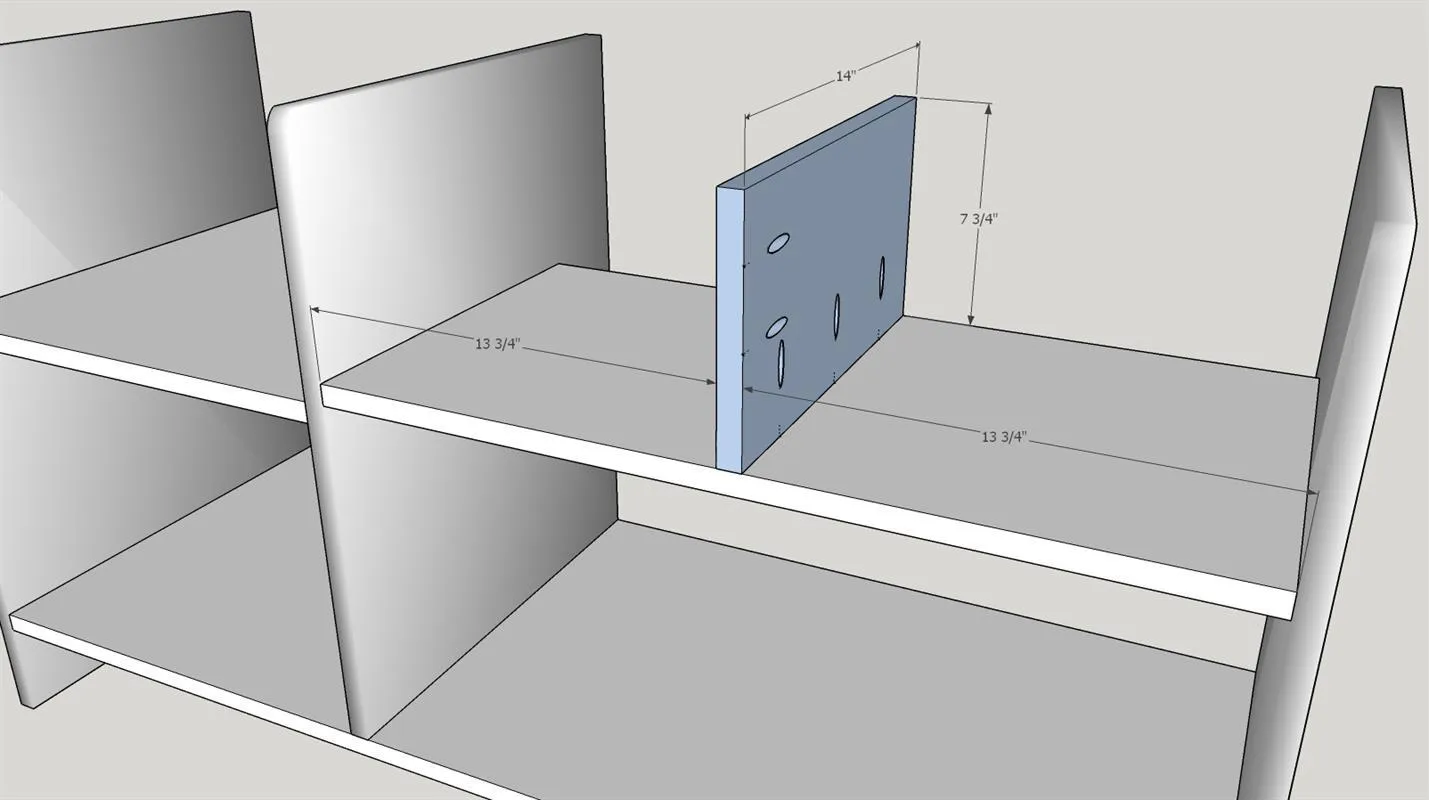

Attach the RECORD DISPLAY MID PIECE in the center of the RECORD DISPLAY BASE (13-3/4" from each side). Secure with wood glue and 1-1/4" pocket hole screws.

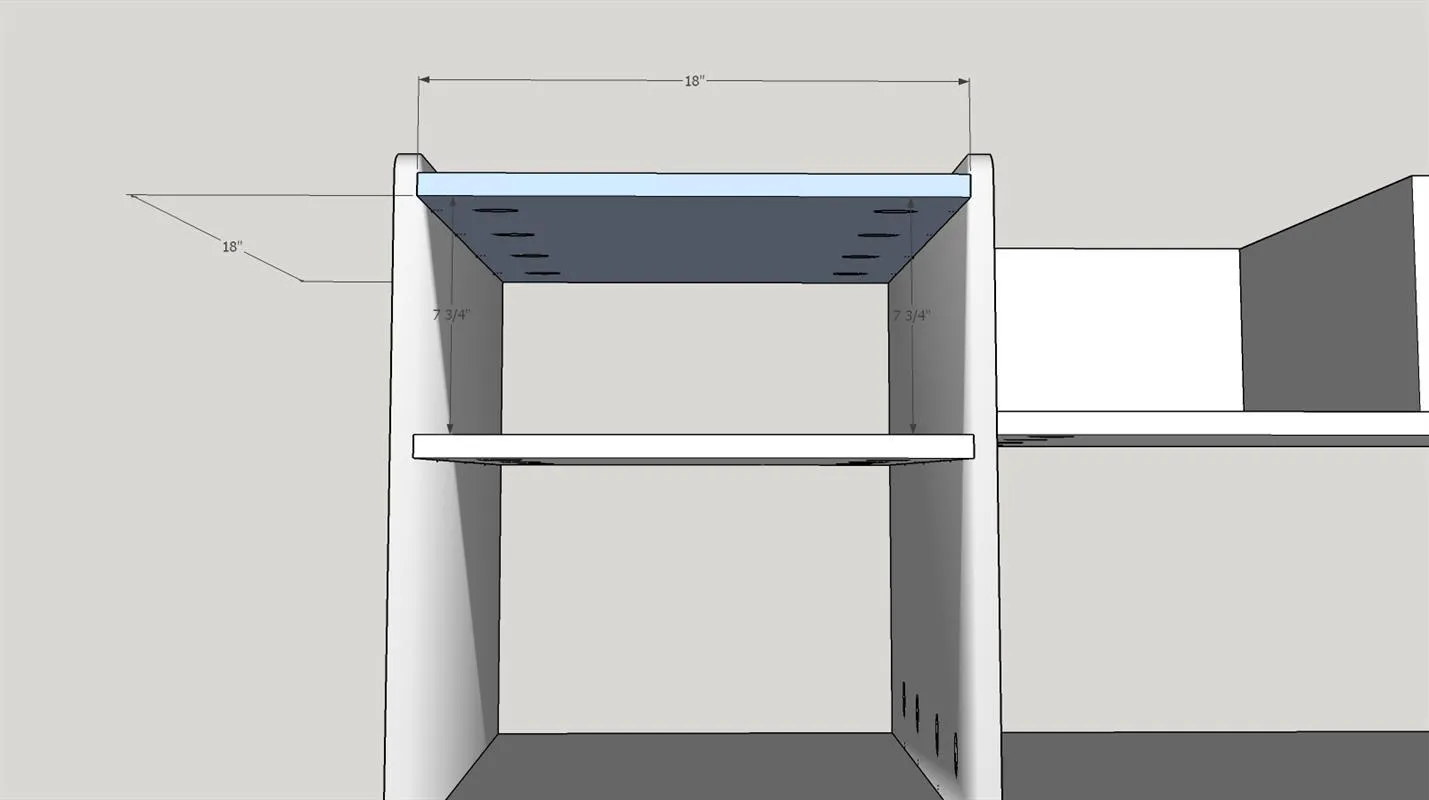

Drill pocket holes on the underside of the TOP LEFT piece and attach 7-3/4" from the shelf location below with wood glue and 1-1/4" pocket hole screws.

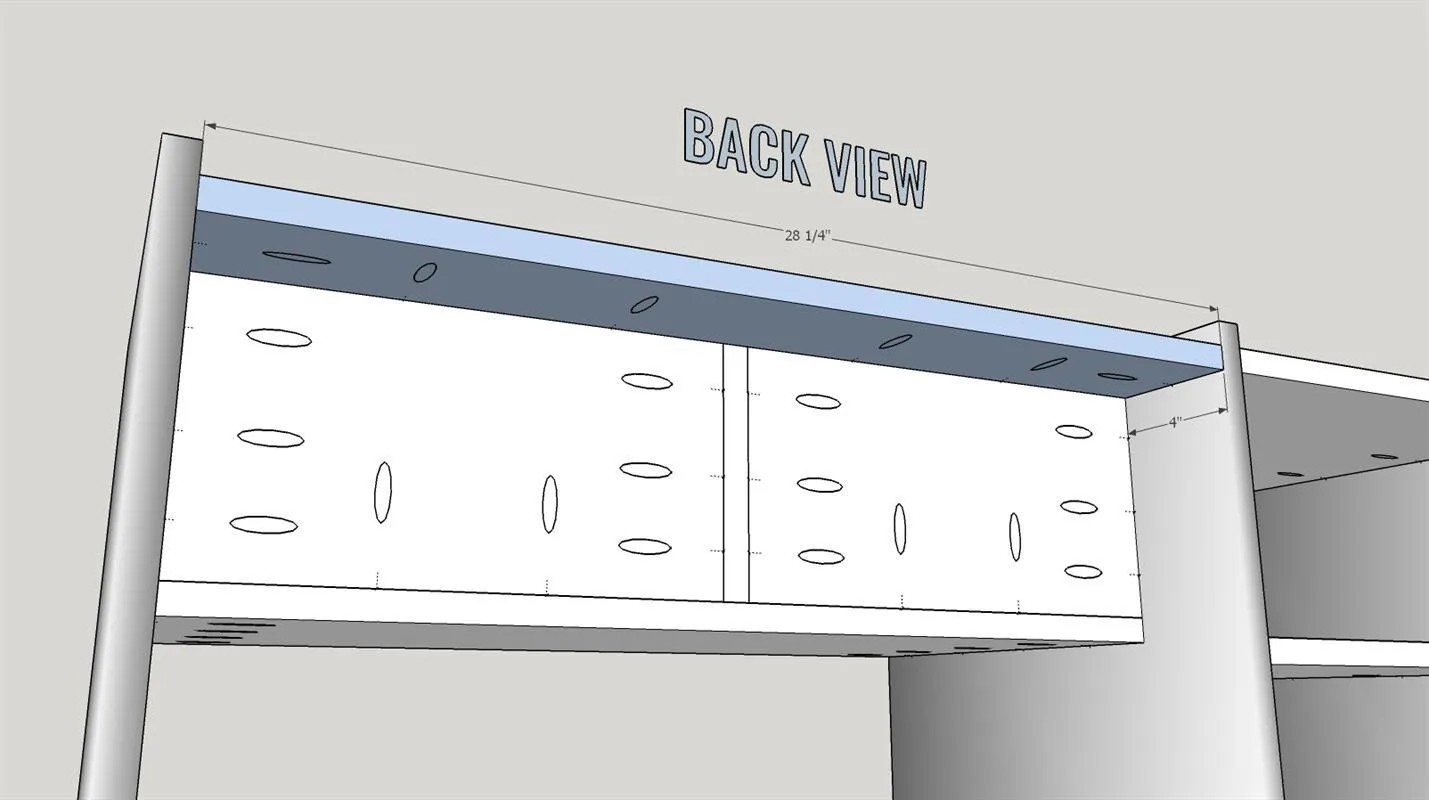

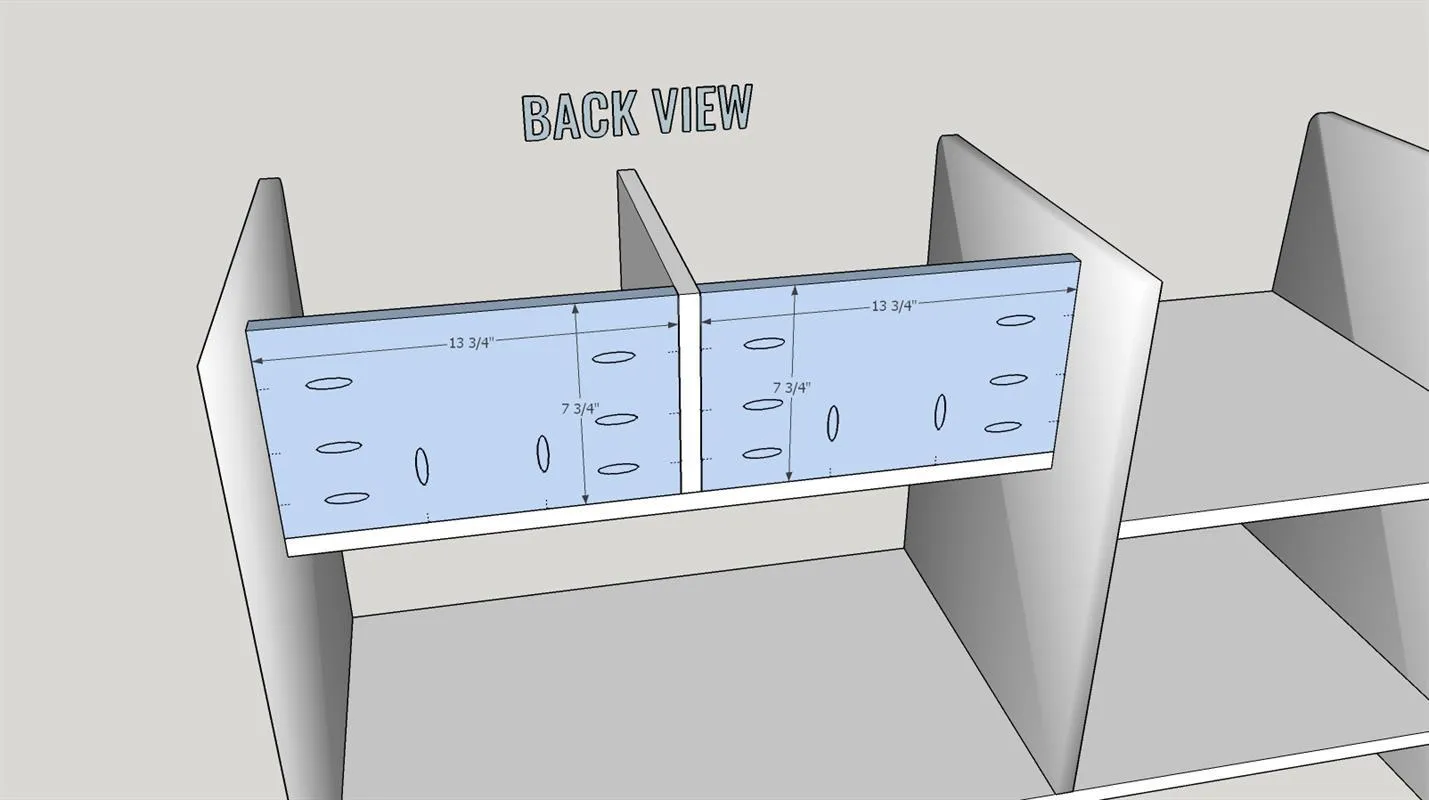

Drill pocket holes in the approximate locations indicated on the diagram of the BACK TOP PIECE. Secure to the RECORD DISPLAY BACK PIECES and the sides of that area with wood glue and .
Attach 1/4" plywood BACK PANEL using 1-1/4" brad nails.

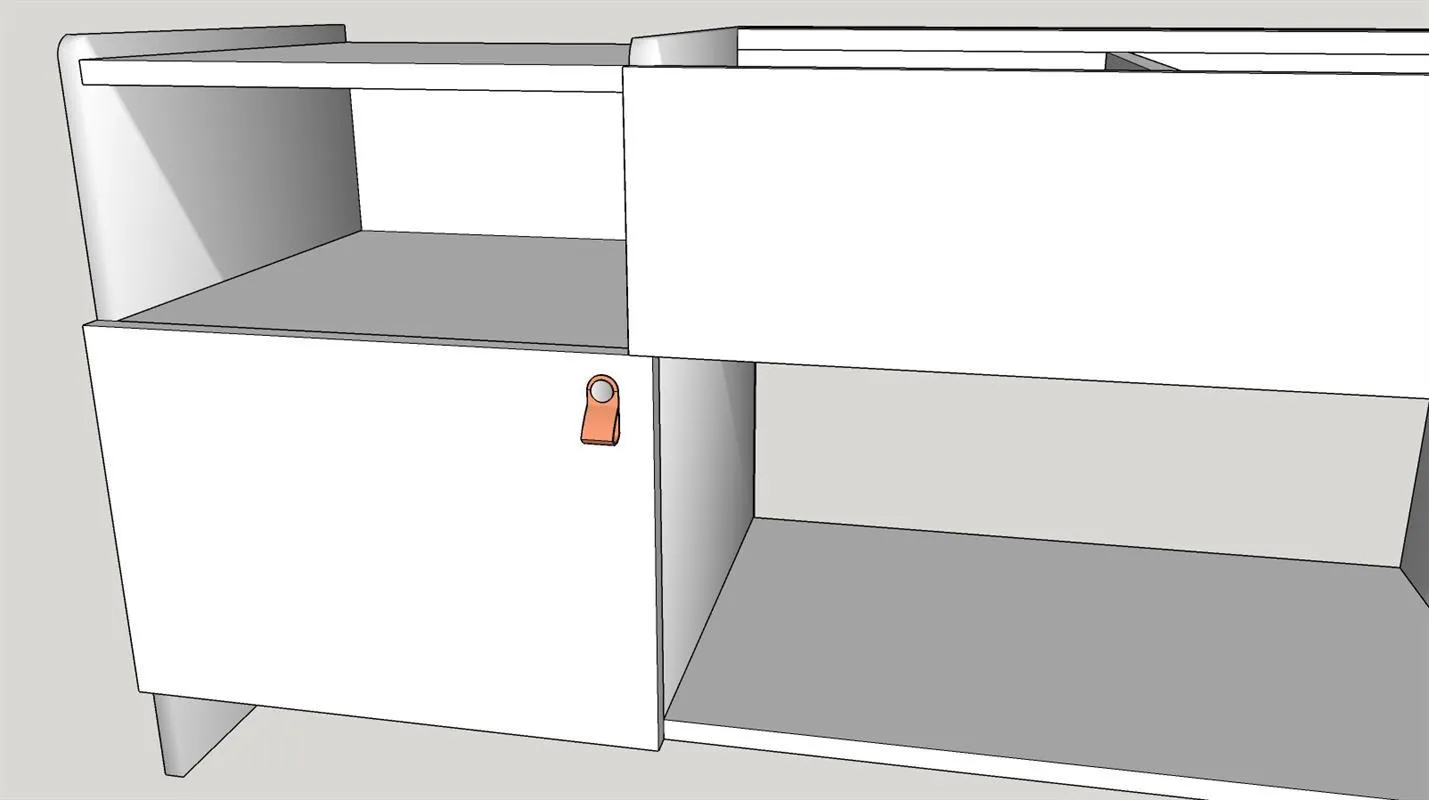

Add one knob of your choice to the upper right corner of the door.
