Planter Boxes
Learn how to make these easy DIY planter boxes for your front porch using the Kreg Pocket-Hole Jig 720.
- Difficulty
- Easy
- Time
- 2–3.8 hours
- Cost
- $$
Cut list
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Top Trim | 4 | 11/16" × 3" × 15" | — | ☐ |
| Side Pieces | 12 | 1" × 5" × 11" | — | ☐ |
| Legs | 4 | 1" × 1" × 20" | — | ☐ |
| Slats on inside | 3 | 1" × 1" × 11" | — | ☐ |
Materials
| Item | Qty | ✓ |
|---|---|---|
| Board, 1x4 96" | 1 board | ☐ |
| Board, 2x6 96" | 1 board | ☐ |
| Board, 2x6 120" | 1 board | ☐ |
| Board, 2x2 96" | 1 board | ☐ |
| Kreg Blue-Kote WR pocket screws (1 1/2") | 100 each | ☐ |
| Quart black exterior paint | 1 each | ☐ |
| Plastic Wood X wood filler | 1 each | ☐ |
Overall cost: $$. Lumber varies by region, species, and season, so we give a band rather than a figure.
Tools
- Impact Driver
- Miter Saw
- Pocket Hole Jig
- Random Orbit Sander
- Staple Gun
- Bar / Pipe Clamps — optional
- Combination Square — optional
- Tape Measure — optional
Instructions

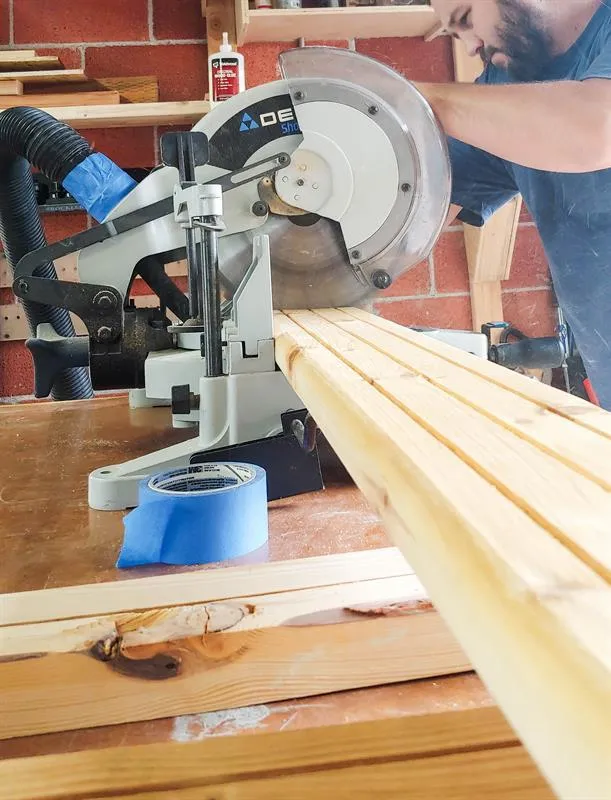

1. Cut wood to size
- Cut wood to size using miter saw. Refer to attached plans for cut list with sizes.
- Sand any wood that will be painted with orbital hand sander.

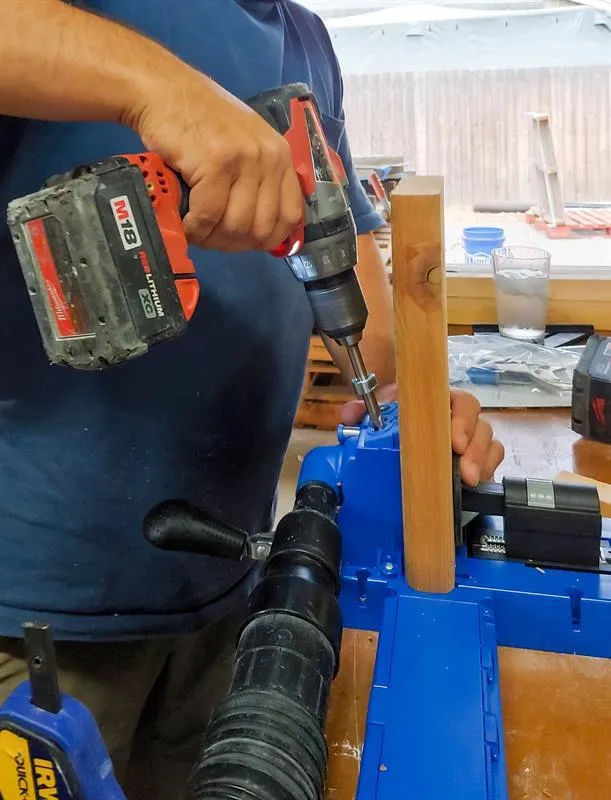

2. Drill pocket holes
Using the Kreg Jig system, drill 2 pocket holes on the edges of each side piece.

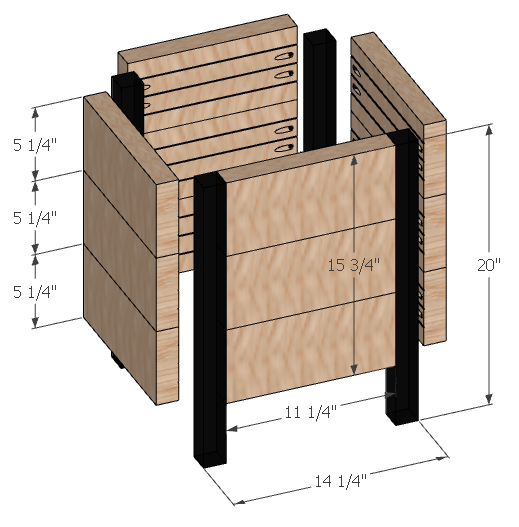

3. Assemble sides
Put sides together into box by attaching to legs. Prepaint legs before assembly if desired.

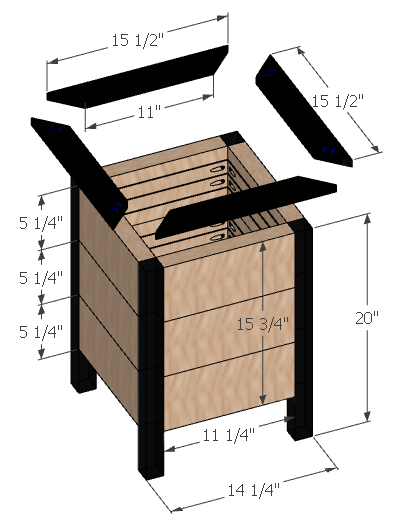

4. Add top trim
The trim is made from cedar that is three inches side and cut at 45 degree angles at the corners and connected with pocket holes on the underside. Prepaint the pieces black if desired and attach with staple gun from the top. Fill all holes with wood filler, sand and repaint black.

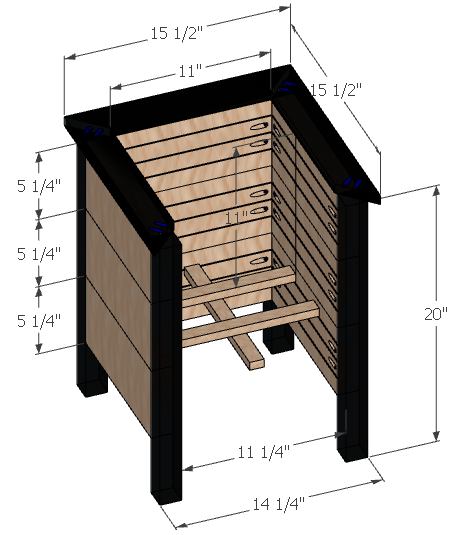

5. Add slats
The planter pots will sit directly onto the slats so it is easy to swap out seasonally. We attached the slats (1 inch pieces of cedar) 11 inches from the top of the planter.
