Notch- Difficulty
- Easy
- Time
- 1.3–2.5 hours
- Cost
- $$
About this build

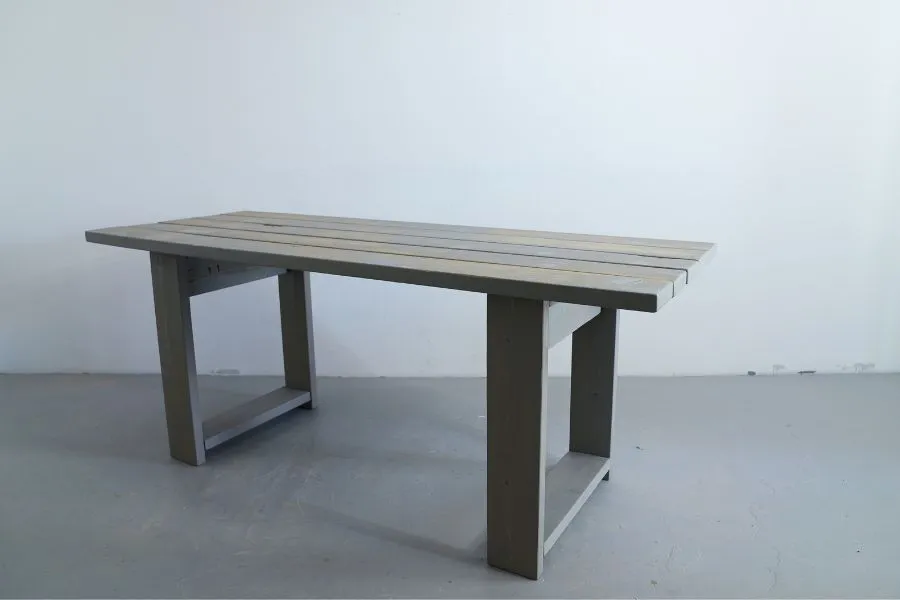

This DIY outdoor table is made out of 2x6 boards that are screwed together with pocket holes.
Tools
Essential
- Circular Saw
- Drill / Driver
- Impact Driver
- Pocket Hole Jig
- Random Orbit Sander
Optional / nice to have
- Bar / Pipe Clamps
Materials
| Item | Qty |
|---|---|
| Treated lumber boards, 2"x6"x8' | 5 board |
| Treated lumber board, 2"x6"x10' | 1 board |
| Treated lumber board, 2"x6"x6' | 2 board |
| 150 grit sandpaper | 1 each |
| 220 grit sandpaper (use any other grit in between these two for a better finish) | 1 each |
| Box of 2" Kreg Blue-Kote screws (see tools list) | 1 each |
| Box of small washers | 1 each |
| Powder-coated legs from Semi-Exact (link in Extras tab) | 4 each |
| Outdoor wood stain | 1 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Table top boards | 5 | 2" × 6" × 6" |
| Legs | 4 | 2" × 6" × 28" |
| Cross supports | 6 | 2" × 6" × 20" |
What to buy
Buy 3 boards at 8 ft.
2" × 6"
3 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions

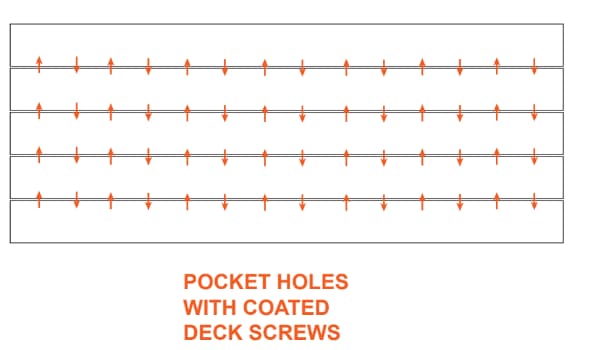

1Cut and fasten the table top
Cut 5 pieces of 2x6 at a length of 6'. Connect the pieces to make the top using pocket holes every 8 inches on the under side of the table top. I used washers as spacers with the pocket screws going through the center to make gaps for rain water about 1/8" to 1/4" wide.

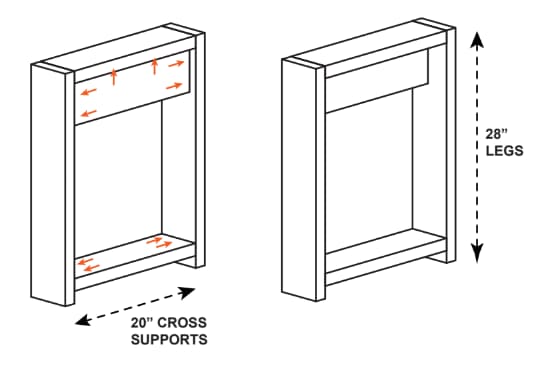

2Assemble the legs
Cut 4 legs 28" long and 6 support pieces 20" long. Use pocket holes to connect the pieces. I placed the holes on the inside or under side of the pieces so that they would be less visible.
Tip: Note - as seen in the video, you can choose to use the powder coated legs (linked in the Extras tab) instead of building your own. Skip this step if you are using the powder-coated legs.
3Add the legs to the table top
Screw through the top cross support on the legs to connect the legs to the table top. Ben noted that he placed them symmetrically so that they supported multiple boards.
