Notch- Difficulty
- Beginner
- Time
- 1.3–2.5 hours
- Cost
- $
About this build

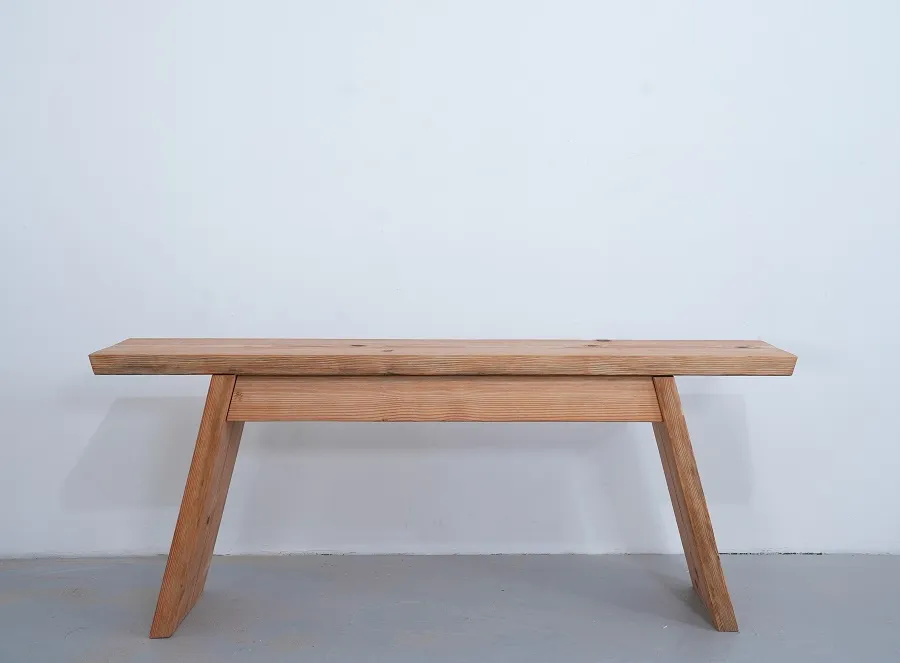

This DIY outdoor bench is made out of pieces of a 2x10 and a 2x4 that are cut at 15 degree angles and screwed together with pocket holes.
Tools
Essential
- Circular Saw
- Drill / Driver
- Pocket Hole Jig
- Random Orbit Sander
Optional / nice to have
- Bar / Pipe Clamps
Materials
| Item | Qty |
|---|---|
| Board, 2"x10"x8' | 1 board |
| Board, 2"x4"x8' | 1 board |
| Box of 2 1/2" blue-kote pocket-hole screws (see tools list) | 1 each |
| 80 grit sandpaper | 1 each |
| Penetrating oil with UV protection | 1 each |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Bench top | 1 | 2" × 10" × 51" |
| Legs | 2 | 2" × 10" × 20" |
| Supports | 2 | 2" × 4" × 32" |
What to buy
Buy 2 boards at 8 ft.
2" × 10"
1 board
2" × 4"
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions

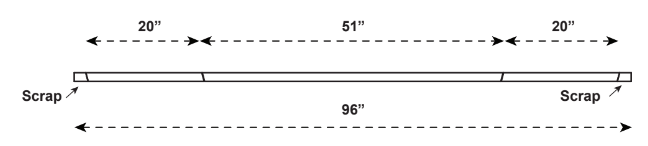

1Cut the 2x10s
Cut a 2x10 with the blade set at 15 degree angle.

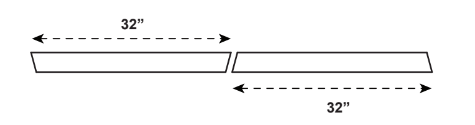

2Cut the 2x4s
Set the blade on the circular saw back to 90 degrees and cut a 2x4 at a 15 degree angle.

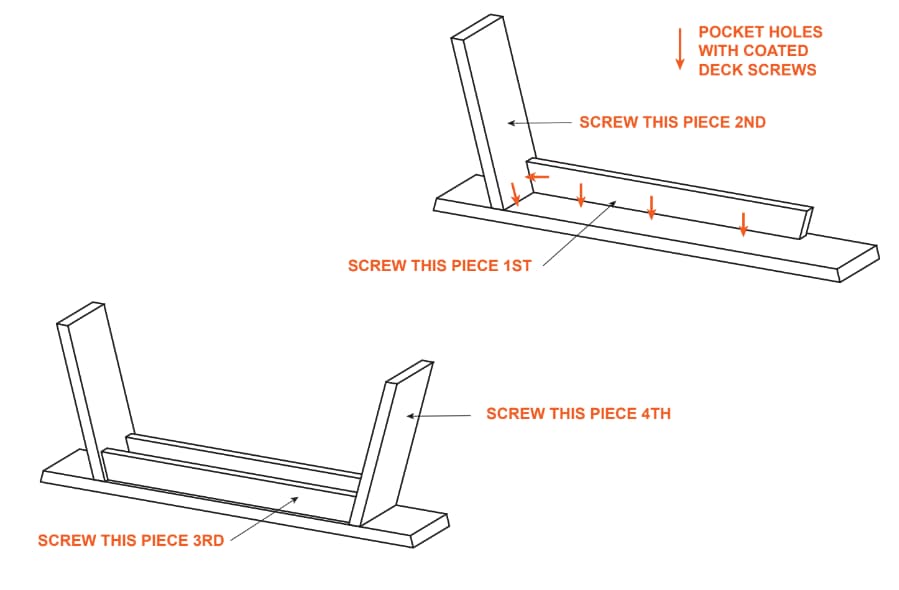

3Assemble the bench
Use pocket holes to connect the pieces. I placed on the holes on the inside of the pieces so that they would be less visible. I screwed one of the 2x4 pieces first before adding a single leg. I then added another 2x4 piece and then the last leg. I used pocket holes to screw the 2x4s to both the legs and to the top of the bench. Use sealer to protect your bench.
Tags
- Outdoor Living
- Beginner
