Open Shelf
Add the perfect decorative accent to your home with this unique open shelf, great for displaying books, plants, or your favorite home decor.
- Difficulty
- Beginner
- Time
- 1.8–3.5 hours
- Cost
- $$

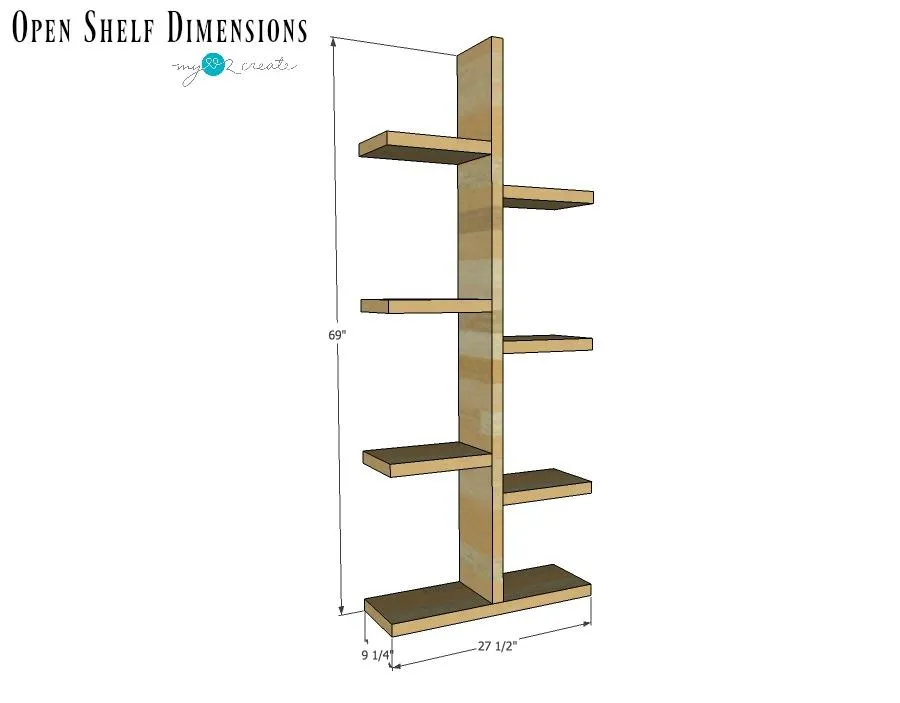

Cut list
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Base | 1 | 1" × 9" × 27" | — | ☐ |
| Divider board | 1 | 1" × 9" × 67" | — | ☐ |
| Shelves | 6 | 1" × 9" × 13" | — | ☐ |
Materials
| Item | Qty | ✓ |
|---|---|---|
| Board, 2x10 96" | 2 board | ☐ |
| 2 1/2'' pocket hole screws | 28 each | ☐ |
| Paint or stain of choice | 1 each | ☐ |
Overall cost: $$. Lumber varies by region, species, and season, so we give a band rather than a figure.
Tools
- Drill / Driver
- Impact Driver
- Miter Saw
- Pocket Hole Jig
- Random Orbit Sander
- Bar / Pipe Clamps — optional
- Combination Square — optional
- Tape Measure — optional
Instructions
1. Cut Wood
Using a miter saw cut your wood to the specified sizes.

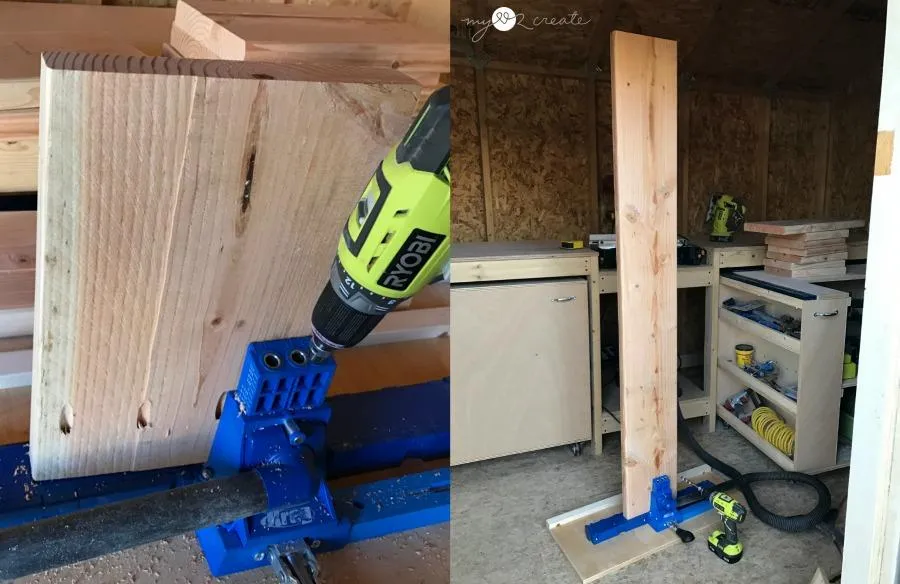

2. Drill pocket holes
Drill 2 1/2'' pocket holes. Each shelf board will need 4 pocket holes on ONE side. The divider board will need 4 pocket holes alternating two on each side.

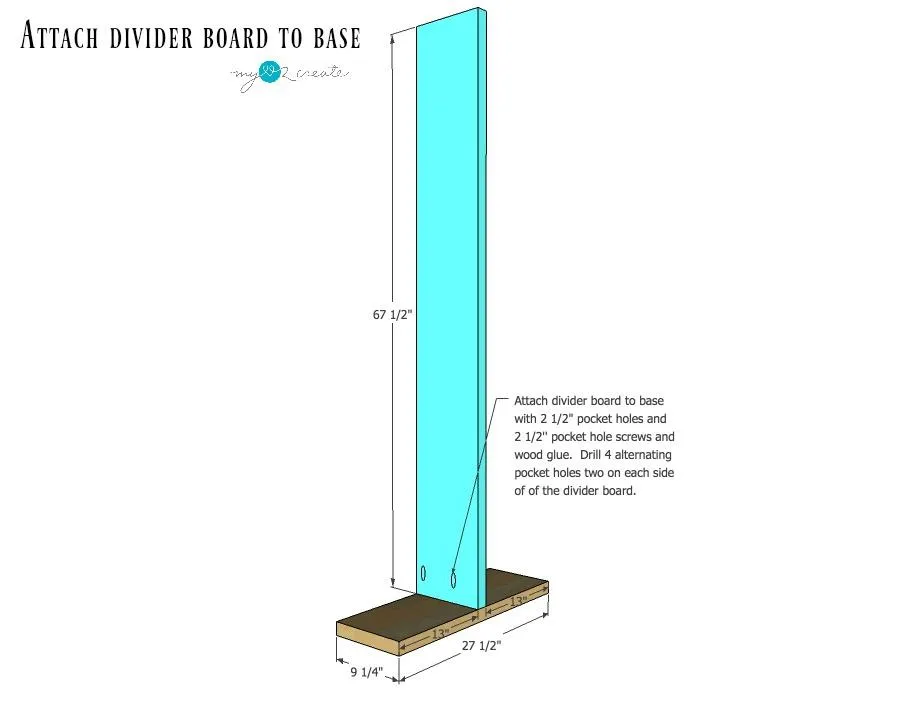

3. Attach divider board to base
Using 2 1/2'' pocket hole screws and wood glue attach the divider board to the center of the base.

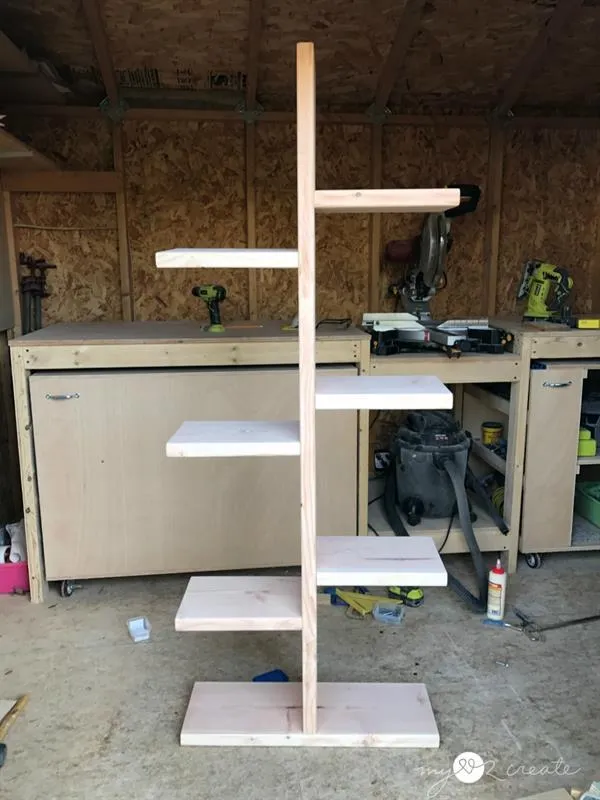

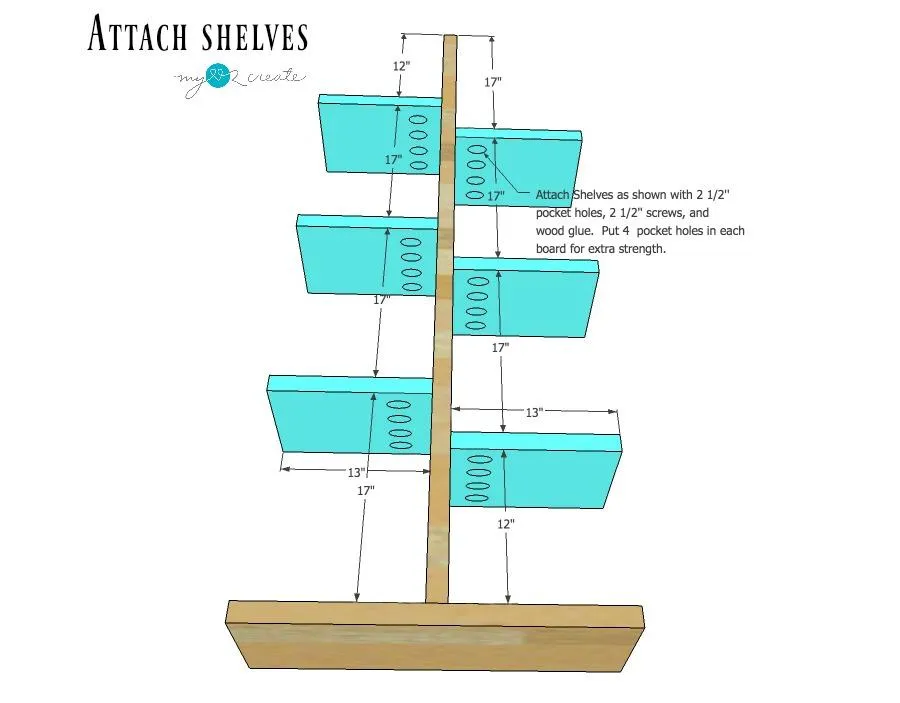

4. Attach shelves to divider board
Using 2 1/2'' pocket hole screws and wood glue attach the shelves to the divider board as shown. For easy placement use scrap spacer boards, one cut at 12'' and one at 17''. Use a right angle clamp or a bar clamp to hole the shelf in place while drilling in the screws.
5. Finish
- Fill desired pocket holes with wood filler or pocket hole plugs, then sand smooth and clean off the dust.
- Apply the paint or stain of your choice.
- Then enjoy! *Recommend: No more than 20 lbs per shelf. If you are worried about stability you can add an L bracket underneath a shelf at the back and attach it to the wall for safety. I have not had any issues with my shelf feeling unstable, but it would be an easy fix if you are concerned.
