Mobile Power Tool Storage Unit
Free plans to build a customizable mobile storage unit that will keep your handheld power tools organized and easily accessible.
- Difficulty
- Easy
- Time
- 2.8–5.3 hours
- Cost
- $$$
Cut list
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Shelves, top and bottom | 10 | 3/4" × 11 1/4" × 17" | — | ☐ |
| Sides | 2 | 3/4" × 11 1/4" × 72" | — | ☐ |
Materials
| Item | Qty | ✓ |
|---|---|---|
| Board, 1x12 72" | 2 board | ☐ |
| Plywood, 3/4" Thick Quarter Sheet | 1 board | ☐ |
| Plywood, 1/4" Thick Quarter Sheet | 1 board | ☐ |
| Pegboard, 1/4" Thick Half Sheet | 1 board | ☐ |
| Board, 1x2 Scrap | 1 board | ☐ |
| Box of shelf pins | 1 each | ☐ |
| Box of 1-1/4" pocket screws | 1 each | ☐ |
| Box of 1-1/4" brad nails | 1 each | ☐ |
| 1-1/4" wood screws | 12 each | ☐ |
| Locking 2" casters | 4 each | ☐ |
| 1-1-1/2" drawer front screws | 16 each | ☐ |
Overall cost: $$$. Lumber varies by region, species, and season, so we give a band rather than a figure.
Tools
- Brad Nailer
- Drill / Driver
- Miter Saw
- Pocket Hole Jig
- Combination Square — optional
- Tape Measure — optional
Instructions
1. Cut shelves
You can either use additional 1 x 12's to make the 17" long shelves or 3/4" plywood. I used up some leftover 3/4" plywood and shelving that I had in my woodpile to make mine.

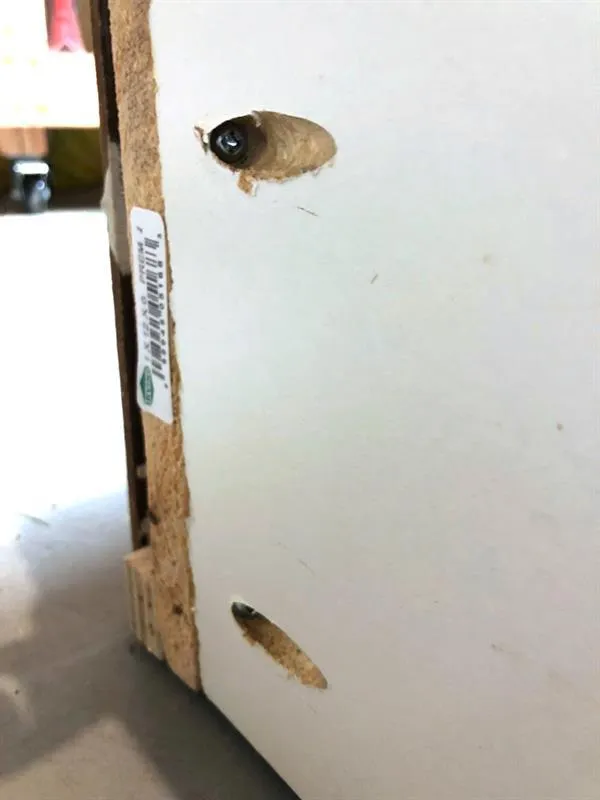

2. Drill pocket holes
Drill three pocket holes on both short ends of two of the shelf pieces.
3. Attach top and bottom
Using glue and pocket screws, attach a shelf to the ends of the 1 x 12" to make the top and bottom of the shelving unit.

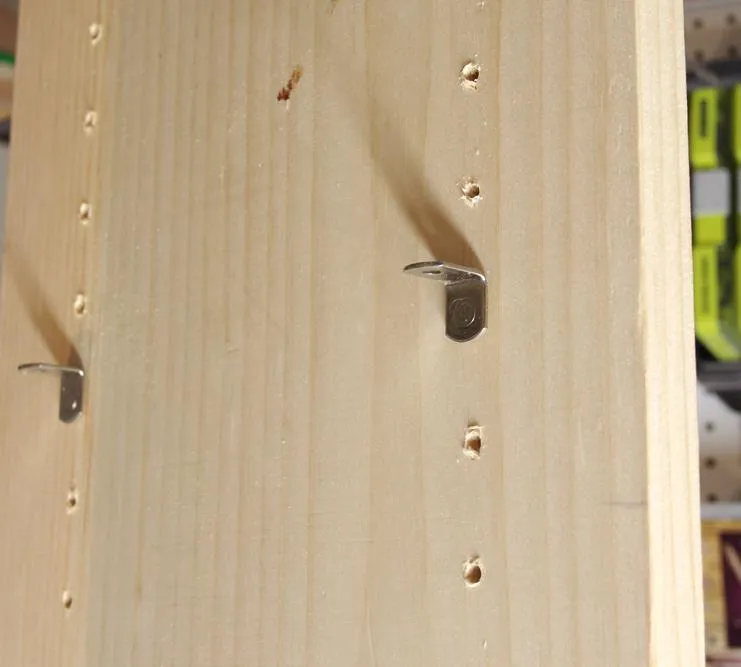

4. Drill shelf pin holes
Using the Kreg Shelf Pin Jig, drill shelf pin holes along the inside of the shelf sides.

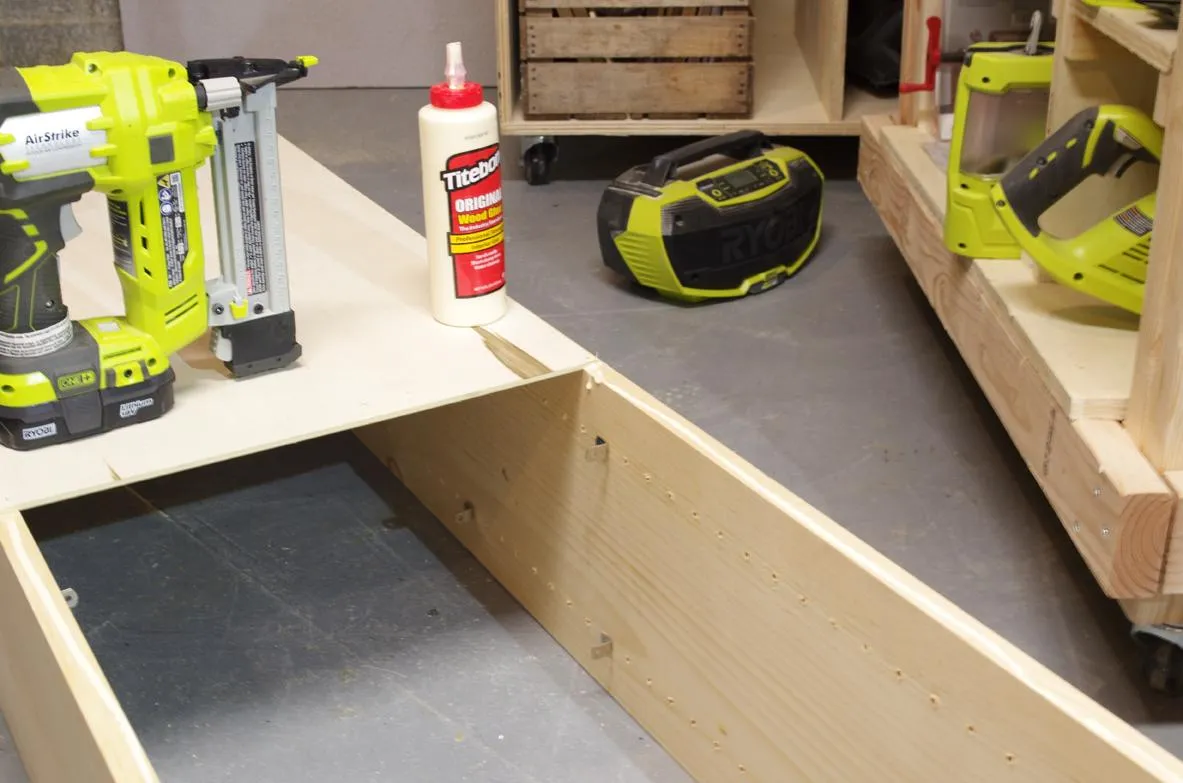

5. Attach back of shelving unit
Cut a piece of the 1/4" plywood to fit the back of the shelving unit. Attach with glue and brad nails.

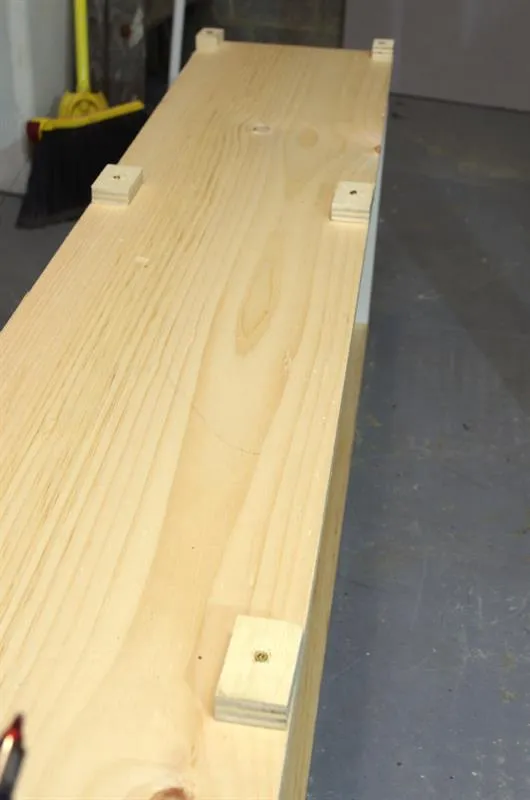

6. Optional pegboard sides
First, screw in small blocks of wood into the four corners of each side and also to the middle along the edges. (see photo)

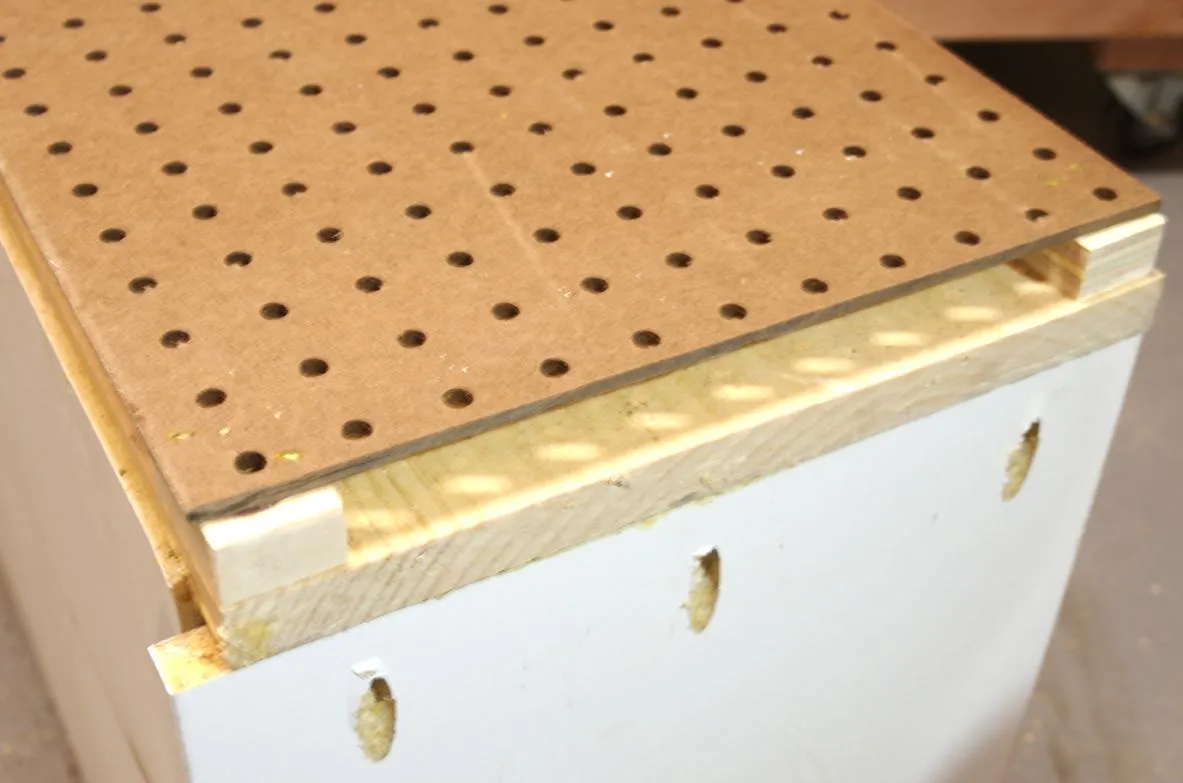

7. Pegboard sides part 2
Cut and piece pegboard to fit each side of the shelving unit. Attach with staples or brad nails to blocks that were screwed in during the previous step.

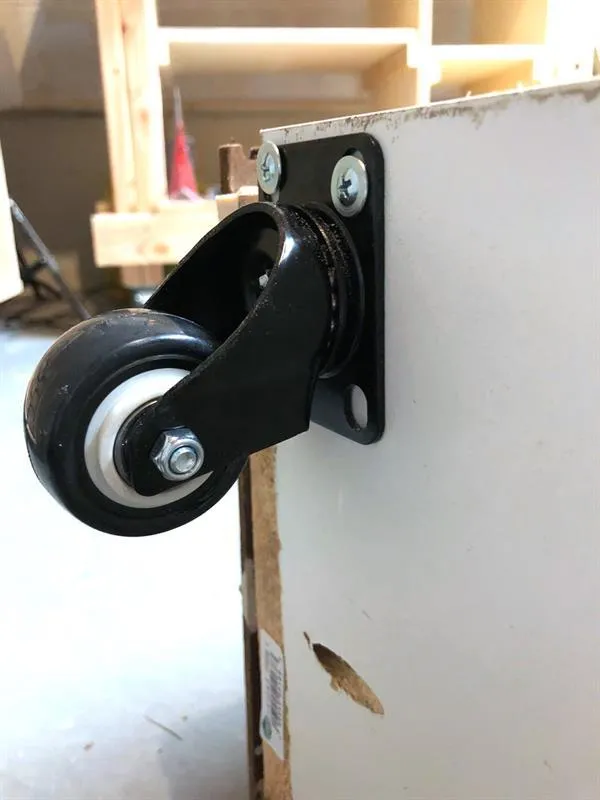

8. Wheels
Add the wheels using 1-1/4" drawer front screws. I use this type of screw with the wide head because of the size of the holes on the wheels.

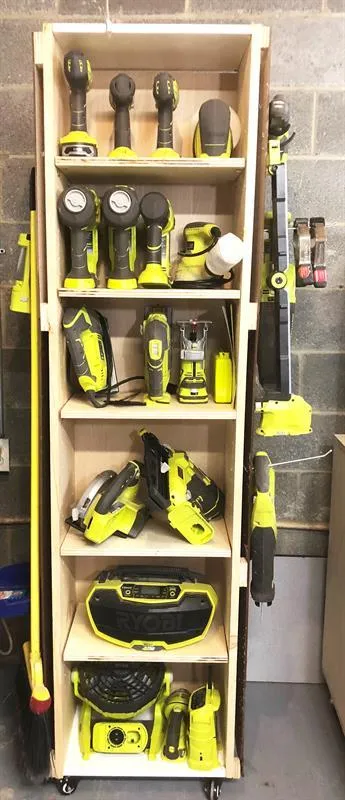

9. Shelves
Add the shelves and customize the placement of the shelves for your tools and storage needs.
