A freestanding pantry cabinet perfect for storage and additional counterspace.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Top | 1 | 3/4" × 24" × 36" | — | ☐ |
| Bottom | 1 | 3/4" × 23" × 34" | — | ☐ |
| Sides | 2 | 3/4" × 14" × 35" | — | ☐ |
| Undertop & shelves | 3 | 3/4" × 14" × 33" | — | ☐ |
| Base trim sides | 2 | 3/4" × 3 1/2" × 36" | — | ☐ |
| Base trim front | 1 | 3/4" × 3 1/2" × 36" | — | ☐ |
| Backing | 1 | 1/4" × 34" × 35" | — | ☐ |
| Sides | 4 | 3/4" × 7 1/4" × 2" | — | ☐ |
| Top, bottom & shelves | 8 | 3/4" × 7 1/4" × 8" | — | ☐ |
| Shelf trim | 6 | 3/4" × 2 1/2" × 8" | — | ☐ |
| Backing | 2 | 1/4" × 17" × 31" | — | ☐ |
| Trim sides | 4 | 3/4" × 2 1/2" × 2" | — | ☐ |
| Trim top & bottom | 4 | 3/4" × 2 1/2" × 8" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Plywood, 3/4" Thick Full Sheet | 2 board | ☐ |
| Plywood, 1/4" Thick Full Sheet | 1 board | ☐ |
| Board, 1x4 96" | 1 board | ☐ |
| Board, 1x8 96" | 3 board | ☐ |
| Board, 1x3 96" | 3 board | ☐ |
| 1 1/4" pocket hole screws | 50 each | ☐ |
| 1 1/4" wood screws | 20 each | ☐ |
| 3/4" wood screws | 20 each | ☐ |
| 1" finish nails | 30 each | ☐ |
| Cabinet hinges full wrap | 6 each | ☐ |
| Hardware pulls | 2 each | ☐ |
| Magnetic latches | 2 each | ☐ |
| Shelf pins | 4 each | ☐ |
| Wood glue | 1 each | ☐ |
Overall cost: $$$$. Lumber varies by region, species, and season, so we give a band rather than a figure.

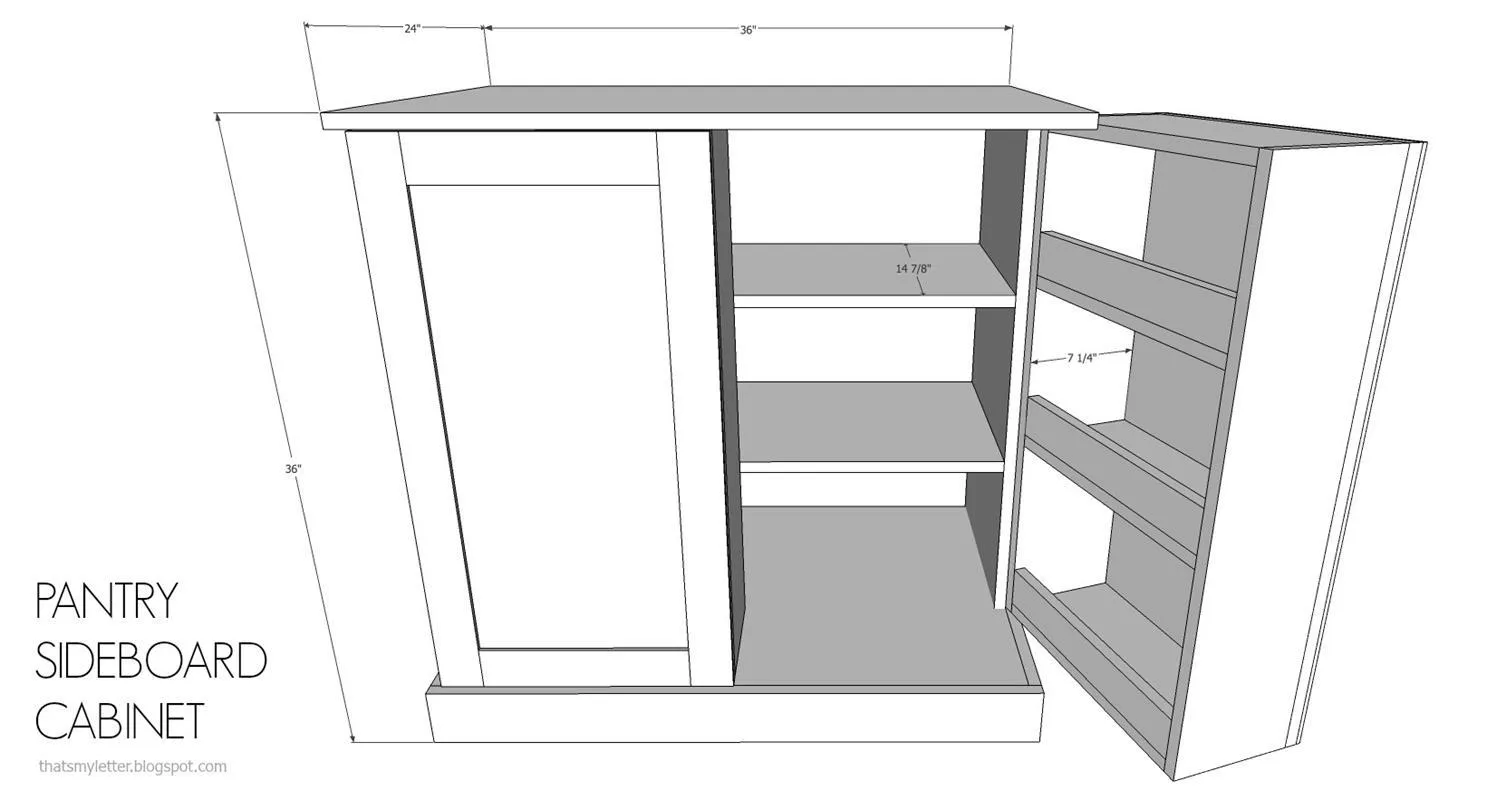

Overall dimensions: 36"w x 24"d x 36"h

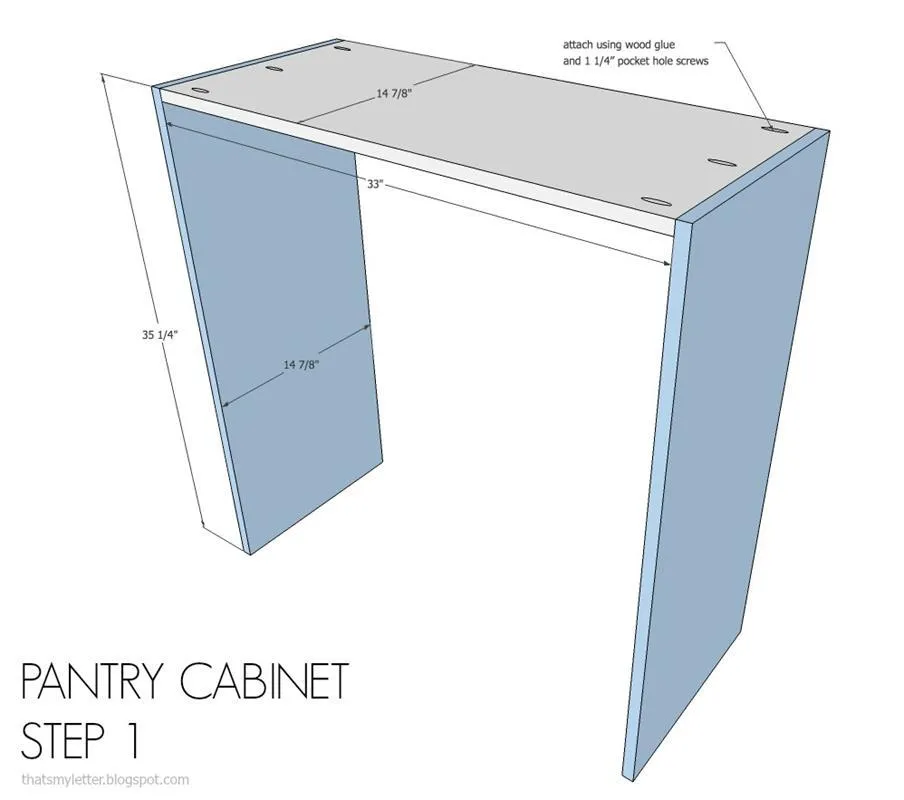

Attach sides to undertop using wood glue and 1 ¼” pocket hole screws.

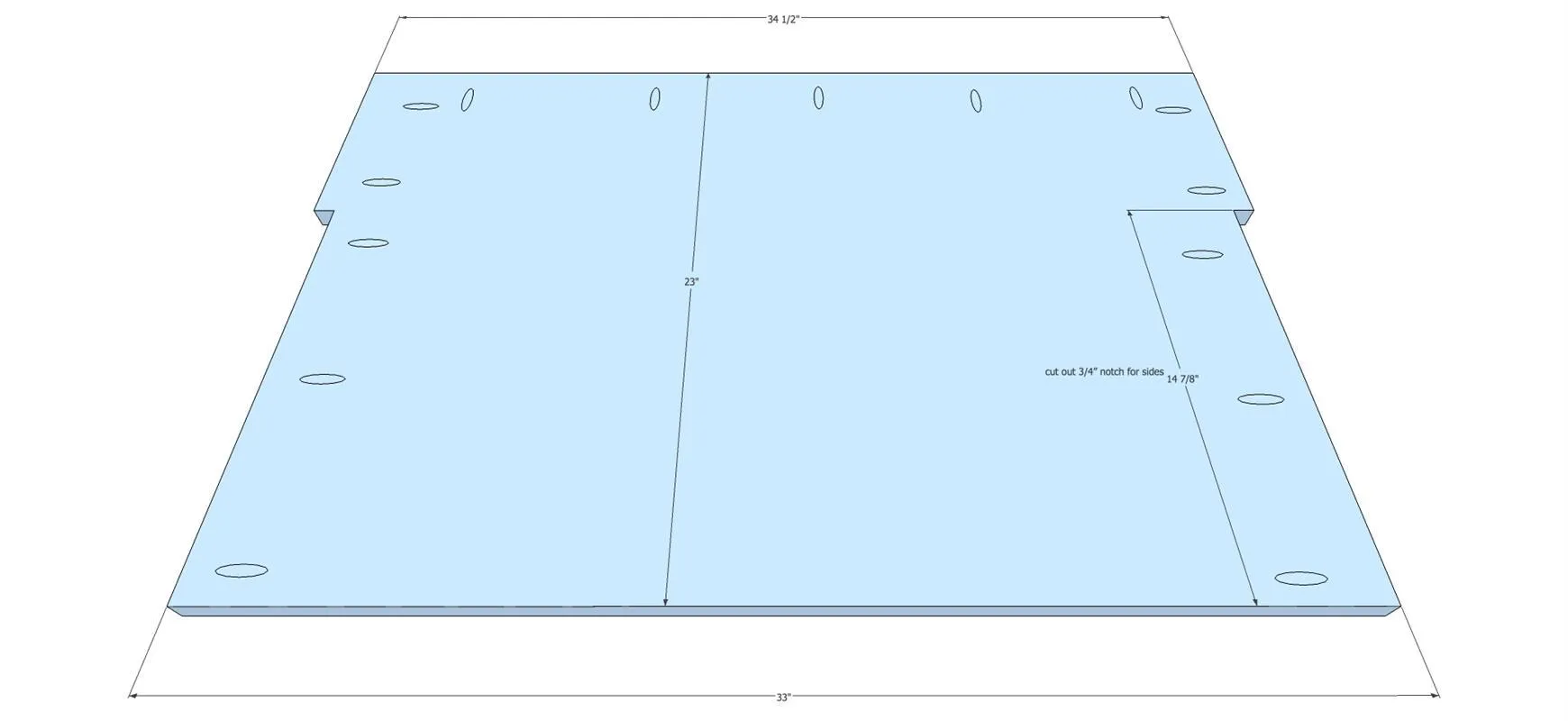

Using a jig saw notch out bottom piece at sides as per sketch above.

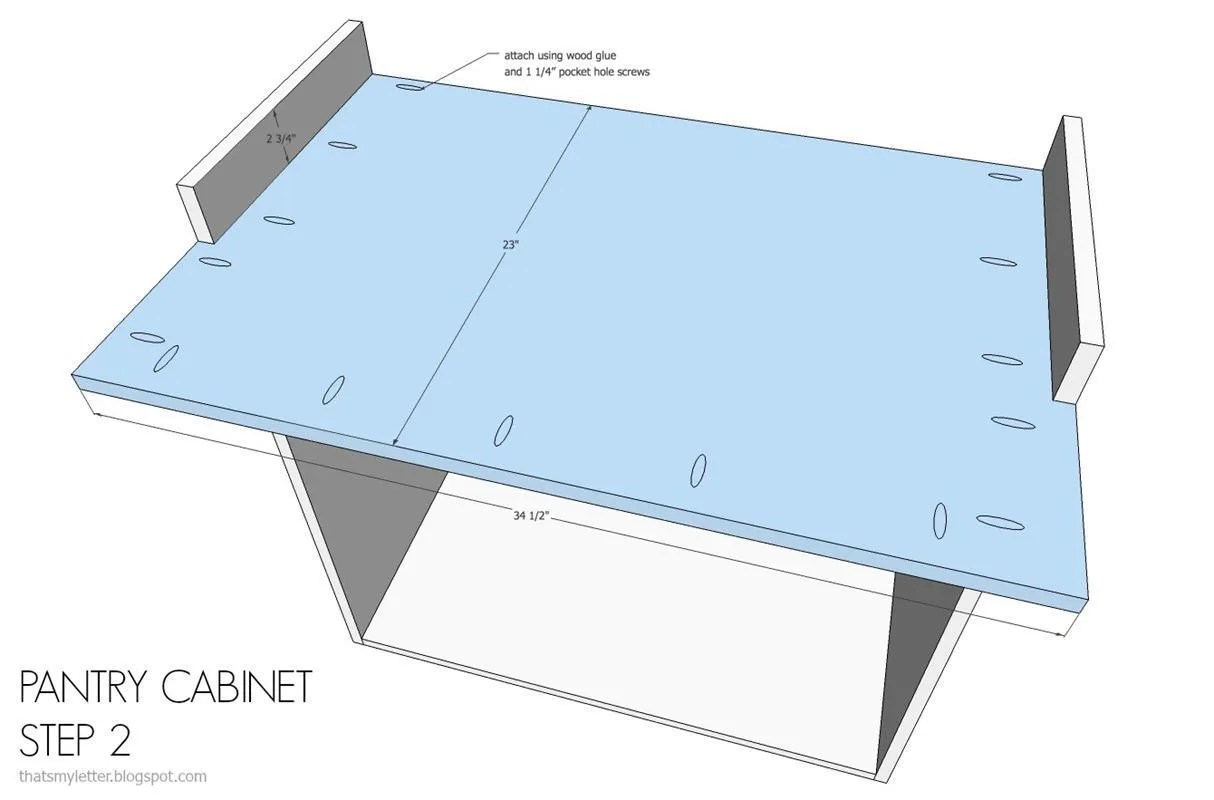

Attach bottom to sides using wood glue and 1 ¼” pocket hole screws.

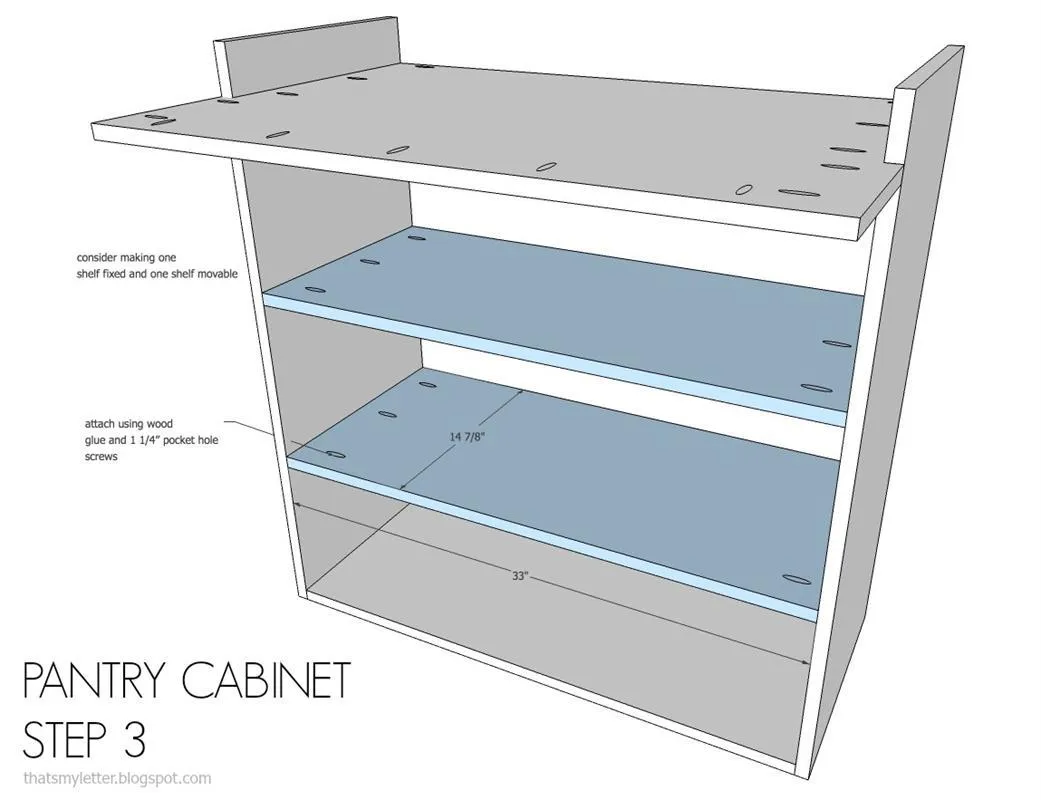

Attach shelves as desired. I suggest making one fixed shelf and one movable shelf. For the fixed shelf attach using wood glue and 1 ¼” pocket hole screws.

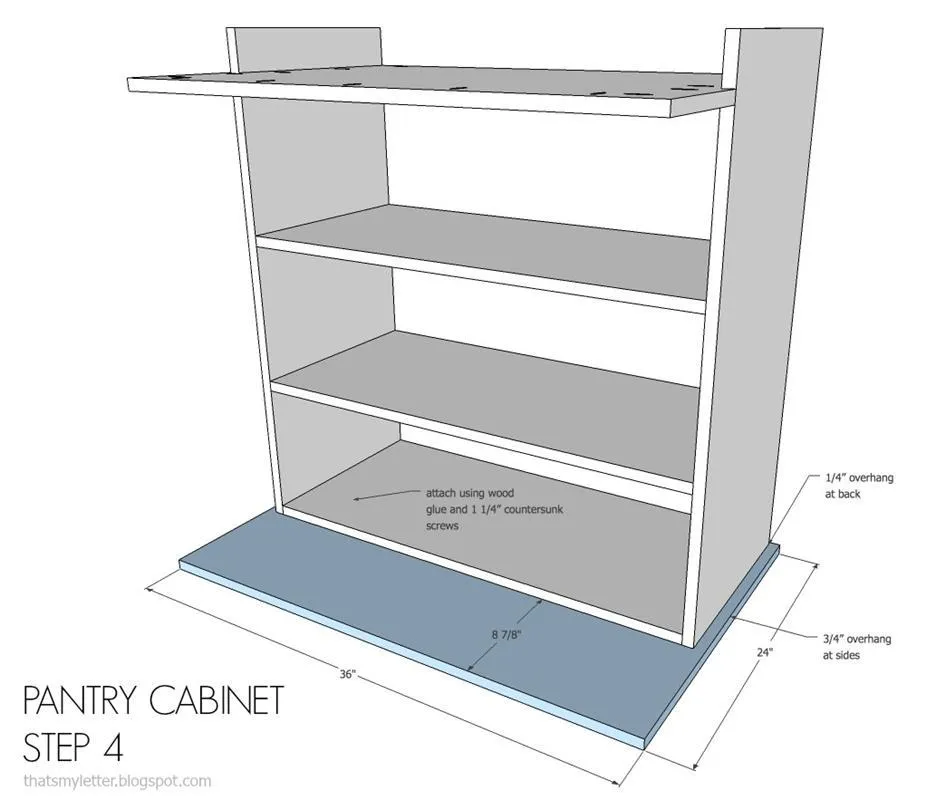

Attach top to undertop using wood glue and countersunk 1 ¼” wood screws. Leave ¼” overhang at back and ¾” overhang on both sides.

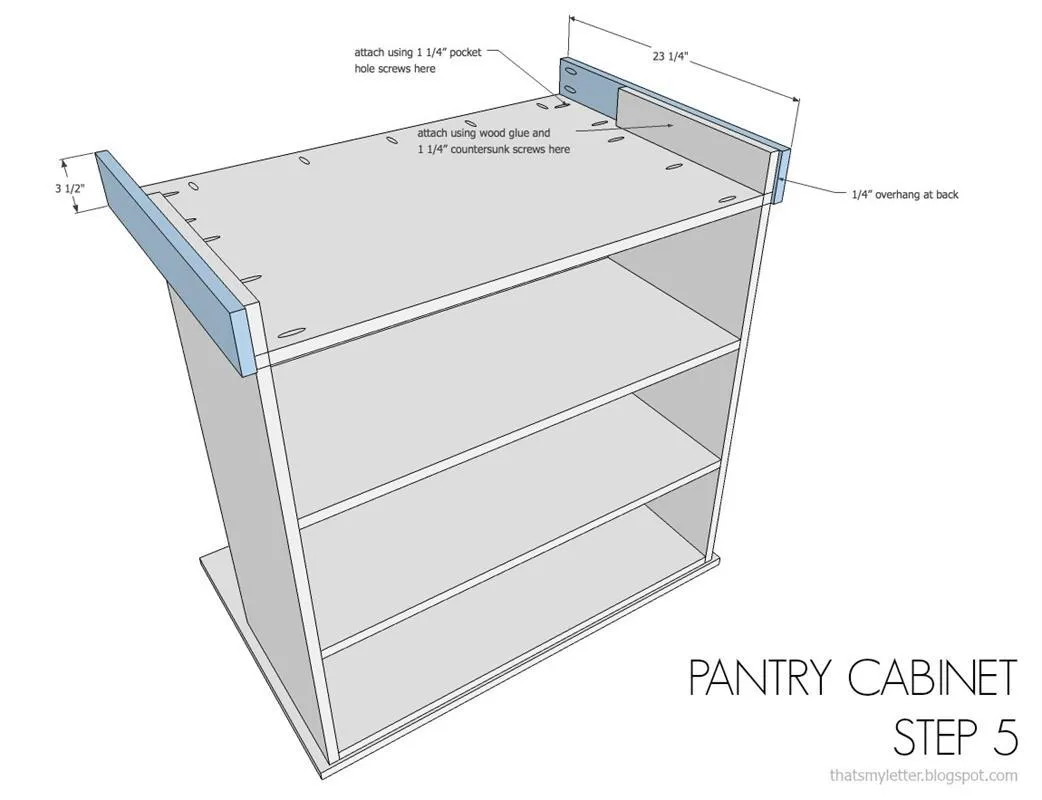

Attach base trim sides to carcass sides using wood glue and countersunk 1 ¼” wood screws. Attach front portion to bottom piece using 1 ¼” pocket hole screws.

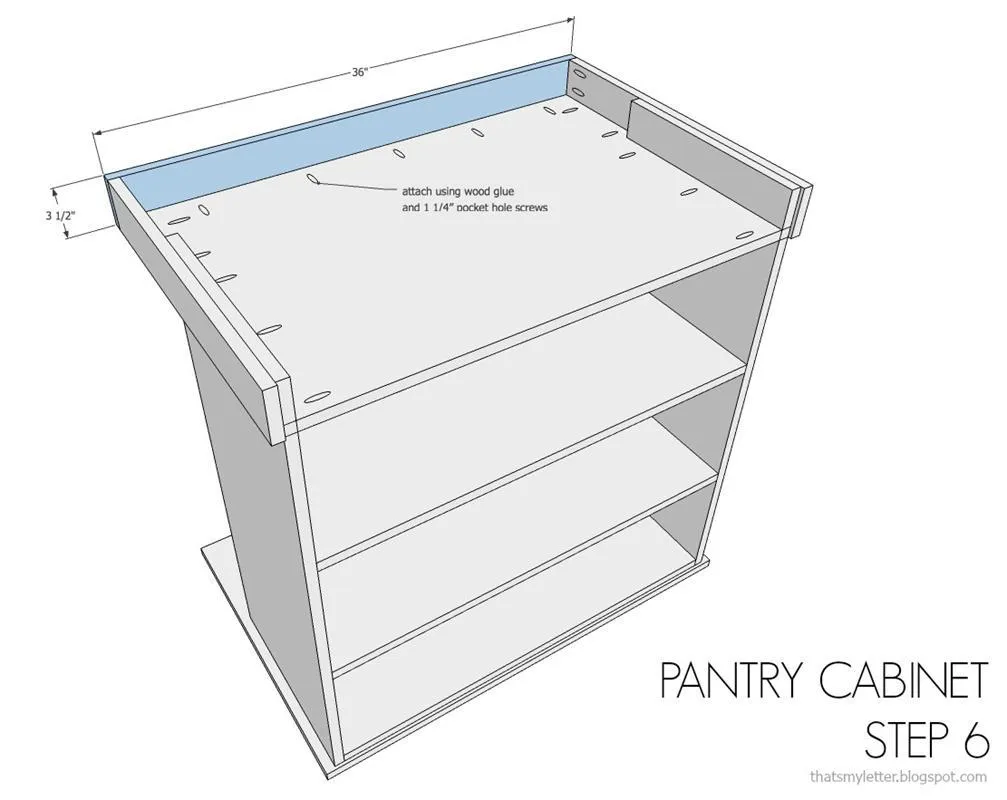

Attach front base trim to bottom piece using wood glue 1 ¼” pocket hole screws. Also attach to base trim side pieces using 1 ¼” pocket hole screws.

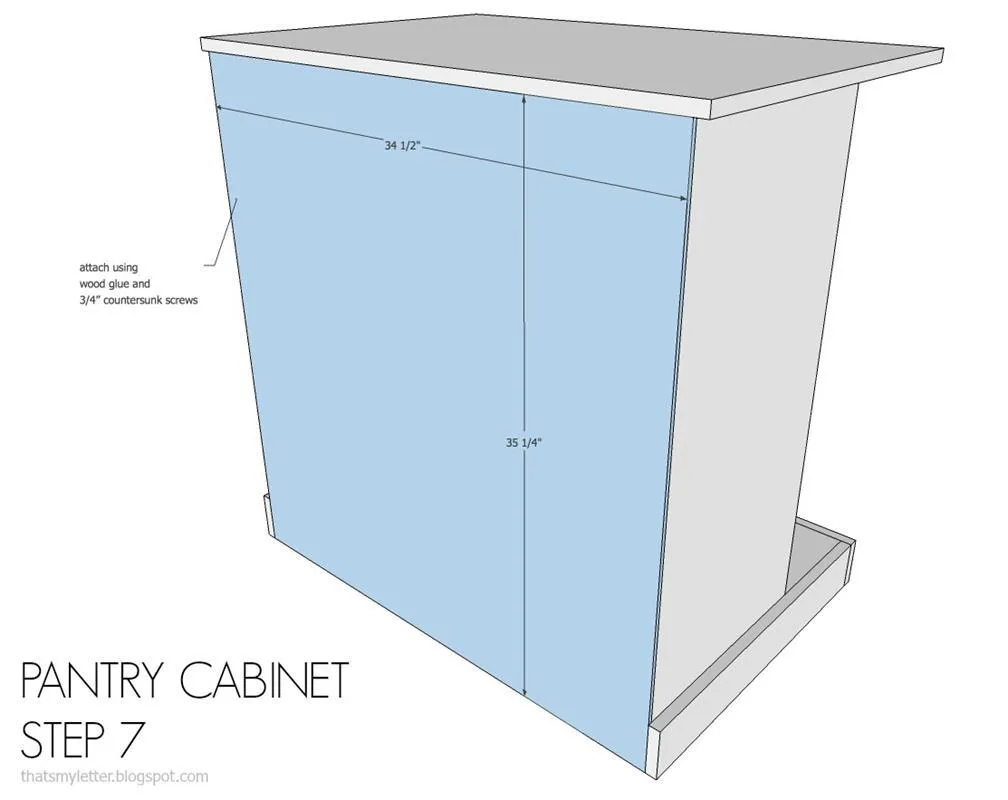

Attach backing to carcass using wood glue and ¾” countersunk wood screws.

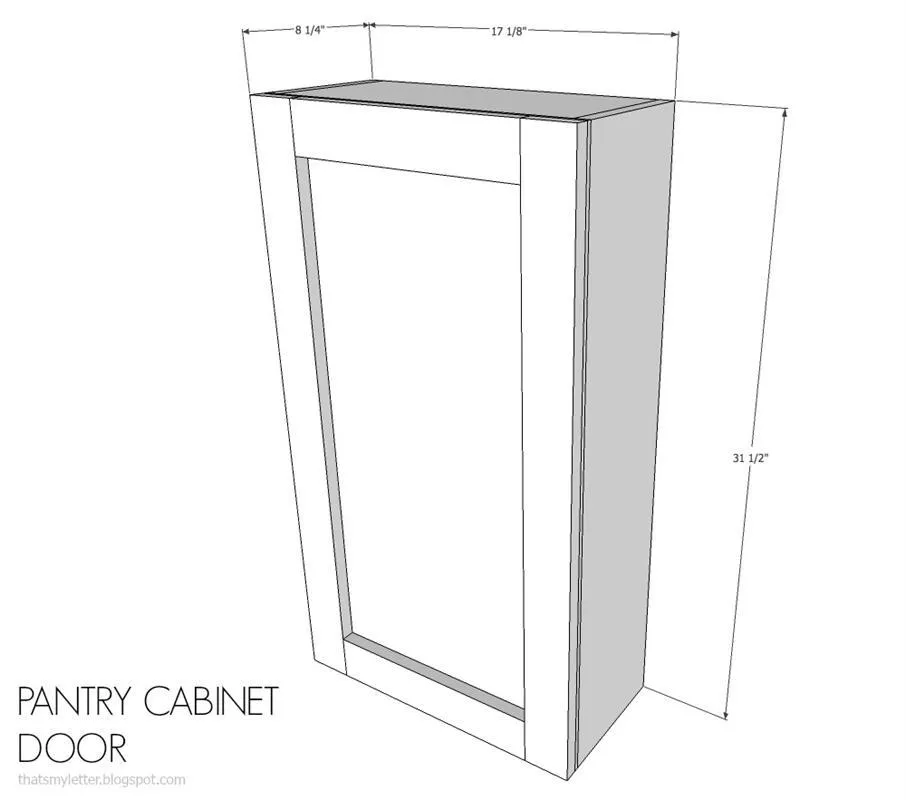

Overall door dimensions: 17 1/8"w x 31 1/2" h x 8 1/4"d

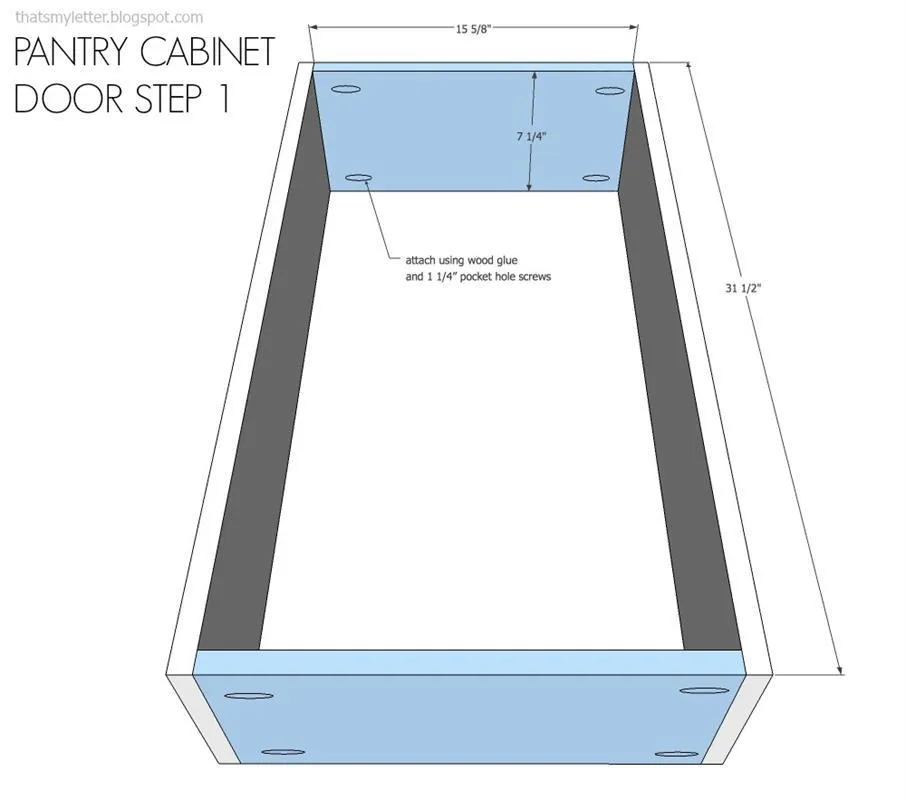

Make door frame by attaching top and bottom to sides using wood glue and 1 ¼” pocket hole screws.

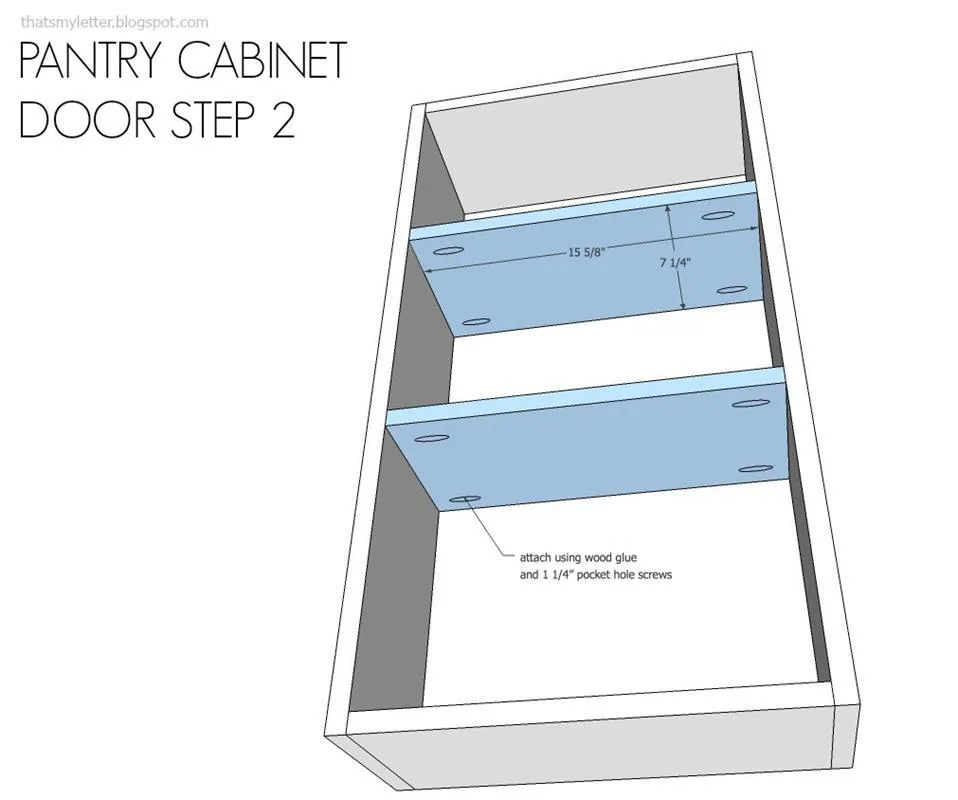

Insert shelves using wood glue and 1 ¼” pocket hole screws.

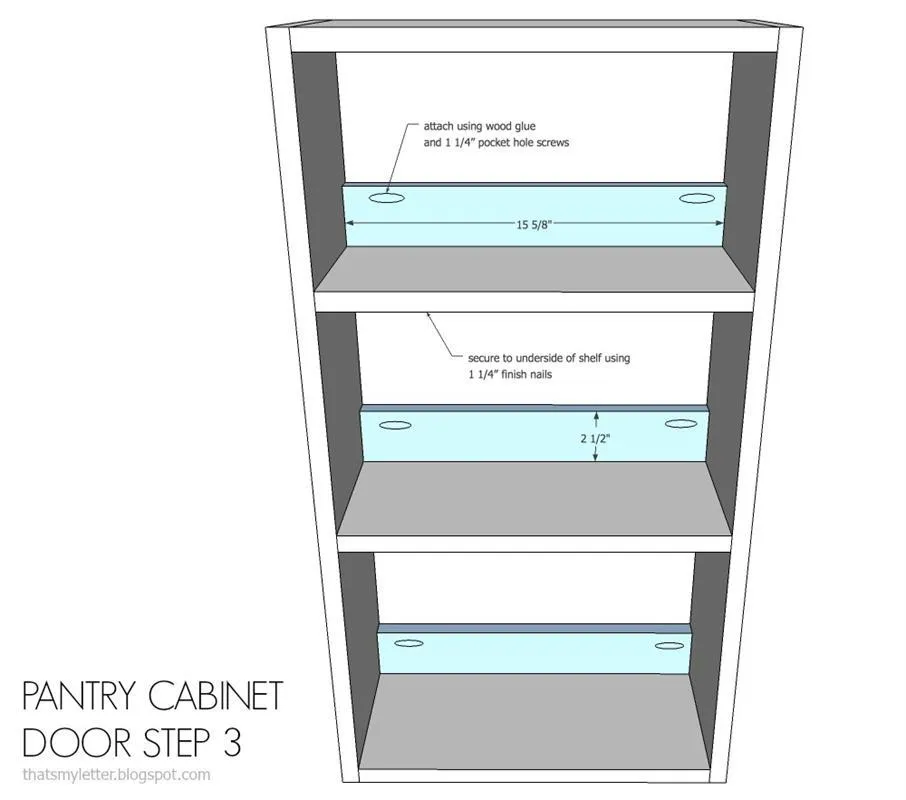

Attach shelf trim flush to front using wood glue and 1 ¼” pocket hole screws at sides and secure to shelf at underside using 1 ¼” finish nails.

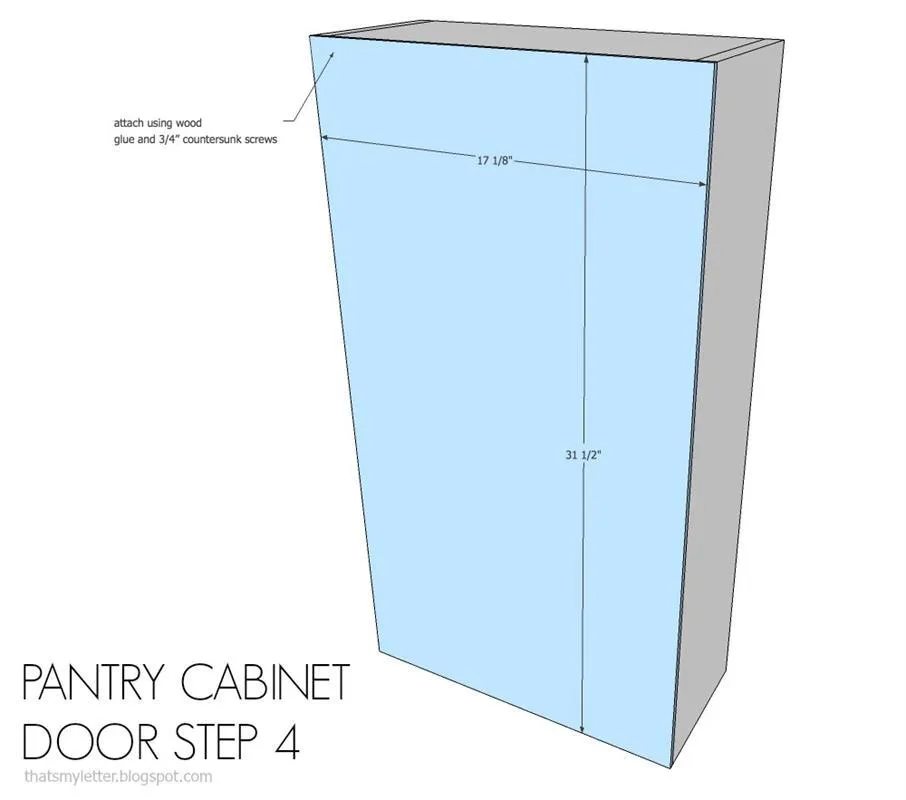

Attach backing to door frame using wood glue and countersunk 3/4” wood screws.

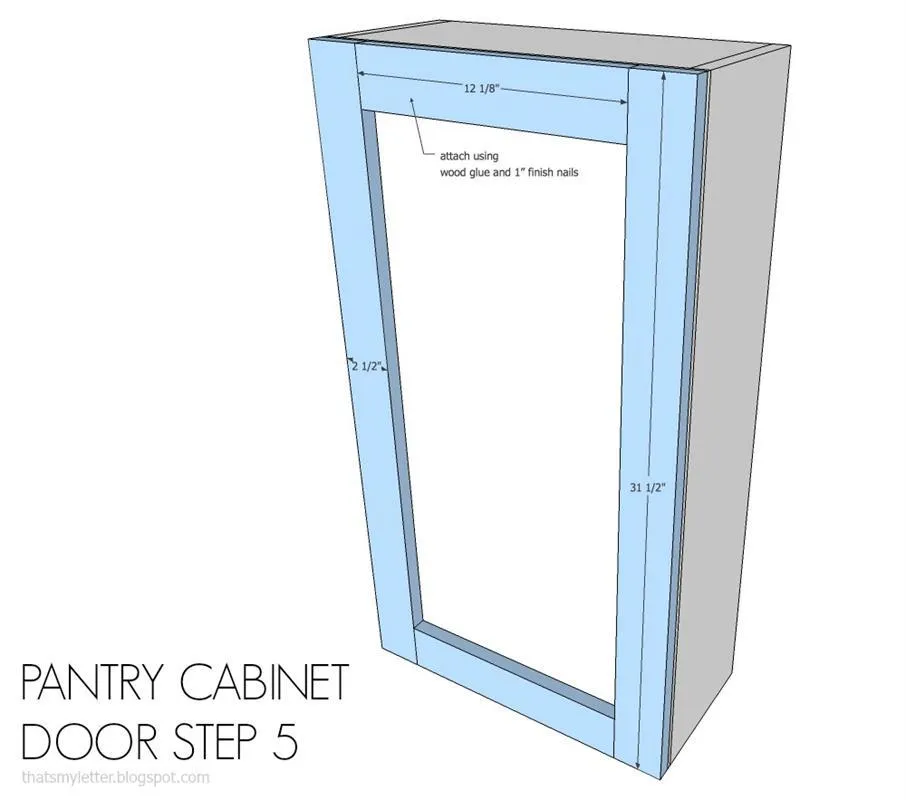

Attach trim pieces using wood glue and 1” finish nails.
