This kids' craft table has a bucket in the center to store art supplies and two secret cubbies underneath for books or small toys.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Long Aprons | 2 | 3/4" × 3 1/2" × 41" | — | ☐ |
| Turned Legs | 4 | 2 1/2" × 2 1/2" × 21" | — | ☐ |
| Short Aprons | 2 | 3/4" × 2 1/2" × 17" | — | ☐ |
| Cubby Bottoms | 2 | 3/4" × 8" × 19" | — | ☐ |
| Top | 1 | 3/4" × 24" × 48" | — | ☐ |
| Table Top Trim | 2 | 3/4" × 1 1/2" × 49 1/2" | — | ☐ |
| Table Top Trim | 2 | 3/4" × 1 1/2" × 25 1/2" | — | ☐ |
| Cubby Backs | 2 | 3/4" × 2 1/2" × 19" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Part #1240, Osborne Wood Farm End Table Legs 21" x 2-1/2" | 4 board | ☐ |
| Board, 1x4 96" | 1 board | ☐ |
| Board, 1x3 96" | 1 board | ☐ |
| Plywood, 3/4" Thick Half Sheet | 1 board | ☐ |
| Board, 1x2 96" | 2 board | ☐ |
| 1-1/4" Pocket Hole Screws | 1 each | ☐ |
| 1-1/4" Brad Nails | 1 each | ☐ |
| Wood Glue | 1 each | ☐ |
Overall cost: $$$$. Lumber varies by region, species, and season, so we give a band rather than a figure.

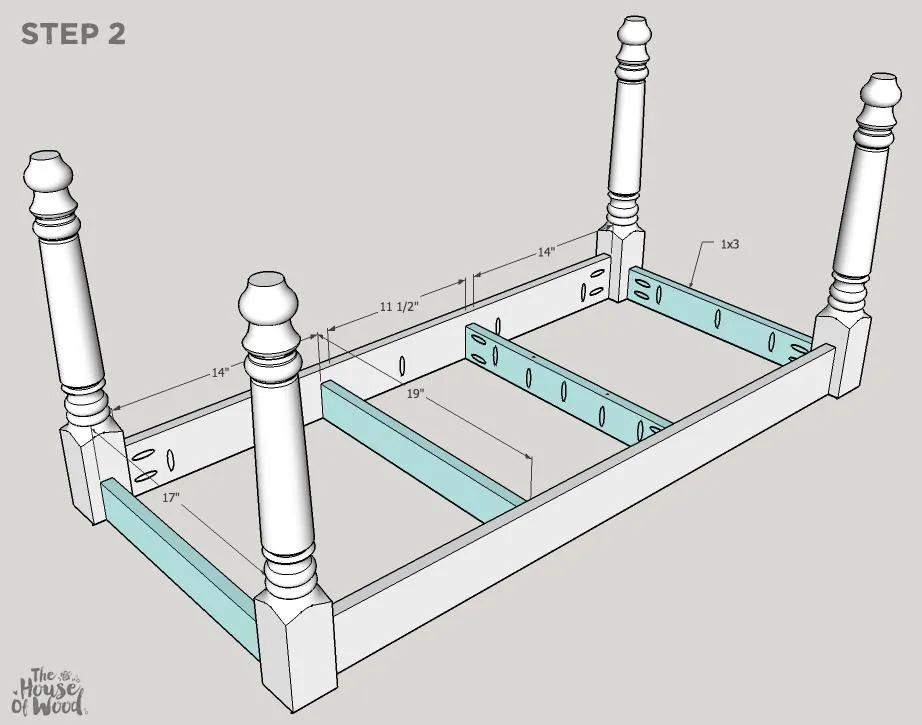

Drill 3/4" pocket holes into the 1x3 boards as shown. Notice that the two middle 1x3 boards have pocket holes drilled facing both up and down. The downward-facing pocket holes will be to attach the secret cubby shelf in the next step. Use 1-1/4" pocket hole screws and wood glue.

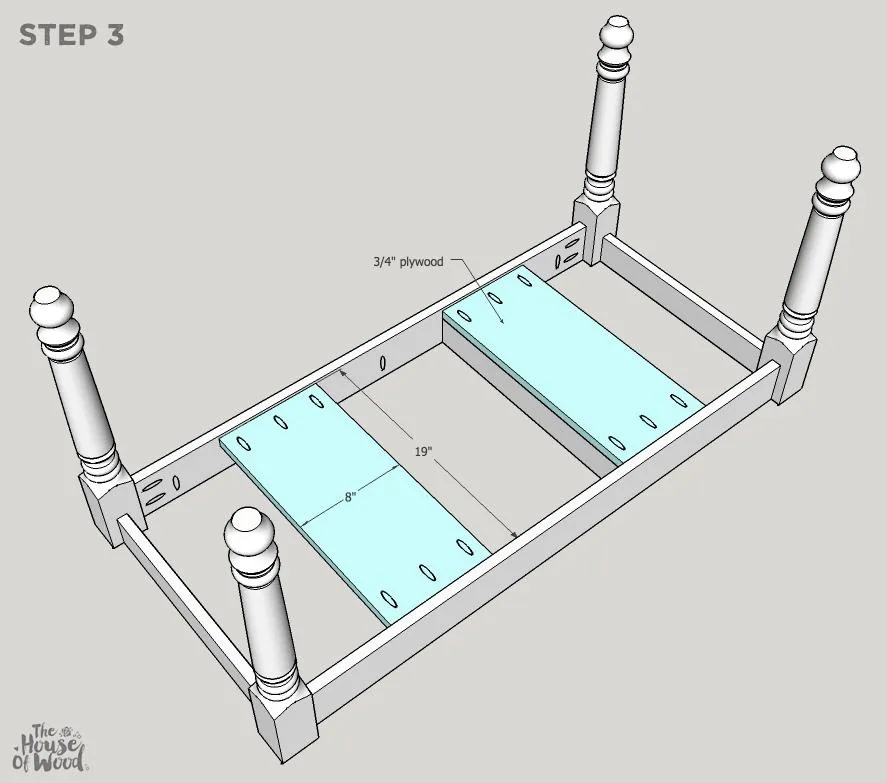

Drill 3/4" pocket holes into the 3/4" plywood shelves as shown and attach it to the long aprons with 1-1/4" pocket hole screws and wood glue. Attach the 1x3 boards to the shelf with 1-1/4" pocket hole screws as well. *Tip: use a scrap 1x3 piece to keep the shelf level while you're attaching it.

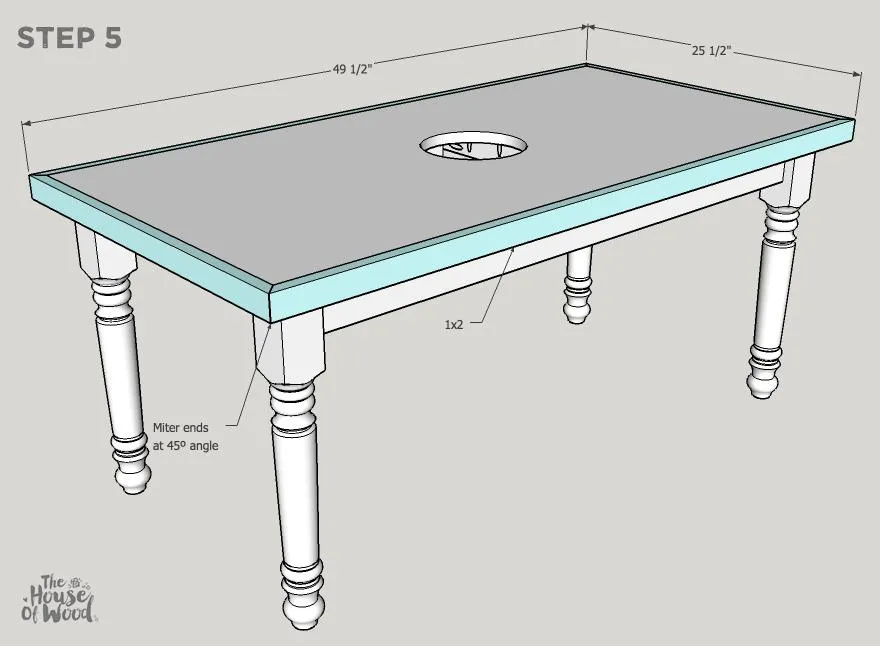

Measure and miter cut the ends of the 1x2 trim at 45º angle. Use wood glue and 1-1/4" brad nails to attach it to the perimeter of the table top.
