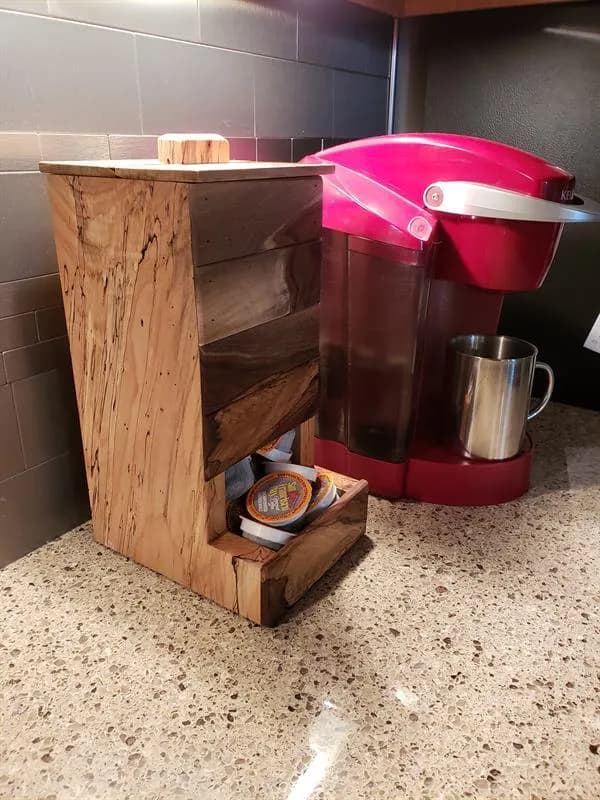

An easy K-cup dispenser to hold K-cups or coffee pods.
| Item | Qty |
|---|---|
| Board, 1x8 36" | 1 board |
| Board, 1x6 24" | 1 board |
| Board, 3/8" 48" | 1 board |
| Top pull | 1 each |
| 10 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Base | 1 | 3/4" × 4" × 7" |
| Sides | 2 | 3/4" × 7" × 12" |
| Back | 1 | 3/4" × 4" × 11" |
| Front pieces | 4 | 3/16" × 2" × 5" |
| Top | 1 | 3/8" × 5" × 5" |
| Sub-top | 1 | 3/8" × 4" × 4" |
| Bottom front piece | 1 | 3/8" × 2" × 5" |
Buy 6 boards at 8 ft.
1 board
1 board
1 board
1 board
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

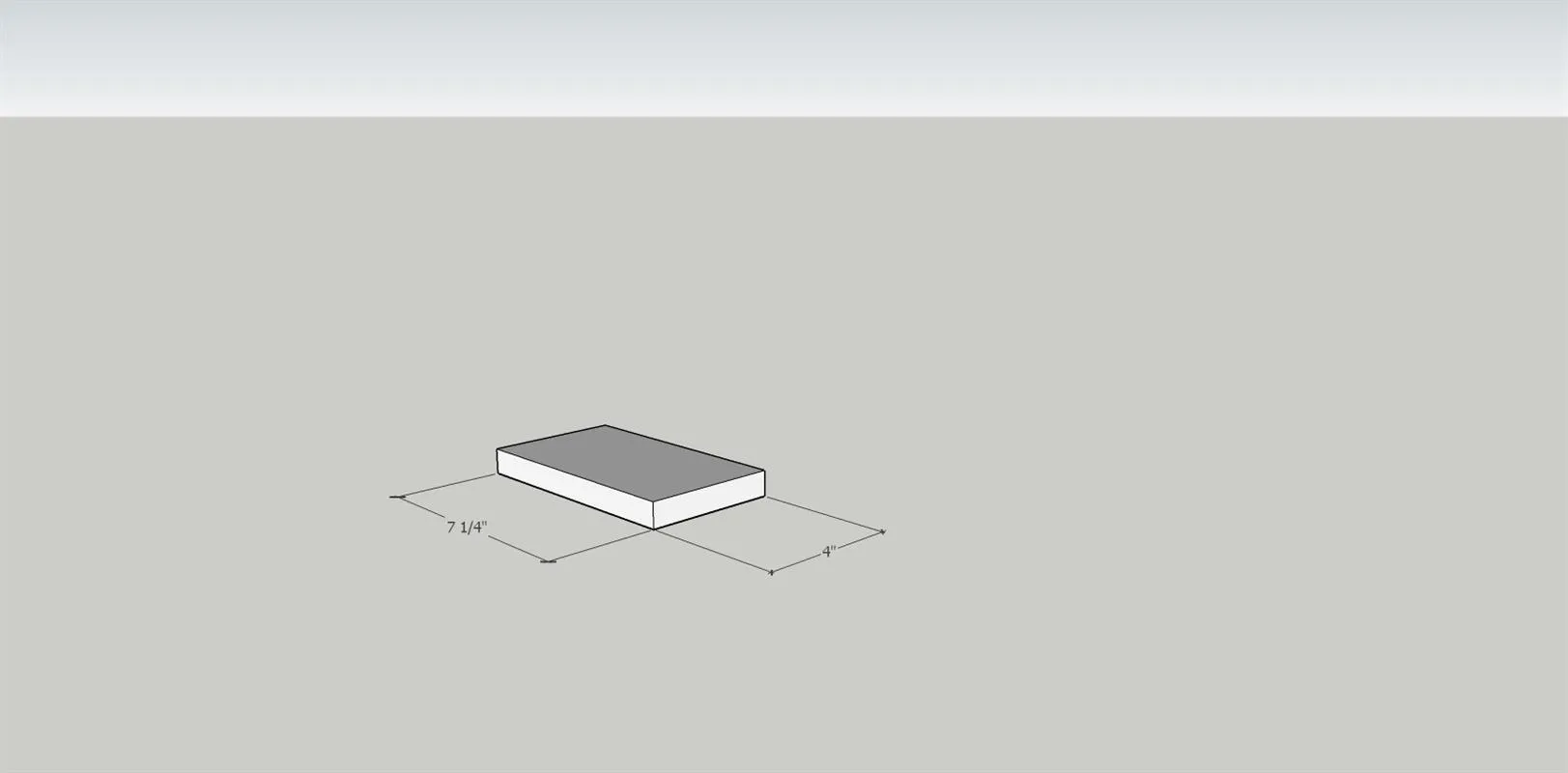

Cut the base per the dimensions indicated.

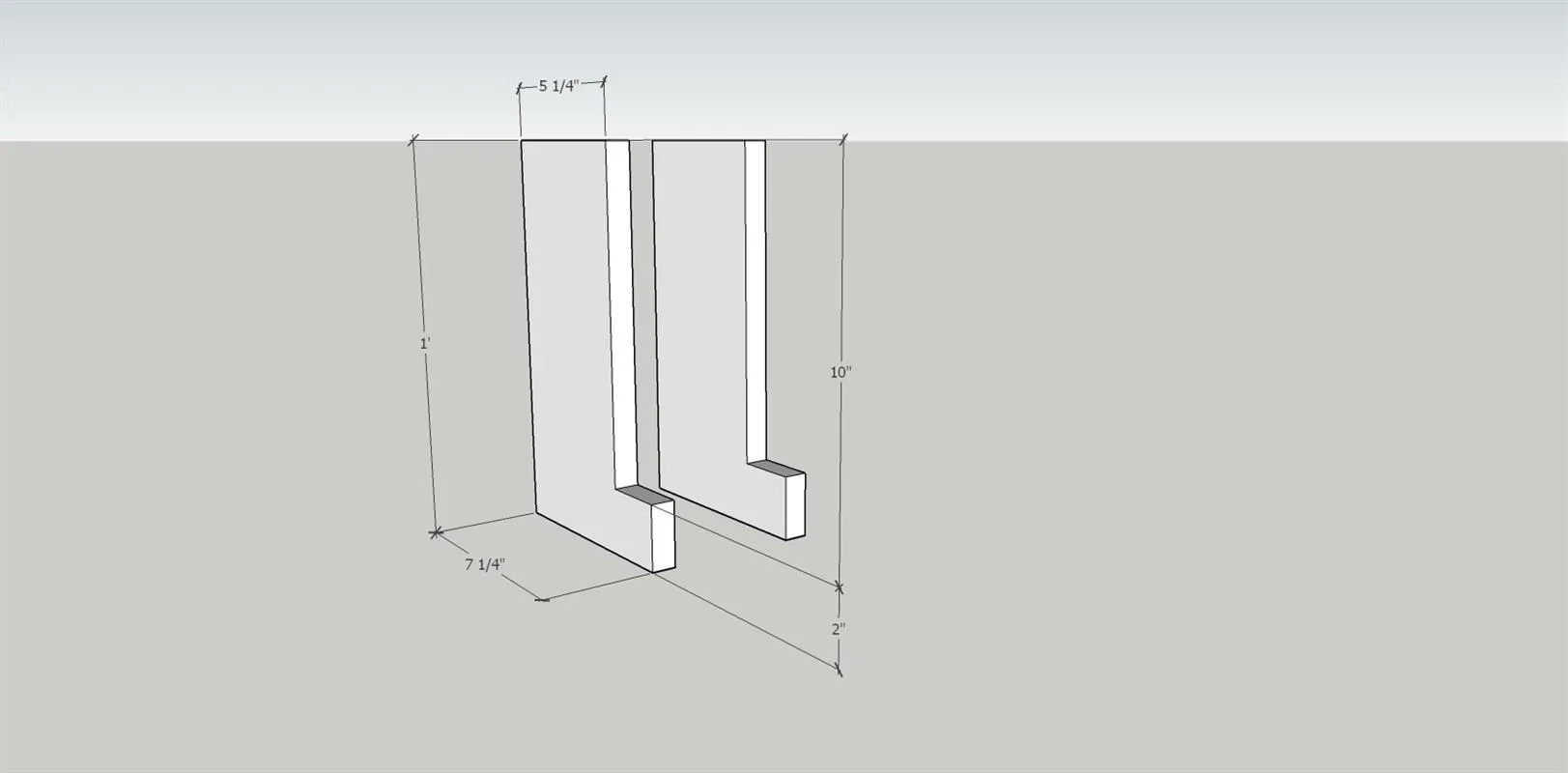

Cut two side panels per the dimensions indicated

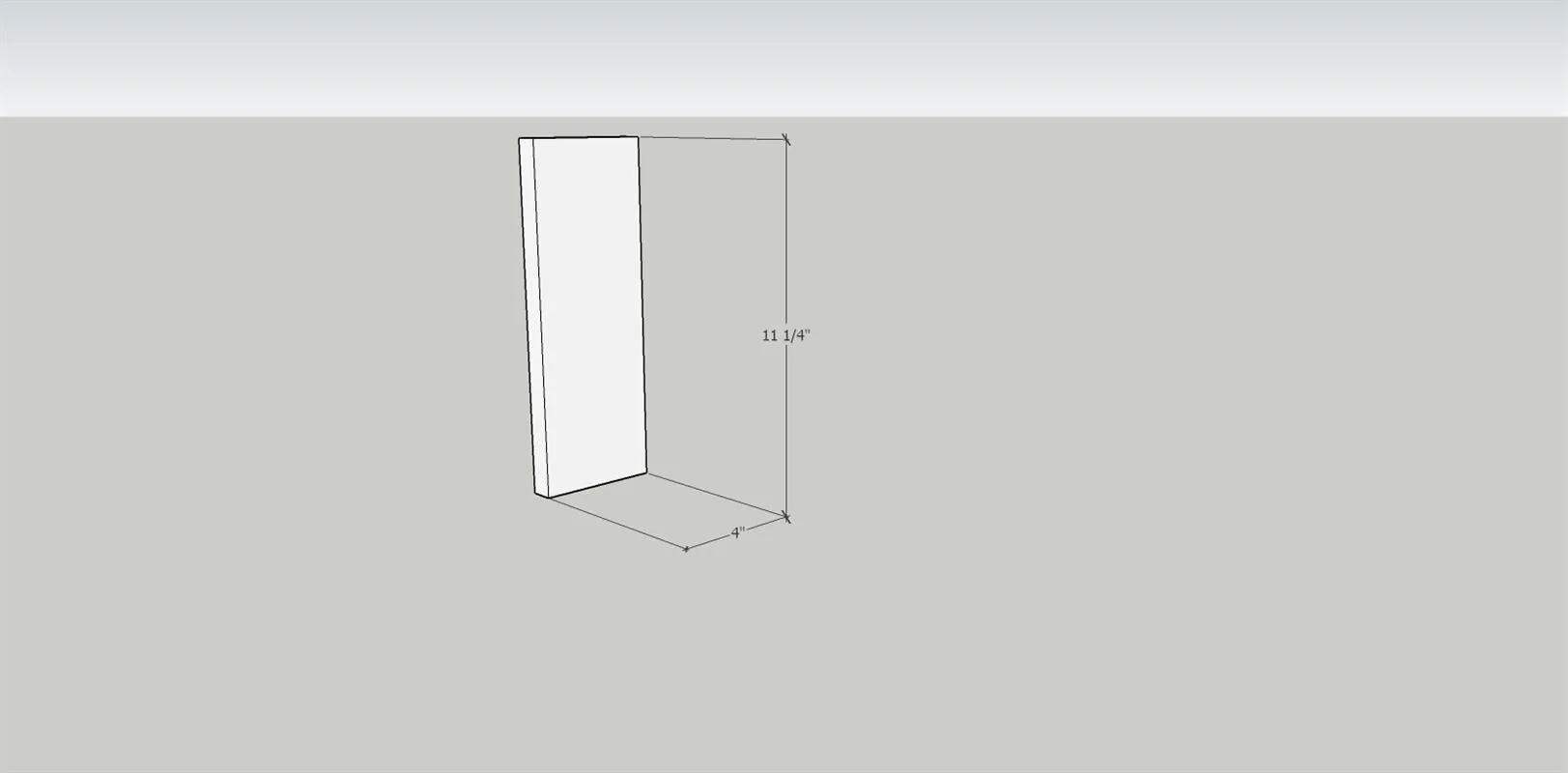

Cut the back panel per the dimensions indicated

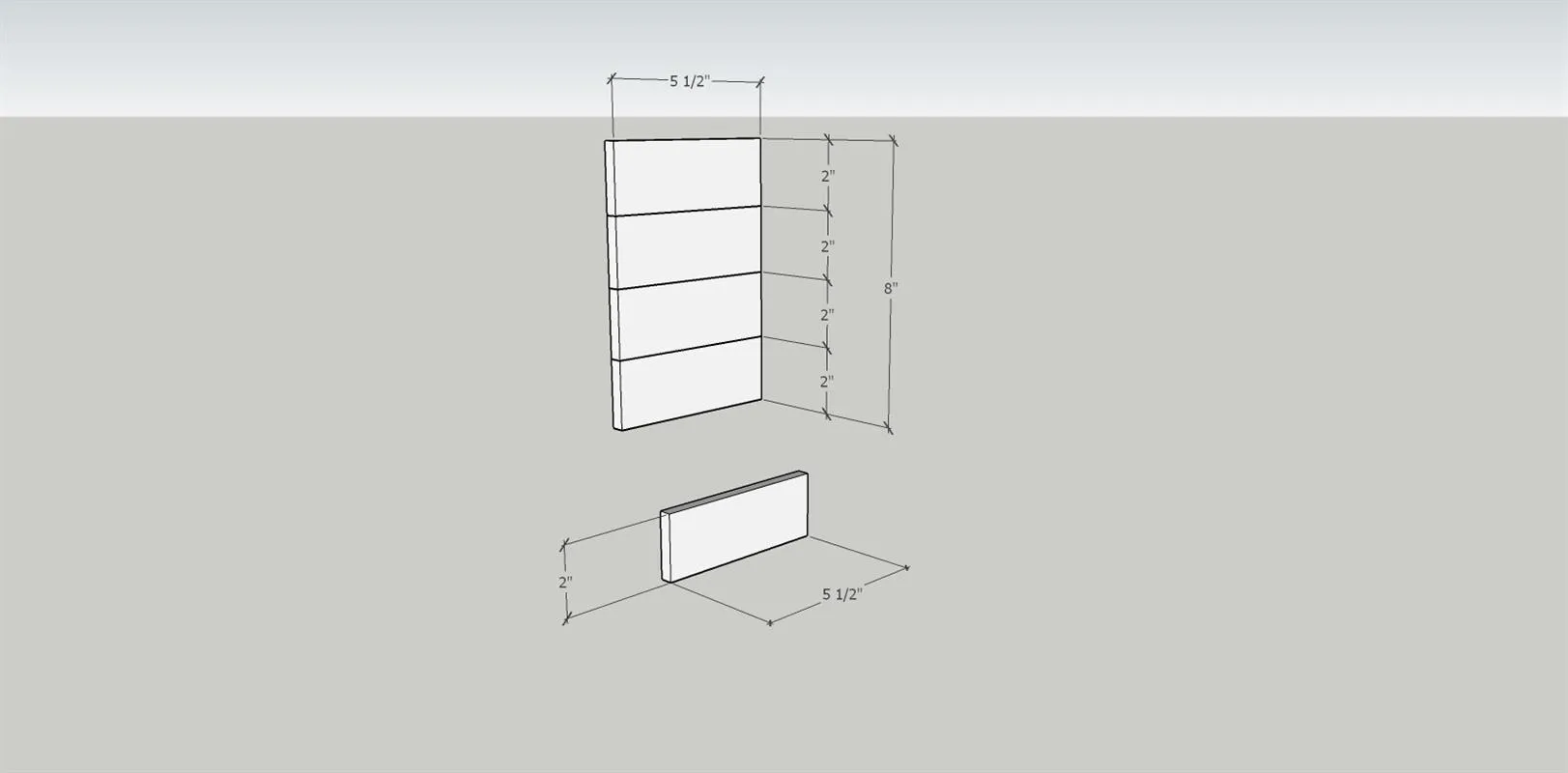

Cut 5 front pieces per dimensions indicated

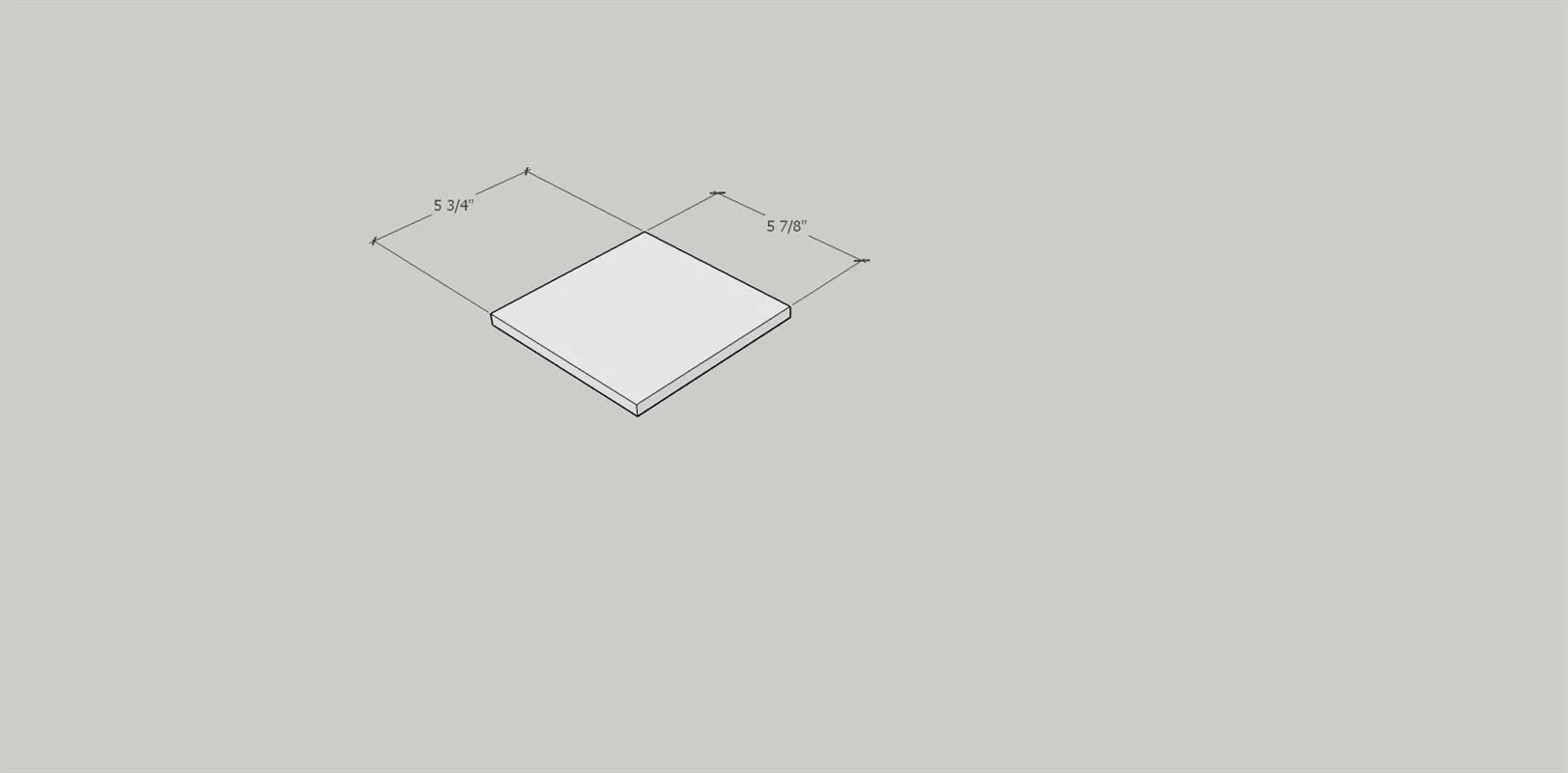

Cut the top per dimensions indicated

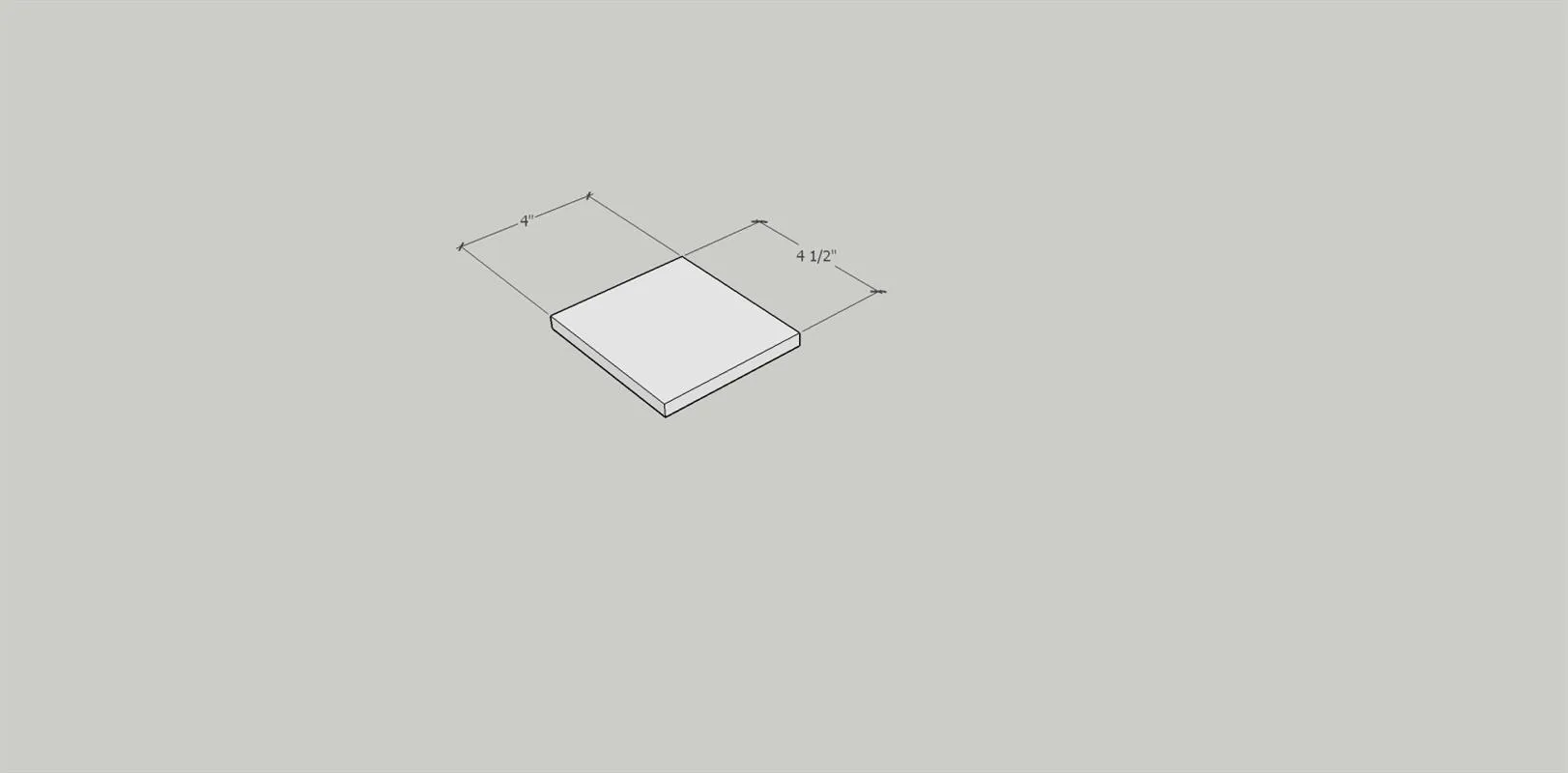

Cut the sub-top per dimensions indicated

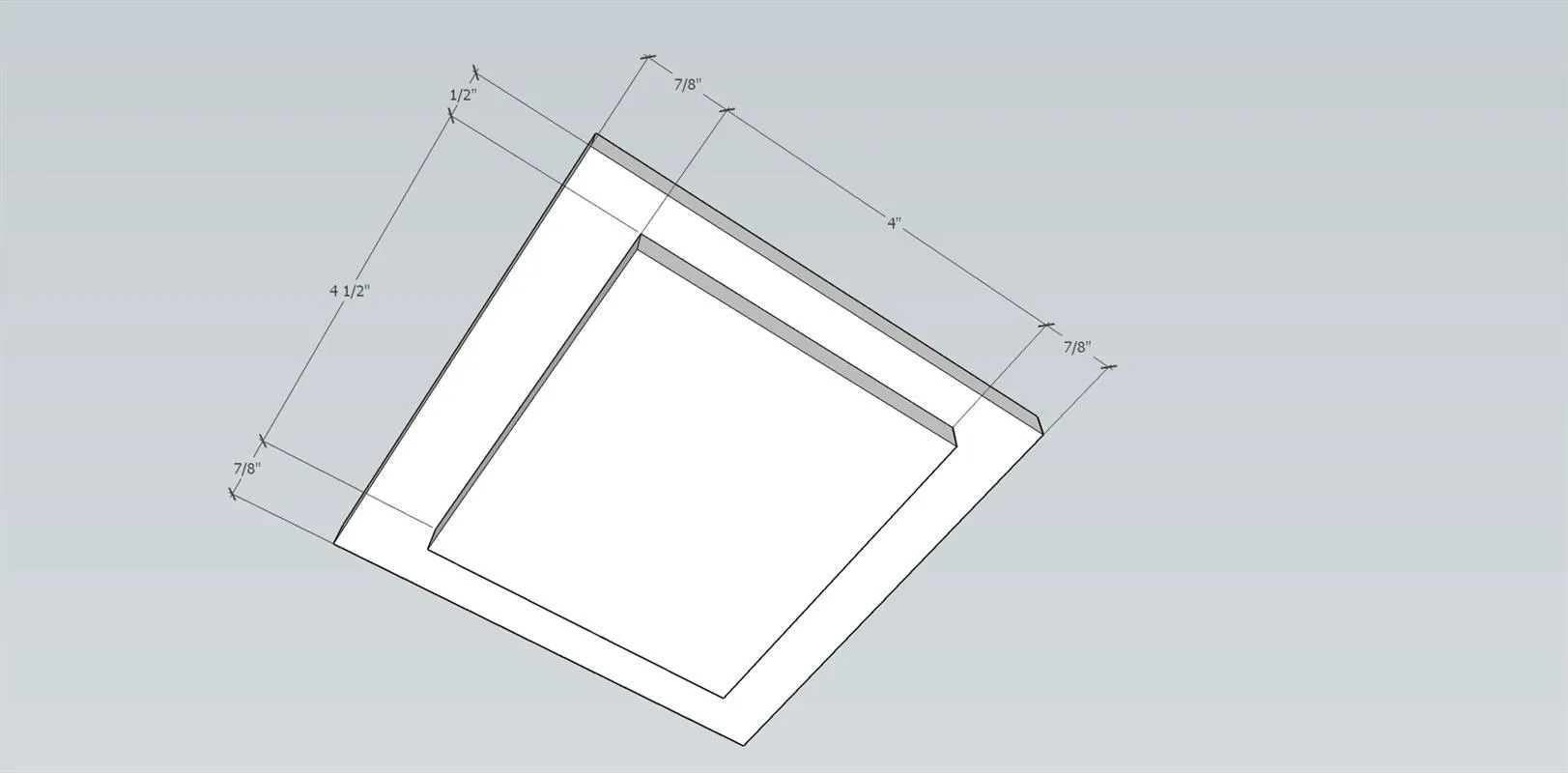

Join the two top pieces by gluing and clamping

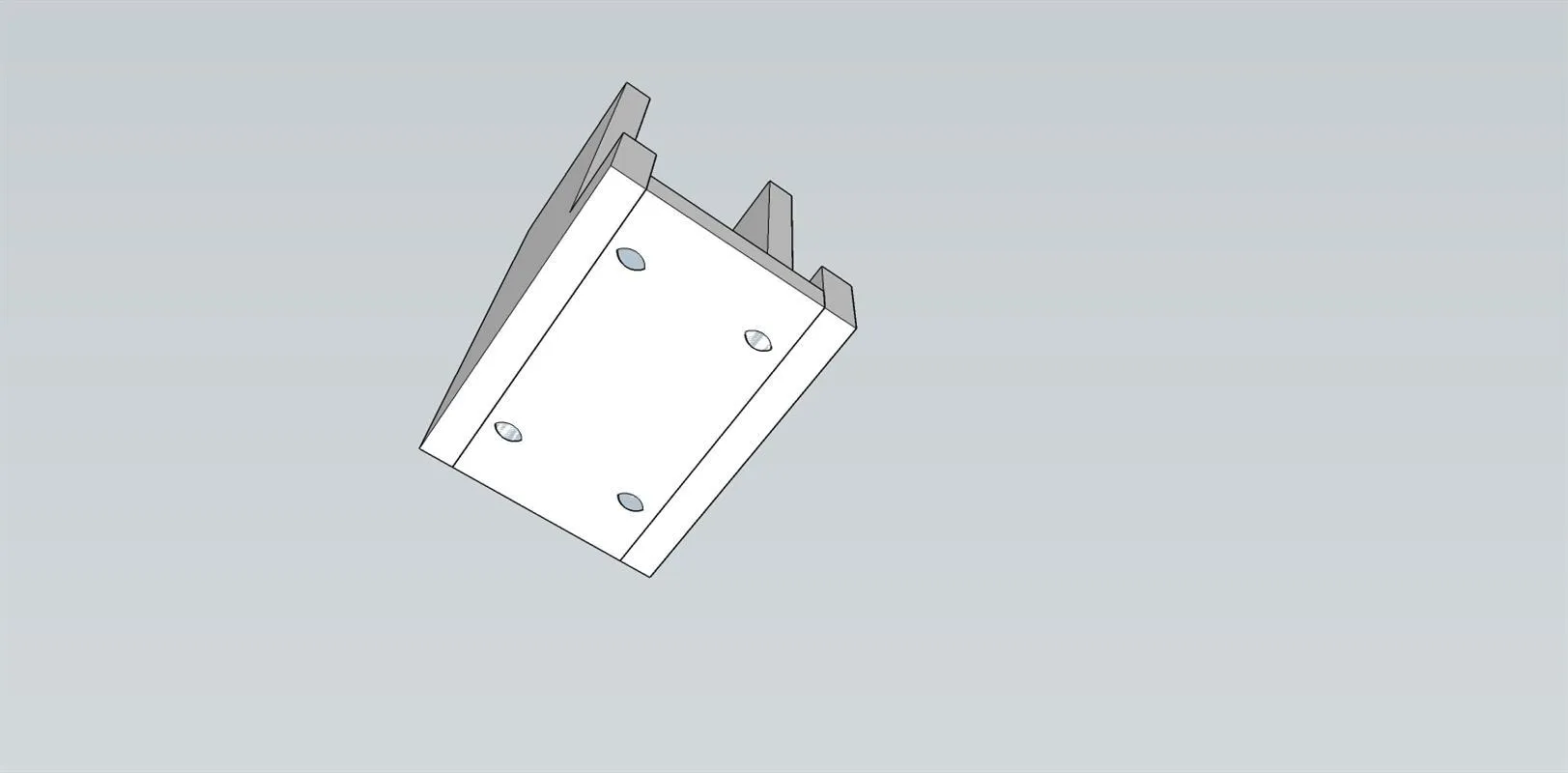

Join the sides to the base by drilling pocket holes as shown in the base and attaching with 1 1/4" pocket hole screws.

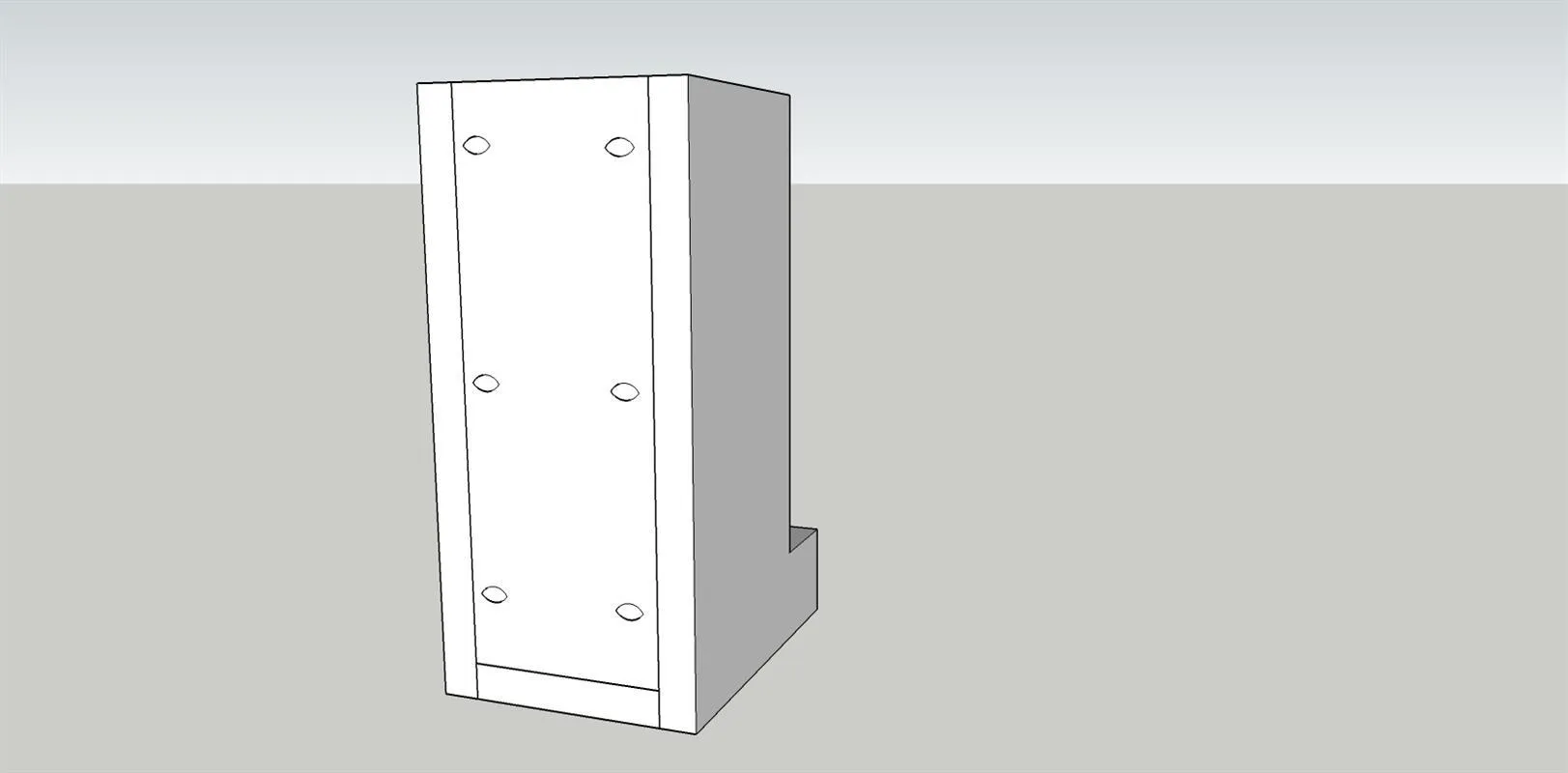

Join the back to the sides by drilling pocket holes as shown and attaching with 1 1/4" pocket hole screws.

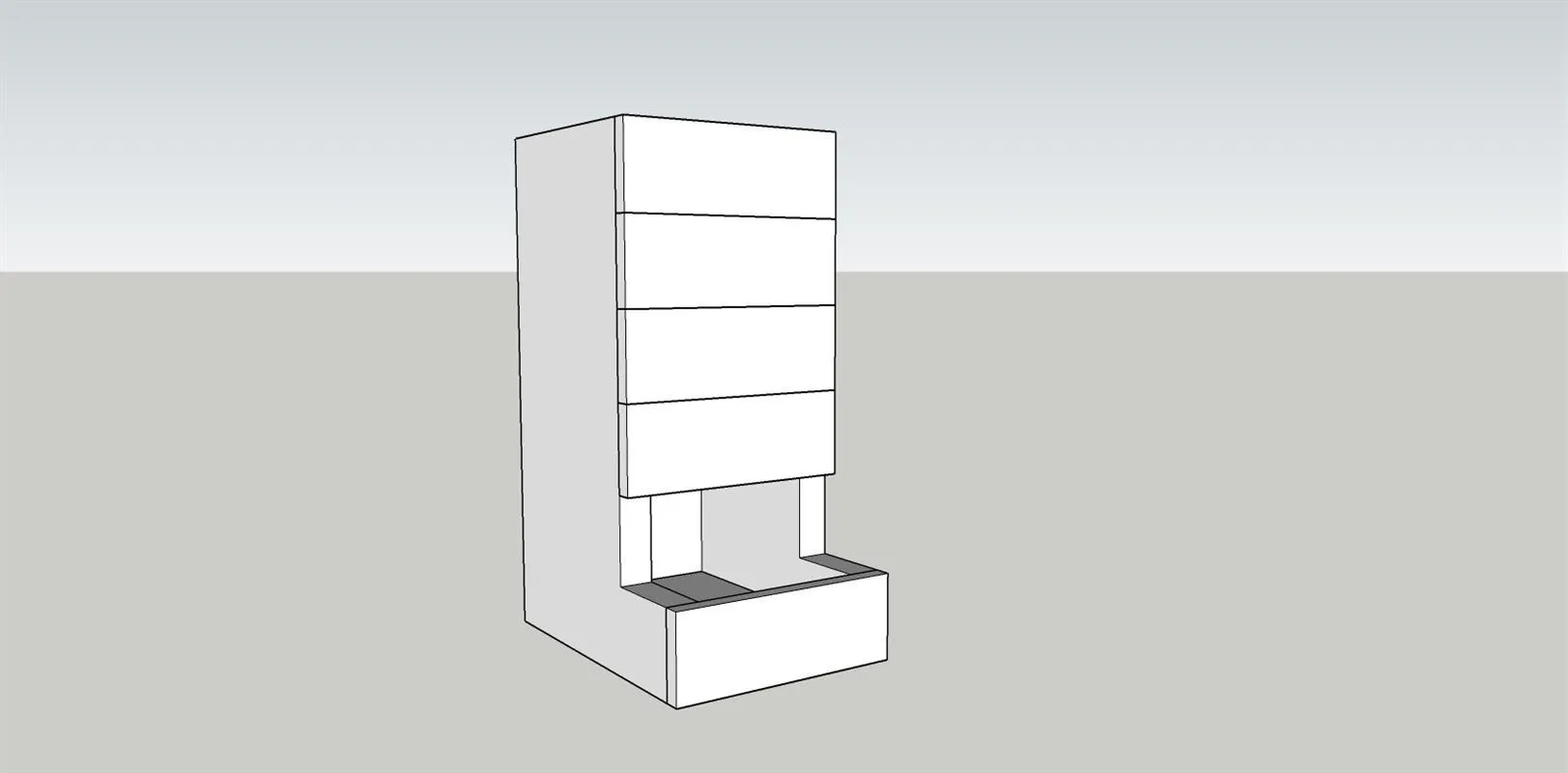

Install the front pieces as shown by gluing and clamping
Verify that the top fits. Sand as required.

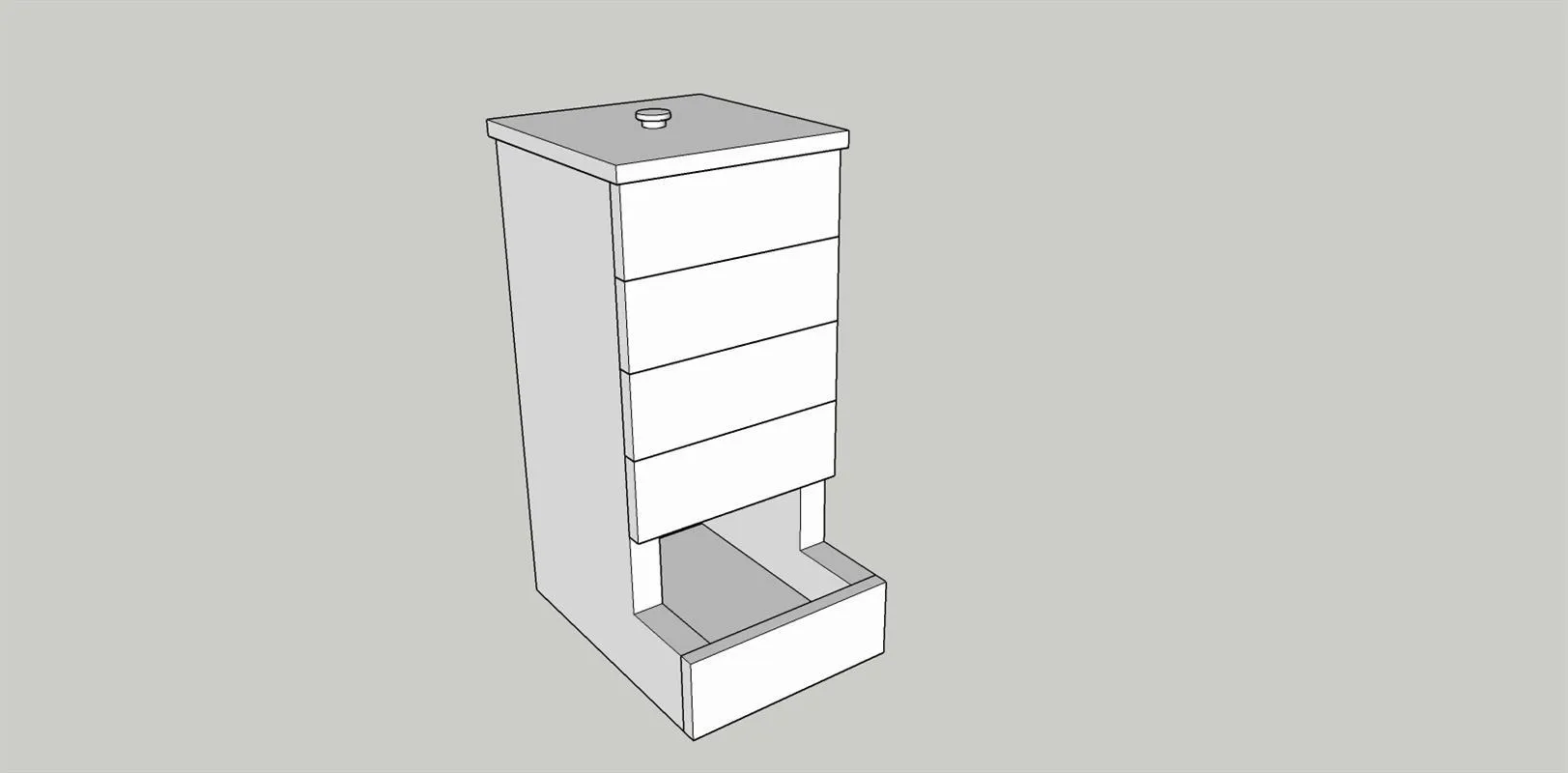

Add a pull of your choice to the top and finish the dispenser.
