This simple build perfectly displays all the ingredients for a successful hot chocolate bar.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Small Tier Legs - side pieces | 4 | 1" × 1" × 2 1/4" | — | ☐ |
| Small Tier Legs - bottom pieces | 2 | 1" × 1" × 2 3/4" | — | ☐ |
| Medium Tier Legs - side pieces | 4 | 1" × 1" × 5" | — | ☐ |
| Medium Tier Legs - top & bottom pieces | 4 | 1" × 1" × 2 3/4" | — | ☐ |
| Large Tier Legs - side pieces | 4 | 1" × 1" × 7" | — | ☐ |
| Large Tier Legs - top & bottom pieces 1"x1"x | 4 | 1" × 1" × 4 1/4" | — | ☐ |
| Small Tier Top | 1 | 1" × 4 3/4" × 20" | — | ☐ |
| Medium Tier Top | 1 | 1" × 4 3/4" × 22" | — | ☐ |
| Large Tier Top | 1 | 1" × 6 1/4" × 27" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Board, 1" x 11-1/2" 43" | 1 board | ☐ |
| Board, 1" x 1" 48" | 2 board | ☐ |
| Wood Glue | 1 each | ☐ |
| Sandpaper | 1 each | ☐ |
| Wood Stain | 1 each | ☐ |
| Polyurethane | 1 each | ☐ |
Overall cost: $. Lumber varies by region, species, and season, so we give a band rather than a figure.

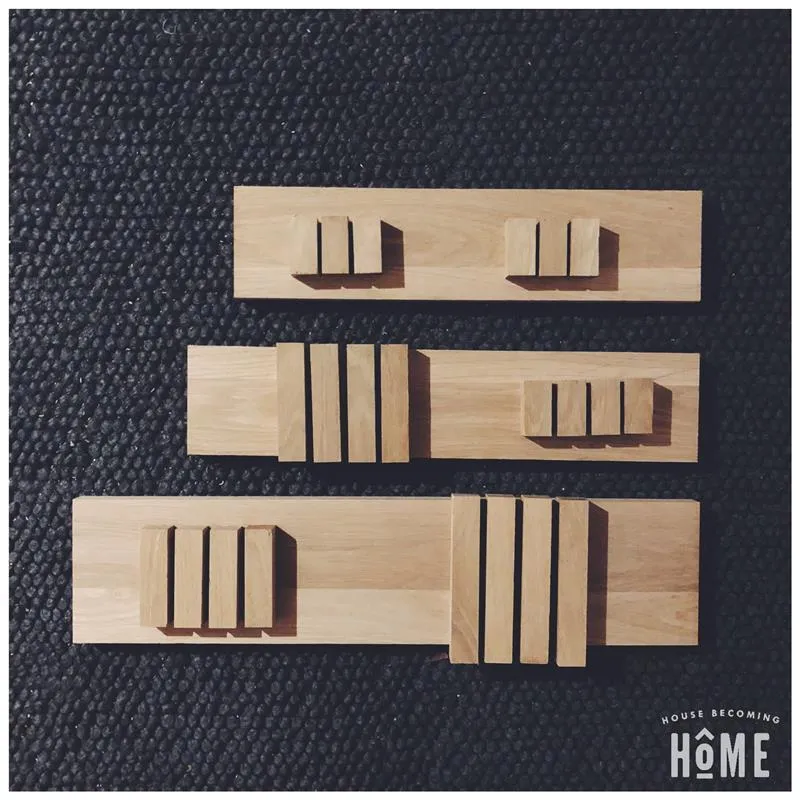

Cut lumber to size, then organize into groups: small, medium, and large tiers.

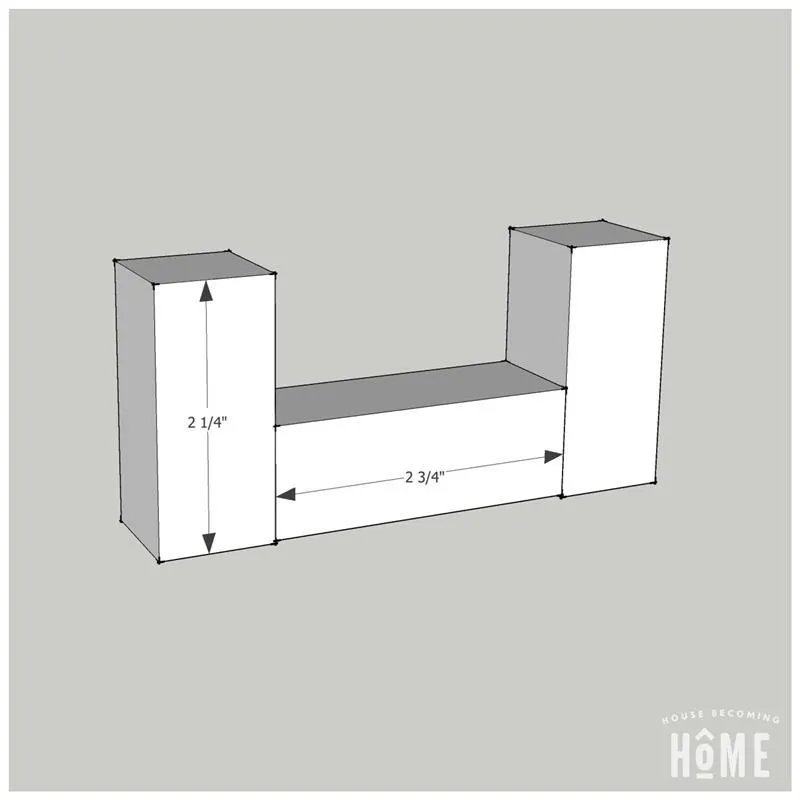

Using wood glue and clamps, assemble the legs of the small tier.

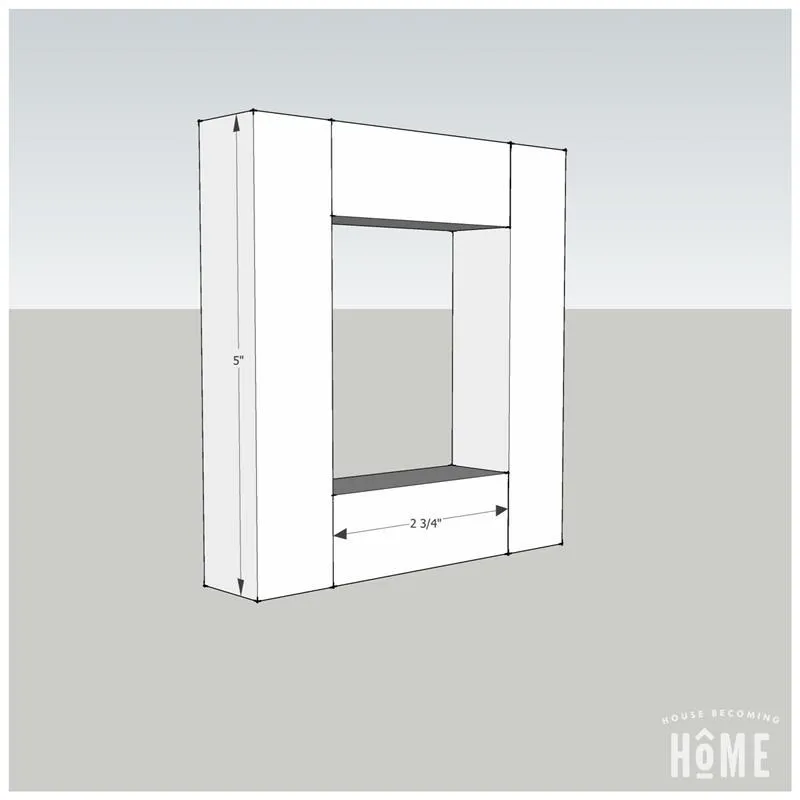

Using wood glue and clamps, assemble the legs of the medium tier.

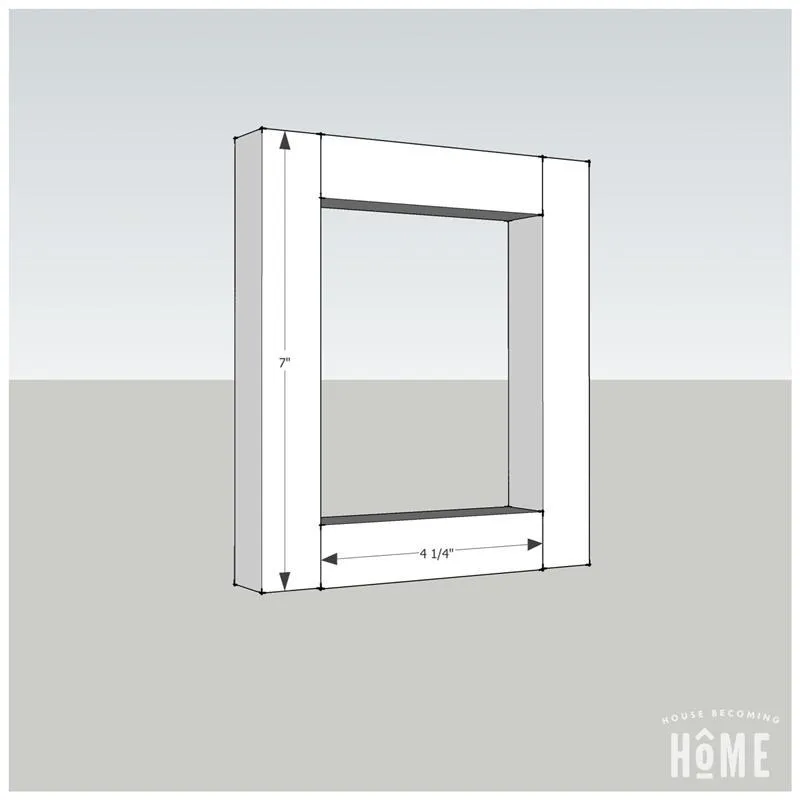

Using wood glue and clamps, assemble the legs of the large tier.

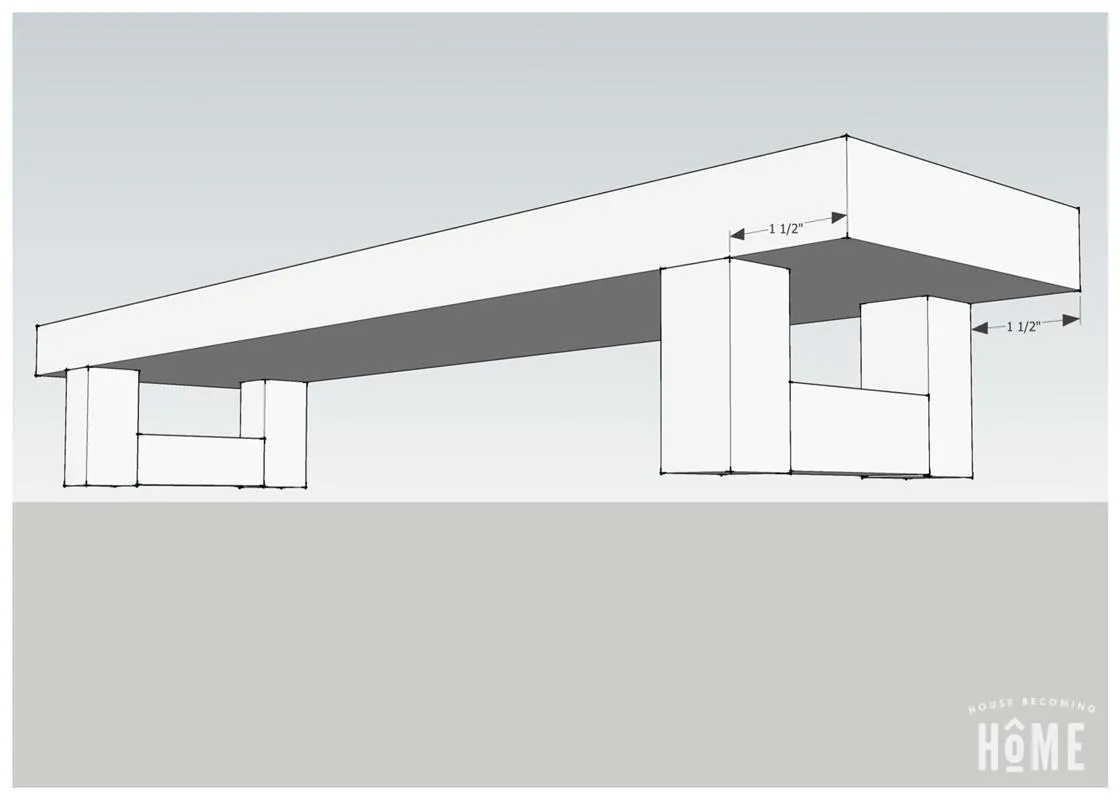

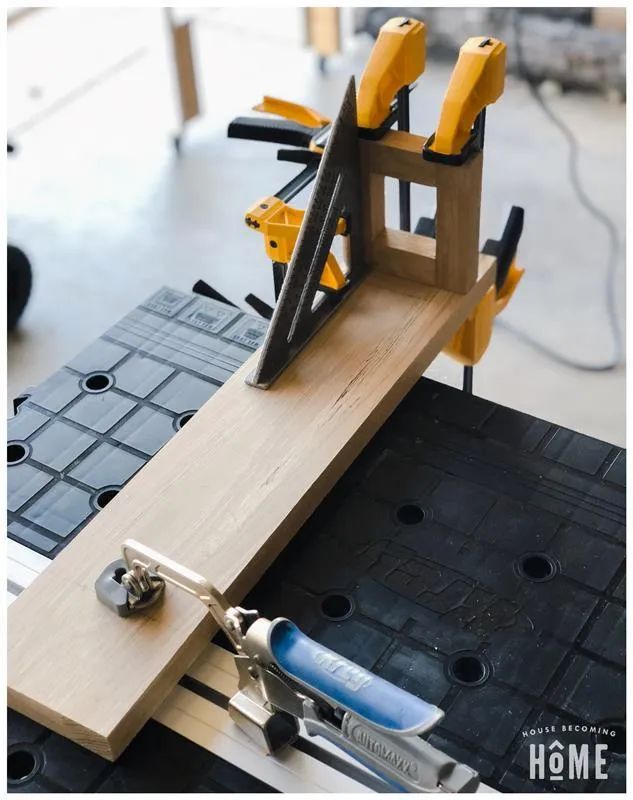

Using wood glue and clamps, attach completed legs to the small tier top, 1-1/2" from the edge. Use a carpenter's square to ensure legs are attached at 90 degrees.

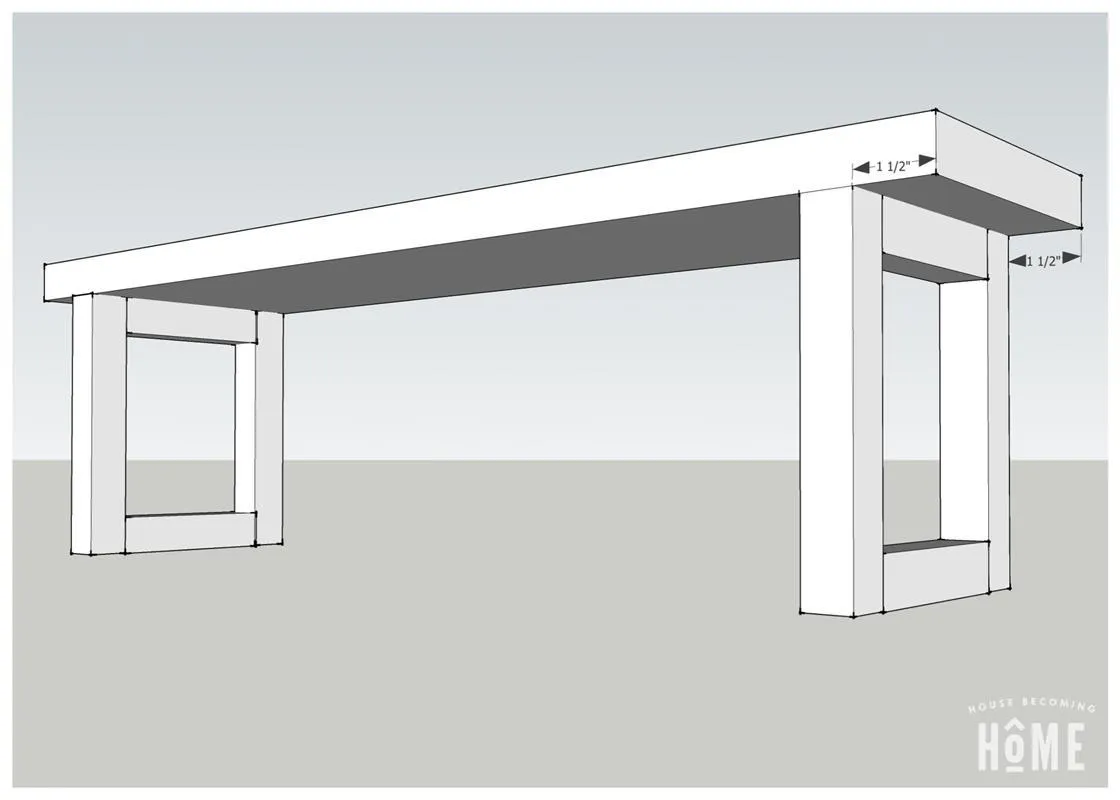

Using wood glue and clamps, attach completed legs to the medium tier top, 1-1/2" from the edge. Use a carpenter's square to ensure legs are attached at 90 degrees.
Using wood glue and clamps, attach completed legs to the large tier top, 1-1/2" from the edge. Use a carpenter's square to ensure legs are attached at 90 degrees.
Sand all faces and the legs of each tier.

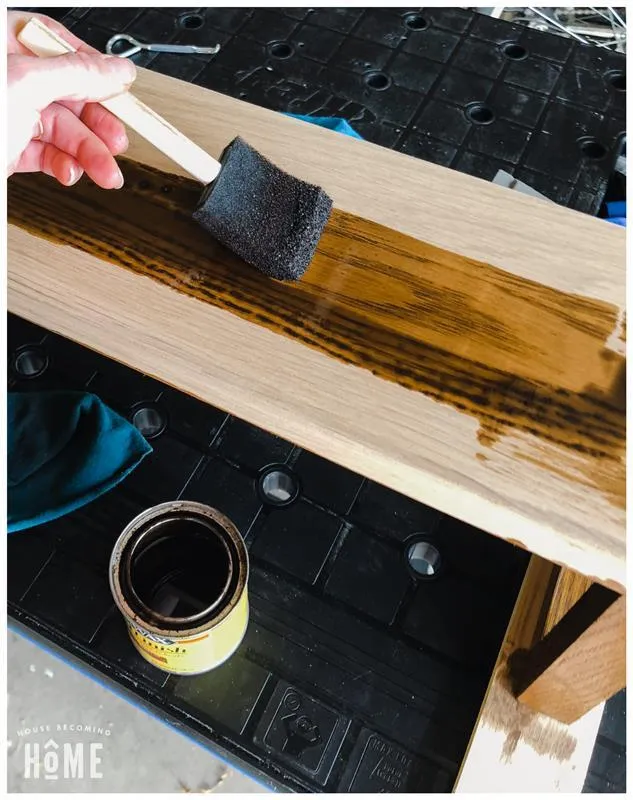

Stain all faces and legs of each tier. Once stain is dry, protect with several layers of polyurethane.
