A grasscloth console table perfect for an entryway, sideboard, or even an oversized nightstand.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Plywood Tabletop and Shelf | 2 | 3/4" × 14 1/2" × 46 1/2" | — | ☐ |
| 2x2 Legs | 4 | 2" × 2" × 32" | — | ☐ |
| 1x2 Frame | 2 | 1" × 2" × 48" | — | ☐ |
| 1x2 Frame | 2 | 1" × 2" × 14 1/2" | — | ☐ |
| 1x2 Frame | 2 | 1" × 2" × 13" | — | ☐ |
| 1x2 Frame | 2 | 1" × 2" × 45" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Plywood, 3/4" Thick Half Sheet | 1 board | ☐ |
| Board, 1x2 96" | 3 board | ☐ |
| Board, 2x2 48" | 4 board | ☐ |
| 1" pocket hole screws | 60 each | ☐ |
| 3" cabinet screws | 12 each | ☐ |
| 3/32 drill bit | 1 each | ☐ |
| 5/16 drill bit | 1 each | ☐ |
| Coarse and fine sandpaper pads for sander | 1 each | ☐ |
| Single roll grasscloth wallpaper | 1 each | ☐ |
| Ruler | 1 each | ☐ |
| Scissors | 1 each | ☐ |
| Paper towels | 1 each | ☐ |
| Heavy duty wallpaper paste | 1 each | ☐ |
| Foam paintbrush | 1 each | ☐ |
| Wallpaper smoothing tool | 1 each | ☐ |
| Painters tape | 1 each | ☐ |
| Sharp razor blade | 1 each | ☐ |
| Water based poly | 1 each | ☐ |
Overall cost: $$$. Lumber varies by region, species, and season, so we give a band rather than a figure.

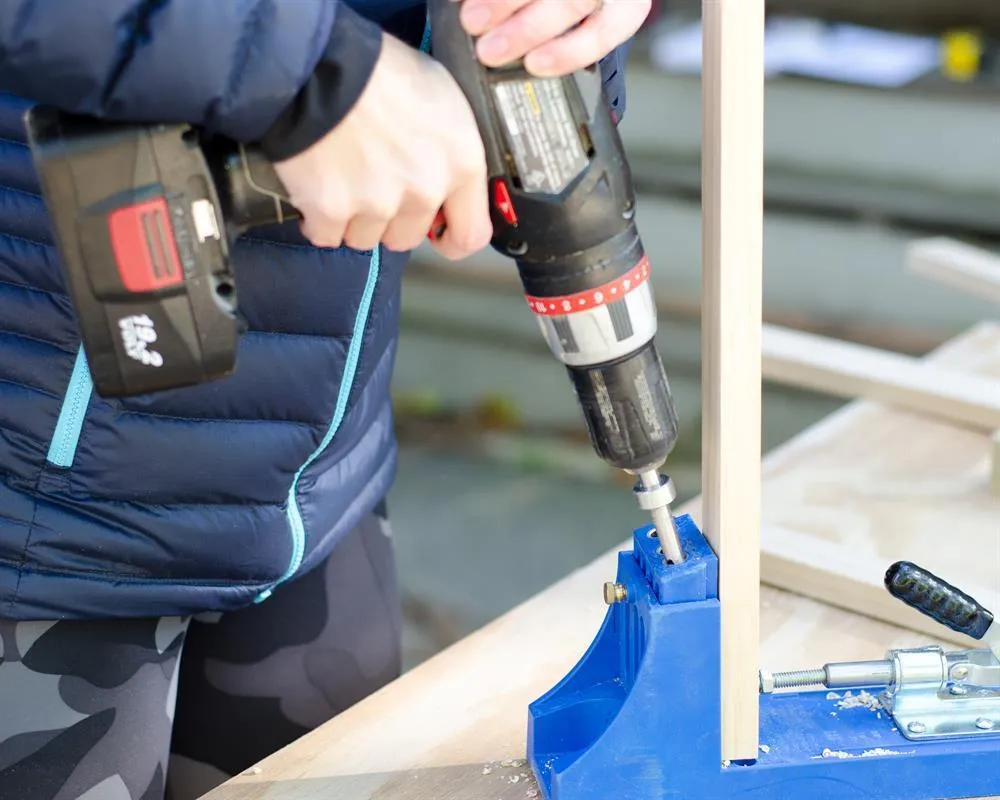

Drill pocket holes in the following 1x2s from the cut list: - 14.5" – two pocket holes in each end - 13" and 45" – one pocket hole in each end, off-center (make sure the pocket holes at each end of the same 1x2 are spaced toward the same edge for attaching purposes later).

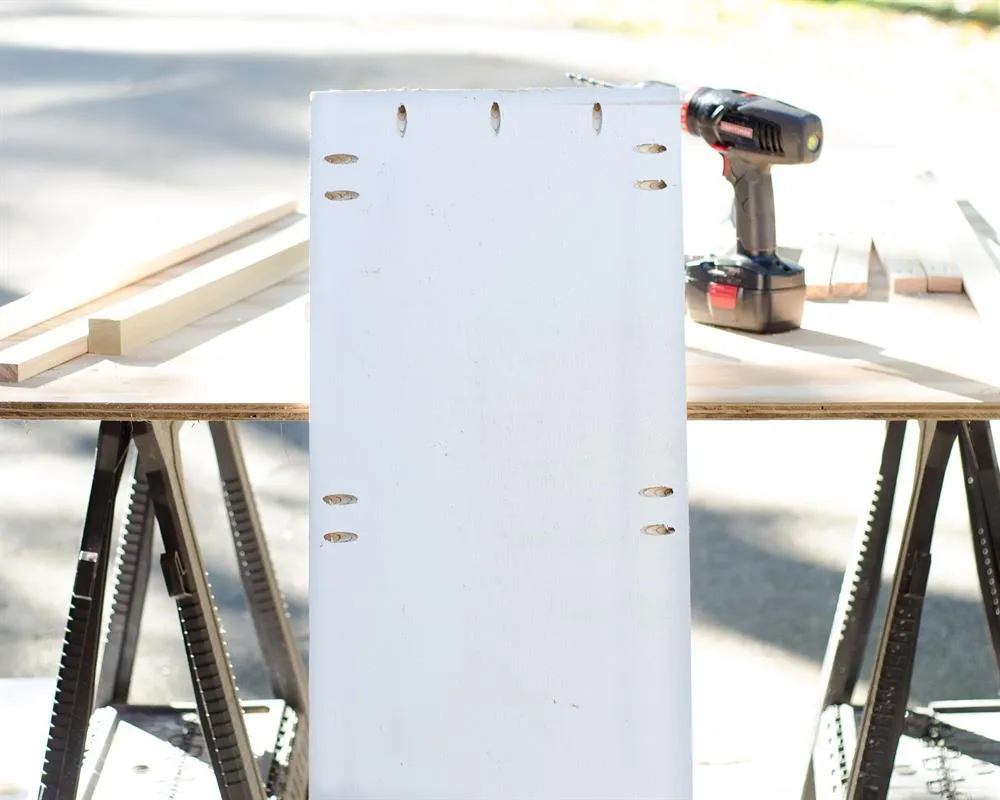

Drill pocket holes along all edges of the two plywood sheets, with three holes on the short sides and six-eight holes on the long sides.

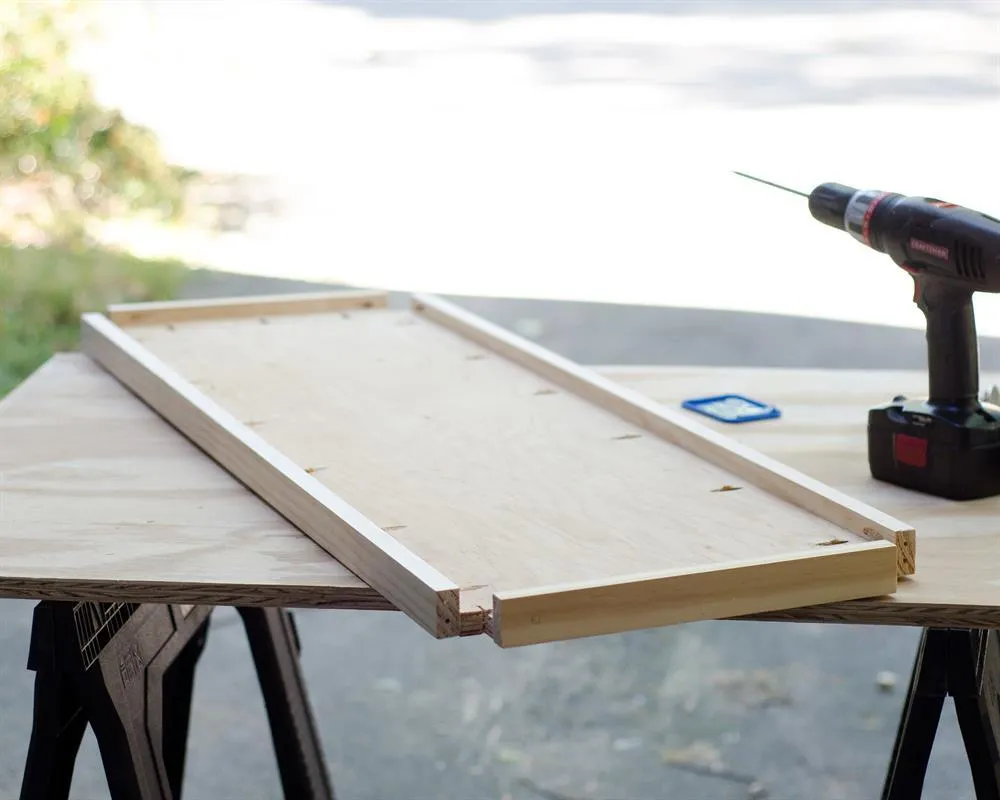

Assemble the shelf by attaching the 13" and 45" 1x2s to the notched plywood with 1" pocket hole screws, making sure that the pocket holes in the 1x2s are accessible and not hidden behind the plywood edge once attached.

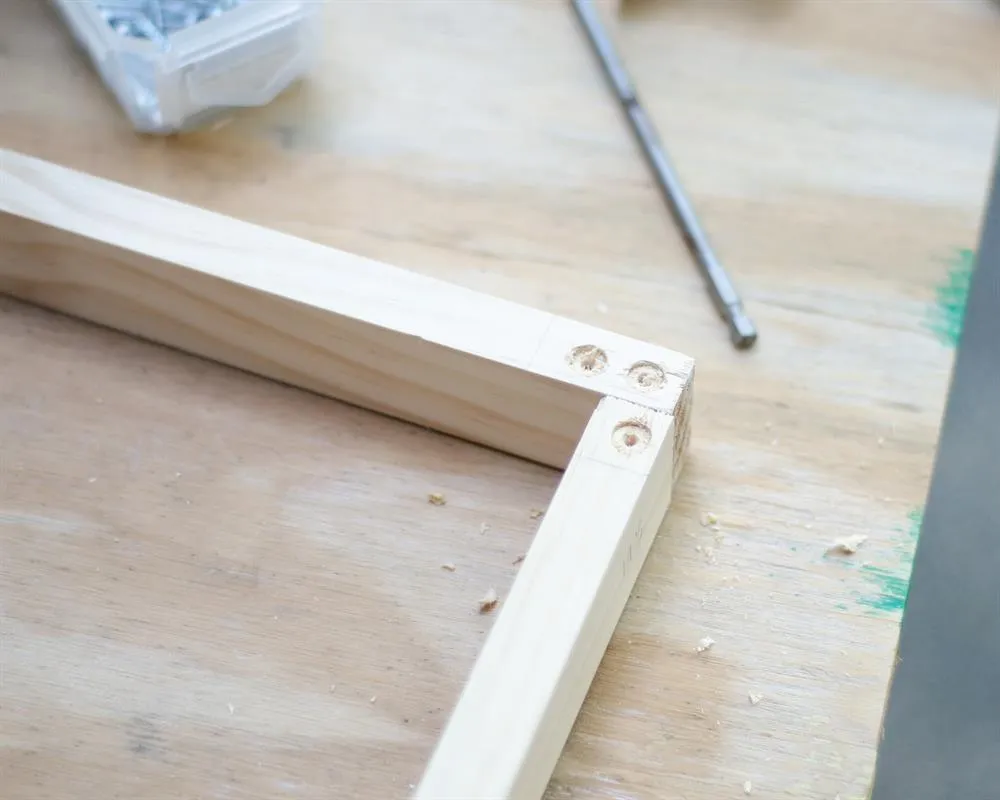

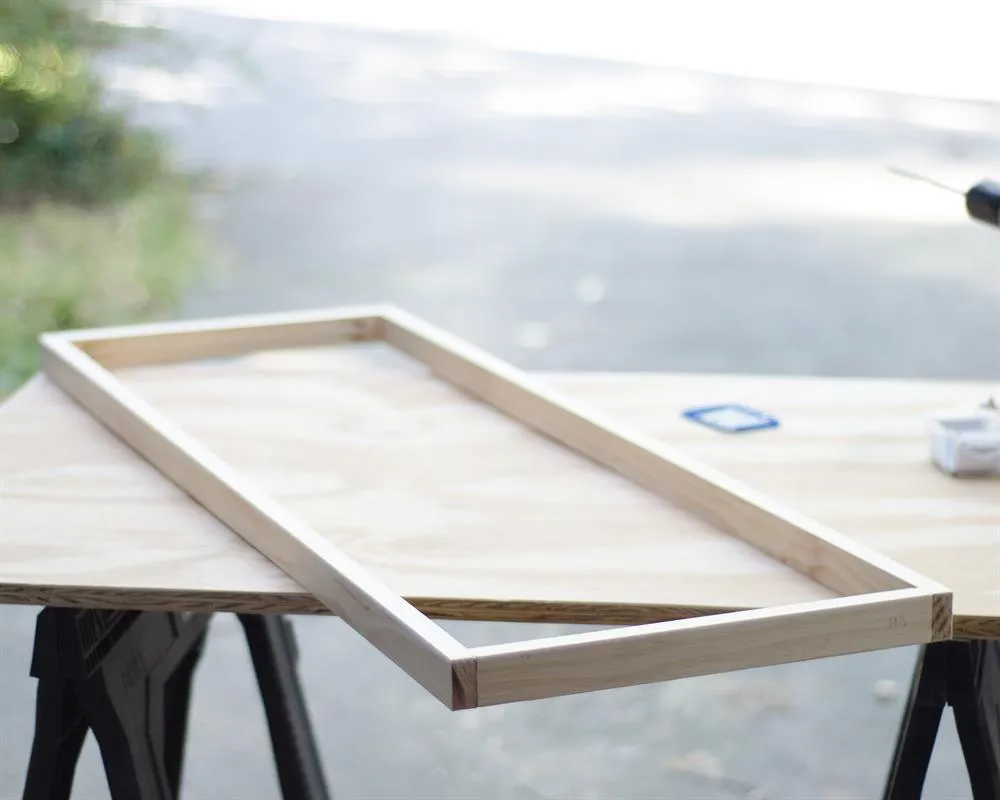

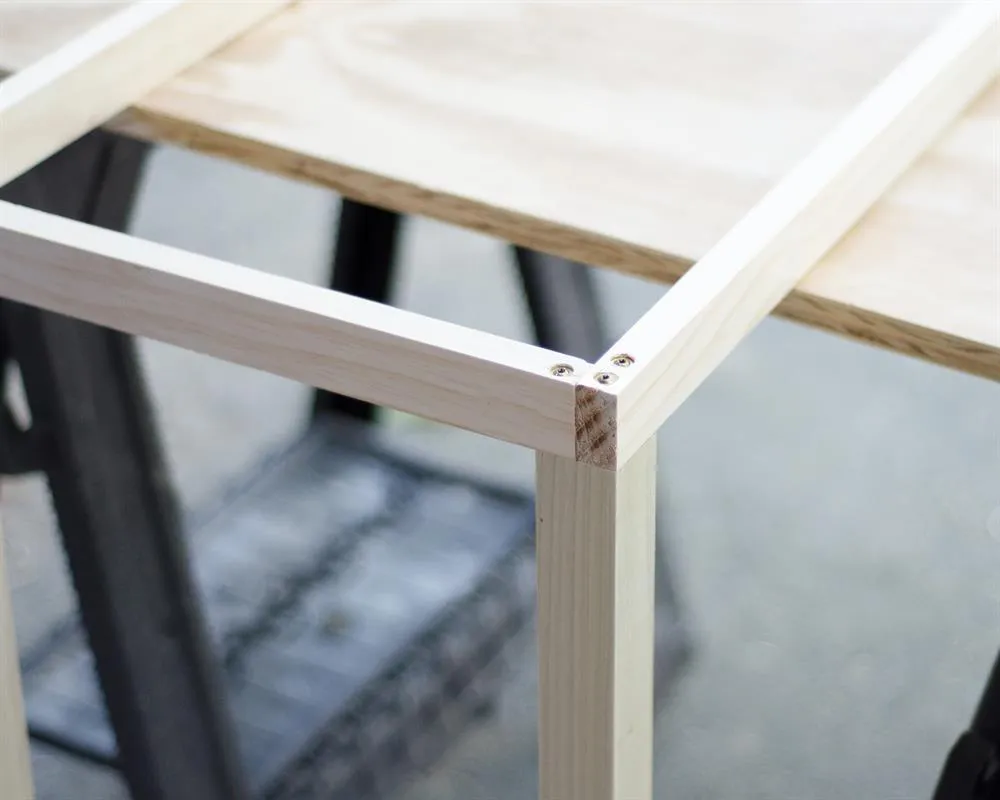

Assemble the frame for the tabletop by attaching the 14.5" 1x2s to the 48" 1x2s using 1" pocket hole screws.
Drill three countersunk holes in each corner of the frame. To do this, first drill pilot holes with a 3/32 drill bit and then a shallow hole centered over the top with a 5/16 drill bit.

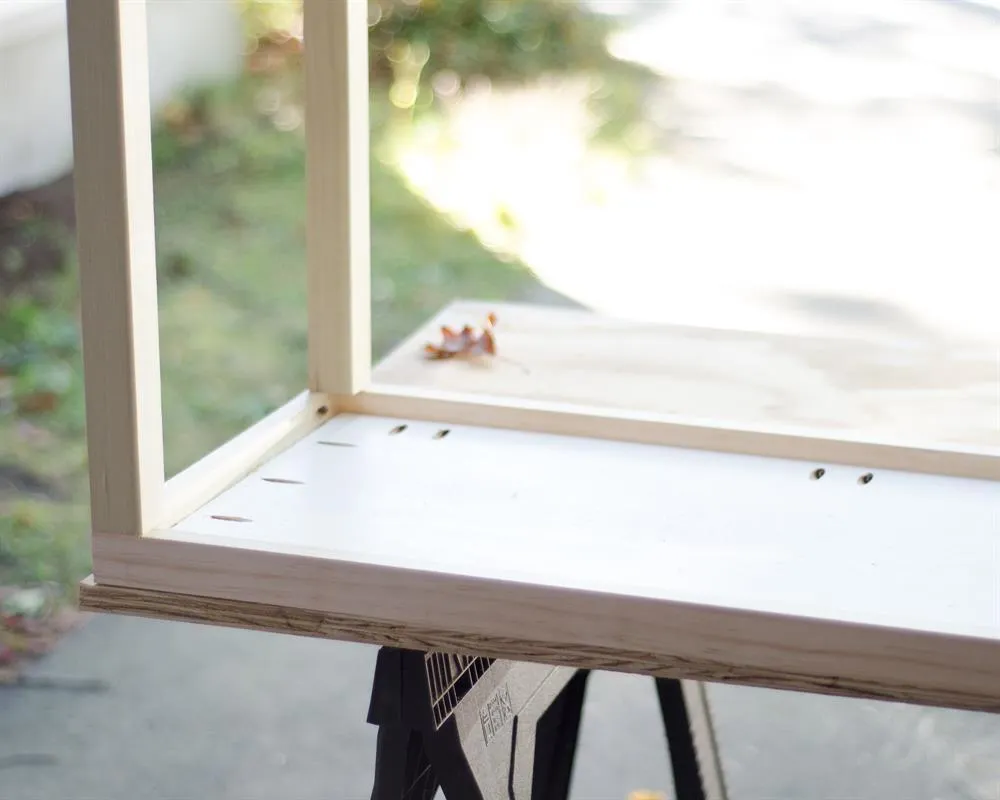

Attach the tabletop frame to the legs by drilling 3" cabinet screws through each of the tabletop frame's pilot holes and into the 2x2 legs. Make sure the edges of the legs are flush with the edges of the tabletop frame.
Assemble the tabletop by attaching the remaining piece of plywood to the tabletop frame using 1" pocket hole screws.

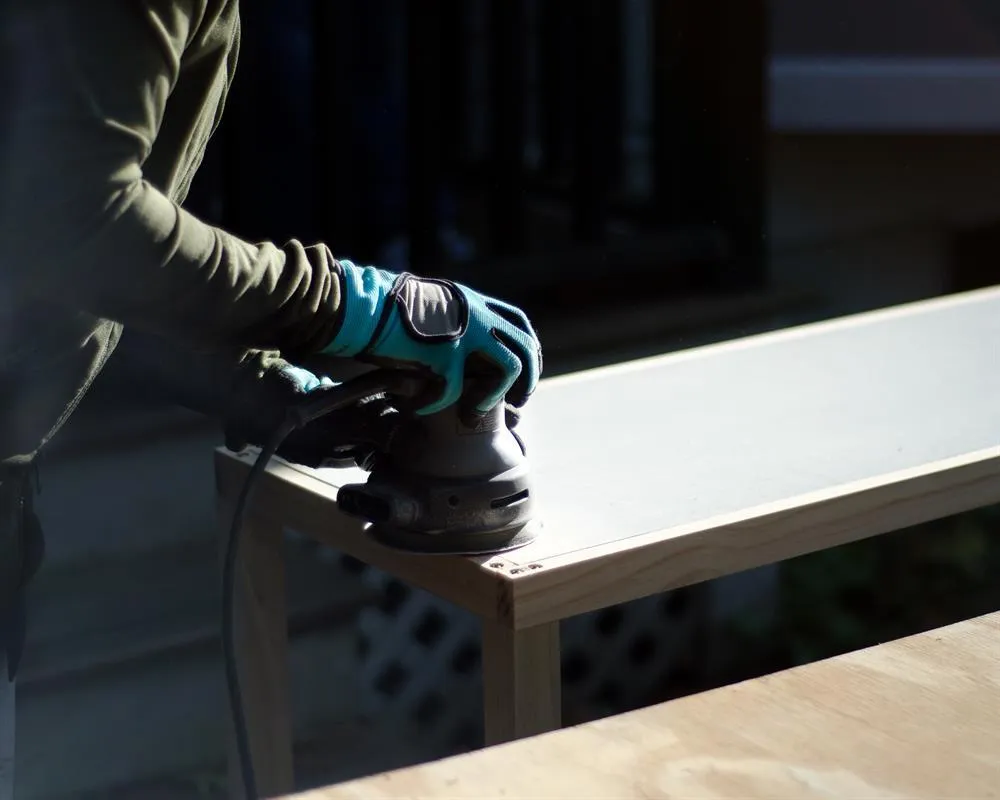

Use a pad sander to sand any rough areas of the table, first with coarse sandpaper and then with fine grit. The grasscloth will show bumps so get any uneven edges and surfaces as smooth as possible,

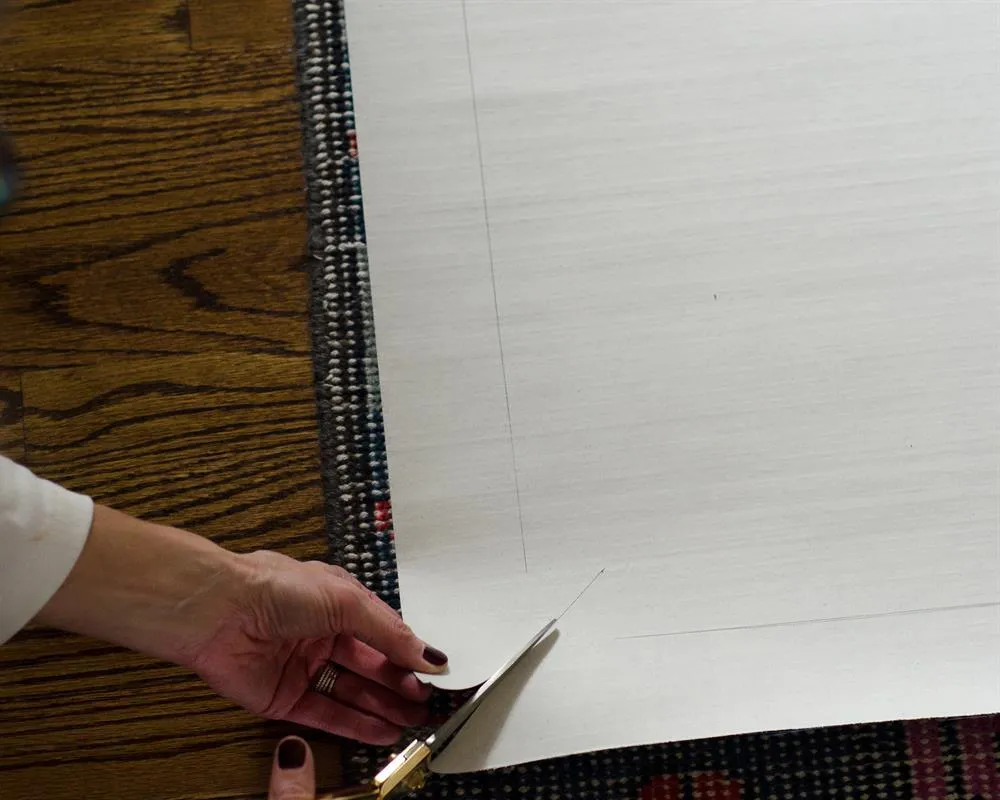

Use a foam paintbrush to apply wallpaper paste to the surface of the wallpaper.

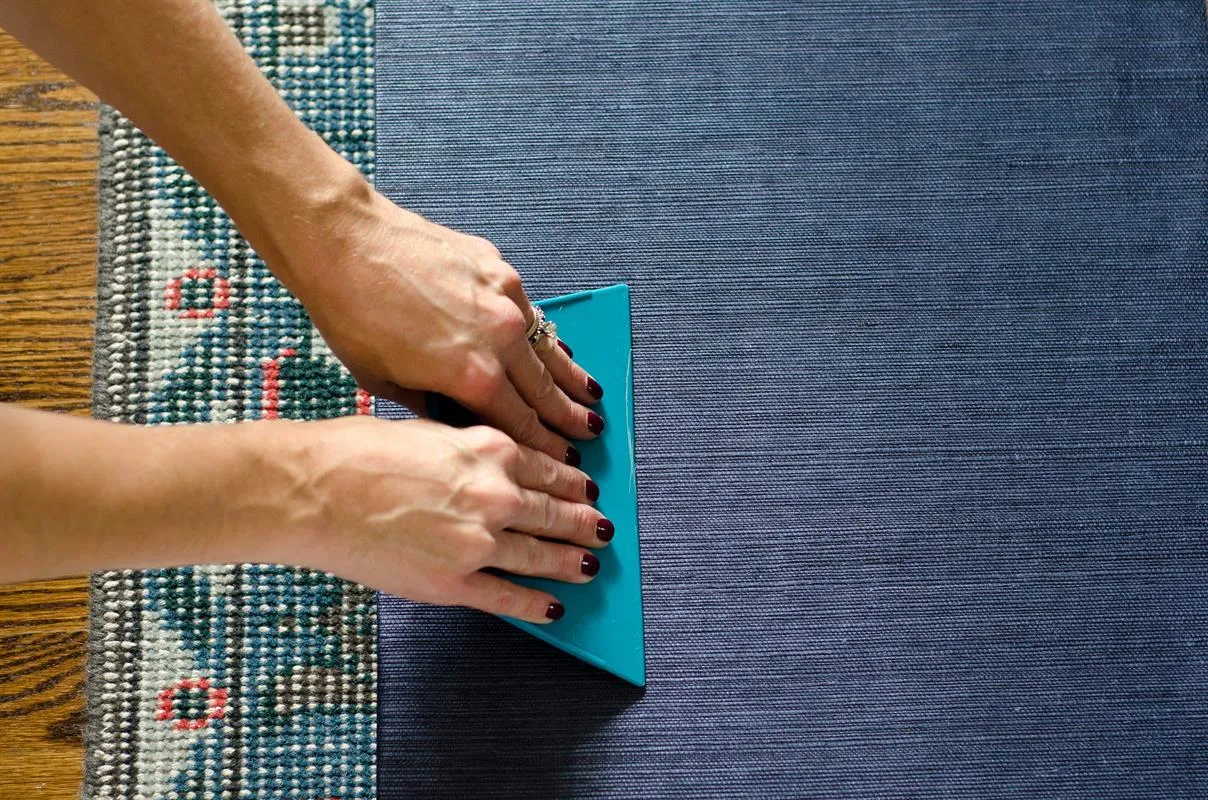

Center the shelf face side down on top of the pasted wallpaper. Flip it over and use a wallpaper smoothing tool to adhere and smooth the wallpaper to the shelf top.

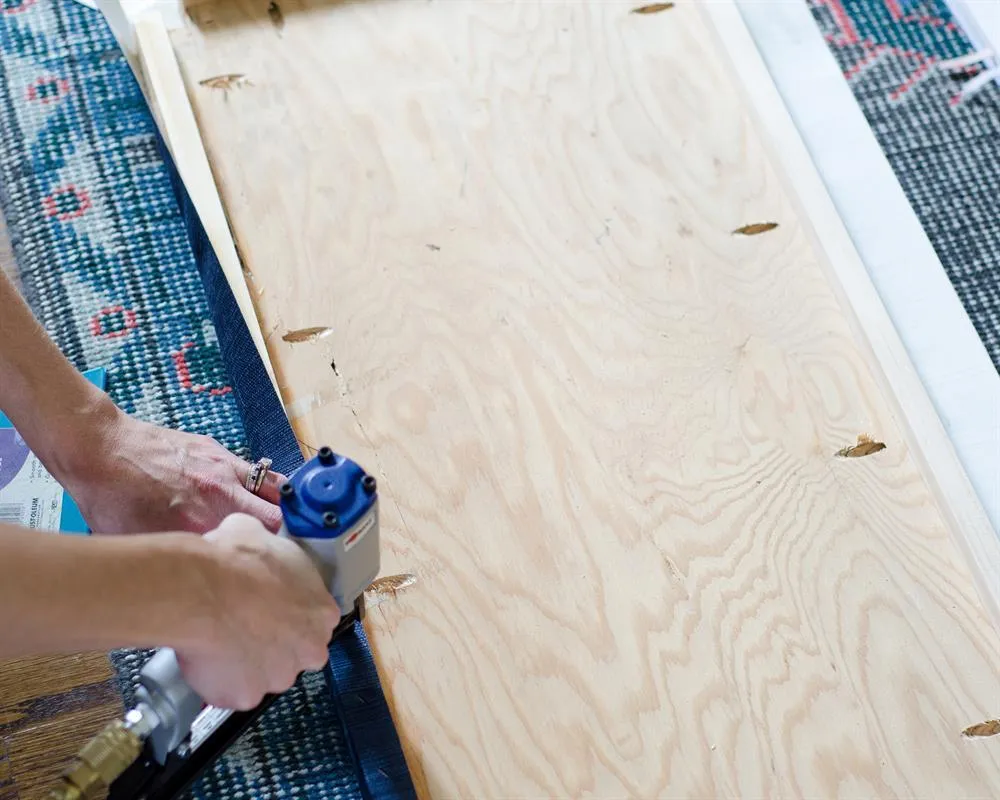

Flip the shelf over so it's upside down. Use the wallpaper smoothing tool to crease and smooth the edges of the paper around the sides of the shelf. Use a staple gun to attach the paper to the undersides of the shelf.

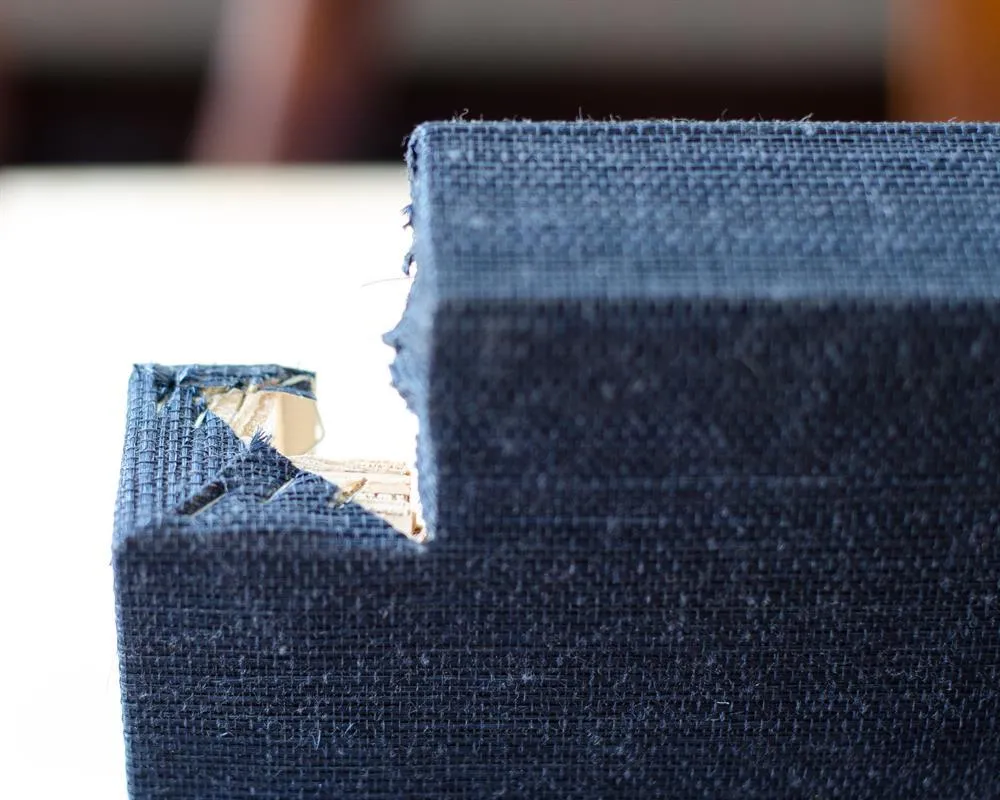

Finish covering the shelf in wallpaper by folding and creasing the corners and stapling inside the notches. Trim any excess paper so there's not too much bulk inside the notches.

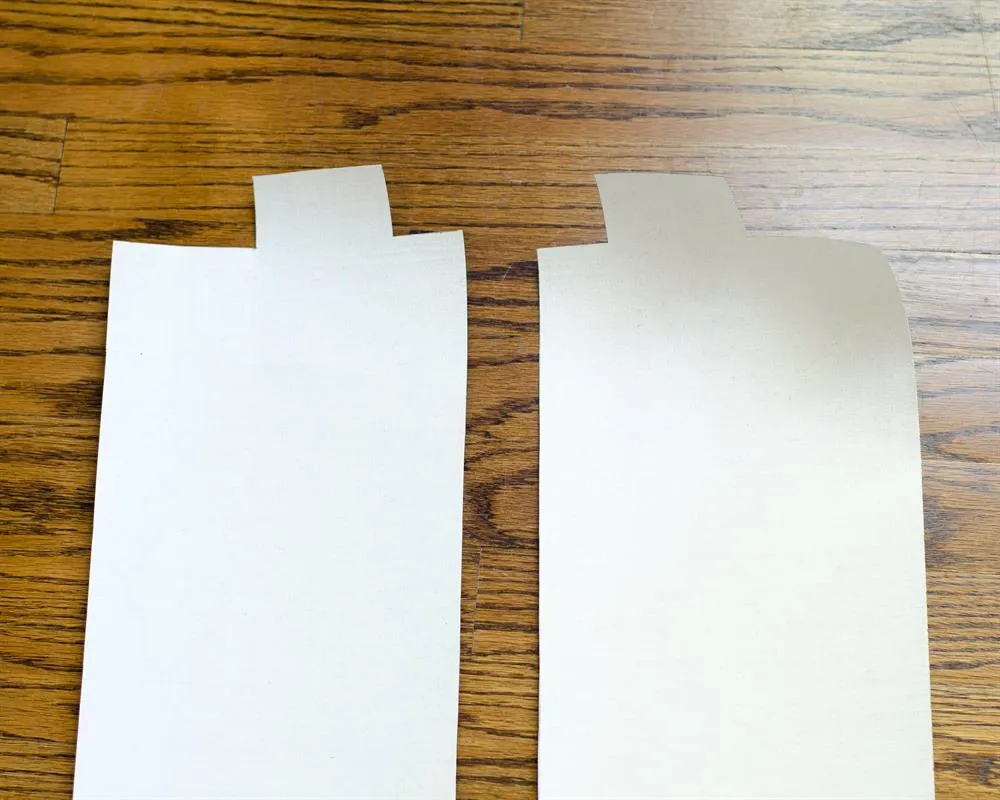

Cut four pieces of wallpaper to be 7.5" x 34". Place them face side down and cut two of the pieces so there is a 4.5" x 1.5" notch cut out of the left side and a 1.5" x 1.5" notch out of the right side, and the other two pieces with opposite notches (1.5x1.5 on the left and 4.5x1.5 on the right).

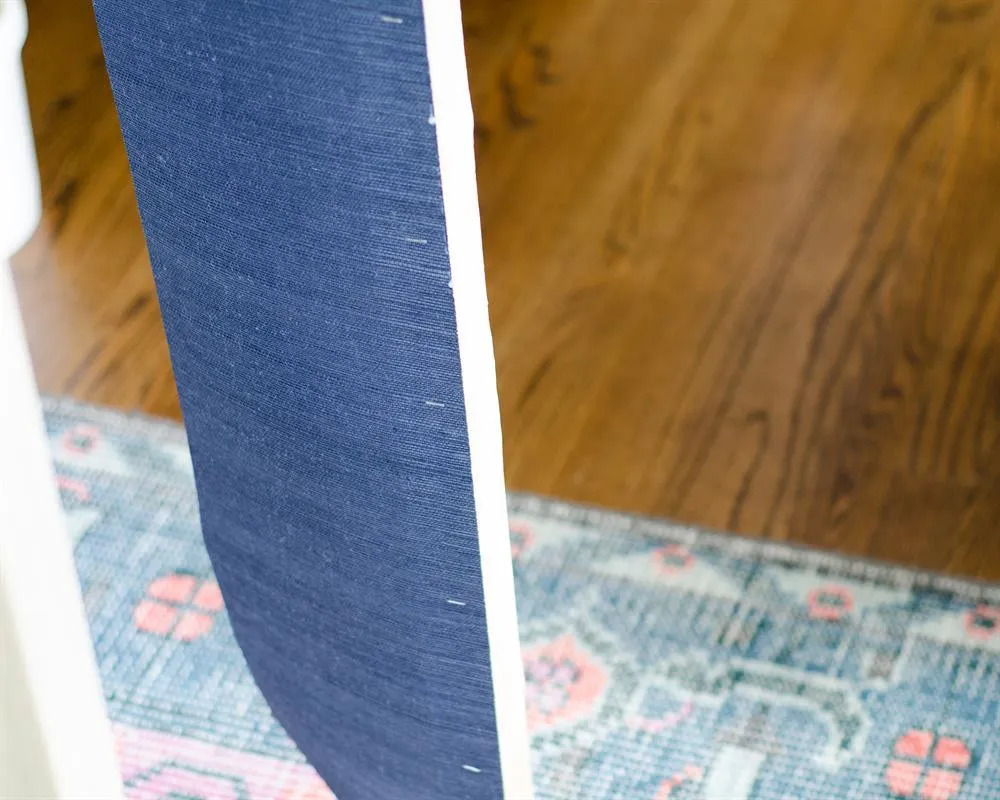

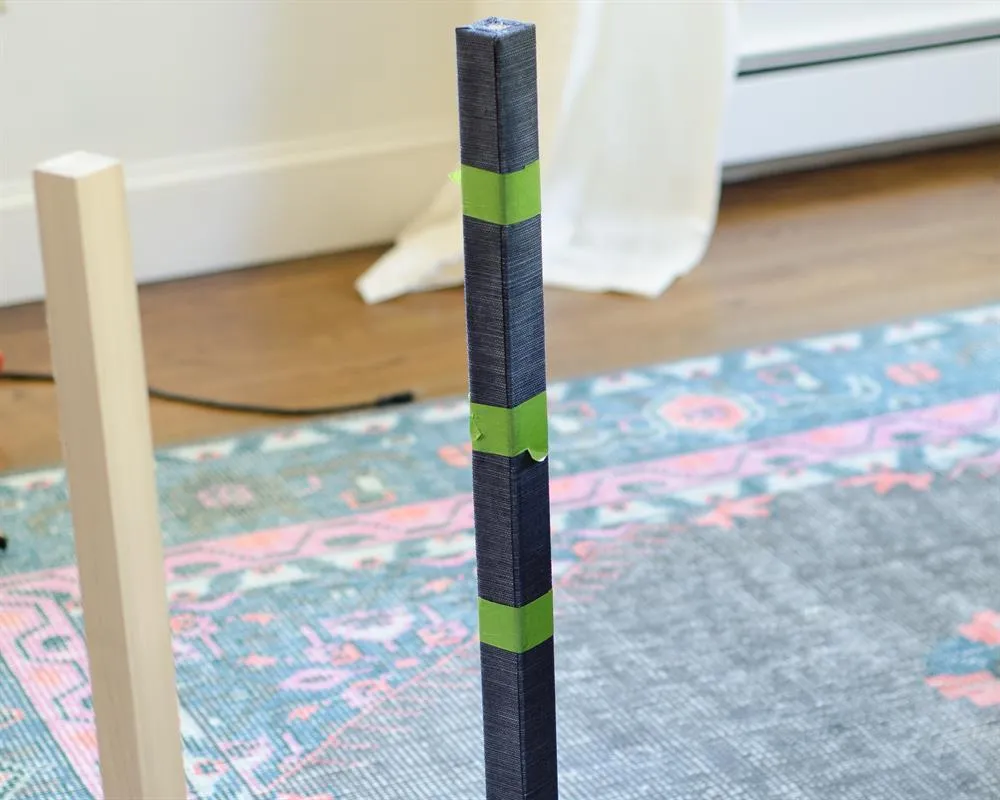

Use the wallpaper smoothing tool to smooth the stapled side of paper, then continue to crease and smooth the paper around the rest of the leg. The final side of the paper will cover the initial stapled side. If the paper is pulling apart at the seam, use painters tape to hold it in place. You may need to smooth the sides several times to get the paste to adhere to the leg. Repeat this process on all four legs.

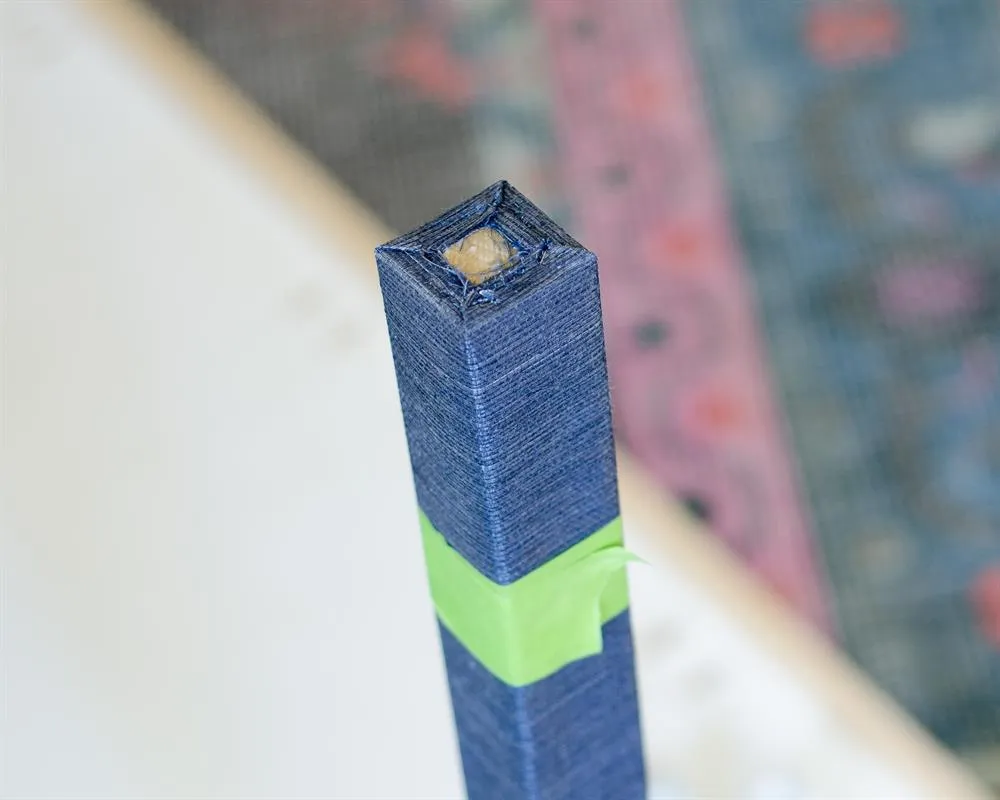

To finish the bottoms of the legs, crease and fold the paper over the bottom edges and staple in place.

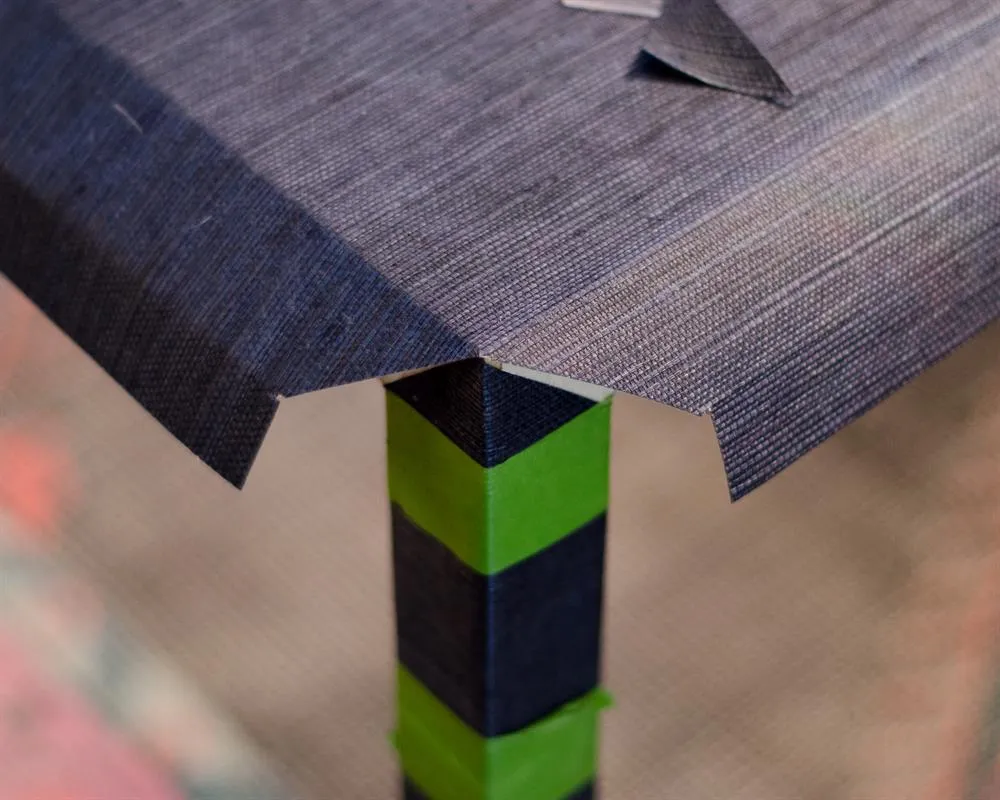

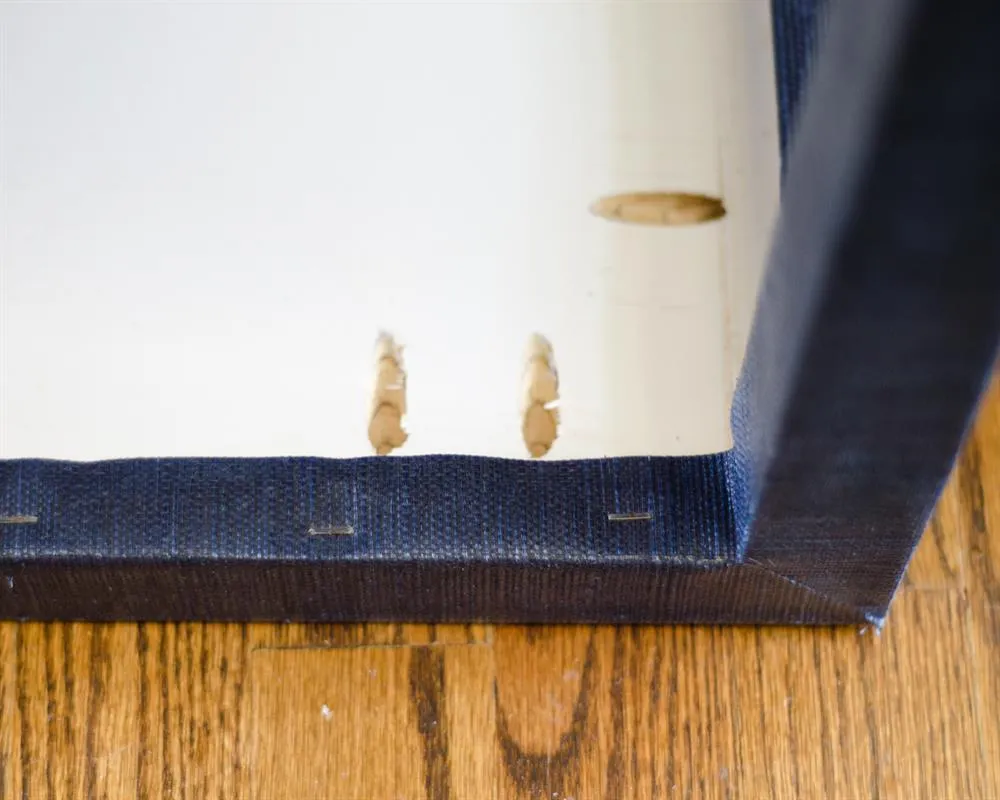

Flip the table upside down and staple the paper to the underside of the tabletop.

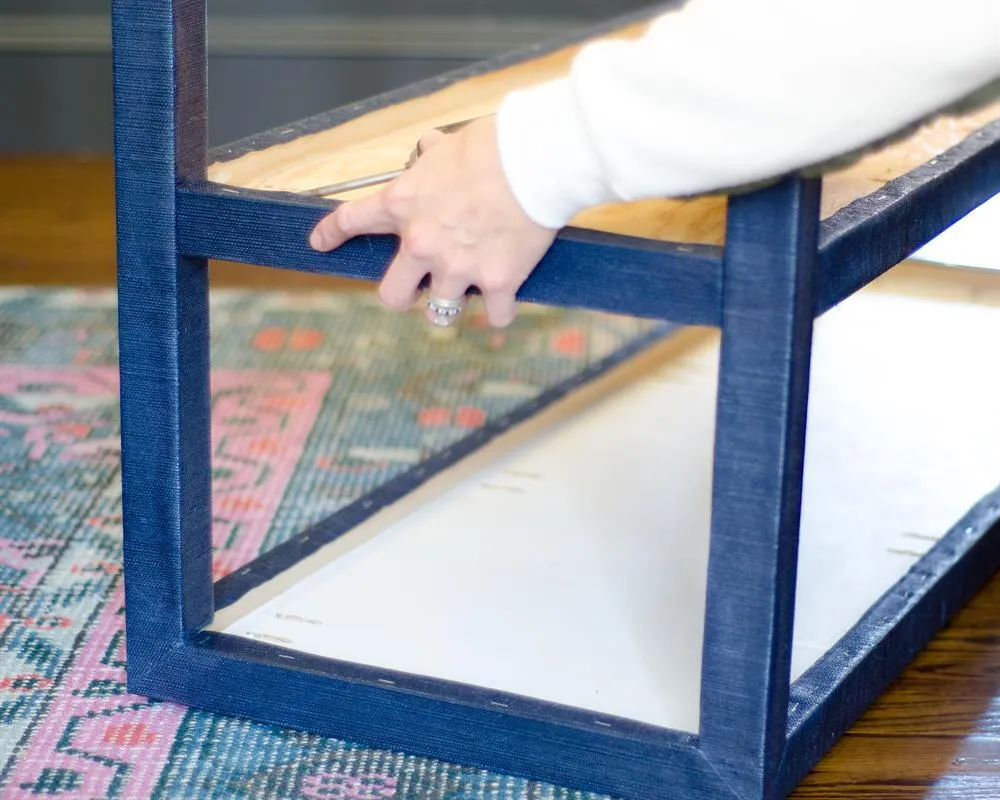

Use painters tape to mark 11" down each leg from the top of the table. Use 1" pocket hole screws to attach the shelf to the legs so the top of the shelf falls 11" from the tabletop. To protect the grasscloth, finish by applying 3-5 coats of poly, making sure to follow the directions on the can regarding drying time between coats.
