Game Table

• The game board will rest on a pair of cleats that get attached to the underside of the table top. Each cleat is made from two pieces.
• First, cut two Cleat Spacers to length from a 3/4" square dowel, as shown in the cutting diagram.
• Next, cut two Cleats to the same length from a 1/2" x 2 board (1 1/2" actual width), as shown in the cutting diagram.

• To attach the Spacers and Cleats, you’ll use glue and nails. If you have a brad nailer, you can use it. If not, use standard “wire nails” (see the “Materials” tab). To avoid splitting the Spacers and Cleats, chuck one of the nails in your drill, and use it to drill three or four evenly spaced pilot holes in each piece. They can be centered on the width of the Spacers. On the cleats, they should be in a line about 1/4" from one edge.
• Sand the Spacers and Cleats, if needed.

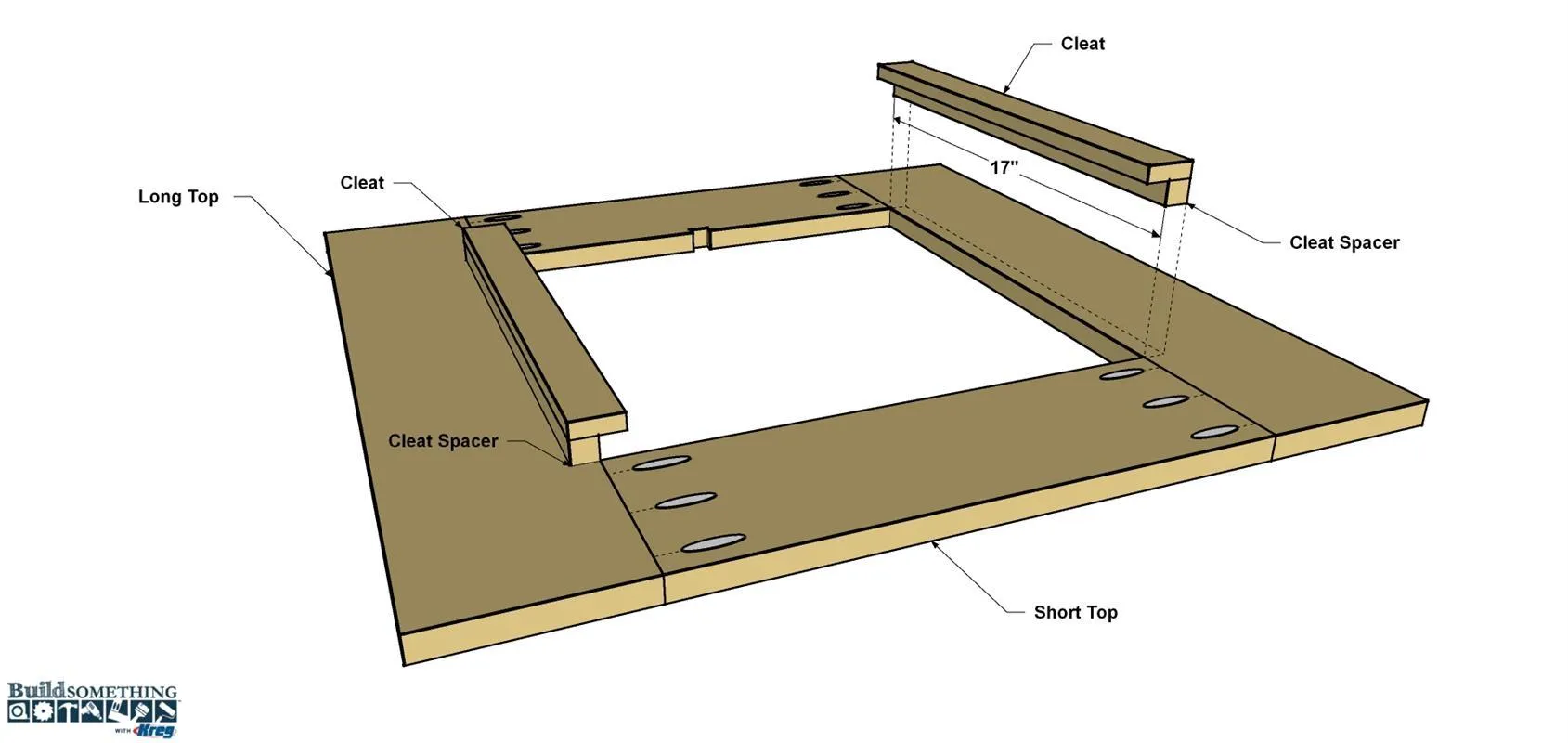

• Spread glue on one edge of each spacer, clamp it to the underside of the top, as shown, and drive in the nails to secure it.
• Add glue to the exposed edge of the Spacer, and then clamp the Cleat in position and nail it on. Do this for both sides.

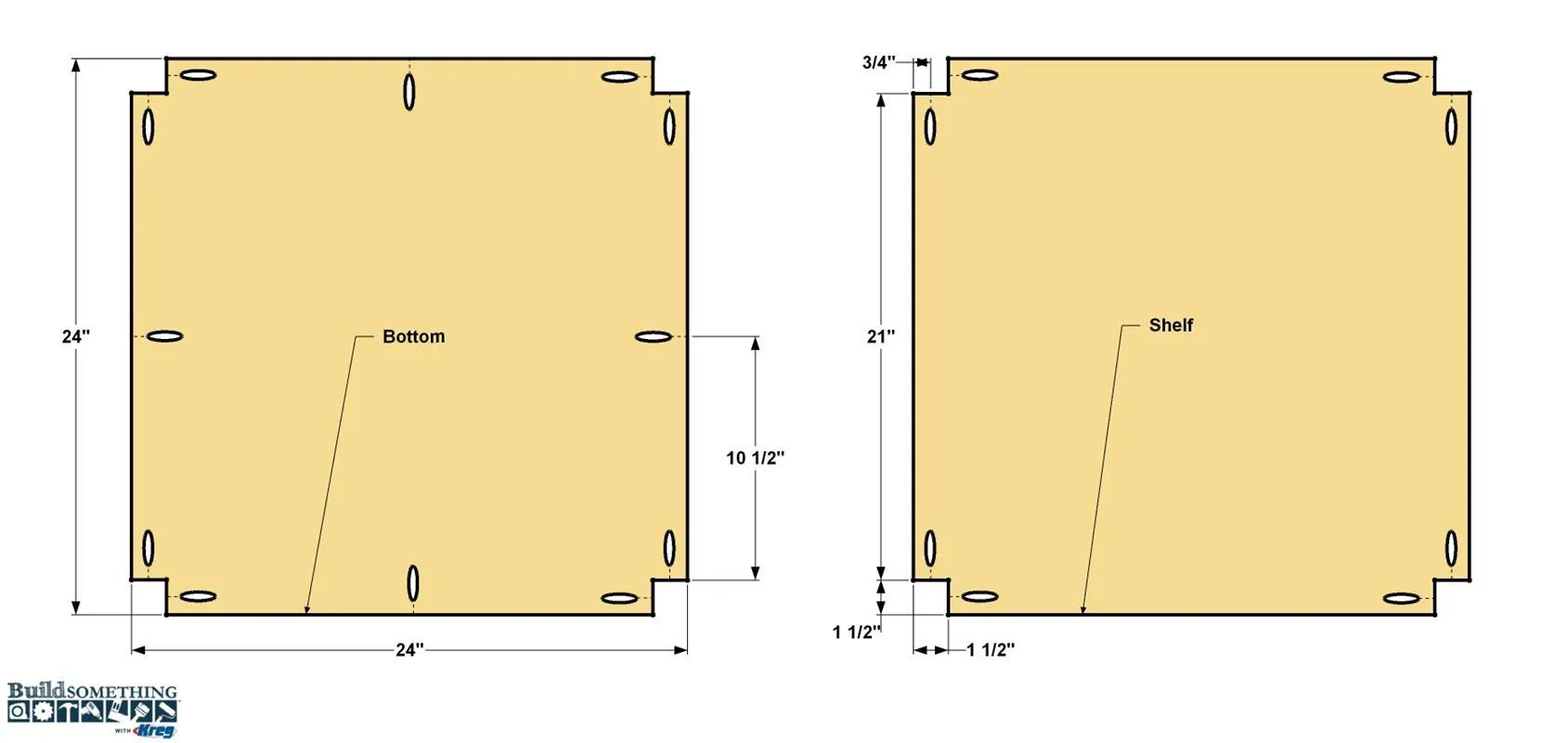

• From 3/4" thick plywood, cut one Bottom panel and one Shelf panel to size, as shown in the cut diagram.
• Next, cut the four corner notches in each panel using a jigsaw.

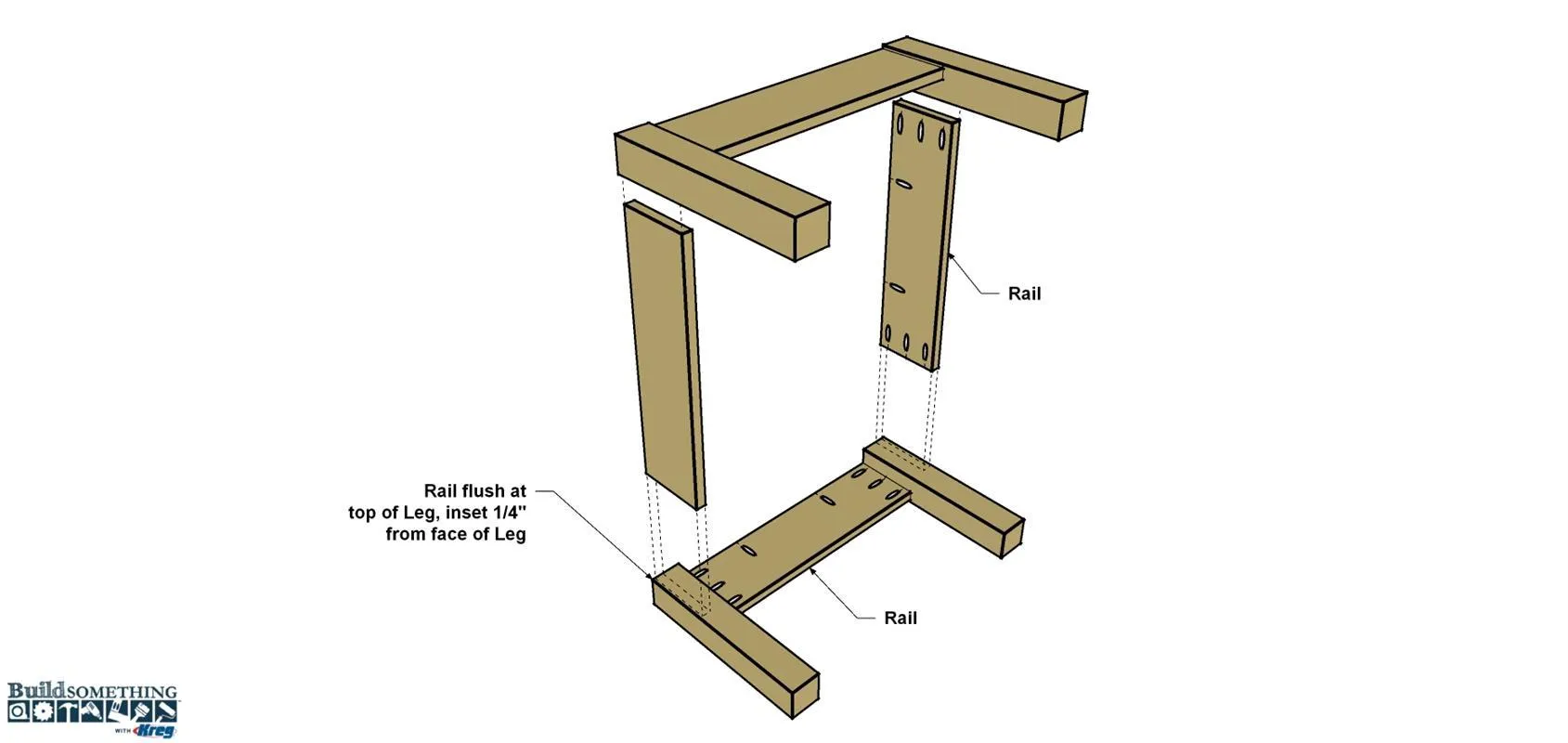

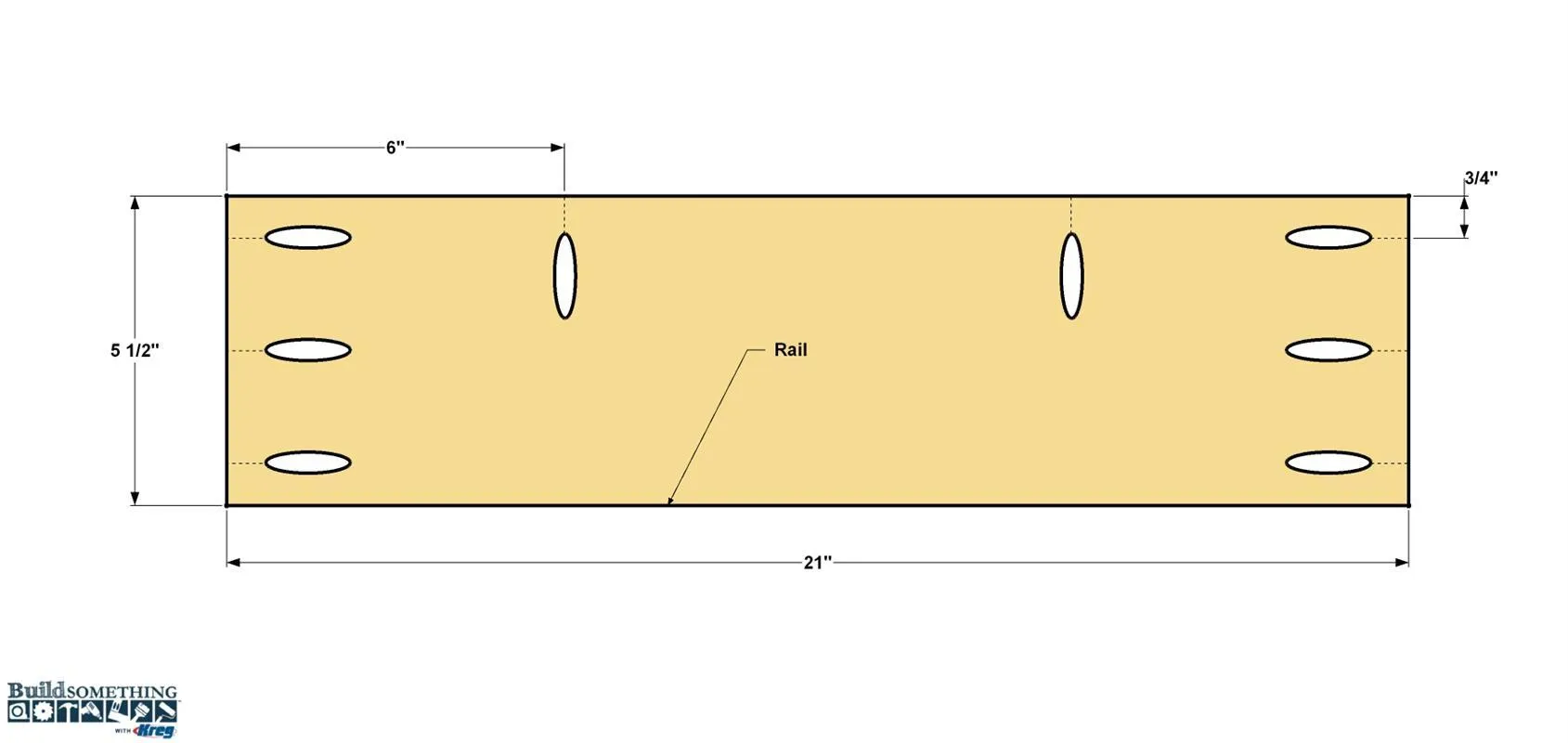

• Finally, Drill pocket holes at the notches in both pieces, as shown. In just the Bottom panel, drill four additional pocket holes centered on each long edge. These will allow you to secure the Bottom at the center of each Rail for added strength.
• Sand the faces of the Bottom and Shelf smooth.

Before moving farther with assembly, this is a great time to paint or stain the table base and the top, since you can get to the inside and outside easily. We used a simple white paint, but you can paint or stain to suit your tastes.

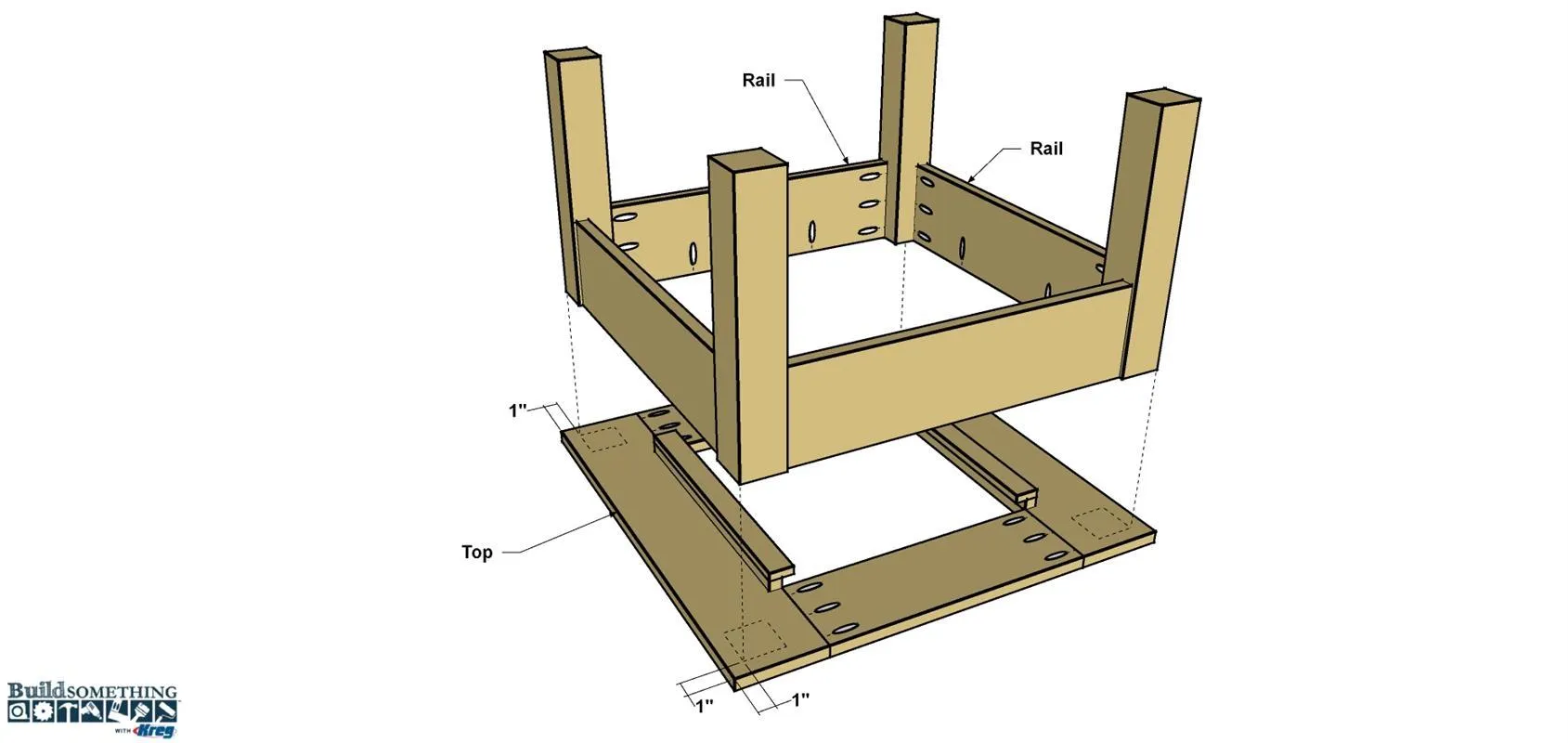

After the paint dries, lay the table top face down (so the cleats are facing up). And then position the table bas on the top, as shown. Make sure the top overhangs the base equally on all sides by measuring at the Legs, as shown. Secure the Top to the Base using 1 1/4" coarse-thread Kreg Screws.

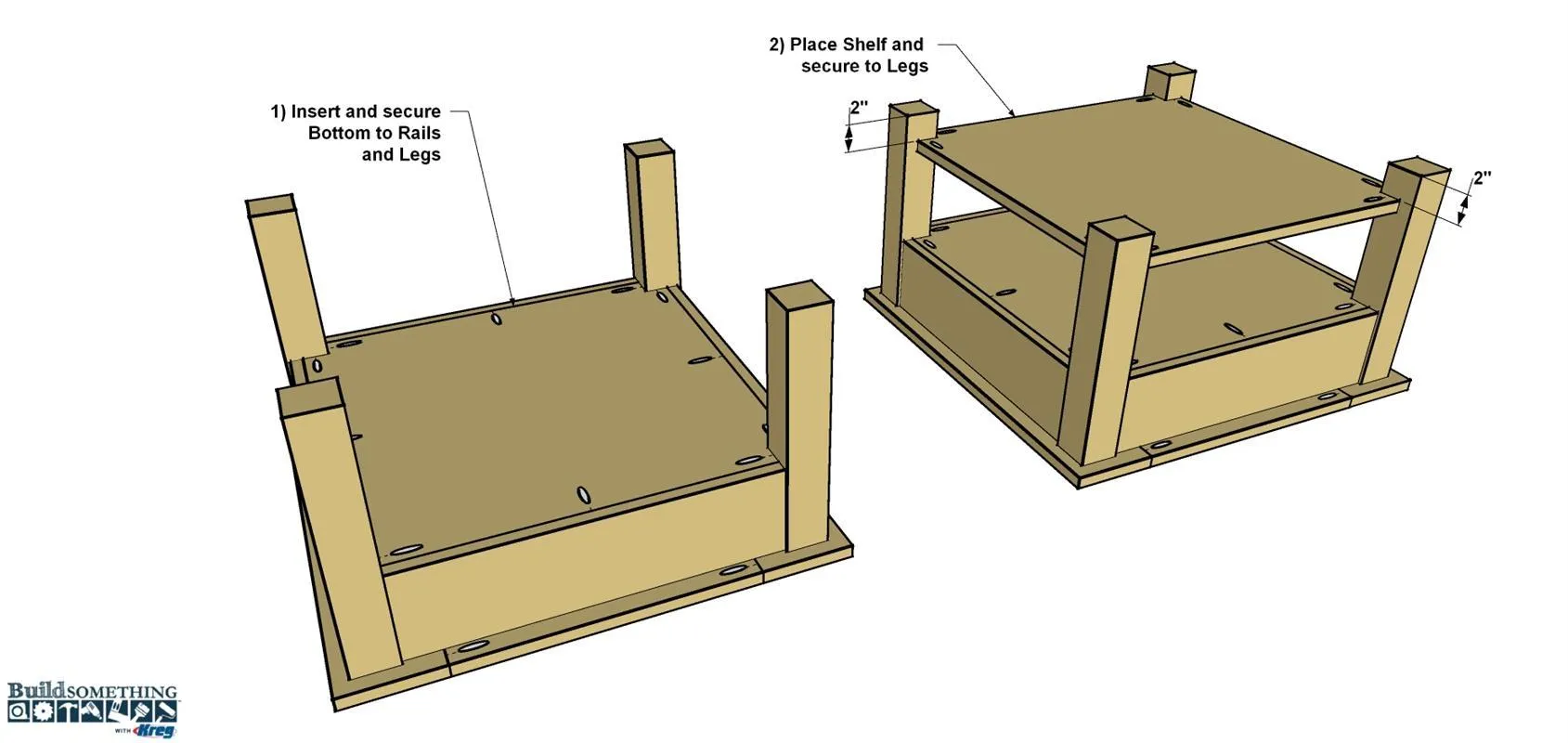

With the table still upside down, position the Bottom panel so it sits flush with the bottom edges of the Rails, as shown. Secure it using 1 1/4" coarse-thread Kreg Screws. Next, position the base at the location shown, and the secure it to the Legs in the same manner.

• Cut one Game Board to size from 3/4" plywood, as shown in the cut diagram.
• Then sand the surfaces smooth. On one face—the one that will be the backgammon board—we applied a clear finish. The finish needs to be paintable so that you can add the backgammon board markings. You could use polyurethane, but we chose spray lacquer (see the “Materials” tab). Spray lacquer is easy to apply, and dries quickly, so you can apply a few coats in the space of a half hour or so.

• Once the finish has dried, you can create the game patterns. You can find We started with the backgammon pattern first.

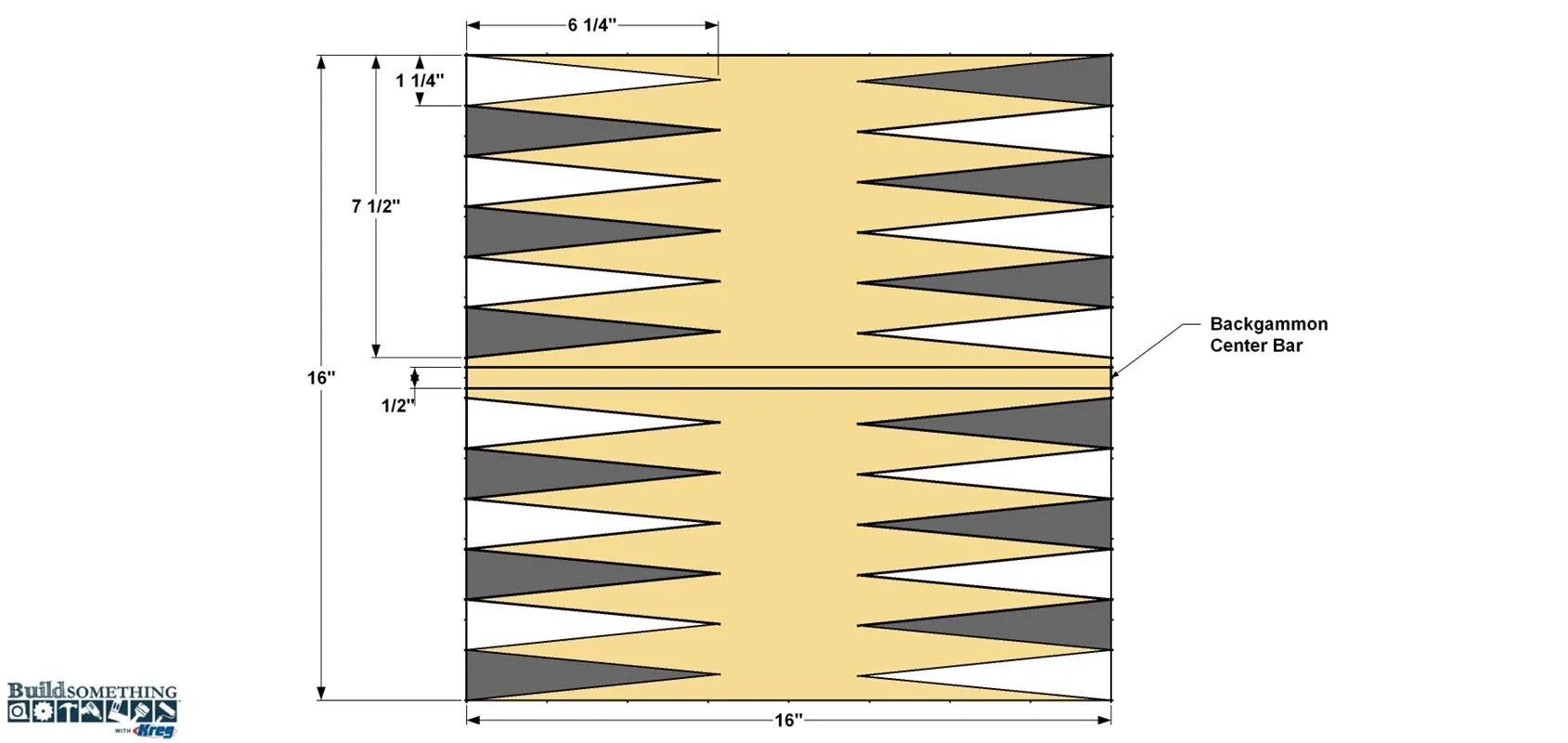

• Lay out the pattern, as shown, on the panel face you applied finish to. You’ll paint with two colors—one lighter and one darker. Mask off one set and apply that color.
• Once it dries, remove the tape and then mask off for the second color, and then apply it. and paint it with a light and dark color of your choice. When the paint is dry flip the board over and mask and paint the checkers/chess pattern on the other side.

• When the backgammon face is dry, flip the board over and create the checkers/chess board.

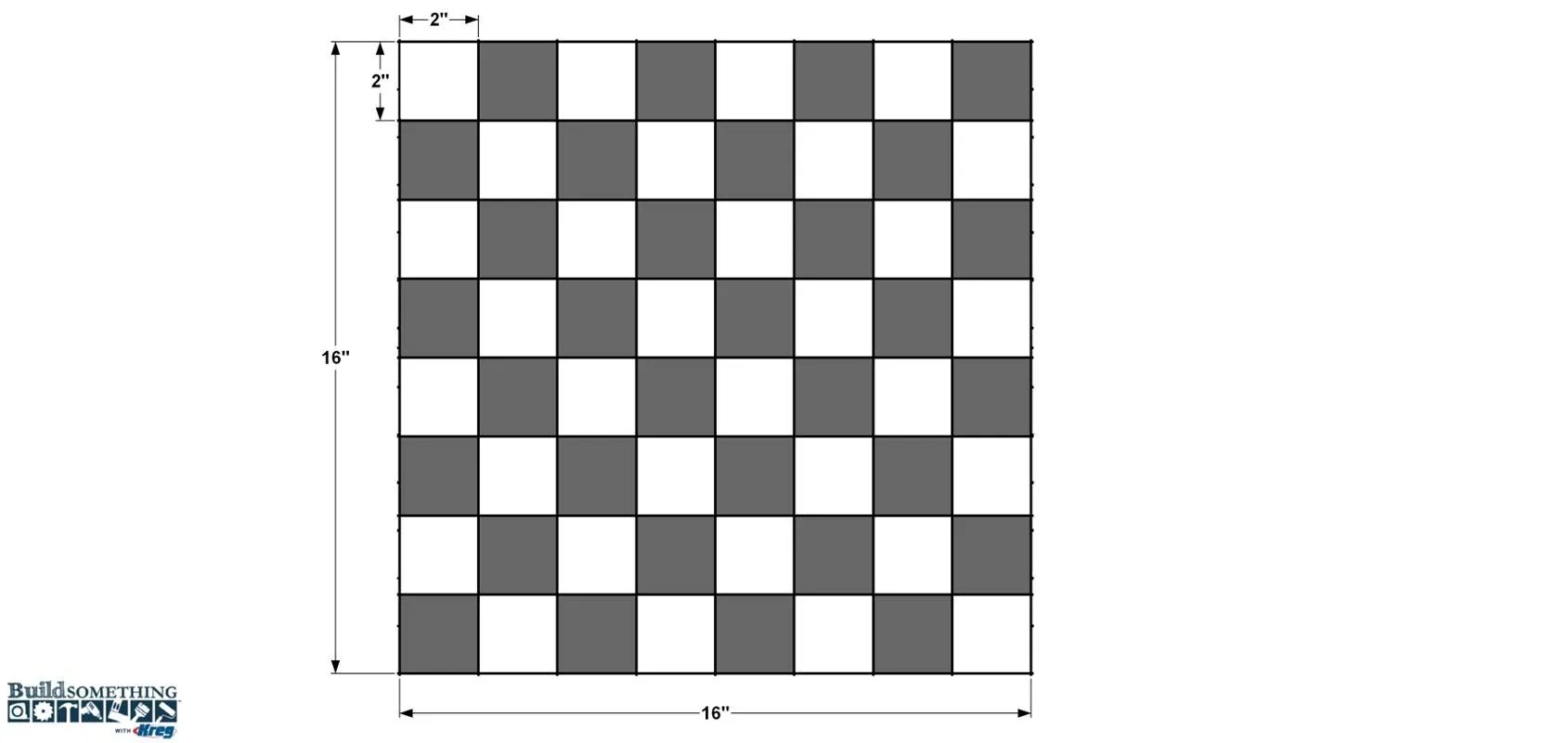

• Lay out all the squares, as shown.
• Then mask off and paint the first color. When it dries, remove the tape and then mask off and apply the second color.

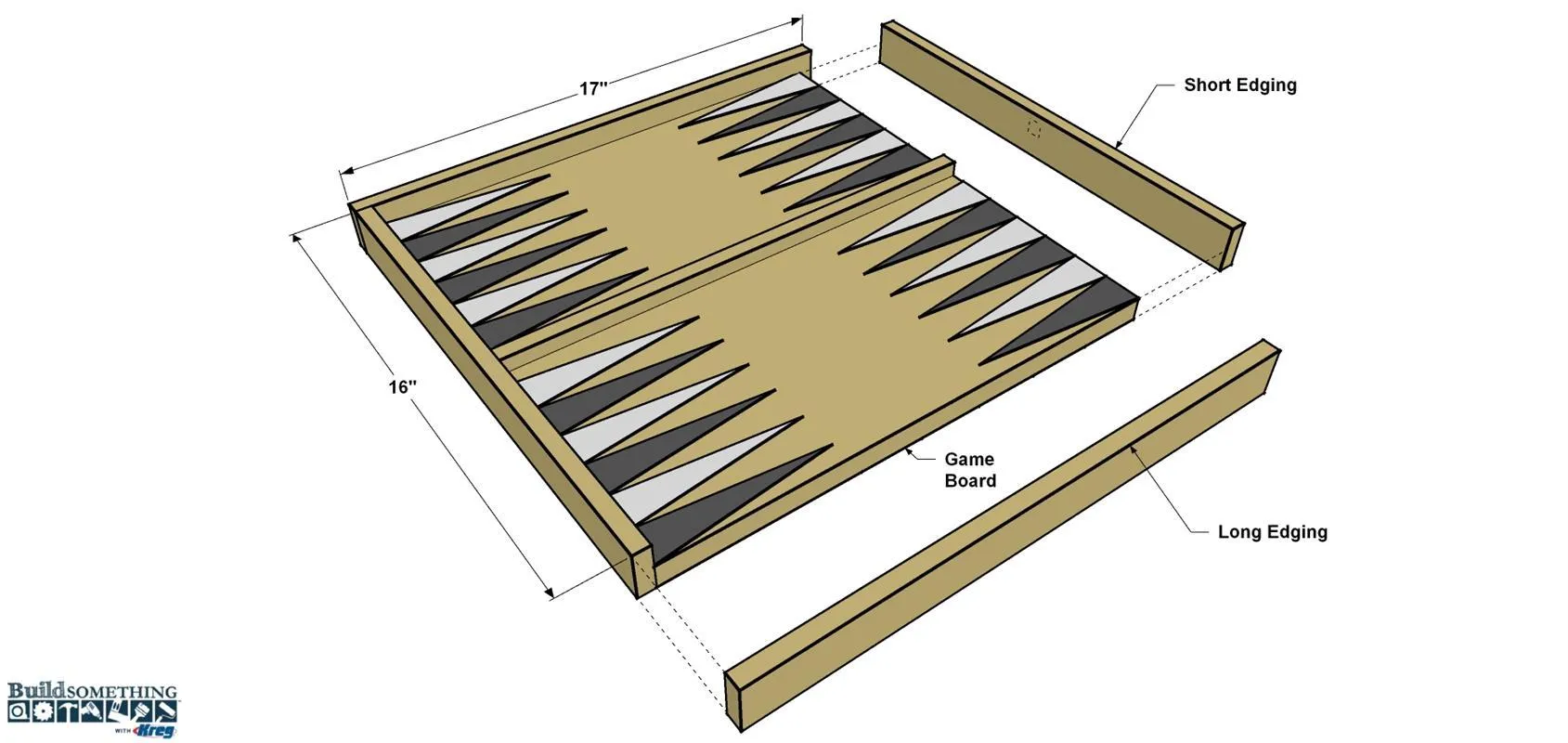

• Cut two Short Edging and two Long Edging from 1/2" x 2 boards, as shown in the cutting diagram. If you’re using standard nails, drill a few pilot holes in each of these, locating them about 1/4" away from one edge.
• Cut the Center Bar to length from a 1/2" x 1/2" square dowel, as well. It won’t need pocket holes.
• Sand the Edging and Center Bar, and then paint them to match your table.
• Once the paint dries, set the Game Board with the backgammon side facing up.
• Spread glue on the two edges of the Game Board that will receive the Short Edging, and then glue and nail them in place.
• Spread glue on the other two edges of the Game Board, and on the ends of the Short Edging.
• Align everything, and then glue and nail the Long Edges on.

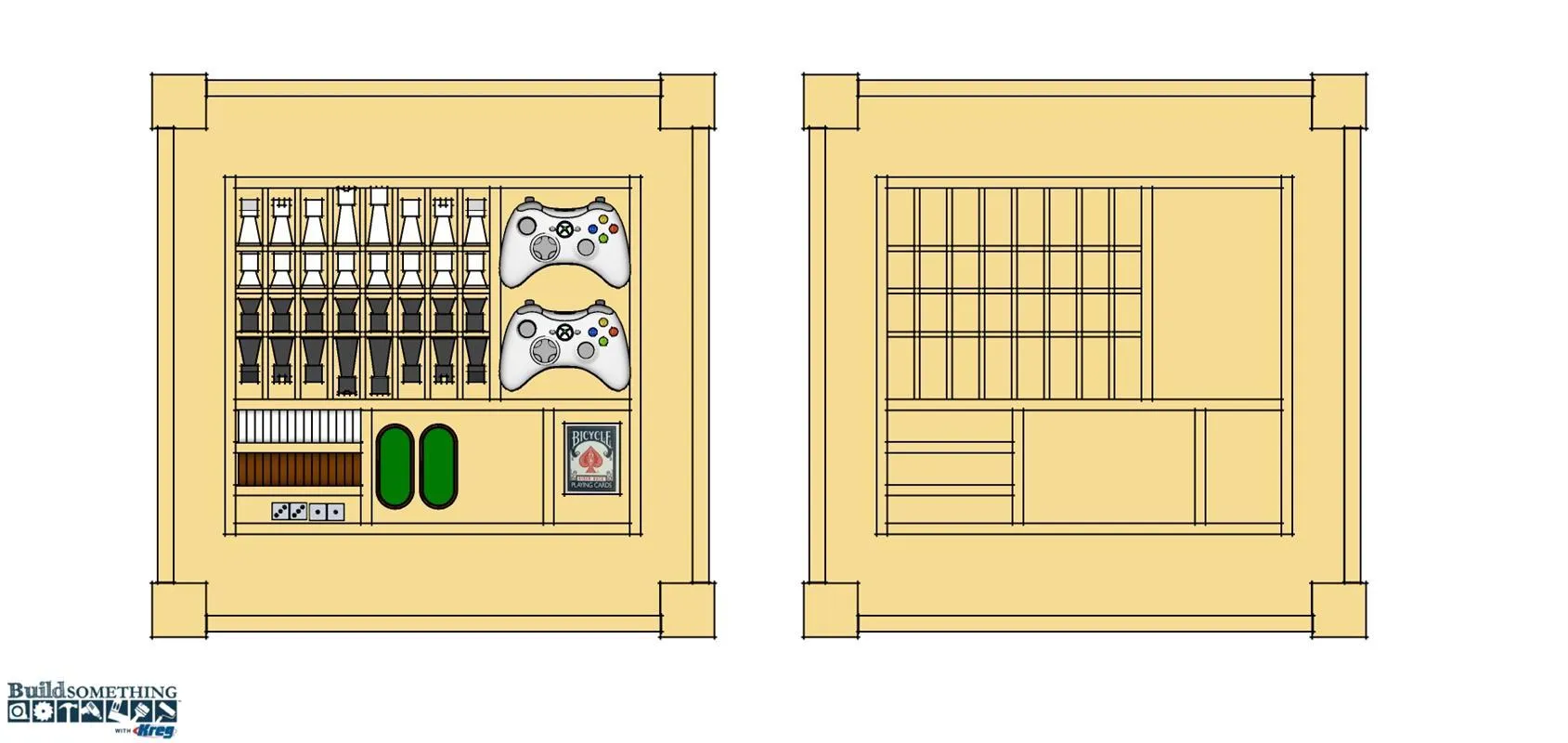

For our game table, we decided to create some storage on the inside to hold the chess and checkers/backgammon pieces, as well as for other game essentials like cards. To do this, we cut 1/2" x 1/2" square dowel to the lengths we needed, and then glued them to the Bottom panel inside the table. If you choose to do this, you’ll need to figure out a layout that works for your game pieces.
