Want to bring your building skills up a level?
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Sides of Cabinet | 2 | 3/4" × 19 3/4" × 35" | — | ☐ |
| Bottom of cabinet | 1 | 3/4" × 20 1/2" × 25 1/2" | — | ☐ |
| Face frame center | 3 | 3/4" × 1 1/2" × 25 1/2" | — | ☐ |
| Face frame sides | 2 | 3/4" × 1 1/2" × 35" | — | ☐ |
| Fluting detail | 1 | 3/4" × 3 3/4" × 25 1/2" | — | ☐ |
| Doors | 2 | 3/4" × 12 7/8" × 24" | — | ☐ |
| Baseboard front | 1 | 3/4" × 4 1/2" × 29 1/4" | — | ☐ |
| Baseboard Sides | 2 | 3/4" × 4 1/2" × 21 1/2" | — | ☐ |
| Door Trim | 8 | 1/4" × 1/4" × 1/4" | — | ☐ |
| Upper trim front | 1 | 1/4" × 1/2" × 30 1/4" | — | ☐ |
| Upper trim sides | 2 | 1/4" × 1/2" × 22" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| 3/4" thick wood, Board feet | 60 board | ☐ |
| 1 1/4" pocket hole screws | 50 each | ☐ |
| 1 1/2" brad nails | 50 each | ☐ |
| Wood Glue | 1 each | ☐ |
| Variation of 80, 120, 150 and 220 sandpaper | 1 each | ☐ |
| Stain of Choice | 1 each | ☐ |
| CA glue | 1 each | ☐ |
| Roundover bit | 1 each | ☐ |
| Triple beaded bit | 1 each | ☐ |
| Inset door hinges | 4 each | ☐ |
Overall cost: $$$$. Lumber varies by region, species, and season, so we give a band rather than a figure.

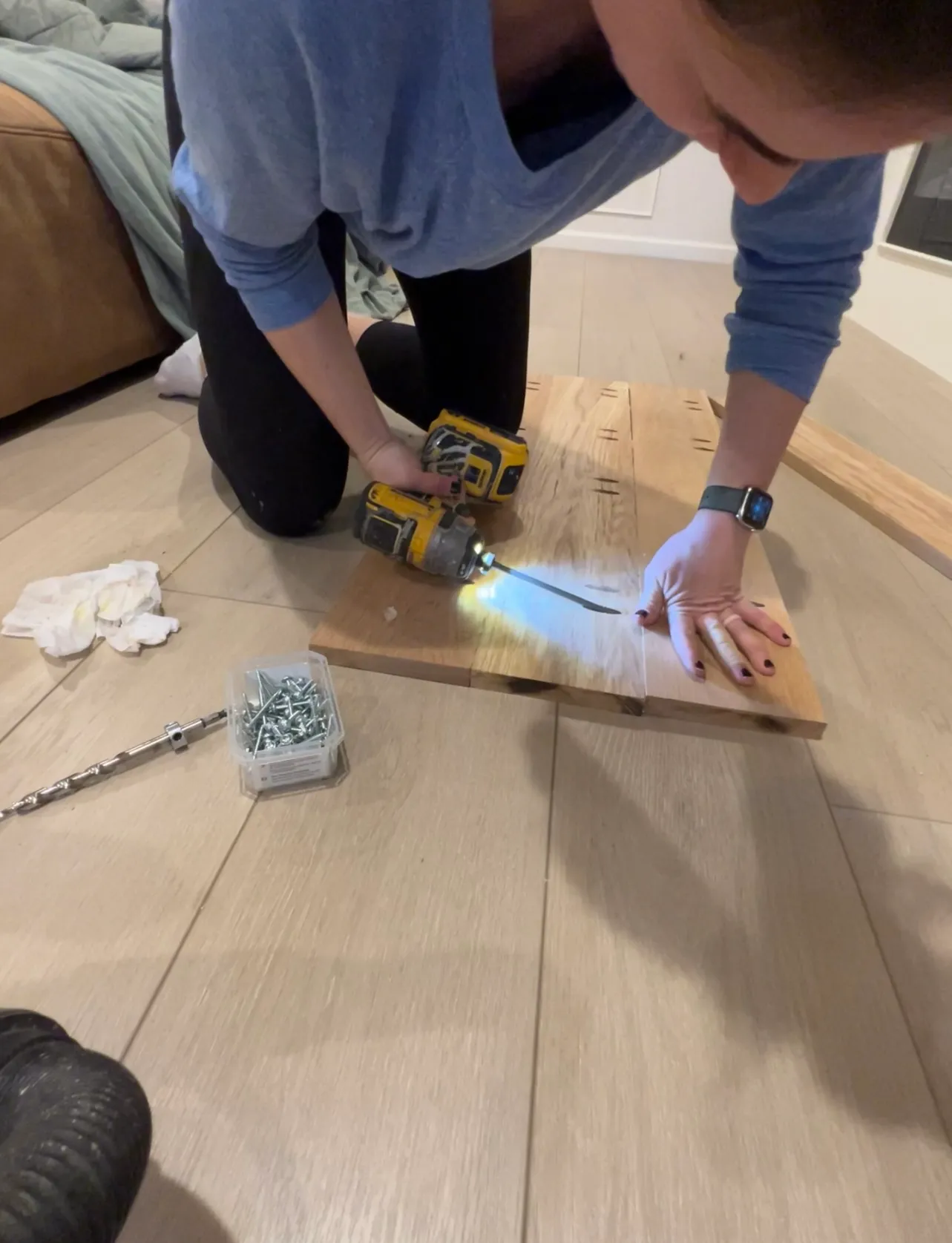

Cut and attach the side panels together using wood glue and 1 1/4" pocket hole screws.
Cut the panel to size using a table saw, track saw or circular saw.
Attach the bottom panel of the cabinet to the sides of the cabinet using wood glue and 1 1/4" pocket hole screws. Make sure the bottom of the cabinet is 3.5" inches off the floor.

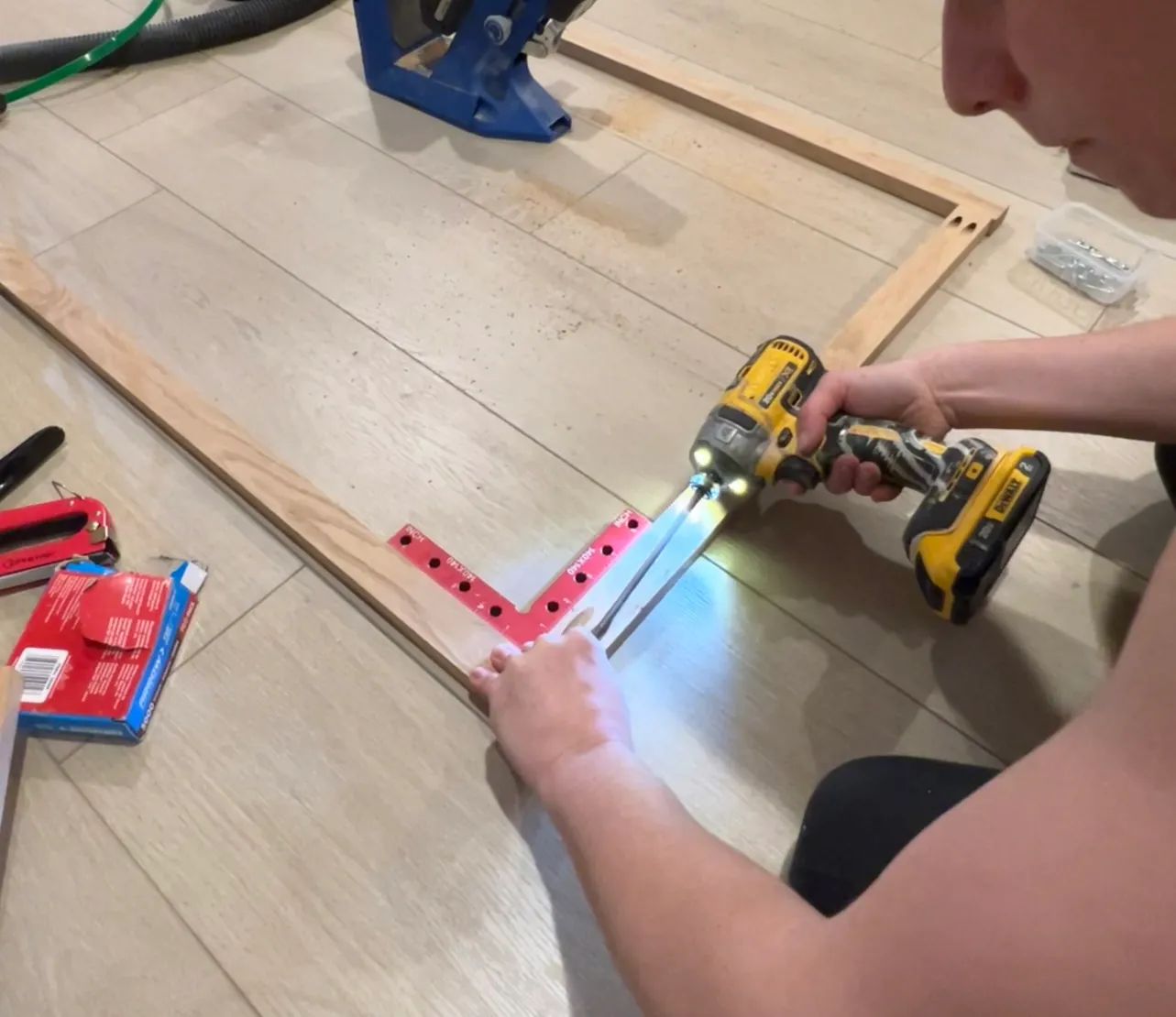

Cut the face frame to size and attach together using 1 1/4" pocket hole screws and wood glue.

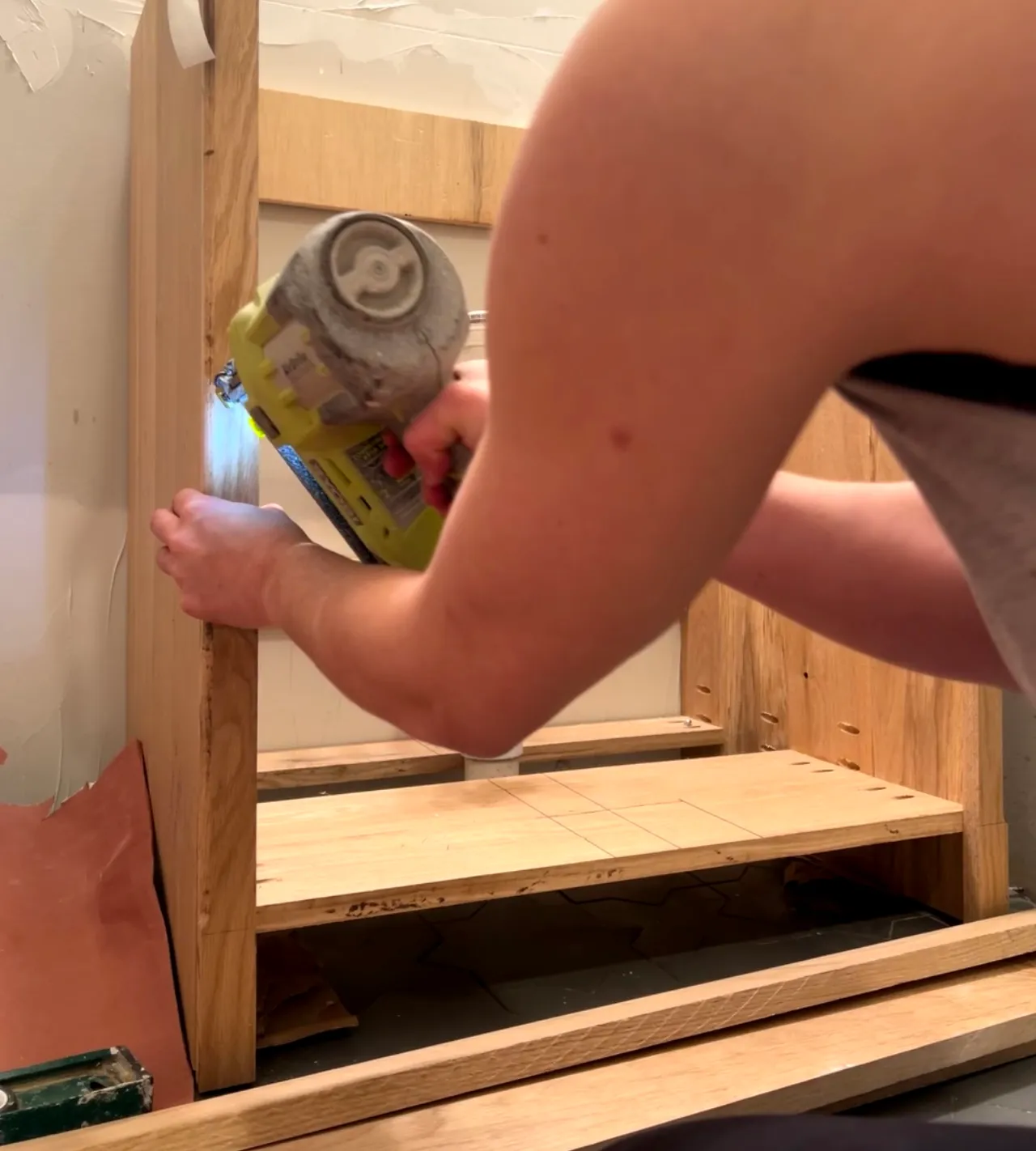

Nail the face frame onto the cabinet box using 1 1/2" brad nails.

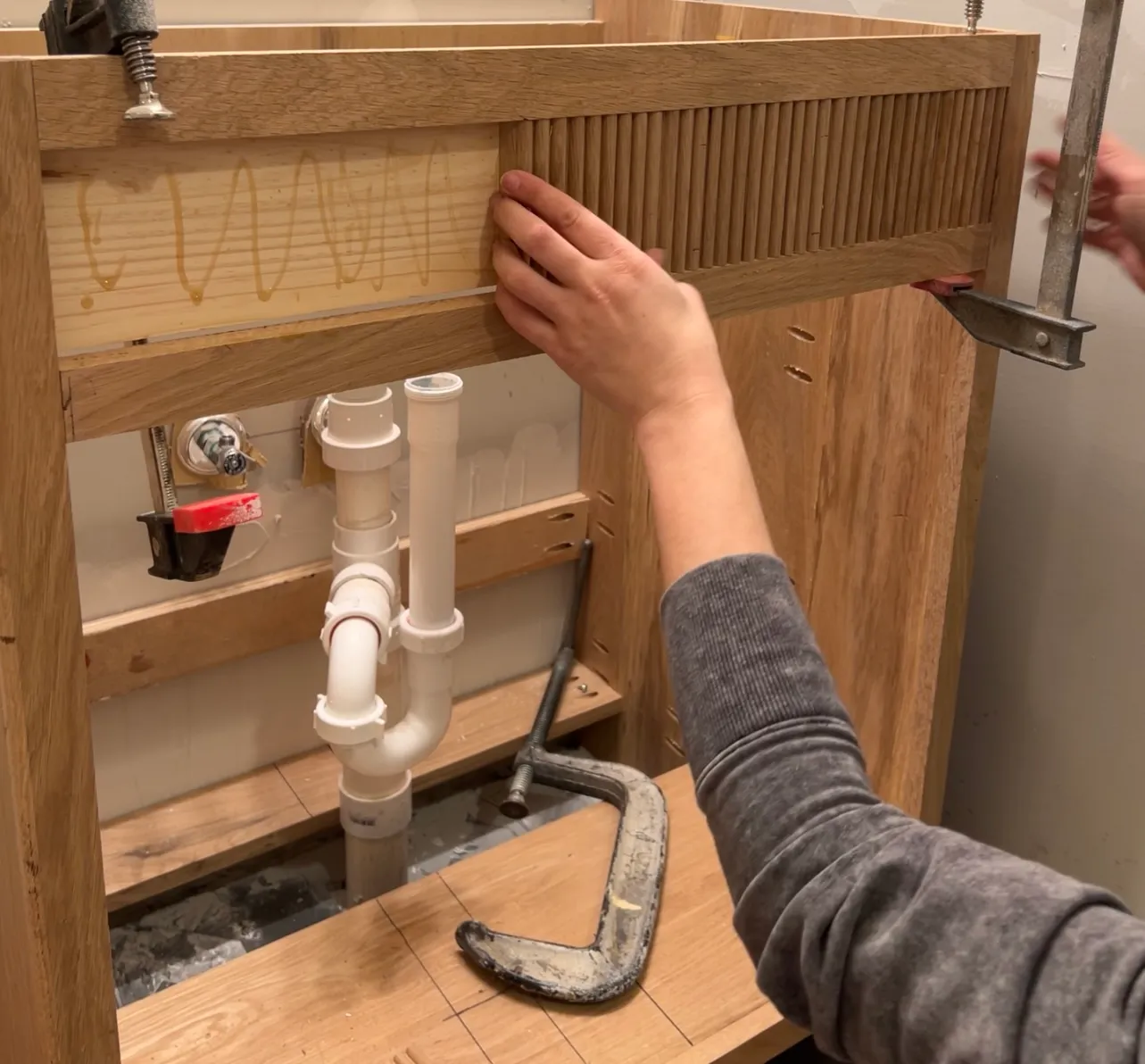

After routing the fluted trim and cutting it to size, use CA glue and glue the trim onto the backboard.

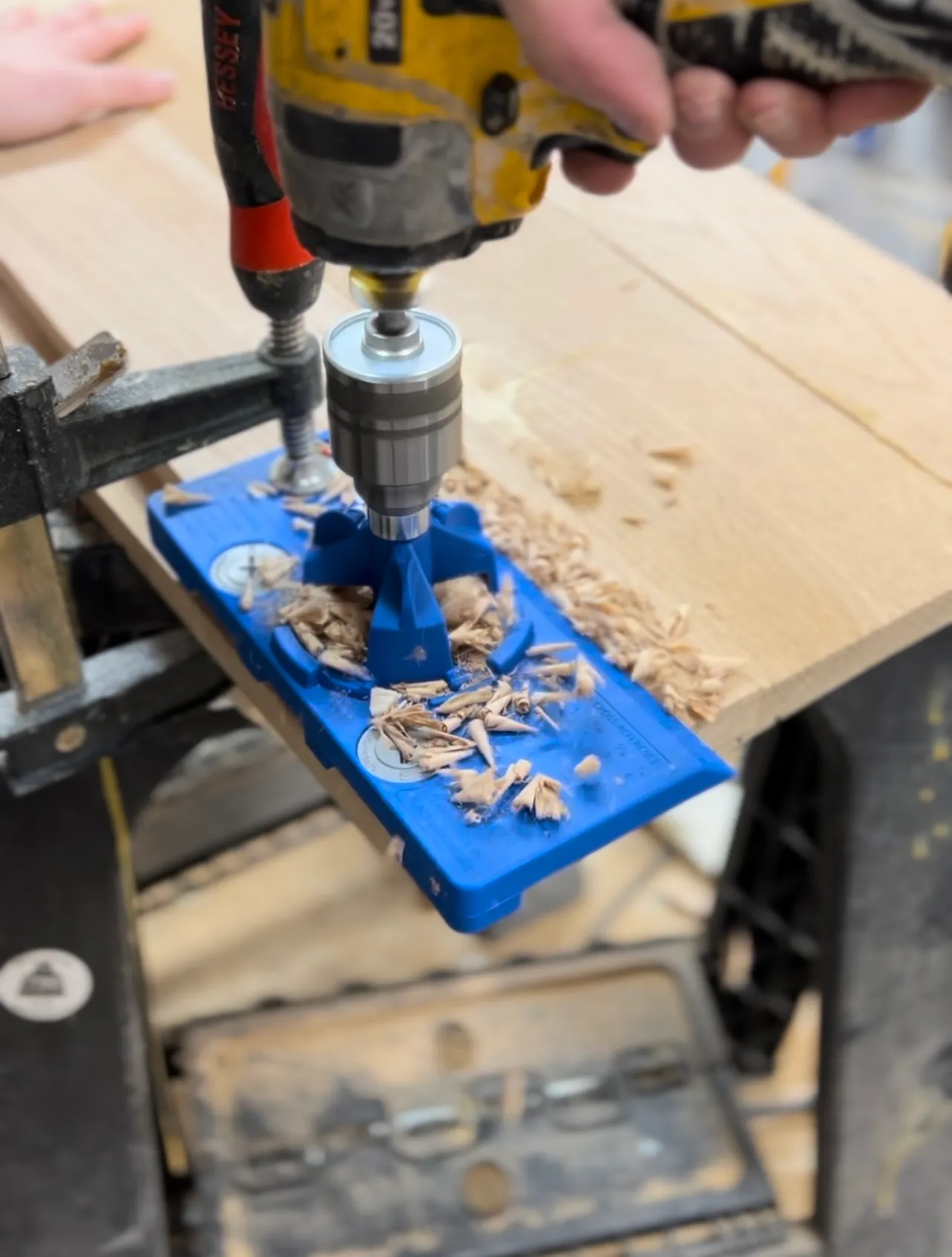

Cut the doors to size and using the Kreg Hinge Jig drill the cup holes for the hinges.

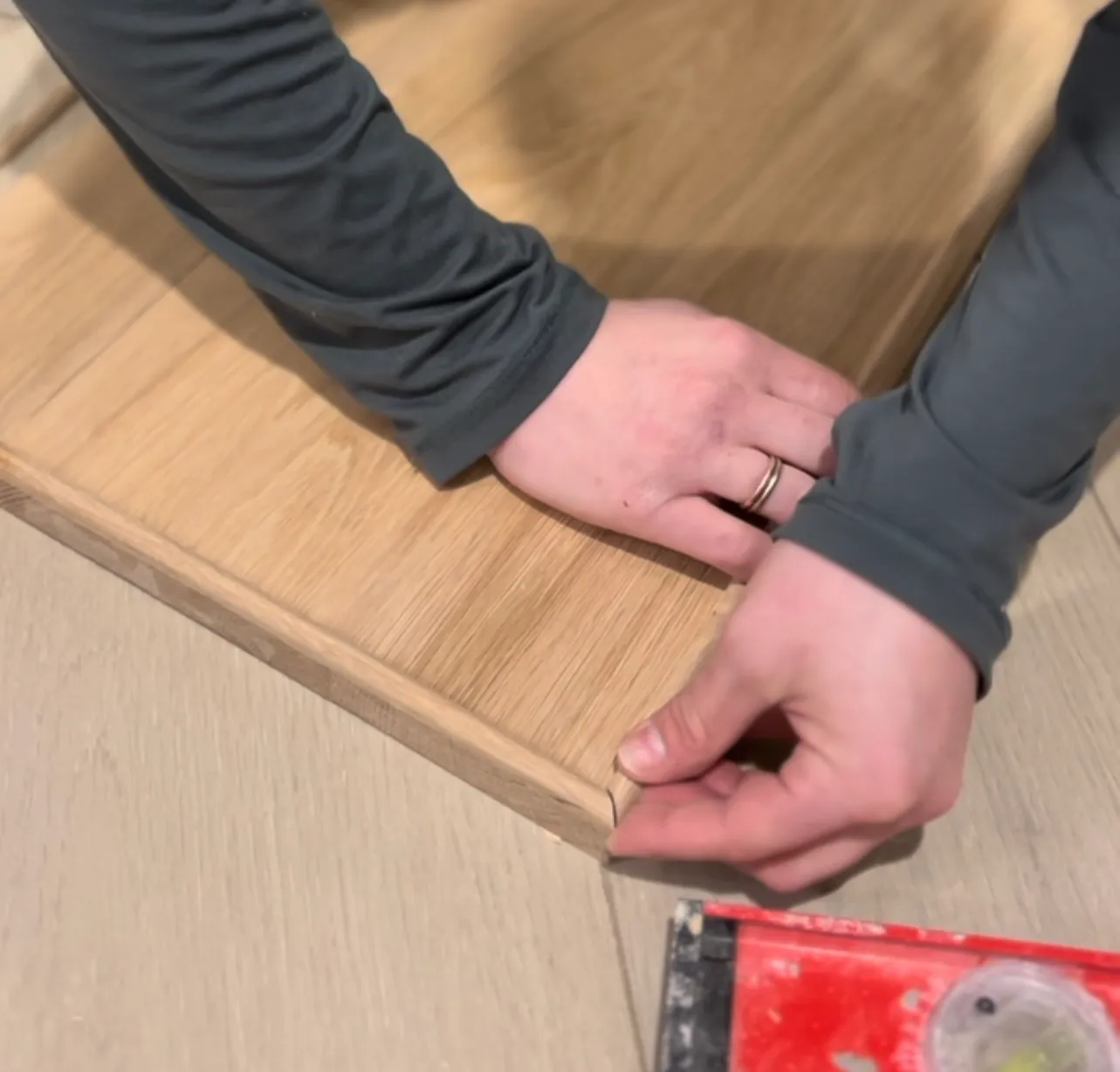

Add trim to the door fronts, using CA Glue. (optional)
Attach the doors to the cabinet. Make sure to have an even reveal on all sides.
Use a roundover bit to route the trim for underneath the countertop. Cut to size and attach with CA glue. (optional)
Sand and stain the color of your choice!
