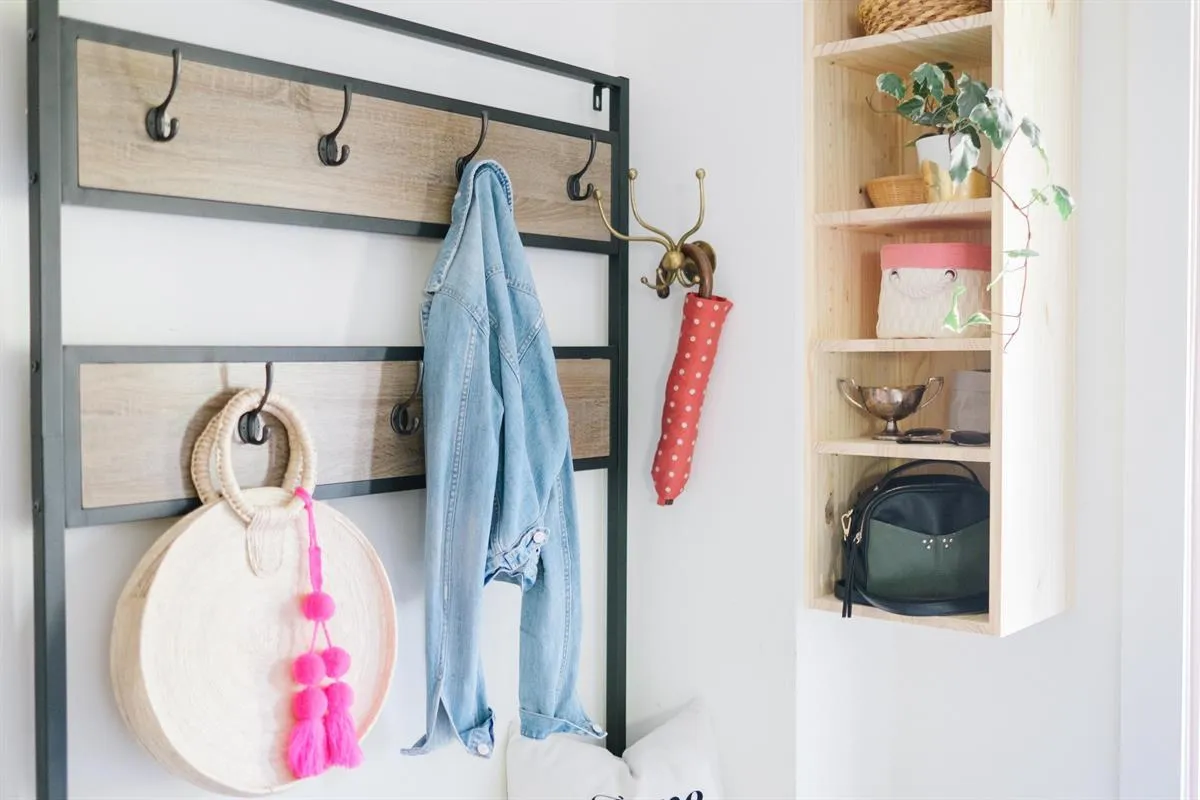

How to build a shelf that can be hung at any height or used on the floor with adjustable shelves using the Kreg Shelf Pin Jig
| Item | Qty |
|---|---|
| Board, 1x12 96" | 3 board |
| Shelf pins | 20 each |
| Wood screws | 8 each |
| 120 grit sandpaper | 1 each |
| 1 1/4" Kreg pocket hole screws | 40 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Sides | 3 | 3/4" × 11" × 48" |
| Top & bottom | 2 | 3/4" × 10" × 11" |
| Shelves | 5 | 3/4" × 10" × 11" |
Buy 4 boards at 8 ft.
3 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

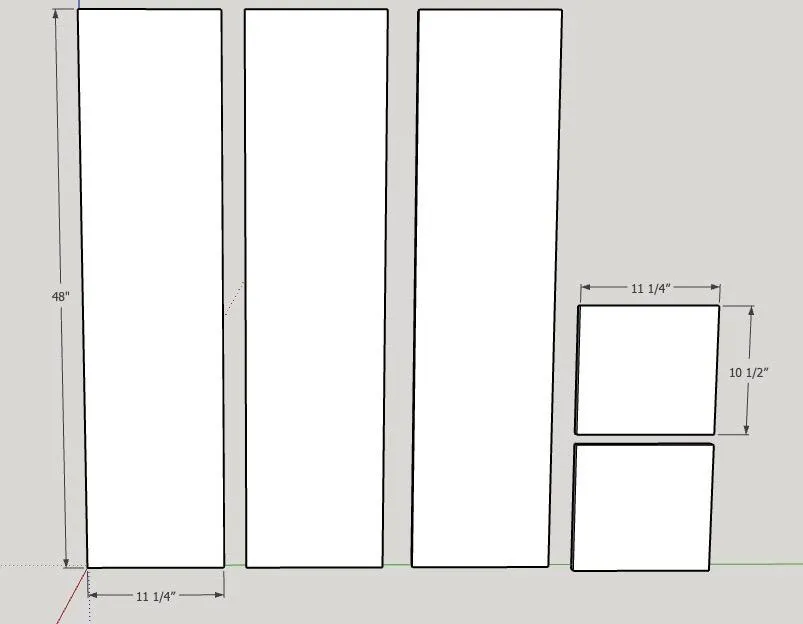

Using 1x12 lumber of choice (actual size 3/4" x 11 1/4"), cut 3 pieces into 4' lengths and 2 pieces into 11 1/4" x 10 1/2" Also cut as many shelves as you'd like at 11 1/4" x 10 1/2"

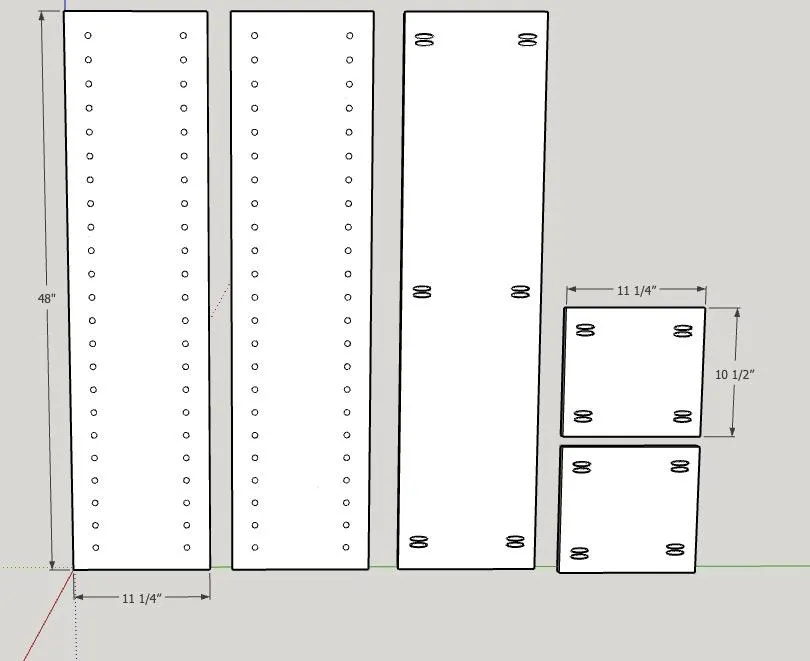

Add 12 pocket holes to one of the 4' pieces and 8 pocket holes to each of the 10 1/2" pieces, then add shelf pin holes to the other two 4' pieces.

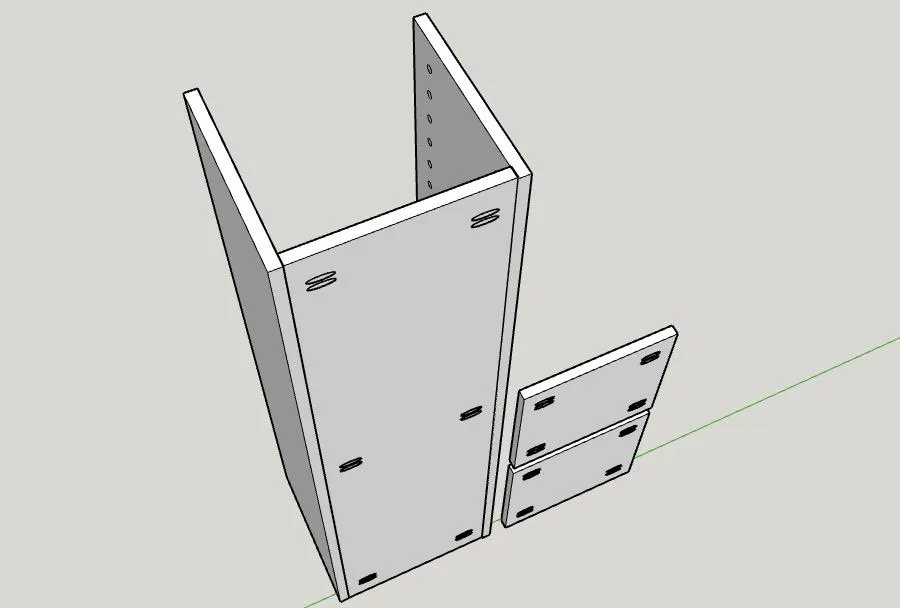

Attach the two 4' sides of the shelf using the pocket holes, keeping holes on the back of the shelf.

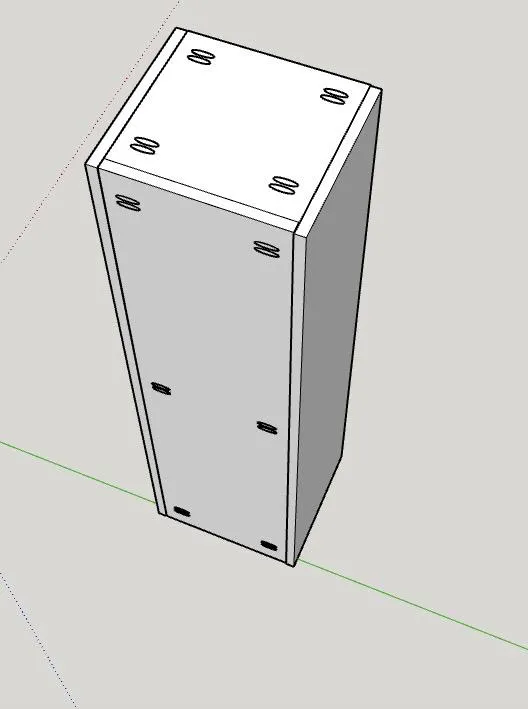

Using pocket holes, attach the top and bottom pieces, ensuring pocket holes remain on the outside.

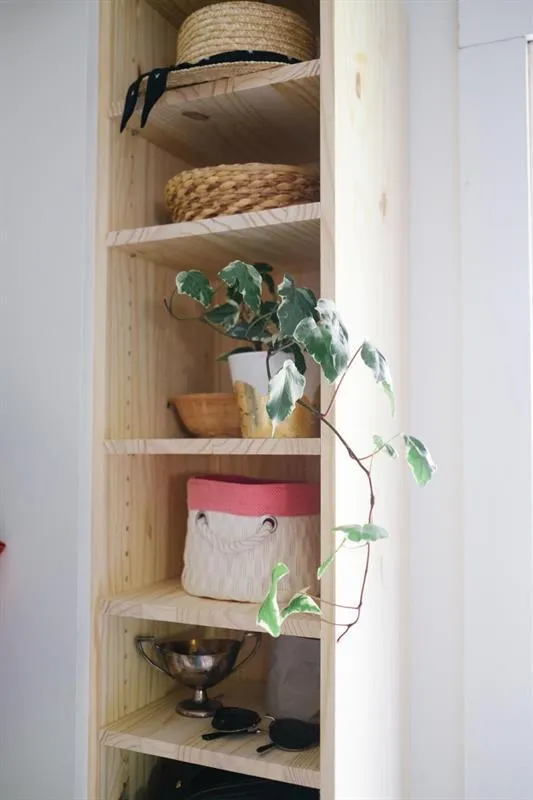

Using shelf pins, attach shelving wherever you'd like and enjoy your new storage system!
