Expandable Craft Table

Cut four Legs to length from 2x2 boards, as shown in the cutting diagram. Also cut one Long Cubby Back to size from 3/4" plywood, as shown.

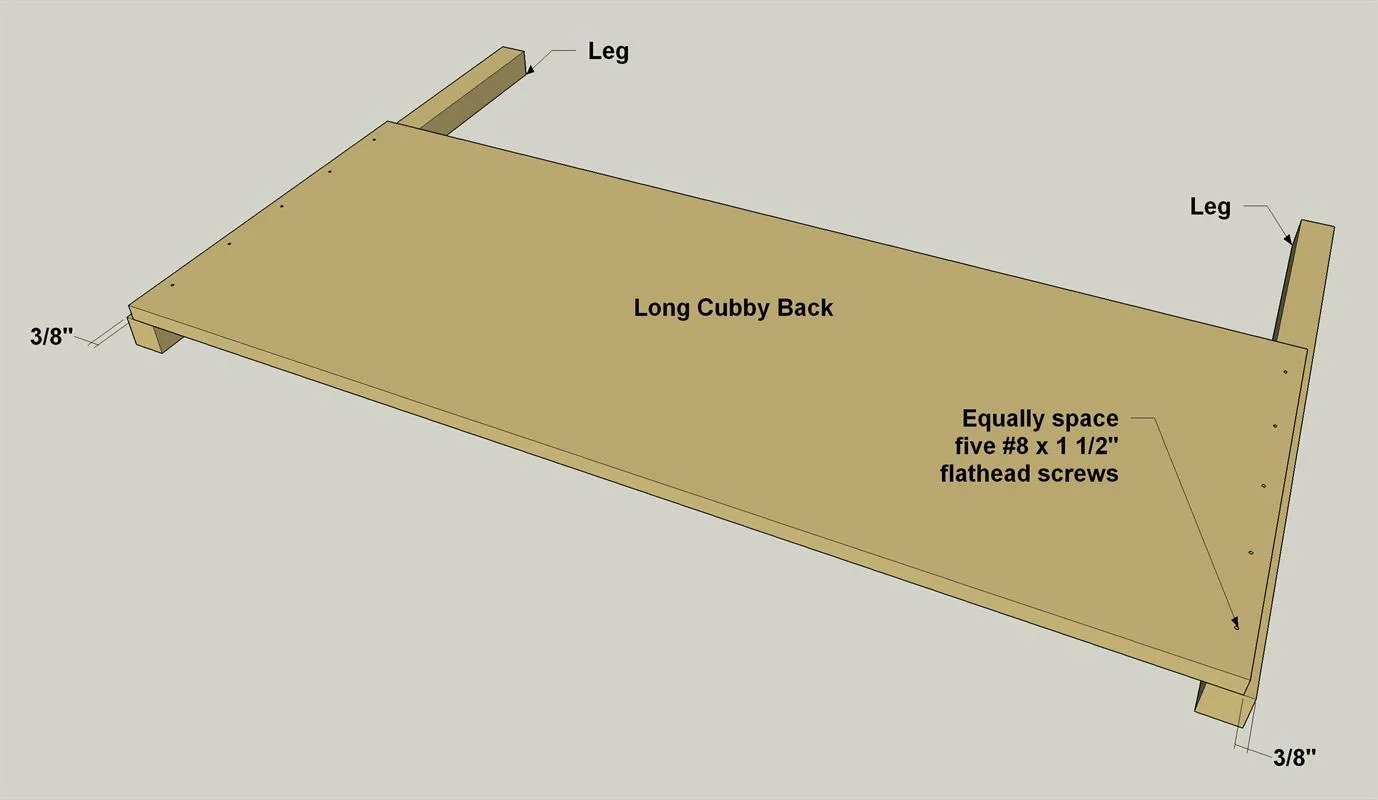

• Position the Cubby Back on two of the Legs, as shown, so that the upper ends of the Legs are flush with the top of the Cubby Back, and the Legs are set 3/8" out from the Cubby Back.
• Glue and clamp the Legs in place, and then drill pilot holes for #8 x 1 1/2" screws. Drive in the screws to secure the Cubby Back to the Legs.

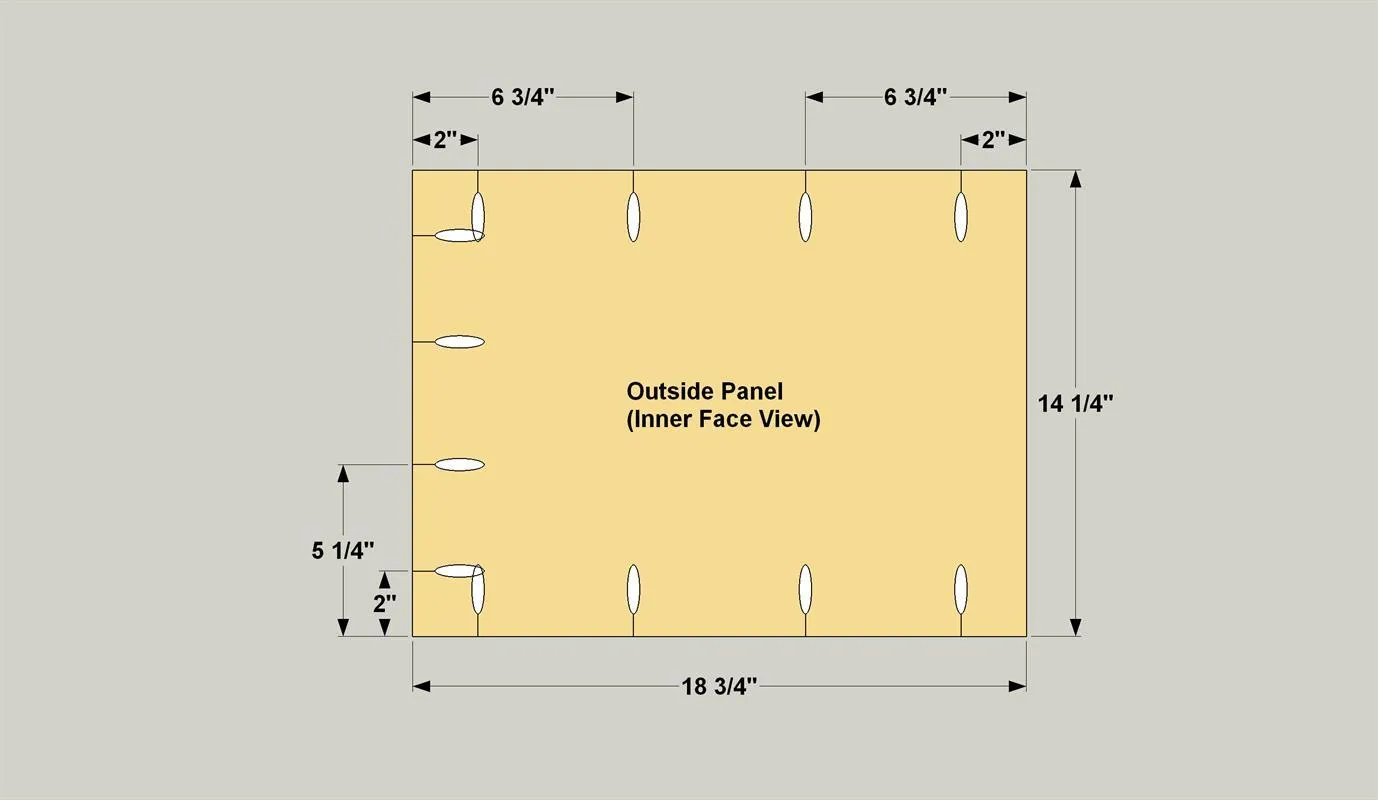

Cut two Outside Panels from 3/4" plywood. Then drill pocket holes where shown.

Cut two Drawer Slide Fillers to length from a 3/8"-thick board, as shown in the cutting diagram. Home centers often sell these thin boards as “hobby boards” or “craft boards.”

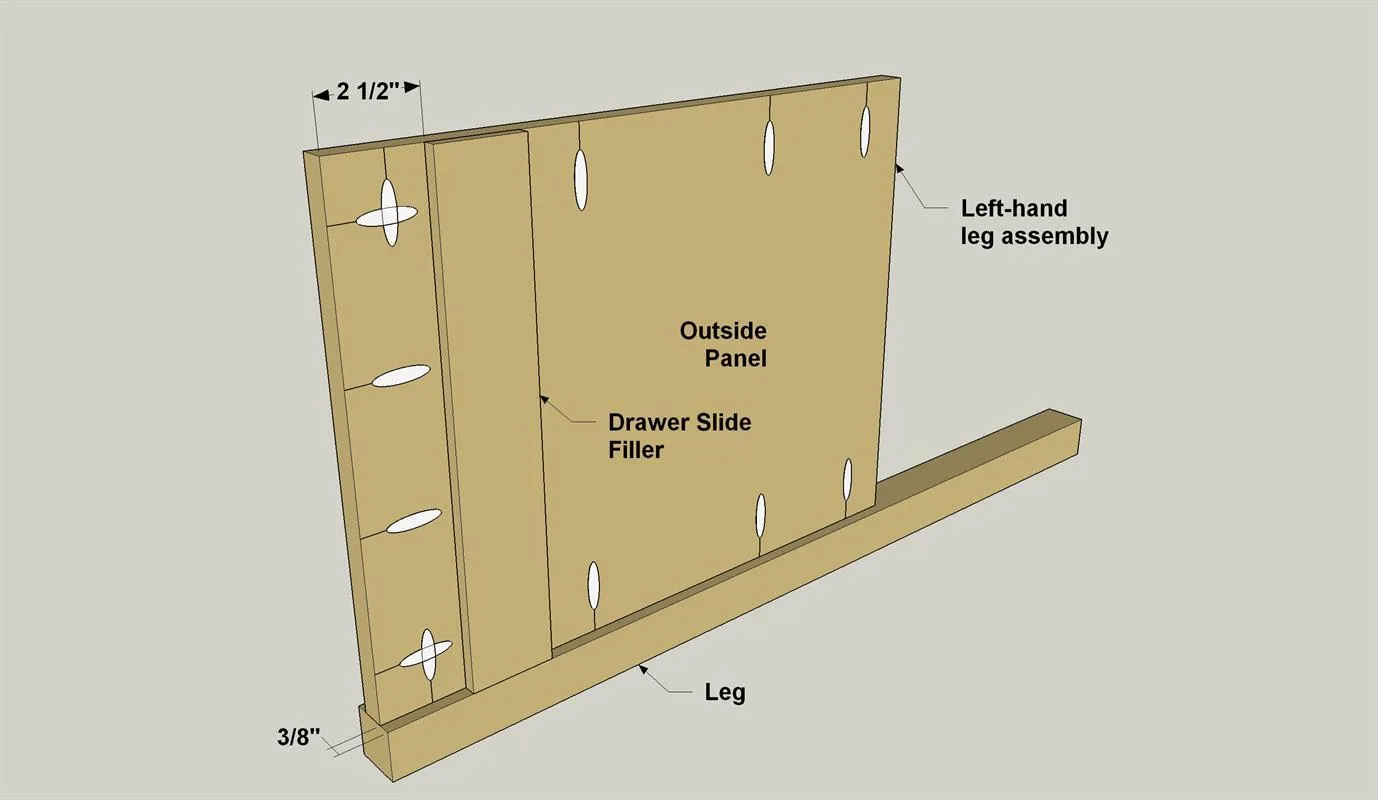

• Position one Outside Panel on a Leg, as shown, making sure the upper edge of the Outside Panel is flush with the upper end of the Leg, and that the Outside Panel is centered on the width of the Leg.
• Then attach the Outside Panel to the Leg using 1 1/4" coarse-thread pocket hole screws. After that, attach a Drawer Slide Filler using glue and 3/4" brad nails as shown.

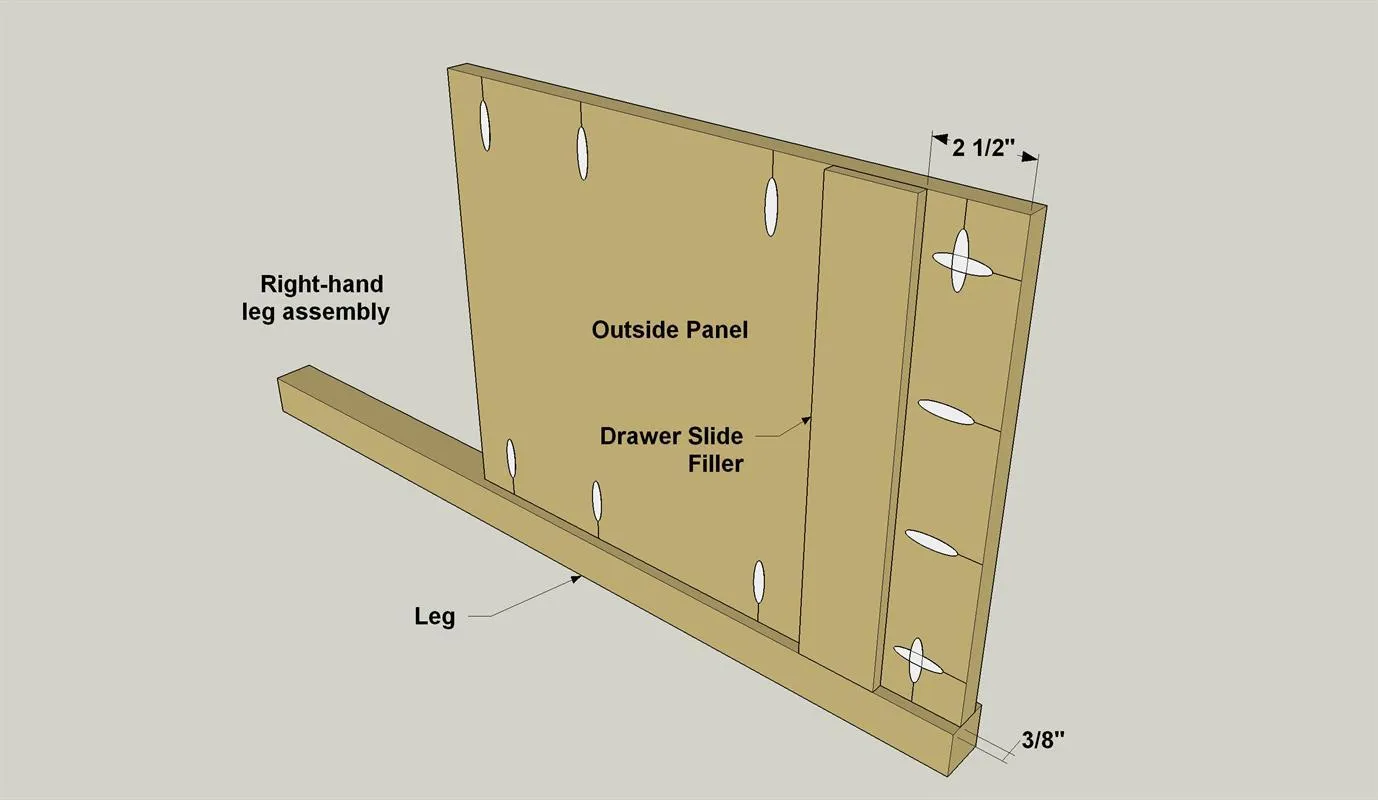

• Position the other Outside Panel on another Leg, as shown, making sure the upper edge of the Outside Panel is flush with the upper end of the Leg, and that the Outside Panel is centered on the width of the Leg.
• Then attach the Outside Panel to the Leg using 1 1/4" coarse-thread pocket hole screws. After that, attach a Drawer Slide Filler using glue and 3/4" brad nails as shown.

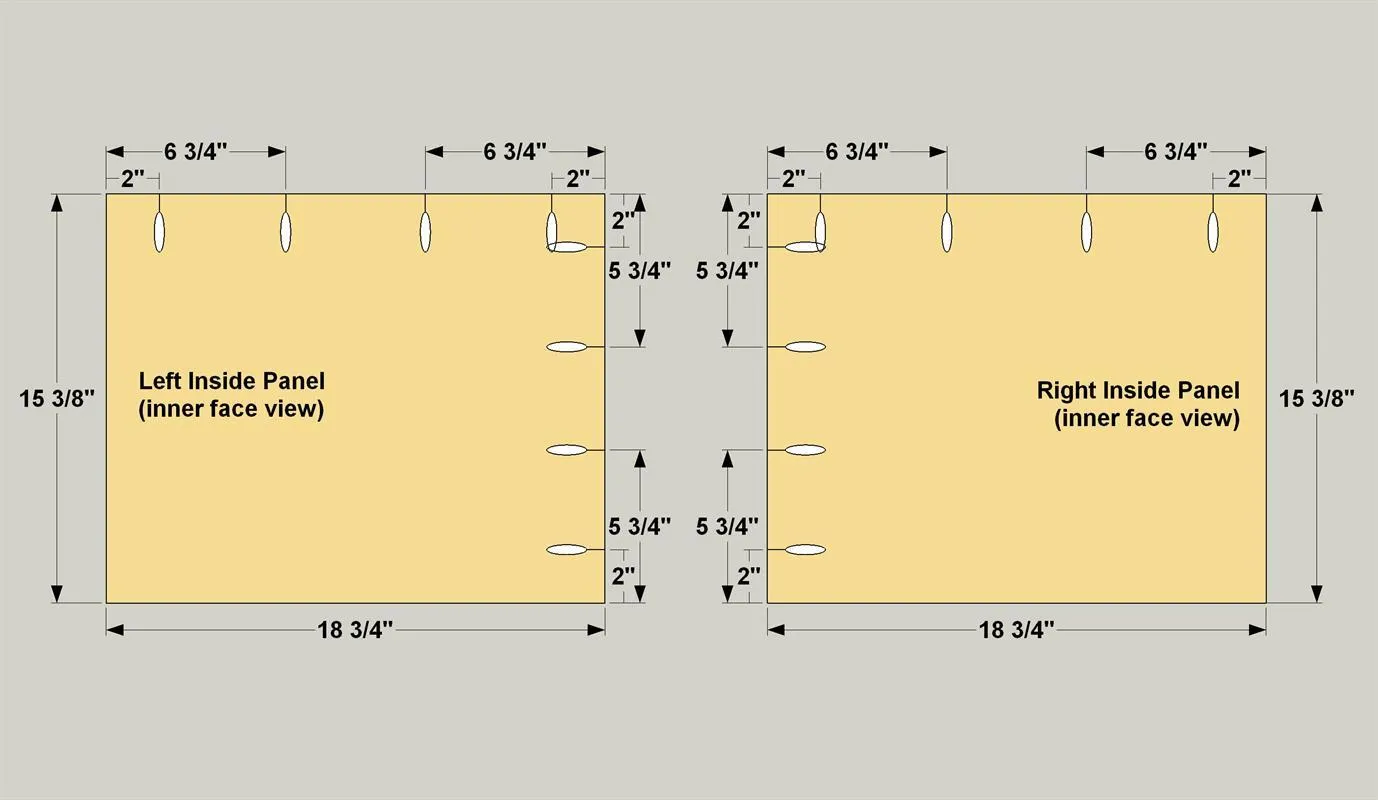

Cut one Left Inside Panel and one Right Inside Panel from 3/4" plywood, as shown in the cutting diagram. Next, drill pocket holes in these parts where shown.

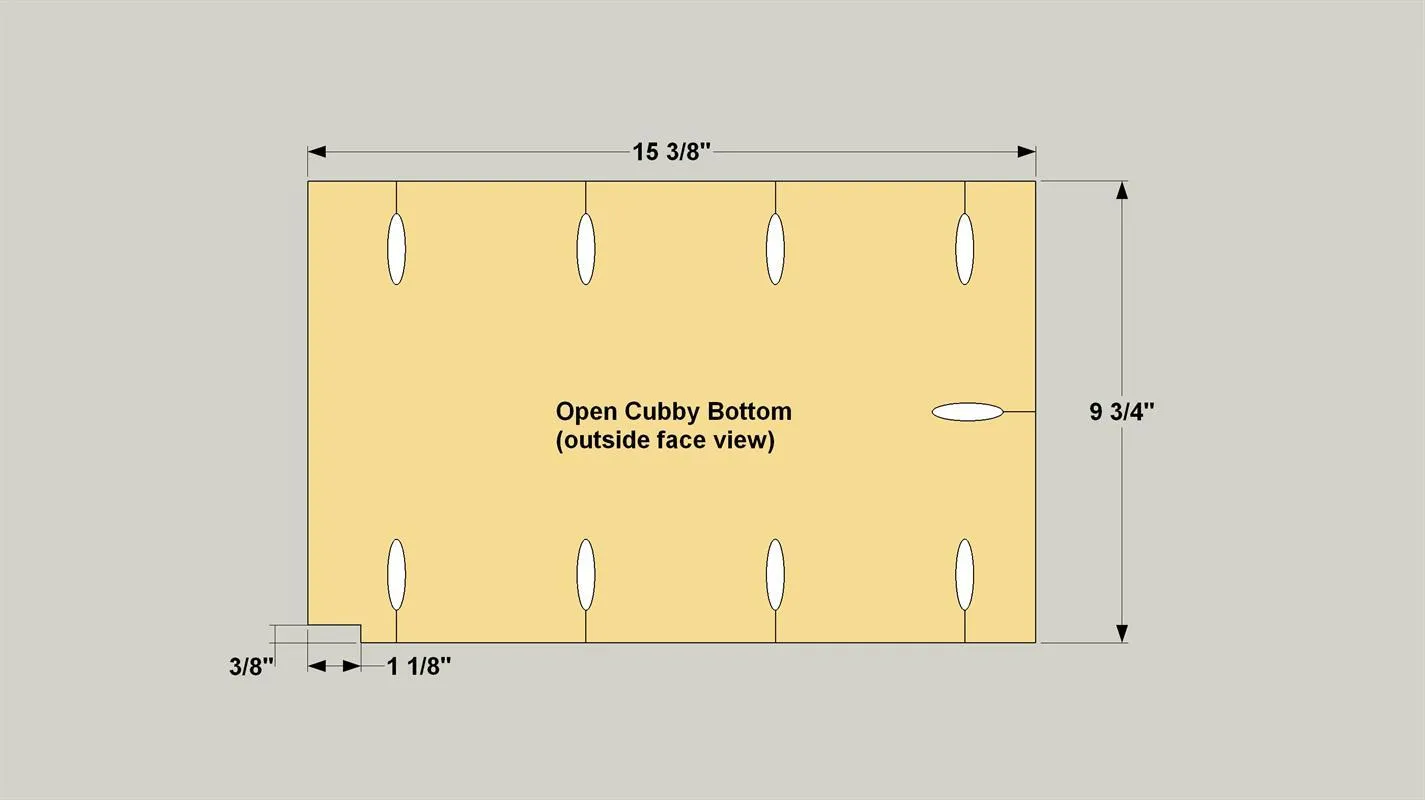

• Cut one Open Cubby Bottom to size from 3/4" plywood, as shown in the cutting diagram. Using a jigsaw, notch out one corner of this panel, as shown.
• Then drill pocket holes where shown.

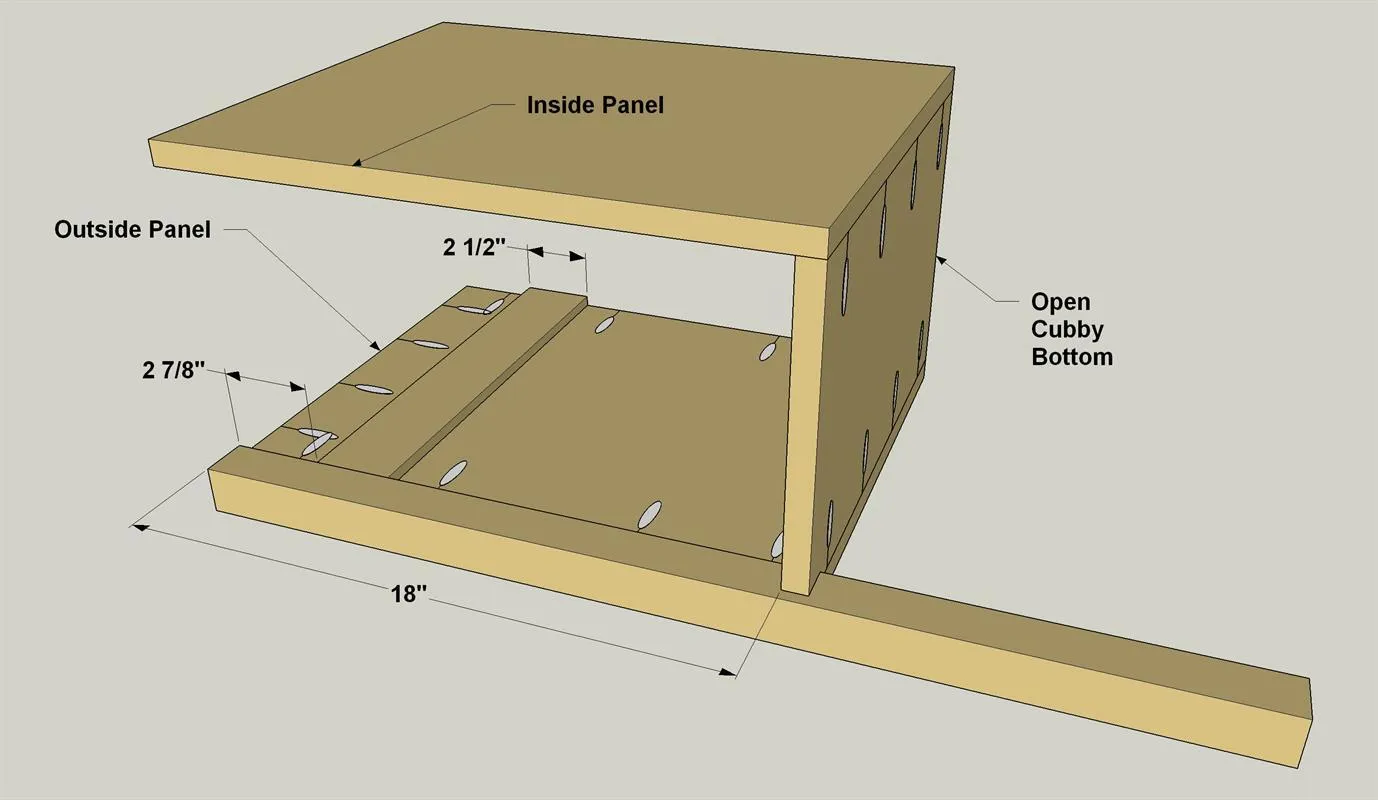

• Attach the Open Cubby Bottom to the Left-hand leg assembly using 1 1/4" coarse-thread pocket hole screws as shown.
• Position the Left Inside Panel on the assembly, as shown, so that the pocket holes are facing inward, and that the end of the Left Inside Panel that has pocket holes is facing toward the top of the assembly.
• Attach this panel using 1 1/4" coarse-thread pocket hole screws.

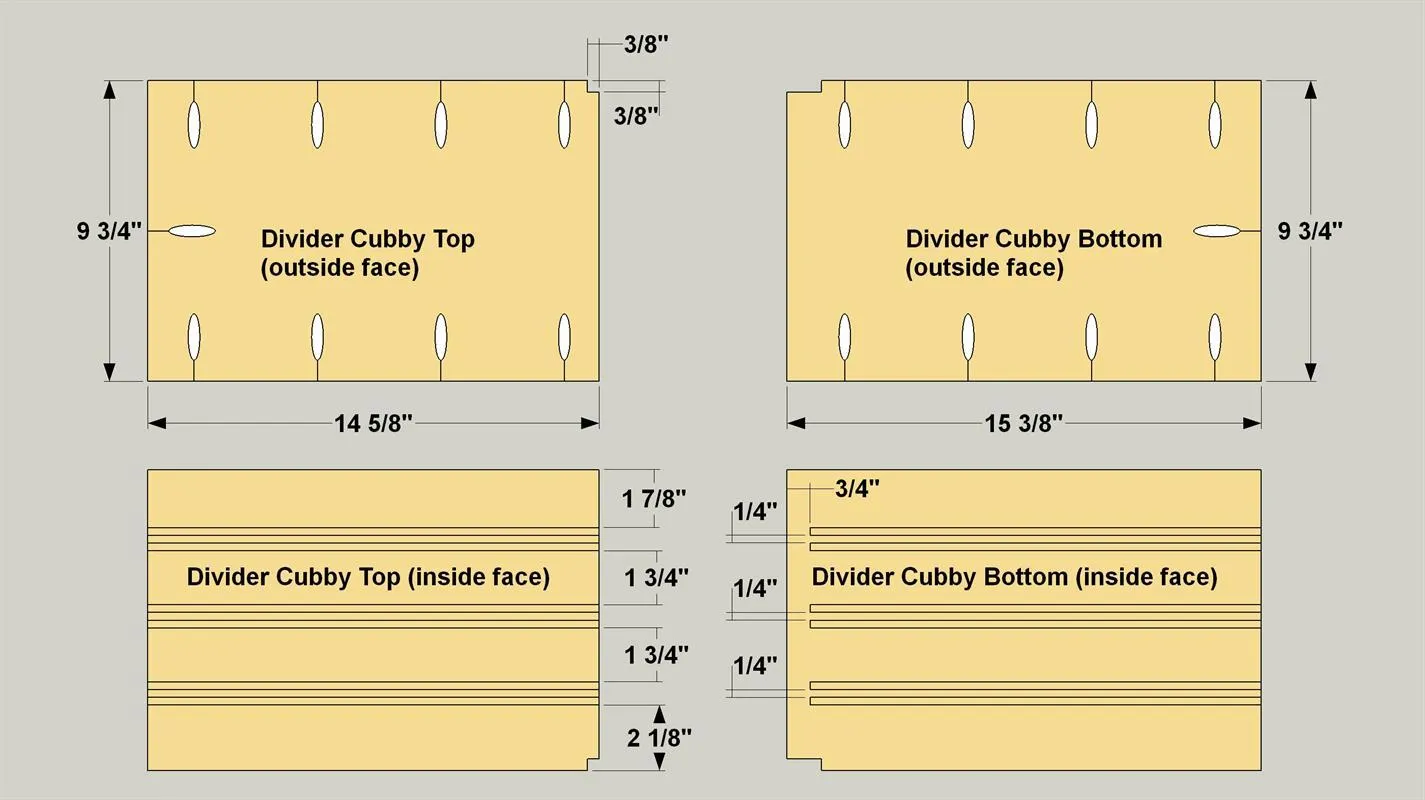

• Cut one Divider Cubby Top and one Divider Cubby Bottom to size from 3/4" plywood, as shown in the cutting diagram. Using a jigsaw, notch out one corner on each of these pieces, as shown.
• Then drill pocket holes where shown.
• Cut the Divider Guides from 1/4" square dowels.
• Attach the Divider Guides where shown using glue and 3/4" brad nails.

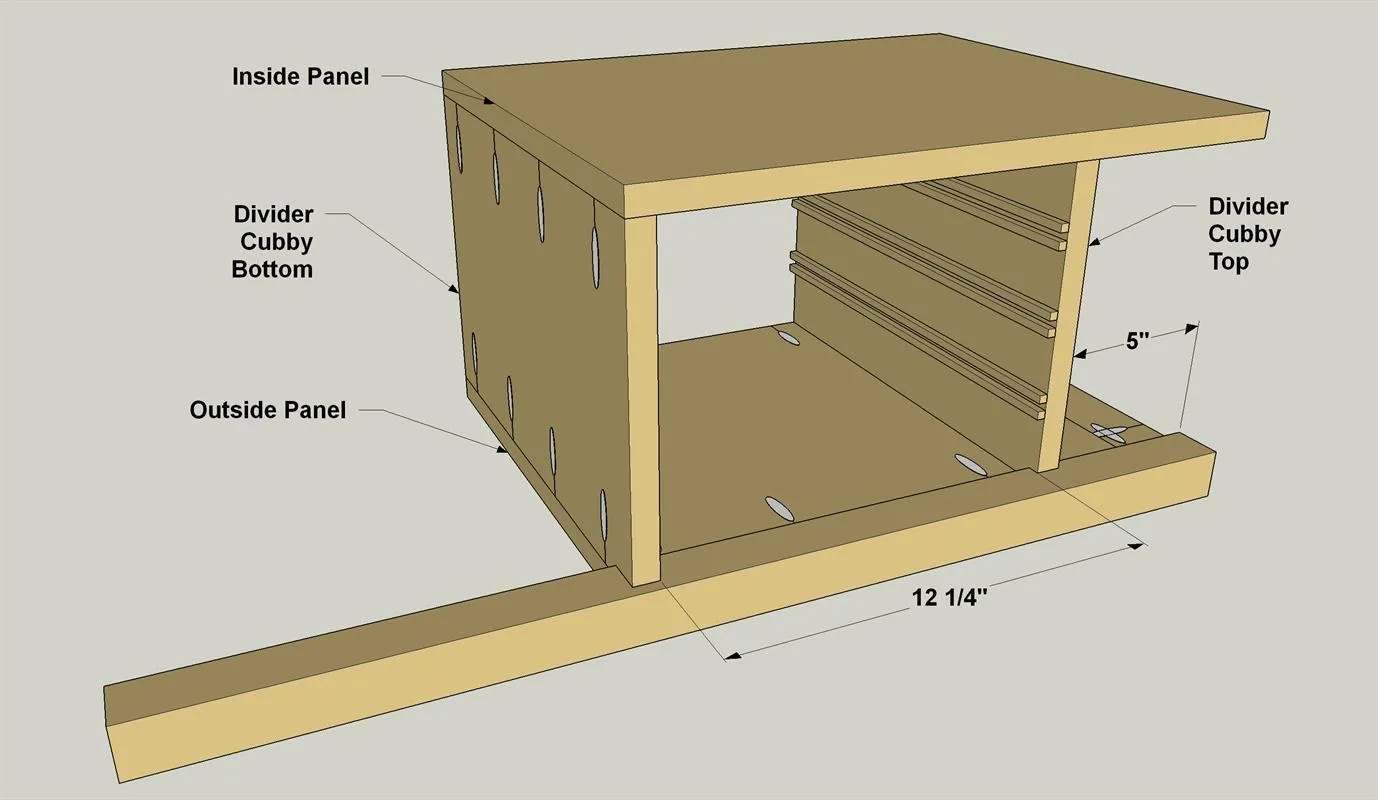

Attach the Divider Cubby Top and Bottom to the right-hand leg assembly using 1 1/4" coarse-thread pocket hole screws. Orient the pocket holes as you did on the other cubby assembly. Note that the Divider Cubby Top sits against the Drawer Slide Filler on the Outside Panel.

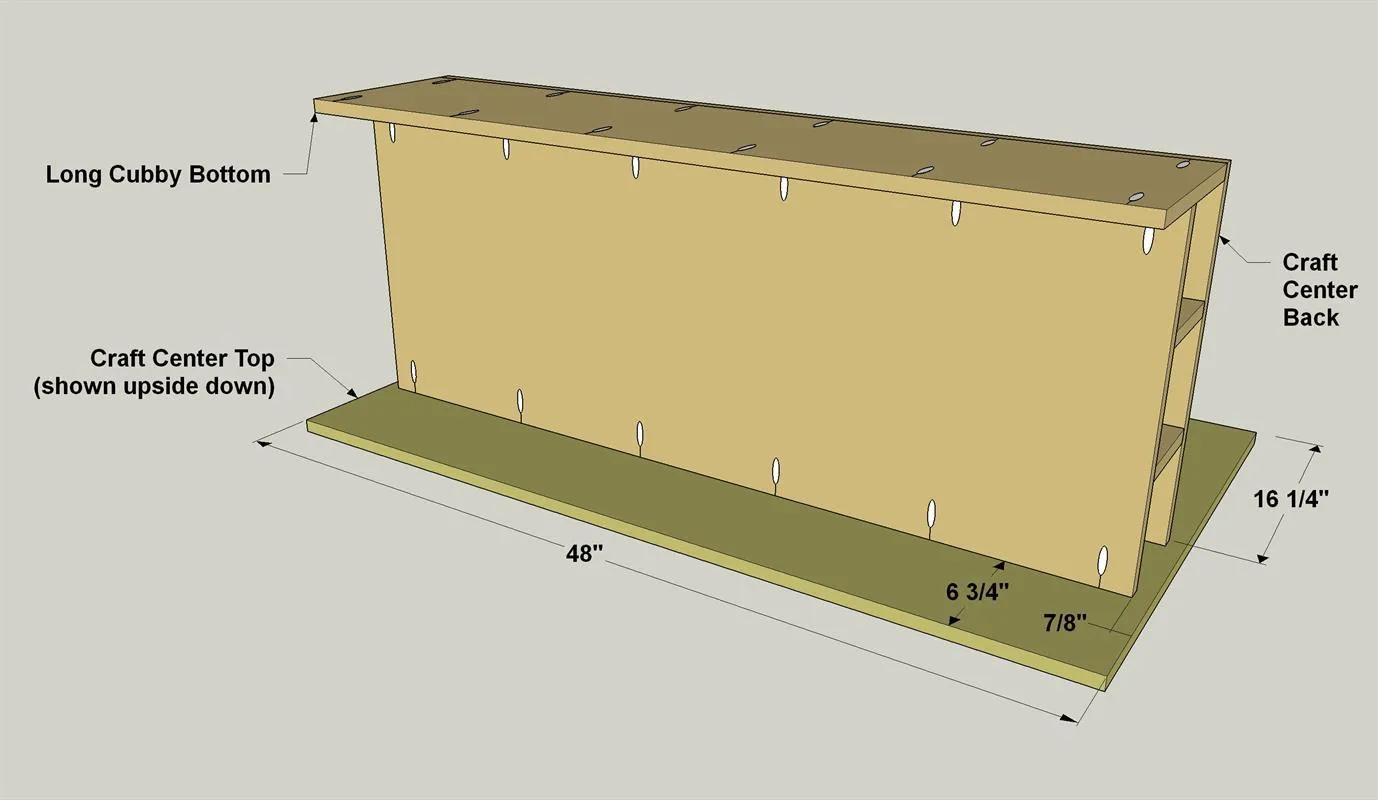

Cut one Craft Center Top and one Craft Center Wing to size from 3/4" MDF, as shown in the cutting diagram.

• Lay the Craft Center Top face down on a flat surface.
• Set the Long Cubby assembly on the Desktop as shown.
• Attach the assembly to the Top using 1 1/4" coarse-thread pocket hole screws.

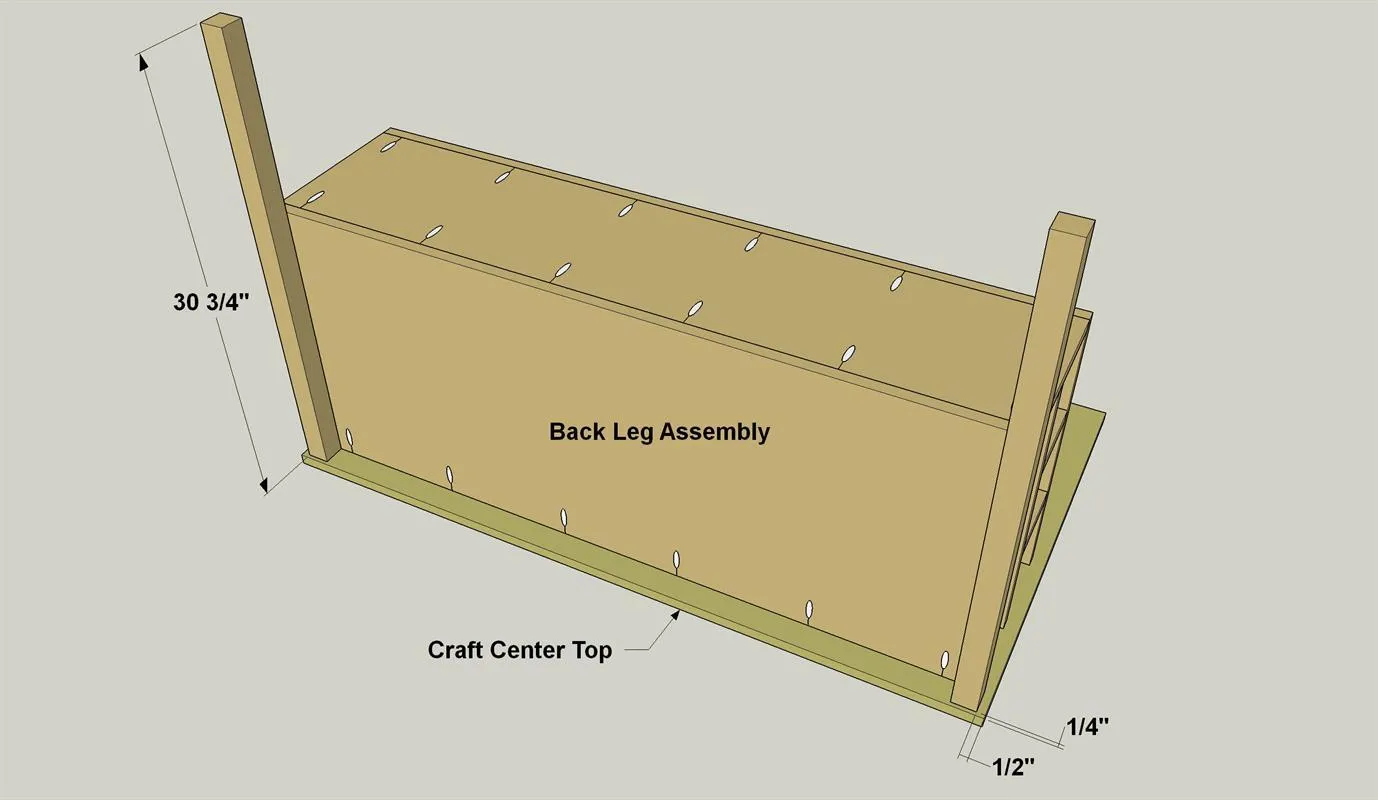

Attach the Back Leg assembly (that you assembled in Step 8) using 1 1/4" coarse-thread pocket screws as shown.

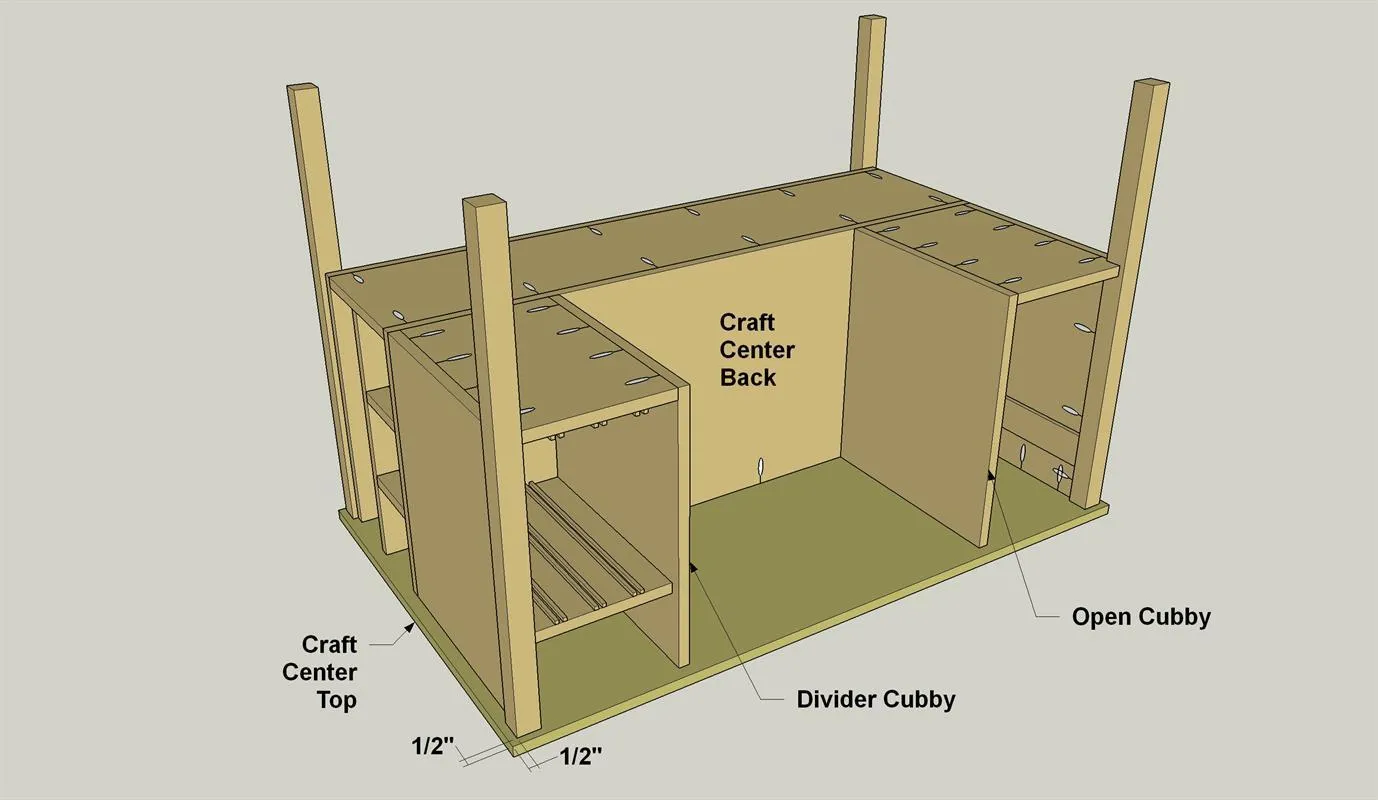

Next, attach the Open Cubby assembly and the Divider Cubby assembly using 1 1/4" coarse-thread pocket hole screws, as shown. A small right-angle attachment for your drill, along with a short square-drive bit, will make it possible to drive screws in the tight spaces. Make sure that the Inside Panel on the Open Cubby assembly sits straight and parallel to the Leg.

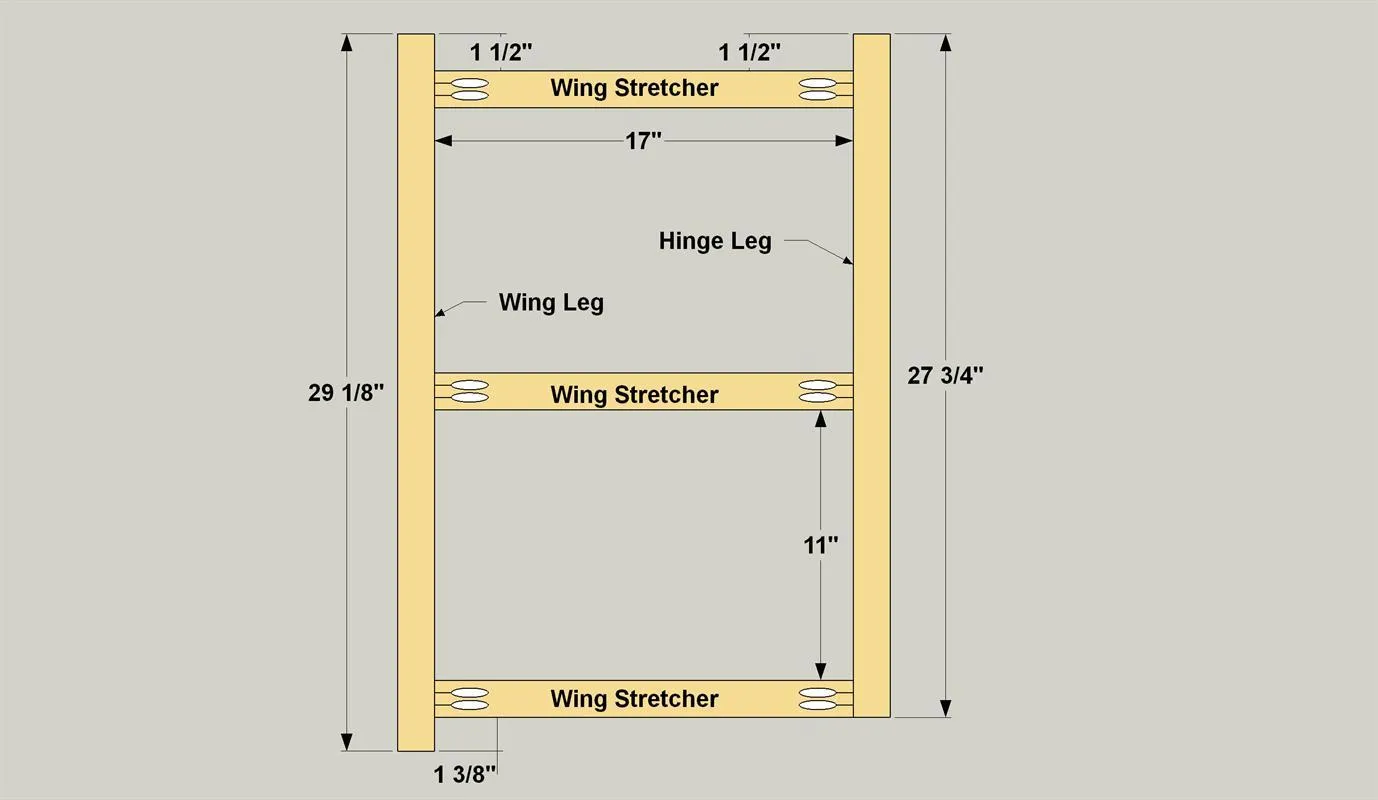

• Cut two Wing Legs and two Hinge Legs to length from 2x2 boards, as shown in the cutting diagram.

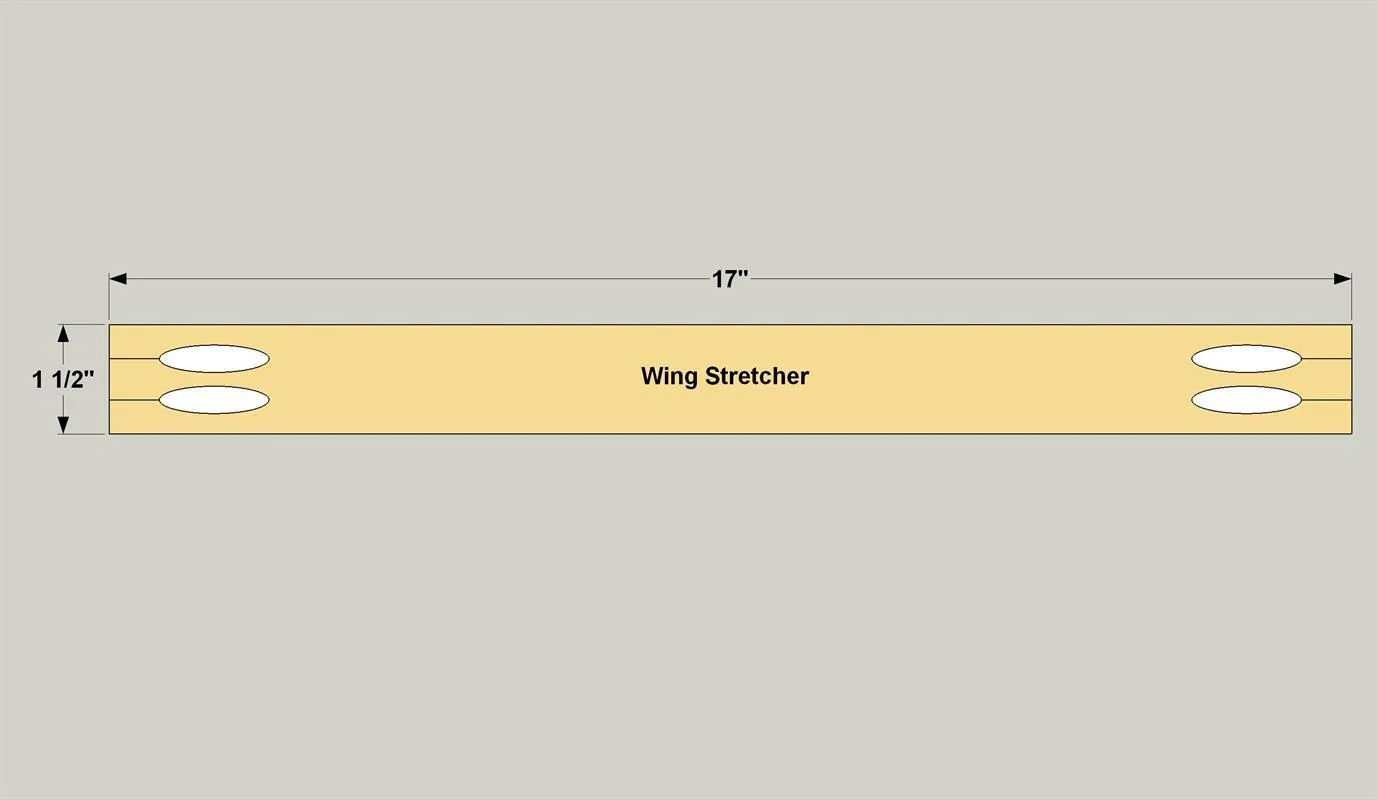

• Then cut six Wing Stretchers from 1x2 boards, as shown in the cutting diagram.
• Drill pocket holes in the ends of the Wing Stretchers, as shown.

• Position the Wing Stretchers on the Legs as shown, making sure that the stretchers are centered on the width of the Legs.
• Then attach the Stretchers using 1 1/4" coarse-thread pocket hole screws.
• Repeat with other Wing Assembly

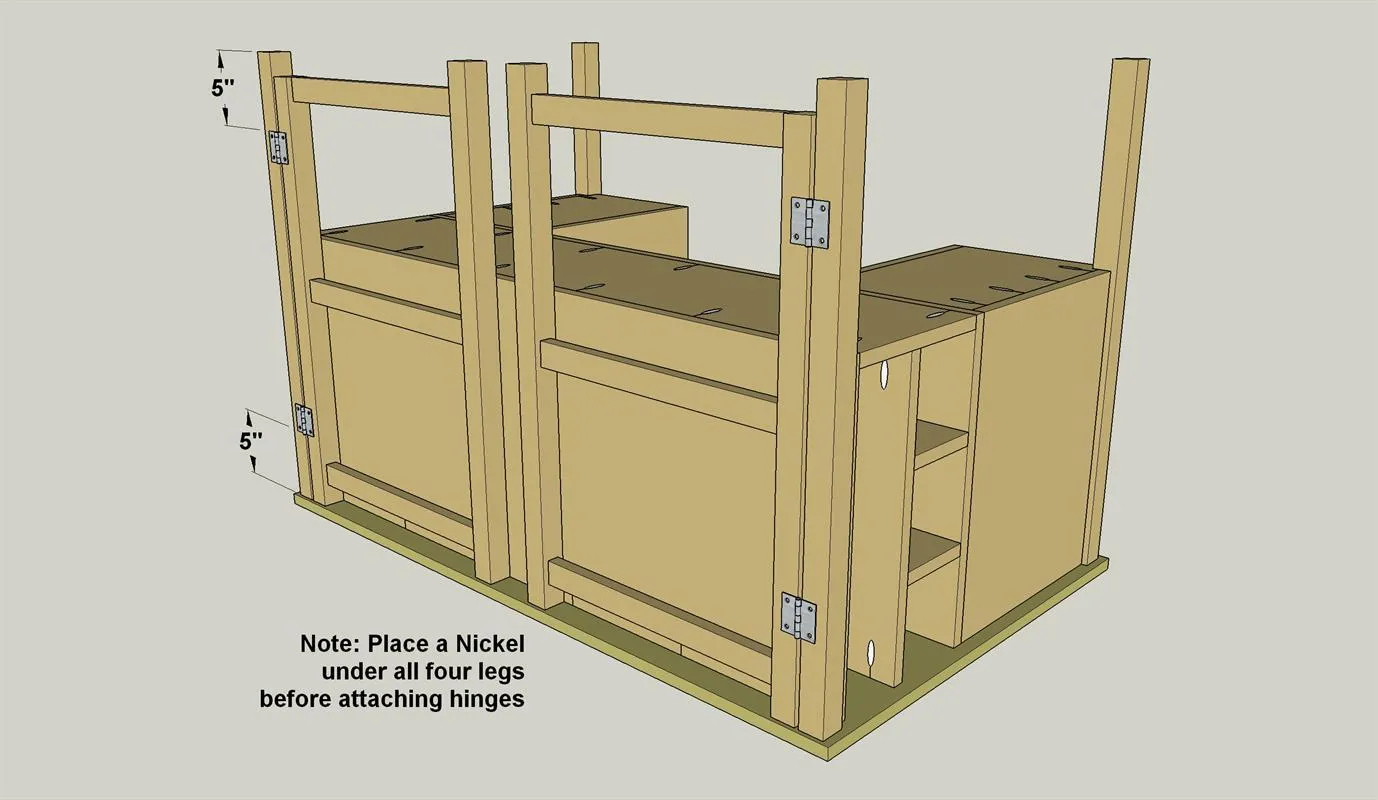

Position the wing support assemblies you just made against the Long Cubby Back, and rest the legs on nickels. This creates a slight gap that will allow the supports to swing freely. Using two pairs of 3" hinges, attach the Hinge Legs to the Craft Center Legs, as shown.

• Position the Craft Center Wing, leaving a slight gap between it and the Craft Center Top—a couple of nickels work great here, once again.
• Attach the Craft Center Wing to the Craft Center Top using a pair of 1 1/2" x 12" continuous hinges.
• Now cut two Wing Blocks from a 1x2 board, as shown in the cutting diagram. Swing the wing supports open, as shown, and then position and attach the Wing Blocks using glue and 1 1/4" brads.

Cut three Cubby Dividers from 1/4" plywood, as shown. Then test fit the Dividers by sliding them in place between the Divider Guides.

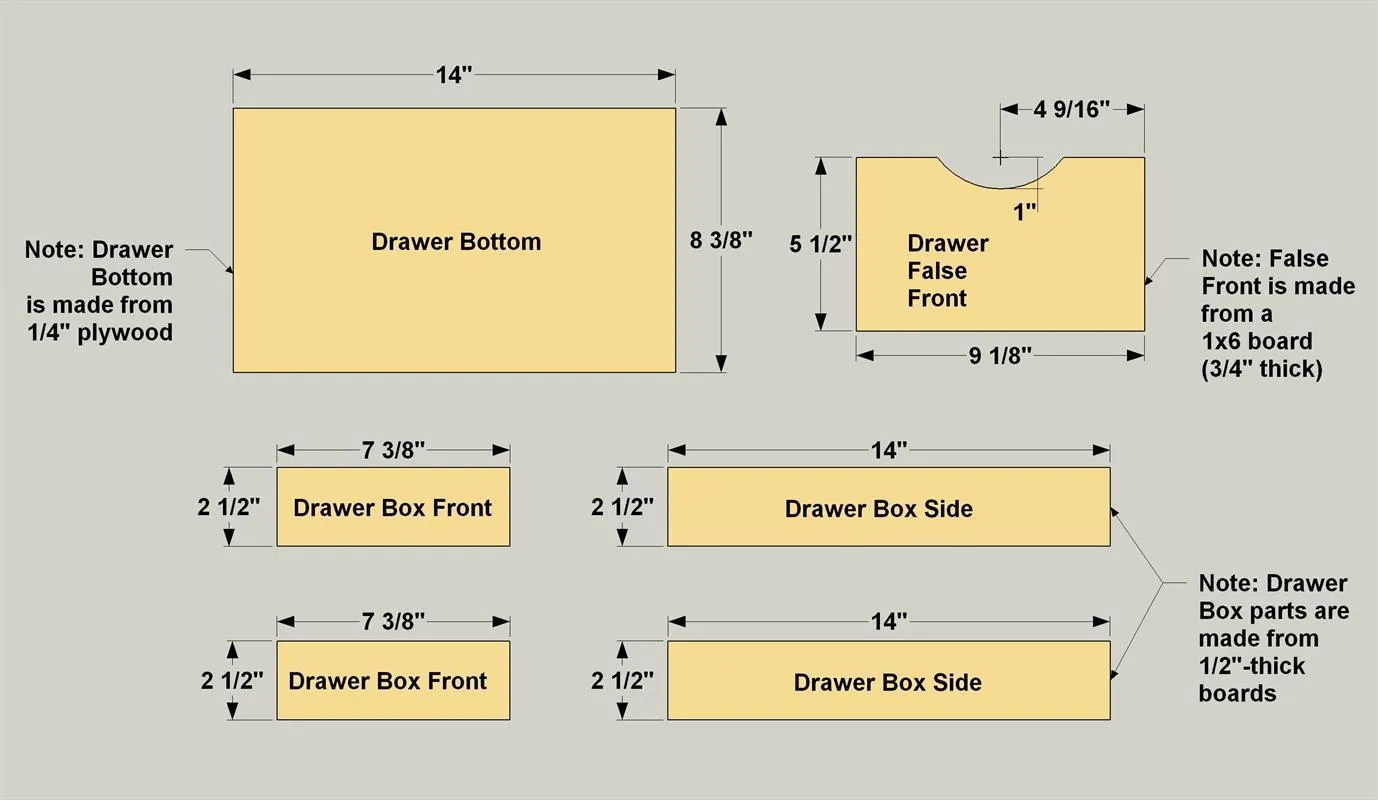

• Cut four Drawer Box Sides, two Drawer Box Fronts and two Drawer Box Backs to length from 1x4 boards, as shown in the cutting diagram.
• Cut two Drawer Bottoms from 1/4" plywood.
• Also cut two Drawer False Fronts from a 1x6 board. To cut the drawer handle, simply use something like a quart paint can to draw the shape, and then cut it out with a jigsaw.

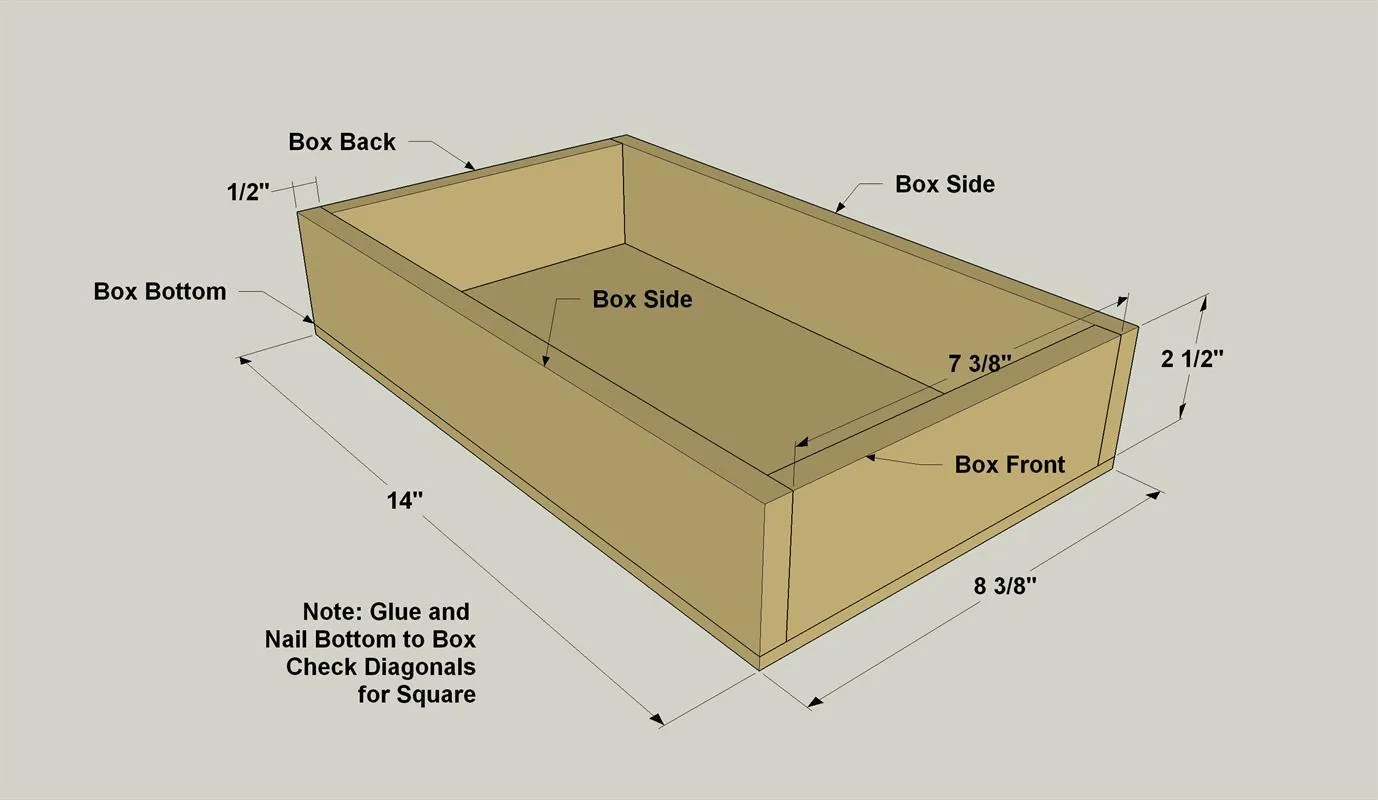

First attach the Drawer Box Front & Back to the Drawer Box Sides, as shown, using glue and 1 1/4" brad nails. Attach the Drawer Box Bottoms to the drawer boxes using glue and 3/4" brad nails.

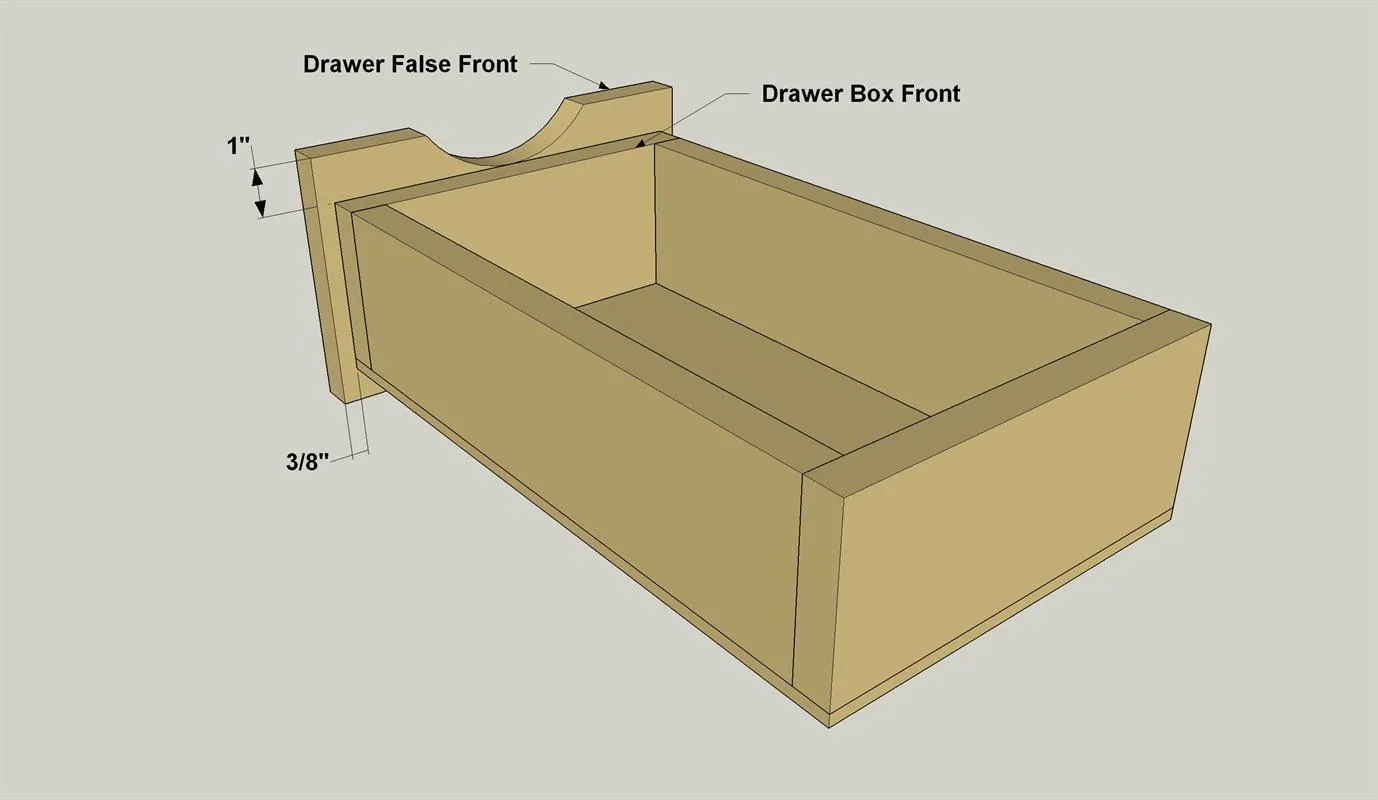

• Align the Drawer False Fronts with the drawer boxes, as shown, and then clamp them in place.
• Drill two pilot holes from inside the drawer box into the False Fronts making sure you don’t pierce the Drawer Front.
• Attach with glue and 1 1/4" wood screws.

• With everything almost done, you can sand your craft table as needed—especially the exposed edges.
• Then apply the paint or stain of your choice. We decided to simple apply a clear oil finish, leaving the plywood edges exposed.
• Once the finish or paint dries, you can install a pair of 14" drawer slides on each drawer following the manufacturer’s instructions. After that, you’re ready to get your craft on!
