Have you seen a bathroom vanity that is re-purposed from an old dresser?
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Front Legs (Staircase Newel Post) | 2 | 3" × 3" × 31" | — | ☐ |
| Back Legs | 2 | 3" × 3" × 31" | — | ☐ |
| Side Rails (top) | 2 | 1" × 5" × 16" | — | ☐ |
| Side Rails (Bottom) | 2 | 1" × 3" × 16" | — | ☐ |
| Back Rail (top) | 1 | 1" × 3" × 35" | — | ☐ |
| Back Rail (bottom) | 1 | 1" × 5" × 35" | — | ☐ |
| Front Rails (top) | 1 | 1" × 5" × 35" | — | ☐ |
| Front Rails (bottom) | 1 | 1" × 3" × 35" | — | ☐ |
| Face Frame (notched board) | 2 | 1" × 3" × 27" | — | ☐ |
| Side plywood panels | 2 | 3/4" × 14" × 18" | — | ☐ |
| Front drawer dividers | 2 | 3/4" × 1" × 35" | — | ☐ |
| Drawer slide rails | 6 | 1" × 3" × 14" | — | ☐ |
| Drawer Box Sides | 6 | 3/4" × 5 1/2" × 4" | — | ☐ |
| Drawer box fronts and backs | 6 | 3/4" × 5 1/2" × 4" | — | ☐ |
| Drawer bottoms | 3 | 1/4" × 15" × 34" | — | ☐ |
| Drawer Fronts | 3 | 3/4" × 5" × 35" | — | ☐ |
| Vanity Top | 5 | 1 1/2" × 5 1/2" × 2" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Staircase newel post, 3 1/4" turned wood 48" | 2 board | ☐ |
| Board, 4x4 96" | 1 board | ☐ |
| Board, 1x2 96" | 1 board | ☐ |
| Board, 2x6 96" | 4 board | ☐ |
| Board, 2x4 96" | 3 board | ☐ |
| Board, 1x6 120" | 4 board | ☐ |
| Plywood, 3/4" Thick Quarter Sheet | 1 board | ☐ |
| Plywood, 1/4" Thick Half Sheet | 1 board | ☐ |
| 15" drawer slides | 3 each | ☐ |
| 2 1/2" Pocket Hole Screws | 1 each | ☐ |
| 1 1/4" pocket hole screws | 1 each | ☐ |
Overall cost: $$$. Lumber varies by region, species, and season, so we give a band rather than a figure.

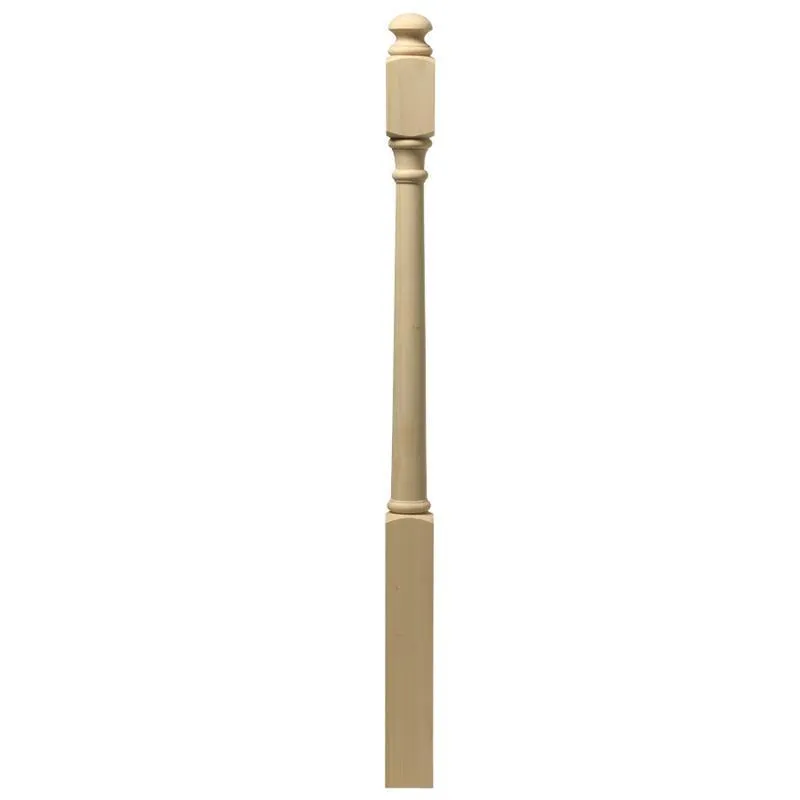

Cut your legs to size! The stair case newel posts that I used started out at 48" and I trimmed the bottom down to the 31 1/2" and then flipped it over to use it upside down!!

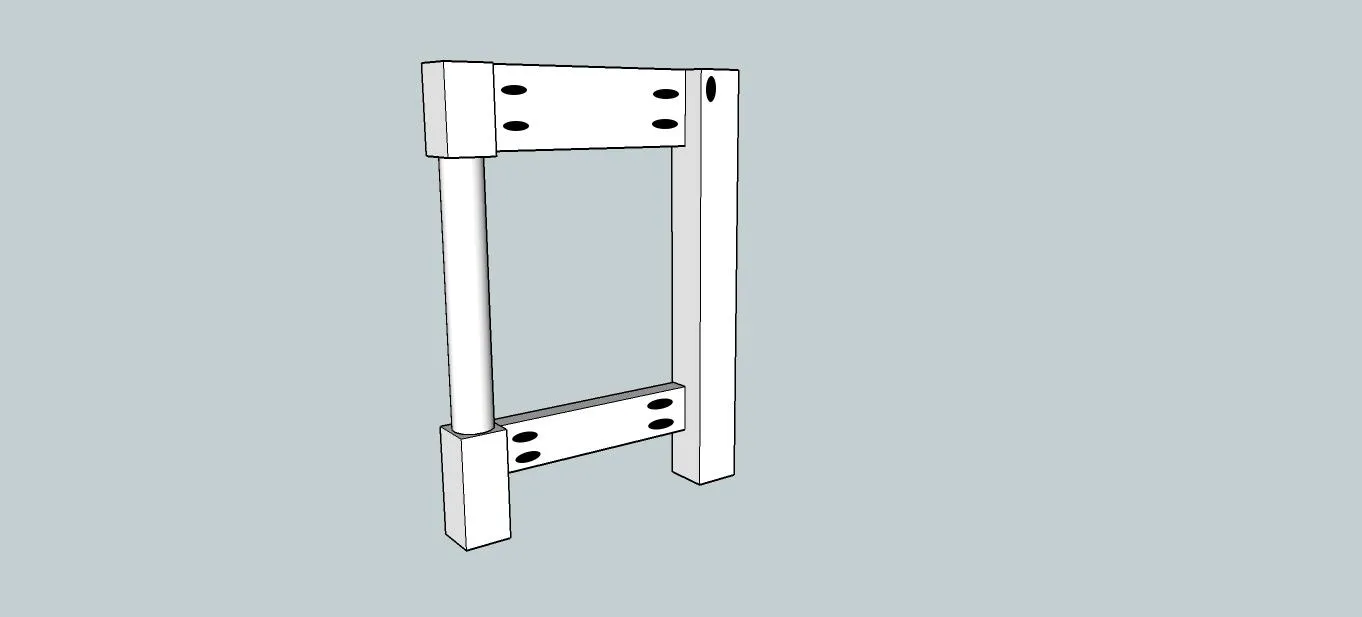

I started building by attaching the front and back legs! Using the top and bottom side rails I drilled 1 1/2" pocket holes and secured with wood glue, and 2 1/2" pocket hole screws!! What you can't see in this pic is that I set the rails back by an 1/8" in the front, it is just a preference and doesn't have to be done! I used paint sticks to make sure all the boards stayed at an even 1/8"! NOTE: All the black ovals in the pics are pocket hole location!

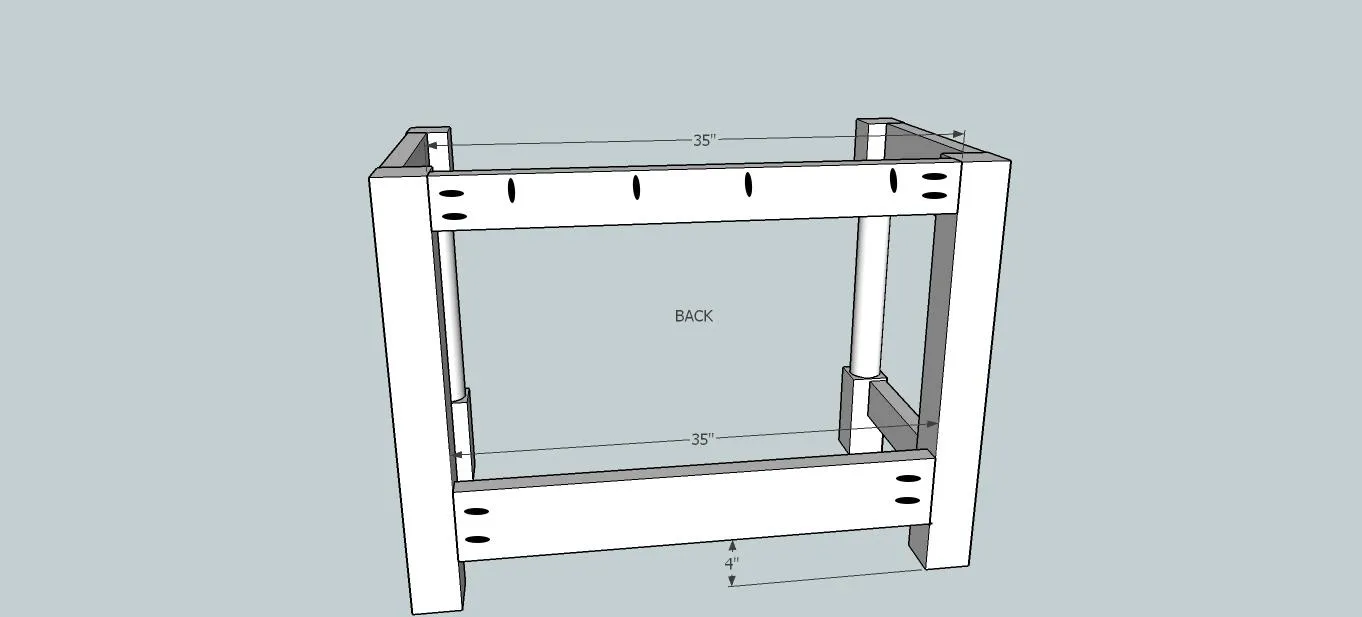

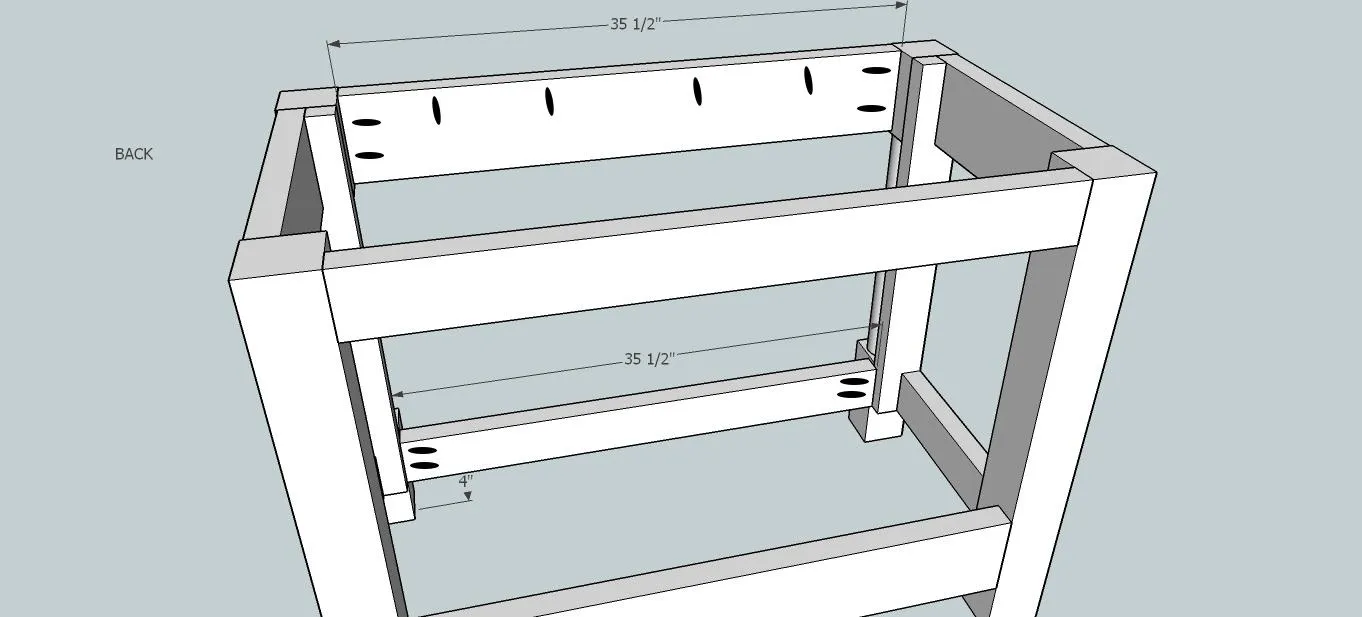

Next I attached the back (top and bottom) rails! I switched the 2x6 and the 2x4 if you notice on the back simply because I knew the plumbing would need more space at the top than the bottom! Again, I used 1 1/2" pocket holes, glue and 2 1/2" screws! NOTE: If you are building a wooden top and would like to attach it with pocket hole screws, I would drill the holes right now before everything starts getting in your way! I did not do this and then wasn't able to drill them on the front board! In the pic, the pocket hole ovals you see going up and down denote the holes for attaching the top! They are drilled at the same 1 1/2"!

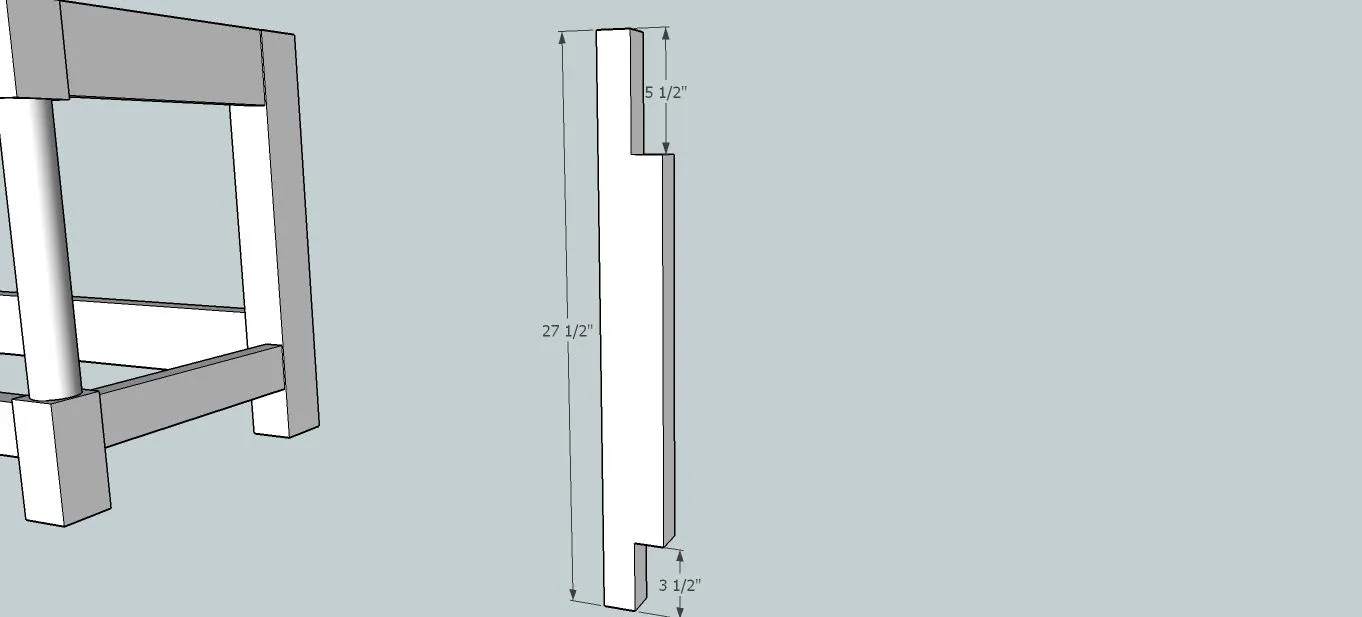

Next you will need to notch out your Face frame board! I just marked it and used the jig saw to cut the pieces off! It will fit snugly up against the side rails!
Screw the notched face frame boards into the front legs! I used 2 1/2" pocket holes screws but no pocket holes, I just glued them and screwed them from behind onto the block part of the front legs... if that makes sense!

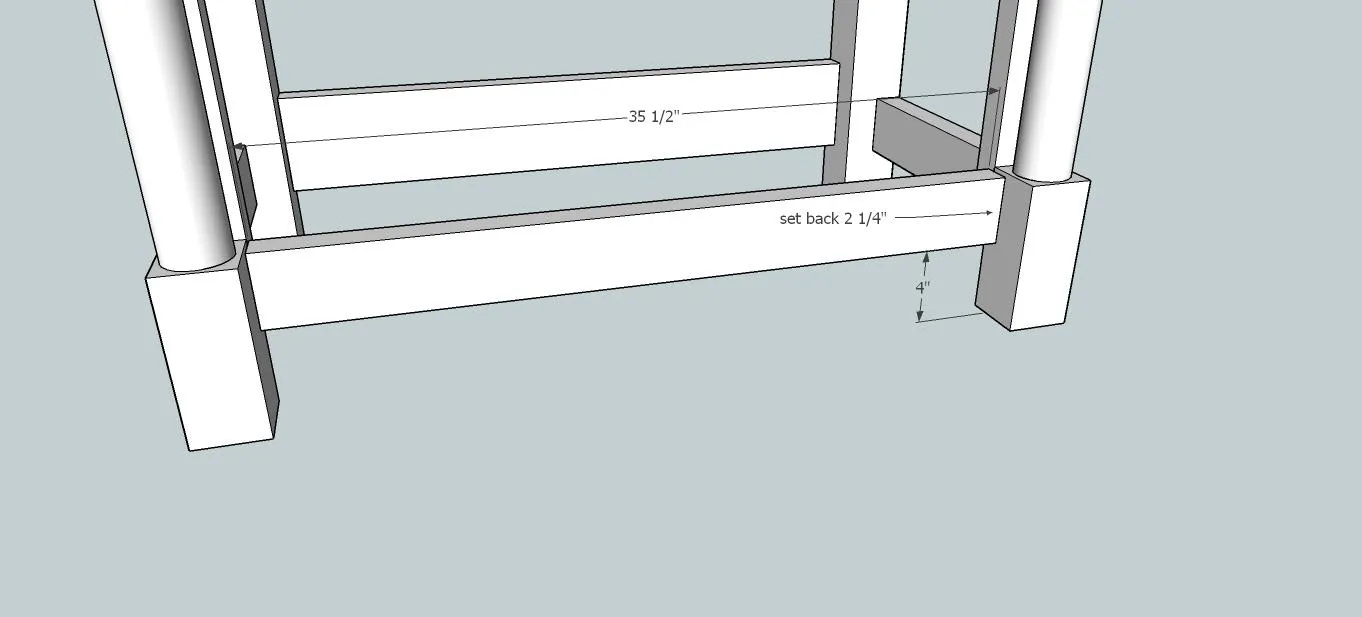

Moving right along, attach the front (bottom) rail, this board is set back 2 1/4" from the front of the legs. It is also 4" up from the bottom of the leg just as the side and back rails were! (Pocket hole location is shown in next step)
Attach front (top) rail, this is set back 1/8" and is attached with the same 1 1/2" pocket holes, glue and 2 1/2" screws! Again, if you would like to attach your top with pocket holes, make sure and drill them now!

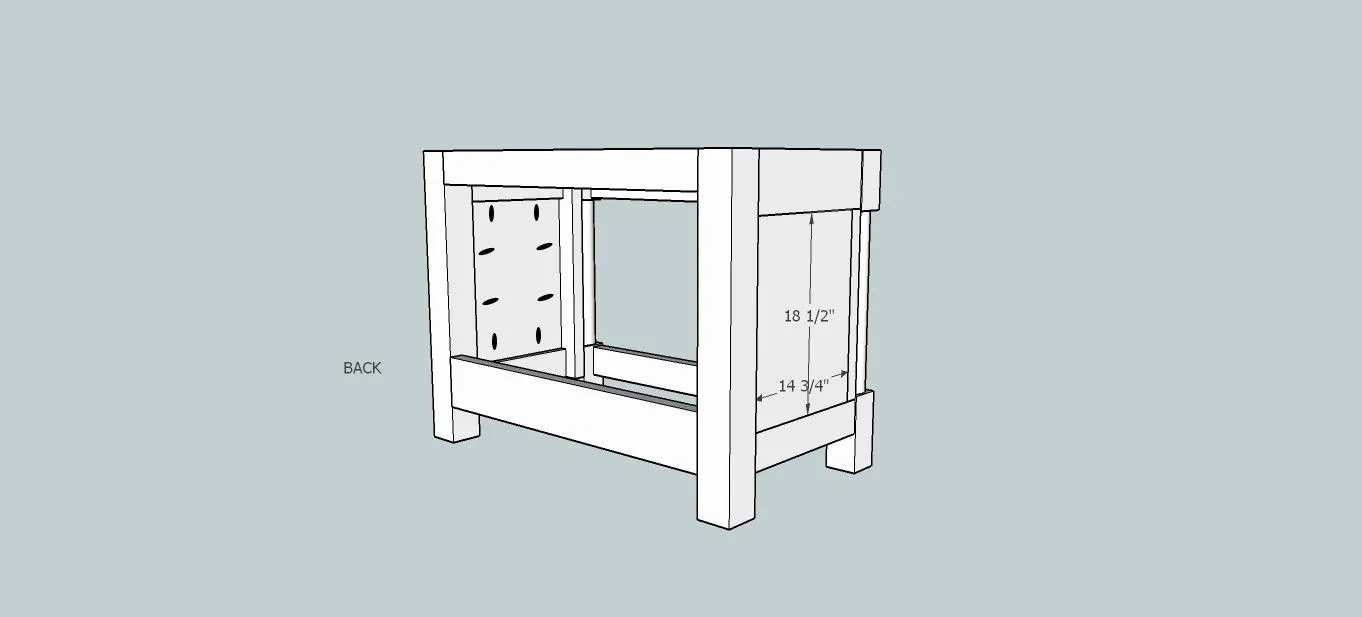

Next cut and insert the side plywood panels! Pocket holes are drilled at 3/4" and 1 1/4" screws are used to attach, along with glue of course!!

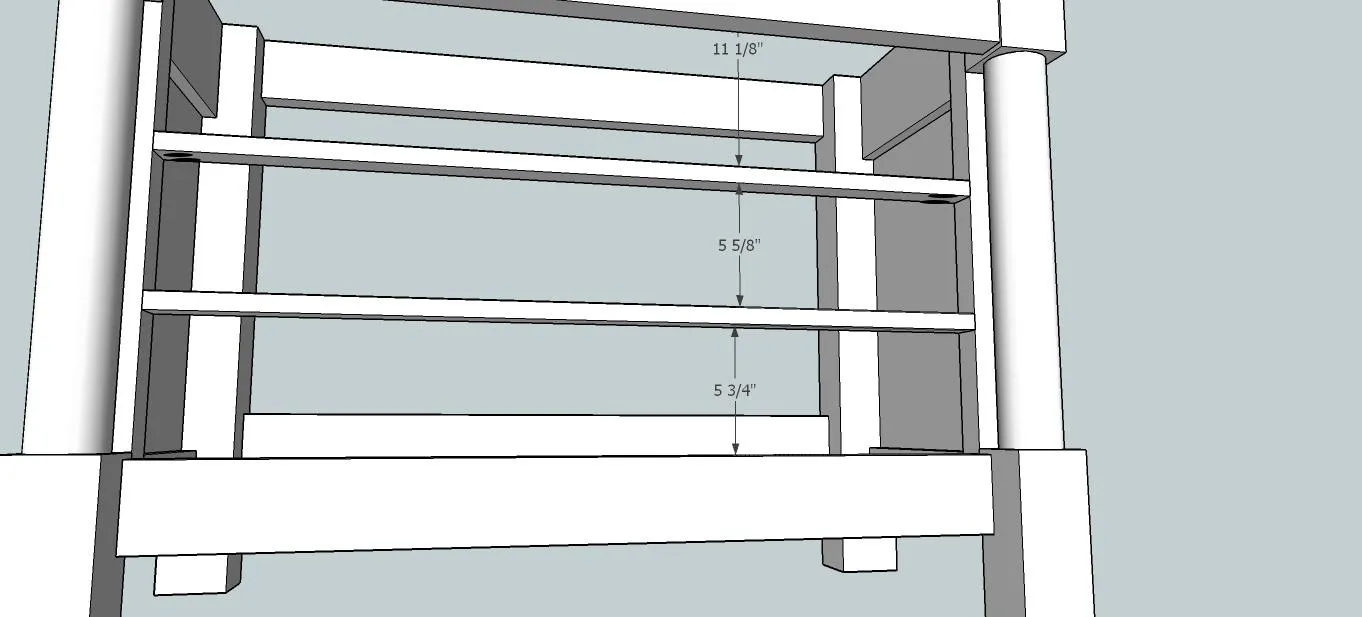

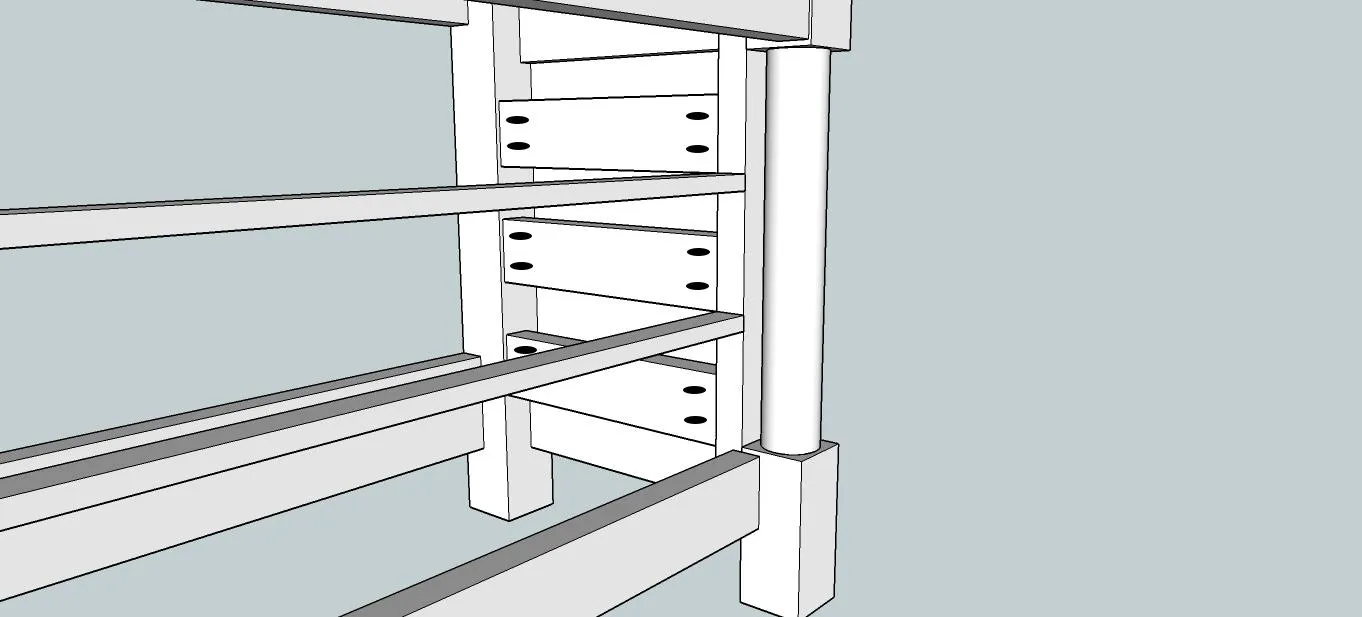

On deck next is the front drawer dividers! The spacing is tricky on this part...I will admit, mine are not perfect!! Lol!! If only it were as easy as Sketchup makes it!! Ha!! Using 3/4" pocket holes and 1 1/4" screws attach the dividers! The pocket holes can't be seen very well in the pic but they are on the bottom side of the boards!

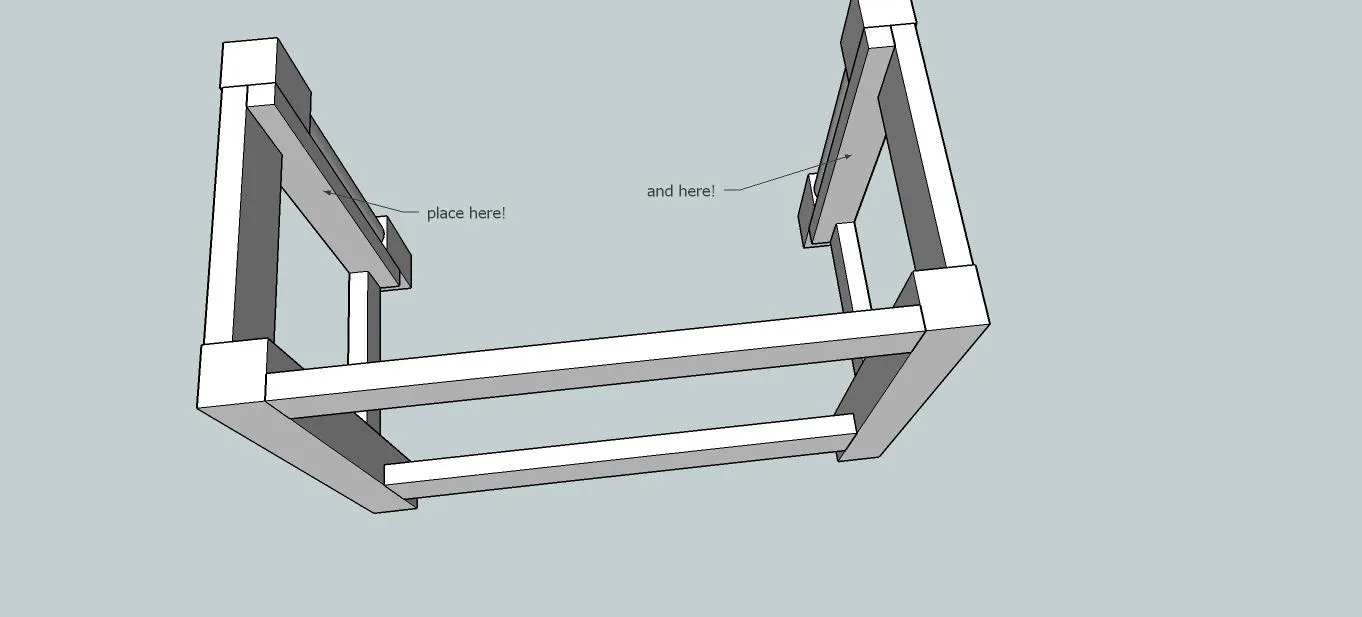

Next, I had to add some drawer slide rails since the legs are so big! Since the legs are not the same width, there are a multitude of ways you could complete this next step, it's a preference thing again...I did it just as the picture shows, but this is not the only way it can be done! Using 1 1/2" pocket holes, glue and 2 1/2" pocket hole screws I lined the boards up with the front face frame and that made them sit 1/4" inside the back leg!

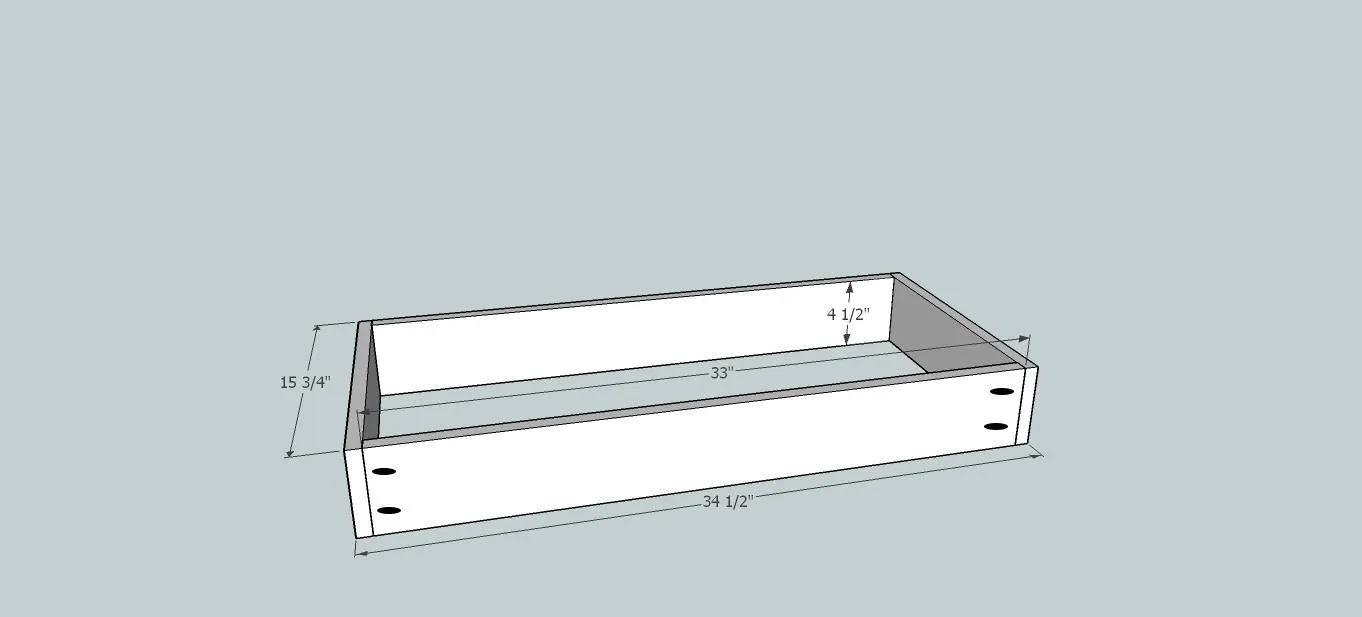

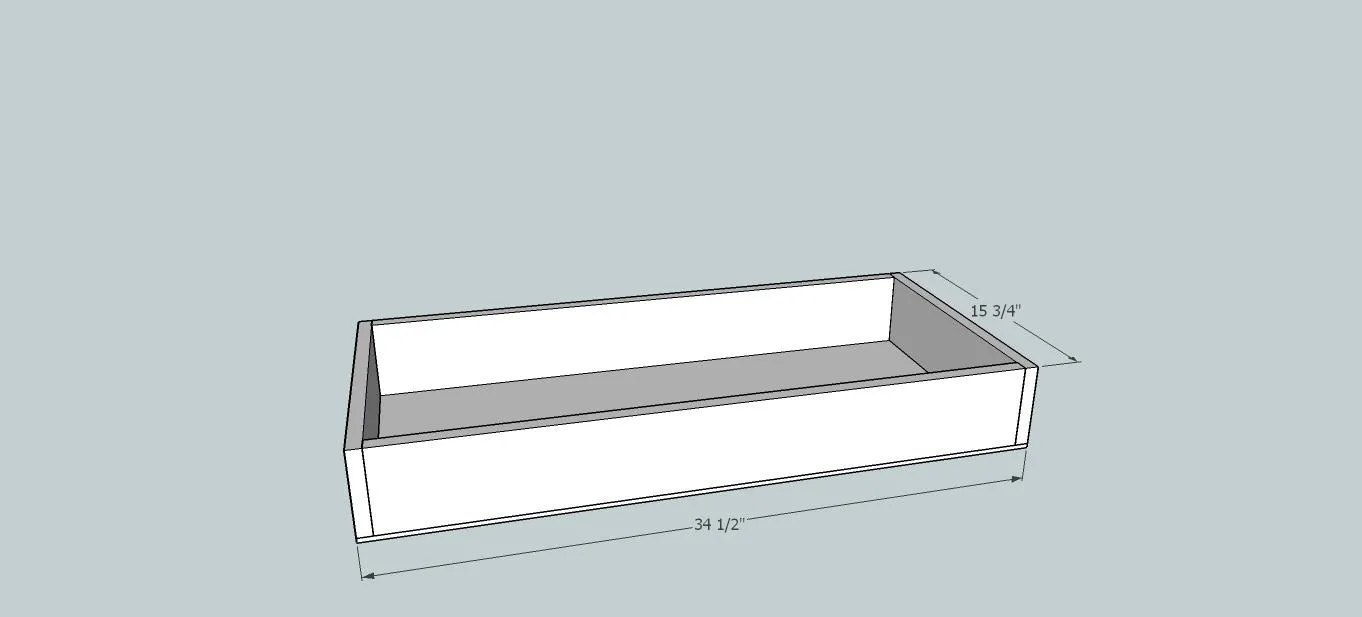

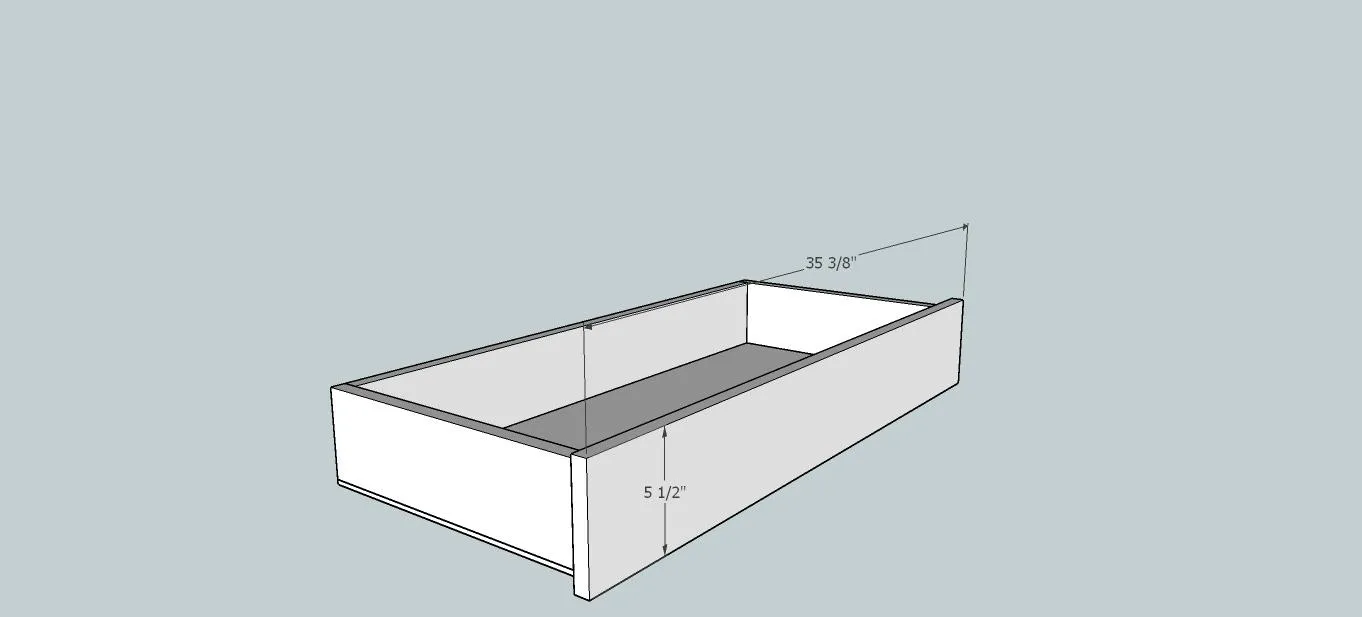

After attaching the drawer slides...which was a PAIN IN THE BUTT because I could not use my Kreg Drawer Slide jig...I didn't have a clamp big enough!! I survived but it took me way longer than it needed to!! Lol! Once the drawer slides are installed make sure and measure before making your drawer boxes! The plan calls for 1x6s ripped down to 4 1/2" to make your drawer boxes but you can use 1x4s if you would prefer not to rip, I just wanted the drawers as big as possible (only an inch difference)! Pocket holes on the front and back, as in the pic, keep you from seeing any pocket holes once the drawer face is on!! Use 3/4" pocket holes and 1 1/4" screws along with some glue and build three of these bad boys!!

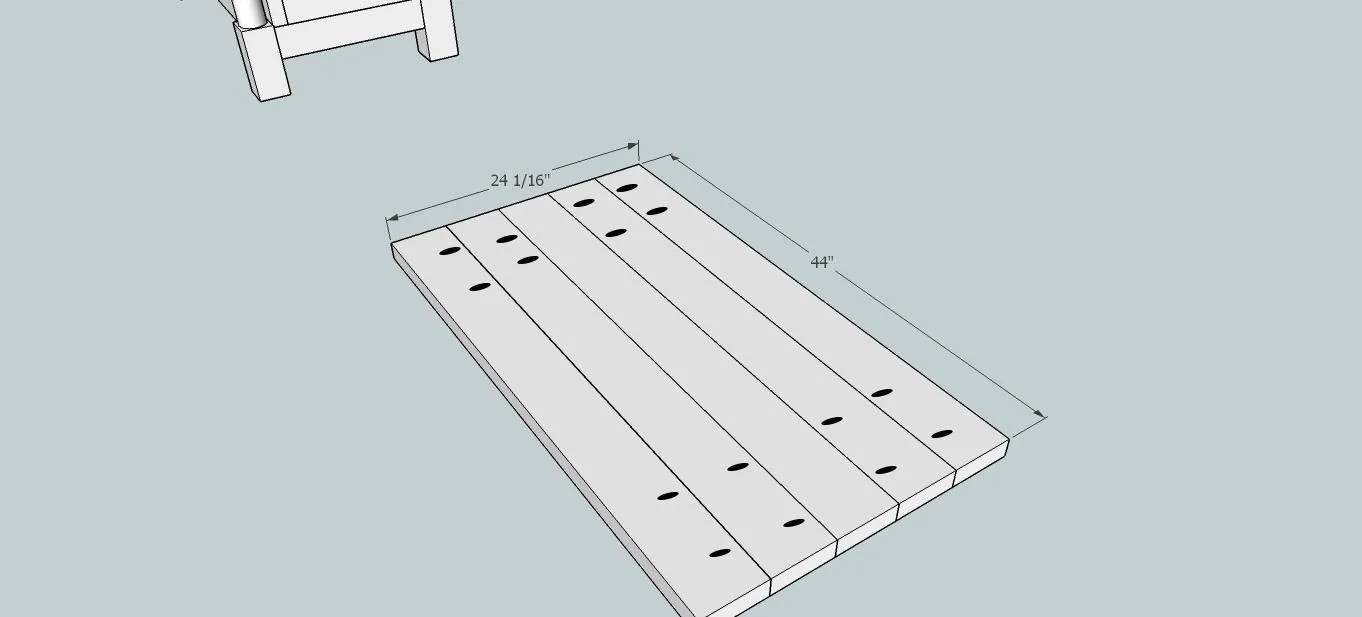

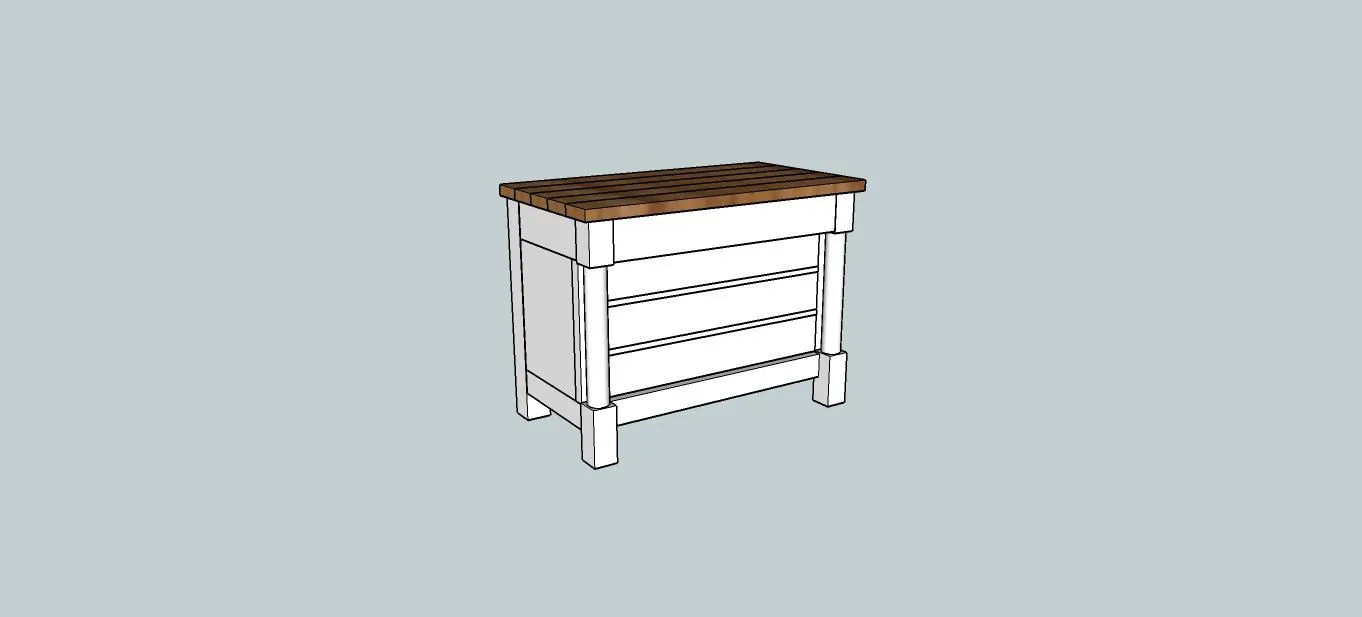

All your drawers are snug in there homes and the last part to finish up is building the top to the vanity! I ran the 2x6 boards through the table saw to rip them down...I wanted a 24" top and there isn't a standard, off the shelf board that could get me 24", so I had to rip them down! I took 11/16" off each board...I still had a slightly larger than 24" by 1/16"...I'll take it!! Then I pocket holed them together using 1 1/2" pocket holes, glue and 2 1/2" screws!
Glue and staple the 1/4" plywood to the bottom of your drawer boxes!! Or be all fancy smansy pants and route a grove for it to sit in...I do it the easy smeasy way!! Lol!!
