Check out how we built a DIY three-tiered rolling plant stand to hold all of our small potted plants on the porch.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Bottom Shelf | 1 | 3/4" × 18" × 34" | — | ☐ |
| Middle Shelf | 1 | 3/4" × 13" × 34" | — | ☐ |
| Top Shelf | 1 | 3/4" × 9" × 34" | — | ☐ |
| Back Posts | 2 | 3/4" × 3" × 27" | — | ☐ |
| Angled Posts | 2 | 3/4" × 3" × 31" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Sheet Plywood, 4' x 8 ' x 3/4" | 0.5 board | ☐ |
| Box of 1 1/4" Kreg pocket hole screws (See tools list) | 1 each | ☐ |
| Rolling casters | 4 each | ☐ |
| Wood glue | 1 each | ☐ |
| Protective sealant | 1 each | ☐ |
Overall cost: $$. Lumber varies by region, species, and season, so we give a band rather than a figure.

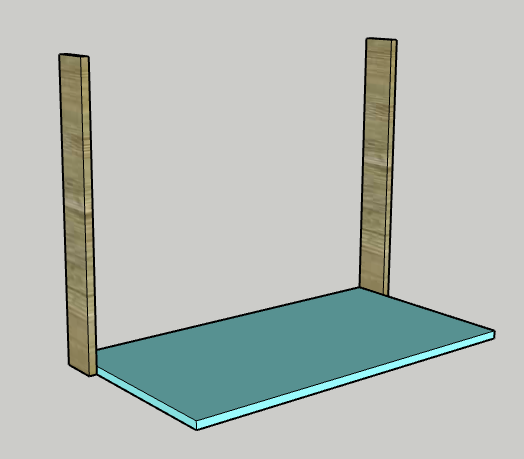

Drill two pocket holes on the far ends of each short side of the Bottom Shelf, with both holes within 3 1/2" of the long edge. Using wood glue and pocket hole screws, attach the Bottom Shelf to the two Back Posts.

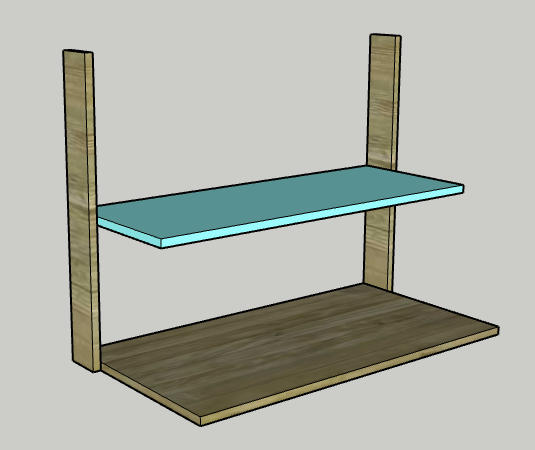

Drill two pocket holes on the far ends of each short side of the Middle Shelf, with both holes within 3 1/2" of the long edge. Using wood glue and pocket hole screws, attach the Middle Shelf to the two Back Posts 12" above the Bottom Shelf.

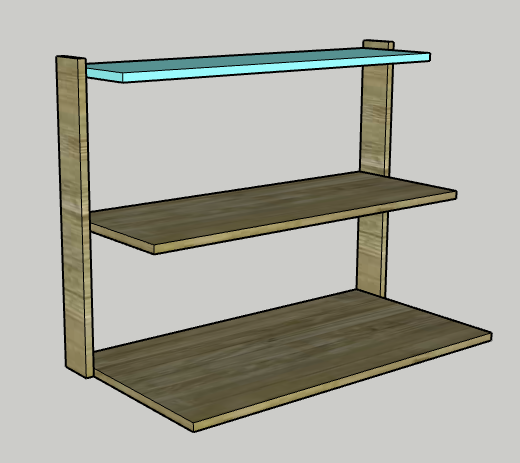

Drill two pocket holes on the far ends of each short side of the Top Shelf, with both holes within 3 1/2" of the long edge. Using wood glue and pocket hole screws, attach the Top Shelf to the two Back Posts 12" above the Middle Shelf.
If using outdoors, ensure you use an outdoor sealant to protect it from weather and water from watering the plants. If using indoors, add whatever stain you'd like, but ensure you add a protective coating to protect the piece from absorbing water.

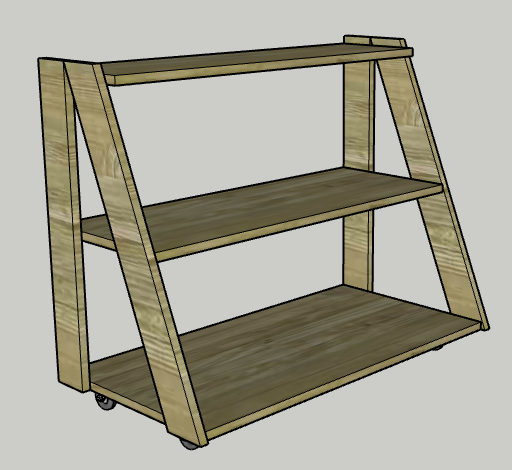

Attach casters to the underside of the Bottom Shelf for rolling.

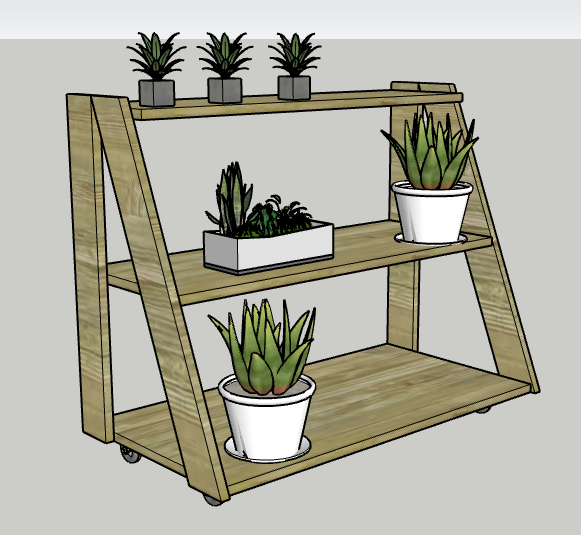

Enjoy your handiwork and tag @CharlestonCrafted on Instagram with a picture!
