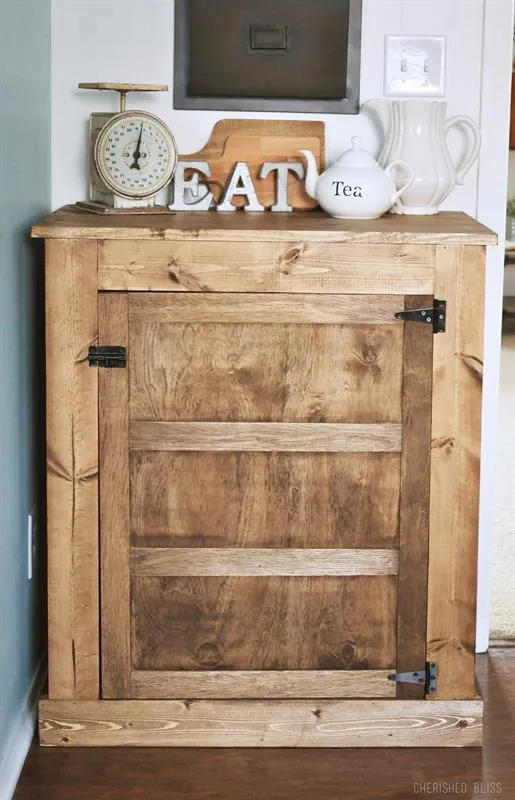

This simple and easy to build Small Kitchen Buffet is the perfect way to add storage without taking up a lot of room. It can easily be customized to fit any style but is shown here with an industrial farmhouse finish.
| Item | Qty |
|---|---|
| Board, 1x4 96" | 3 board |
| Plywood, 3/4" Thick Full Sheet |
| 1 board |
| Plywood, 1/2" Thick Half Sheet | 1 board |
| Plywood, 1/4" Thick Half Sheet | 1 board |
| Board, 1x2 72" | 1 board |
| Board, 1x10 72" | 1 board |
| Hinges | 2 each |
| Black Barrel Bolt | 1 each |
| 1 1/4" Fine Kreg Jig Screws | 40 each |
| 1 1/4" Finish Nails | 150 each |
| 1/2" Finish Nails | 20 each |
| Wood Glue | 1 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Side Panels | 2 | 3/4" × 17" × 36" |
| Shelves | 2 | 3/4" × 17" × 28" |
| Top Support Boards | 2 | 1" × 4" × 28" |
| Bottom Trim Pieces | 2 | 1" × 4" × 17" |
| Bottom Trim Piece | 1 | 1" × 4" × 31" |
| Shelf Cleats | 2 | 1" × 2" × 17" |
| Facing - Side Pieces | 2 | 1" × 4" × 32" |
| Facing - Top Piece | 1 | 1" × 4" × 25" |
| Back Panel | 1 | 1/4" × 30" × 36" |
| Top Boards | 2 | 1" × 10" × 31" |
| Door Side Trim Pieces | 2 | 1/4" × 2" × 29" |
| Door Trim Pieces | 4 | 1/4" × 2" × 20" |
| Door | 1 | 1/2" × 24" × 29" |
Buy 11 boards at 8 ft.
1 board
3 boards
1 board
2 boards
1 board
1 board
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Make Cuts and create pocket holes where indicated by the red dots in the provided cut list. However, I do suggest cutting as you go in order to keep the project square.

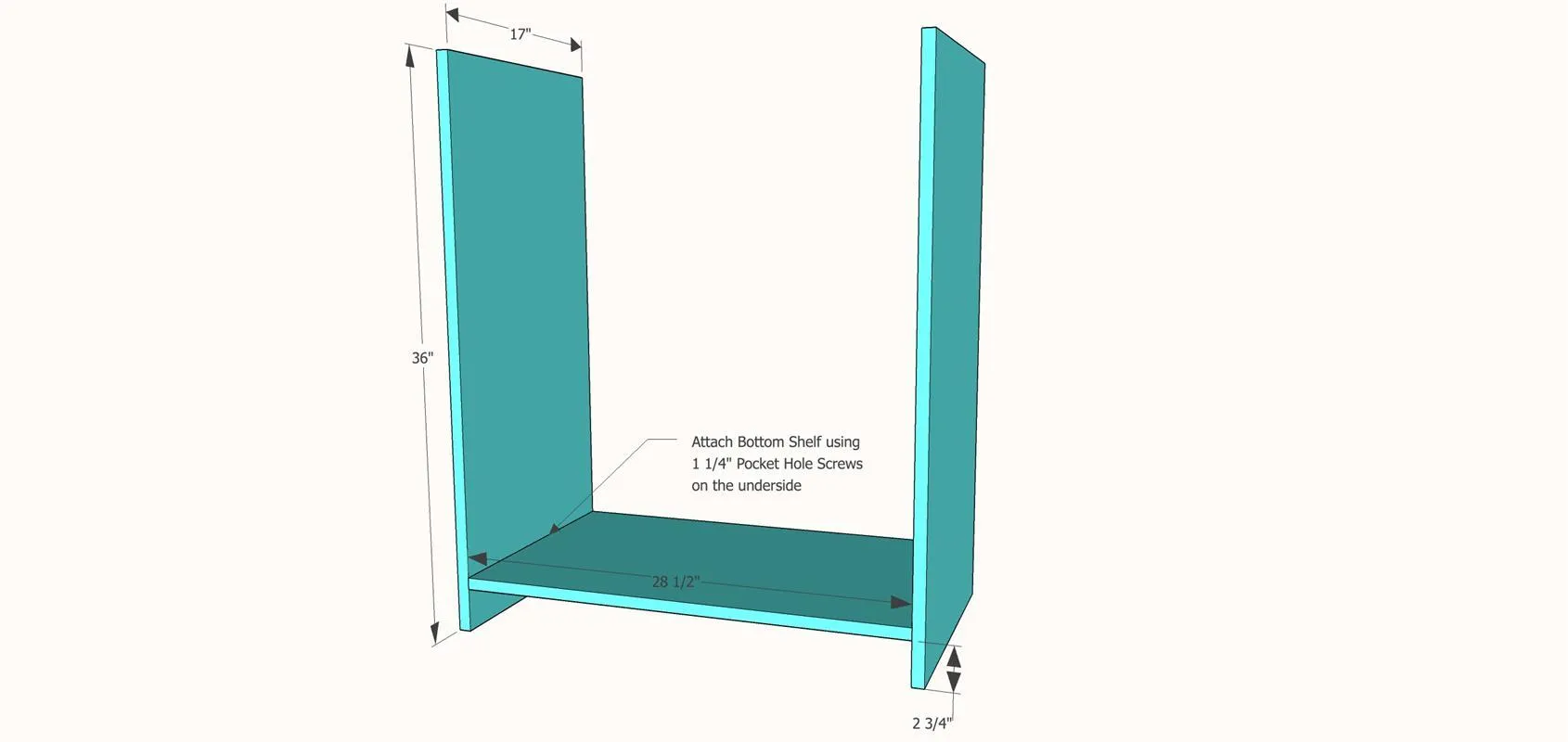

Using the 2 side panels and 1 shelf, attach the bottom shelf to the side panels with 1 1/4" pocket hole screws and wood glue.

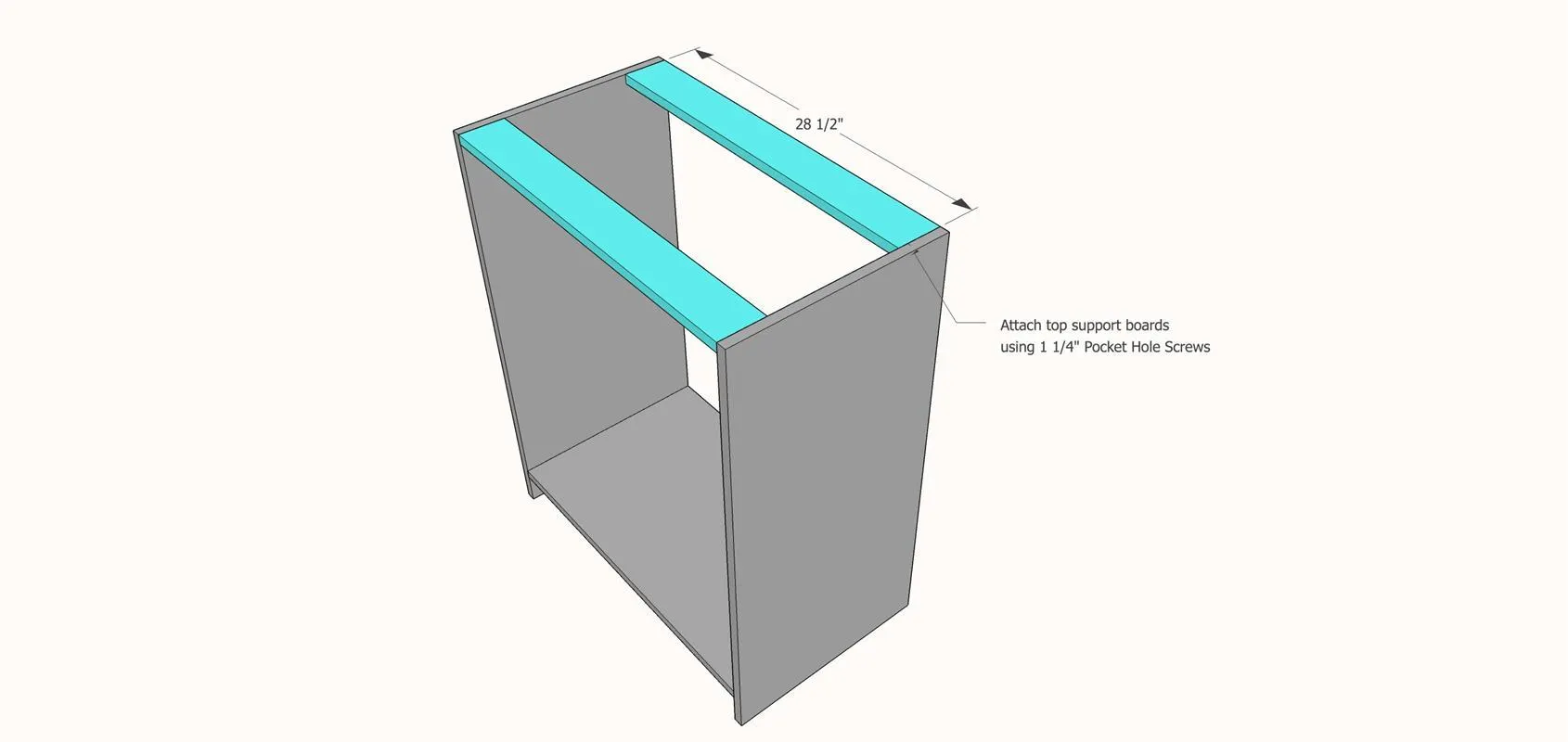

Attach top support boards to side panels using 1 1/4" Pocket Hole Screws.

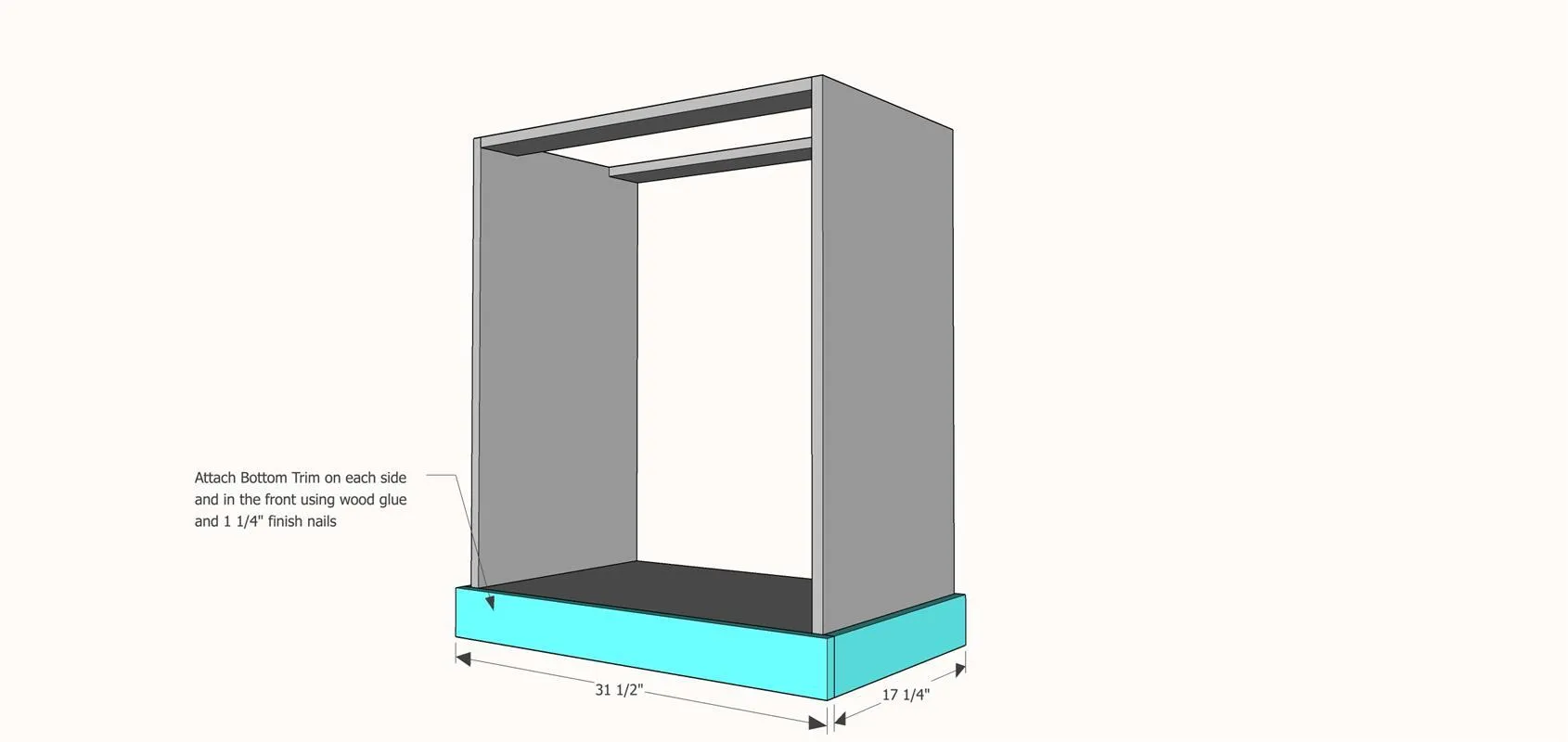

Add the bottom trim to the bottom, flush with the side panels using wood glue and 1 1/4" finish nails.

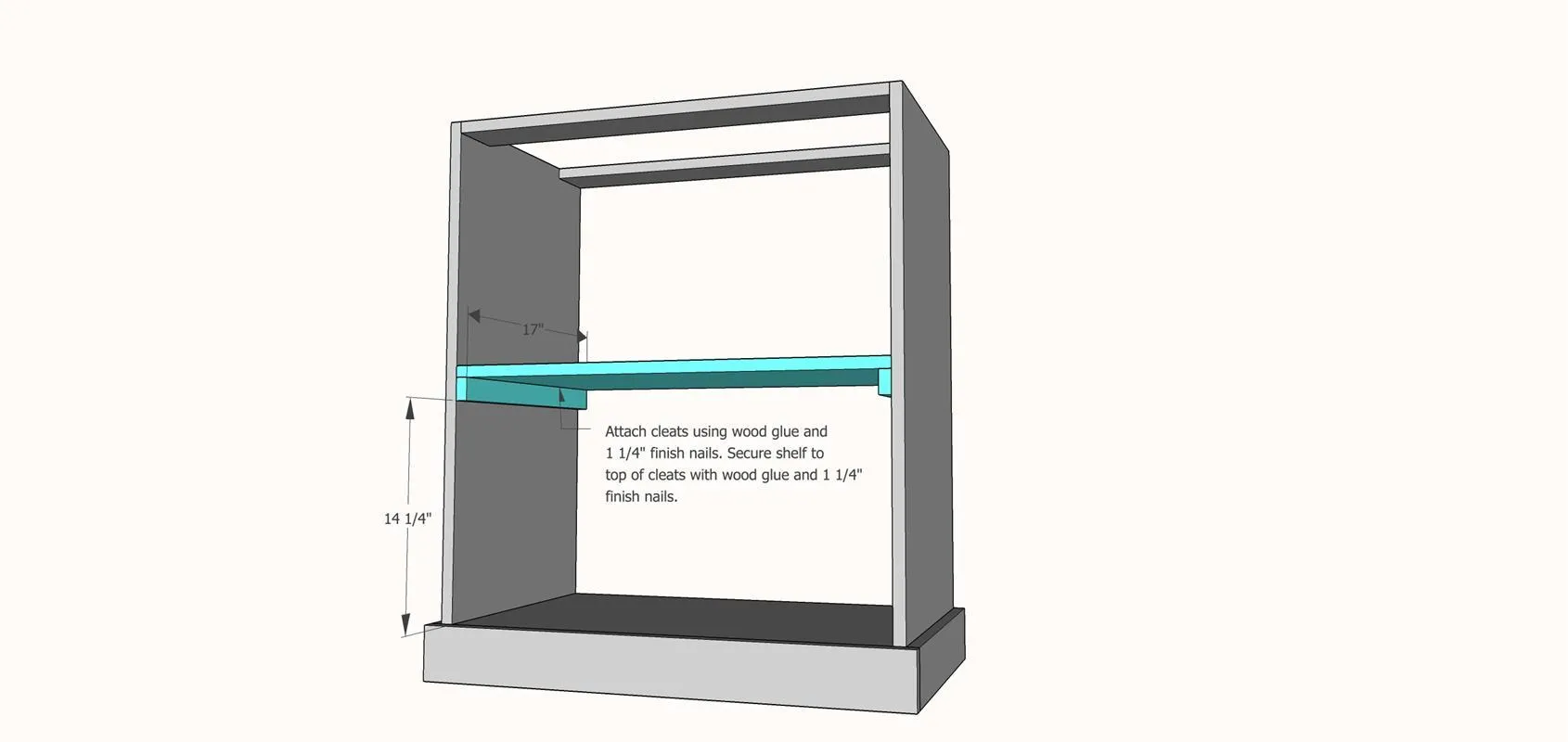

Attach cleats using wood glue and 1 1/4" finish nails. Secure shelf to top of cleats with wood glue and 1 1/4" finish nails.

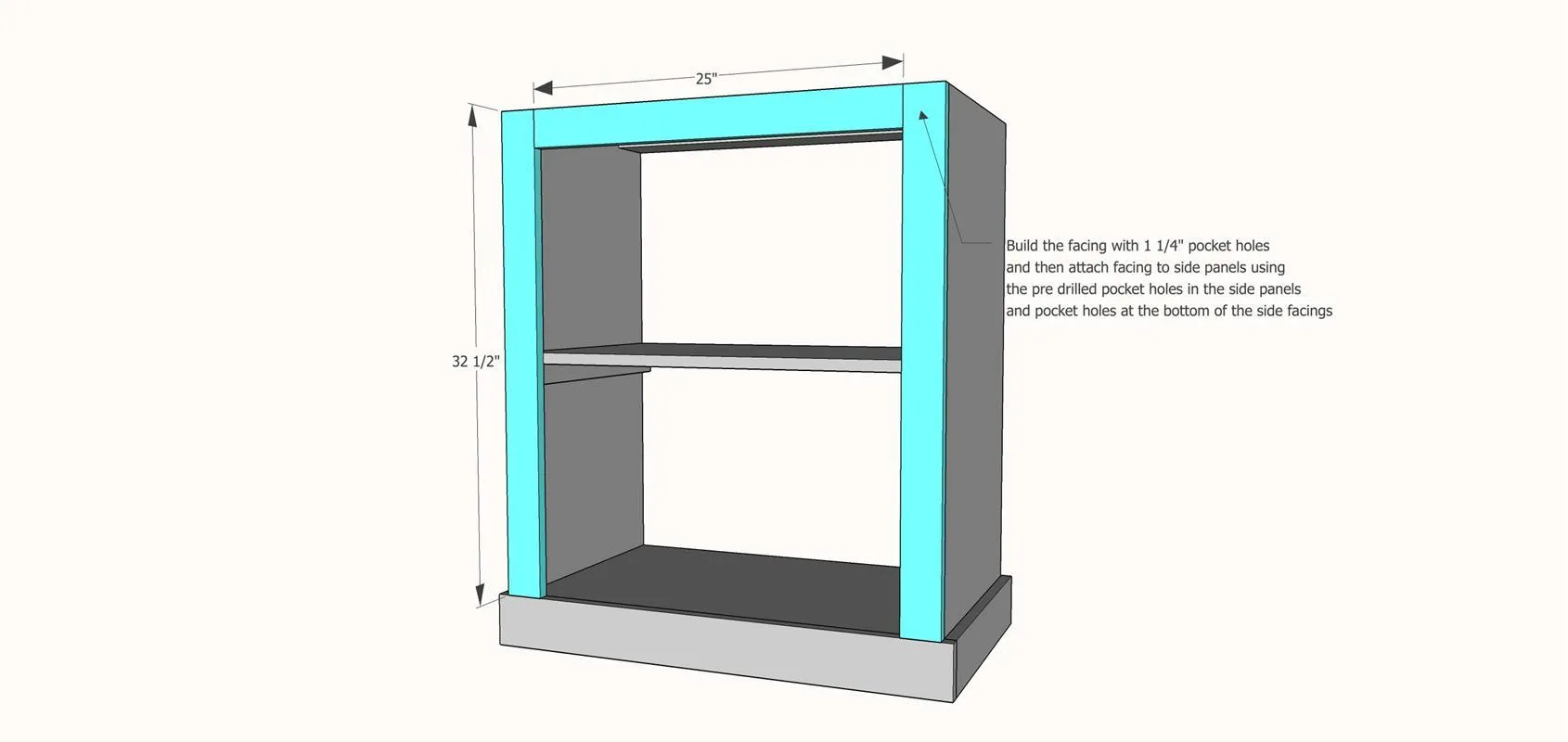

Build the facing with 1 1/4" pocket holes and then attach facing to side panels using the pre drilled pocket holes in the side panels and pocket holes at the bottom of the side facings.

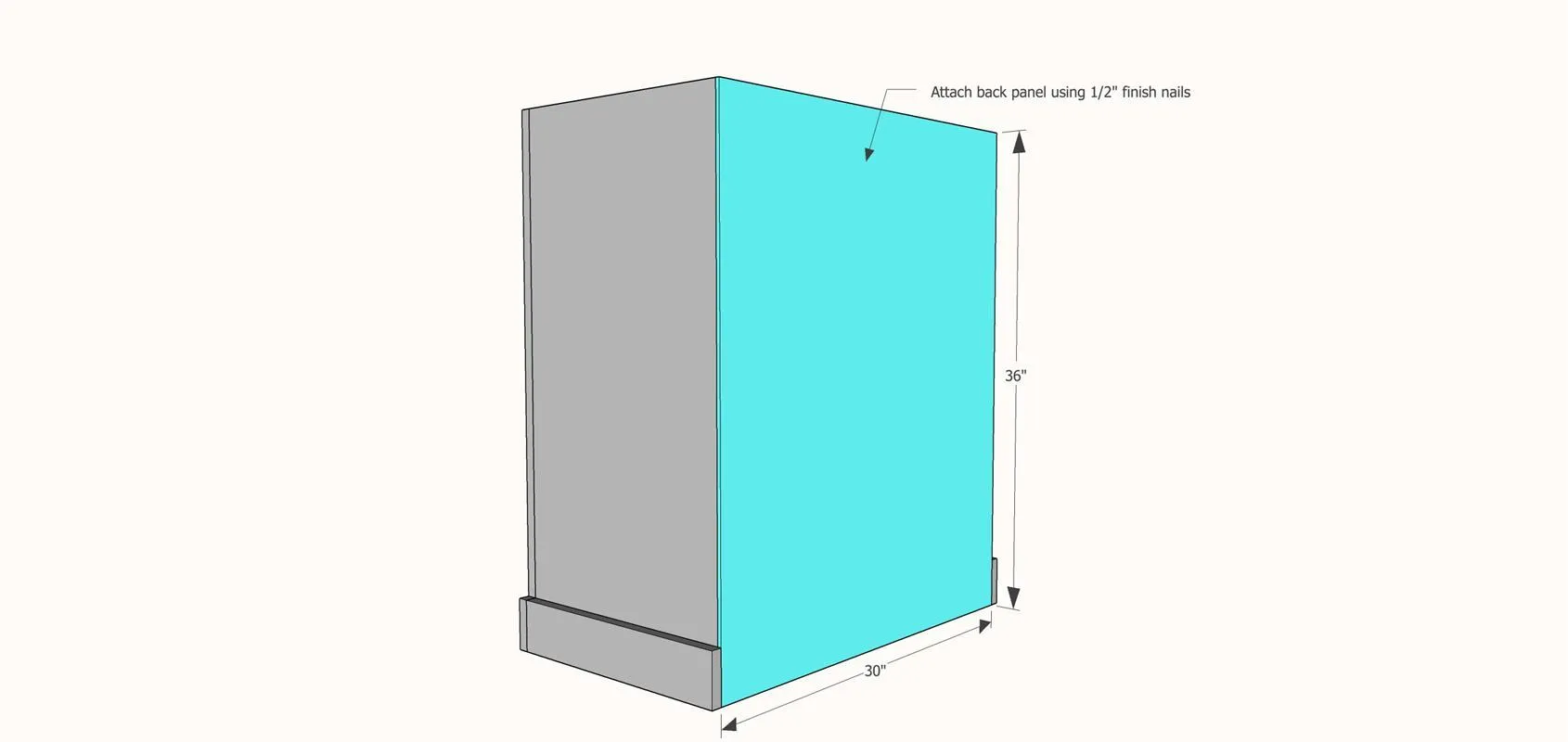

Attach Back Panel with 1/2" finish nails.

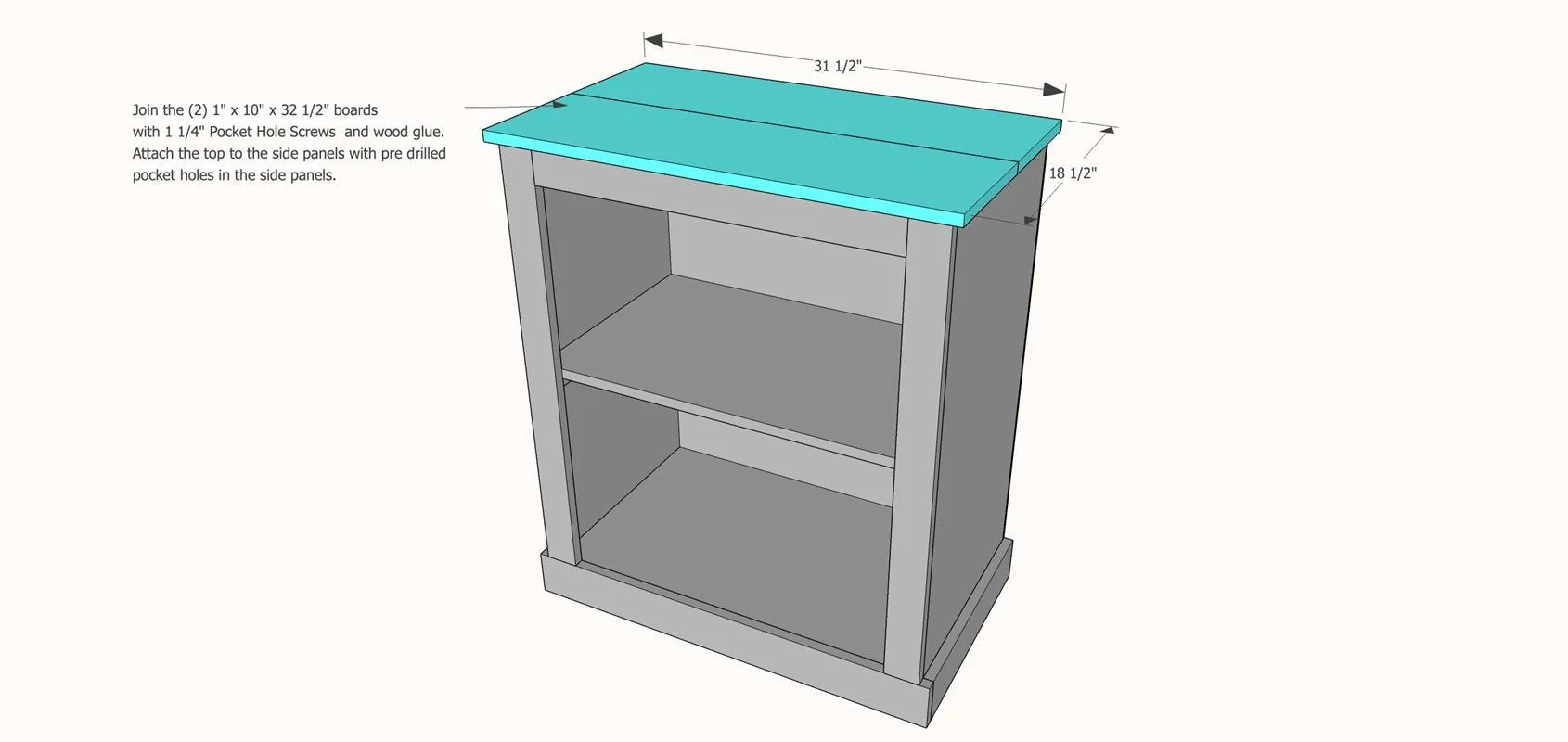

Join the (2) 1" x 10" x 32 1/2" boards with 1 1/4" Pocket Hole Screws and wood glue. Attach the top to the side panels with pre drilled pocket holes in the side panels.

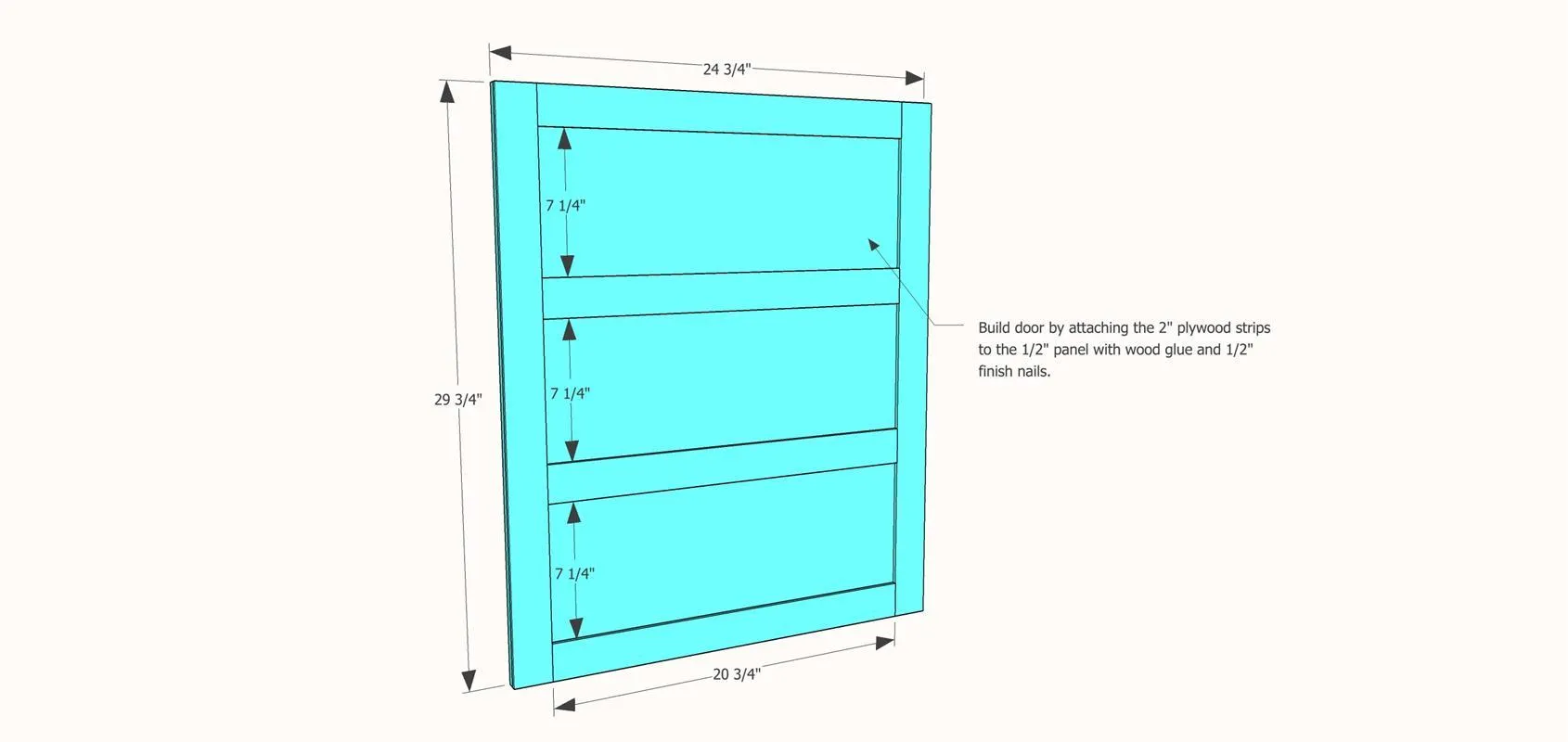

Build door by attaching the 2" plywood strips to the 1/2" panel with wood glue and 1/2" finish nails.
