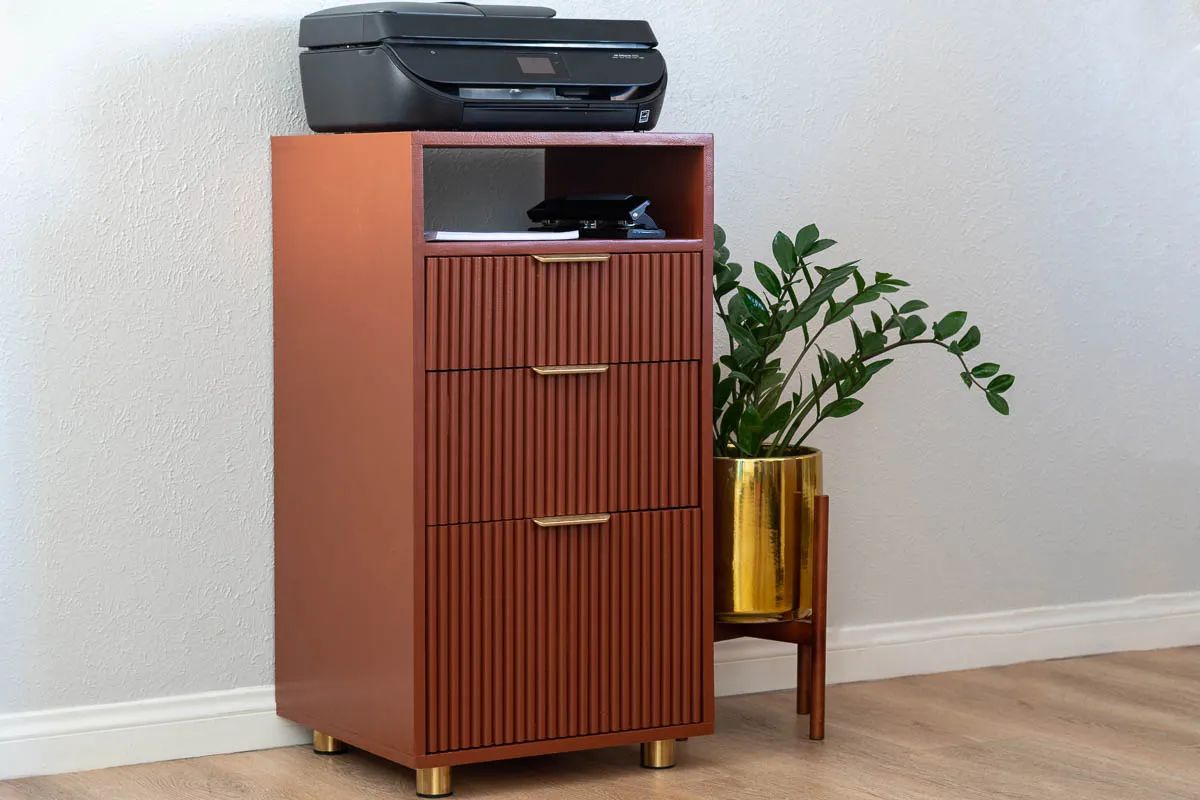

Build an easy DIY File cabinet for your home office. It has a large filing drawer, and 2 smaller storage drawers for organization. Need two filing drawers? Just combine the top drawers and make one large filing drawer. The cabinet also doubles as a printer stand with a shelf for storing paper.
| Item | Qty |
|---|---|
| Plywood, 4' x 8' 3/4" | 1 board |
| Plywood, 4' x 4' 1/2" | 1 board |
| Plywood, 4' x 4' 1/4" | 1 board |
| 1-1/4" pocket hole screws | 25 each |
| 1" coarse thread pan head pocket hole screws |
| 25 each |
| Drawer slides | 6 each |
| Hanging file rails | 2 each |
| Drawer pulls | 3 each |
| Casters or feet | 4 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Sides | 2 | 3/4" × 18" × 32" |
| Top and bottom | 2 | 3/4" × 18" × 18" |
| Shelf | 1 | 3/4" × 17" × 18" |
| Drawer box 1 sides | 2 | 1/2" × 10" × 16" |
| Drawer box 1 front/back | 2 | 1/2" × 10" × 15" |
| Drawer box 2 sides | 2 | 1/2" × 6" × 16" |
| Drawer box 1 front/back | 2 | 1/2" × 6" × 15" |
| Drawer box 3 sides | 2 | 1/2" × 4" × 16" |
| Drawer box 1 front/back | 2 | 1/2" × 4" × 15" |
| Drawer Front 1 | 1 | 3/4" × 12" × 17" |
| Drawer Front 2 | 1 | 3/4" × 8" × 17" |
| Drawer Front 3 | 1 | 3/4" × 6" × 17" |
Buy 9 boards at 8 ft.
2 boards
1 board
1 board
1 board
1 board
1 board
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

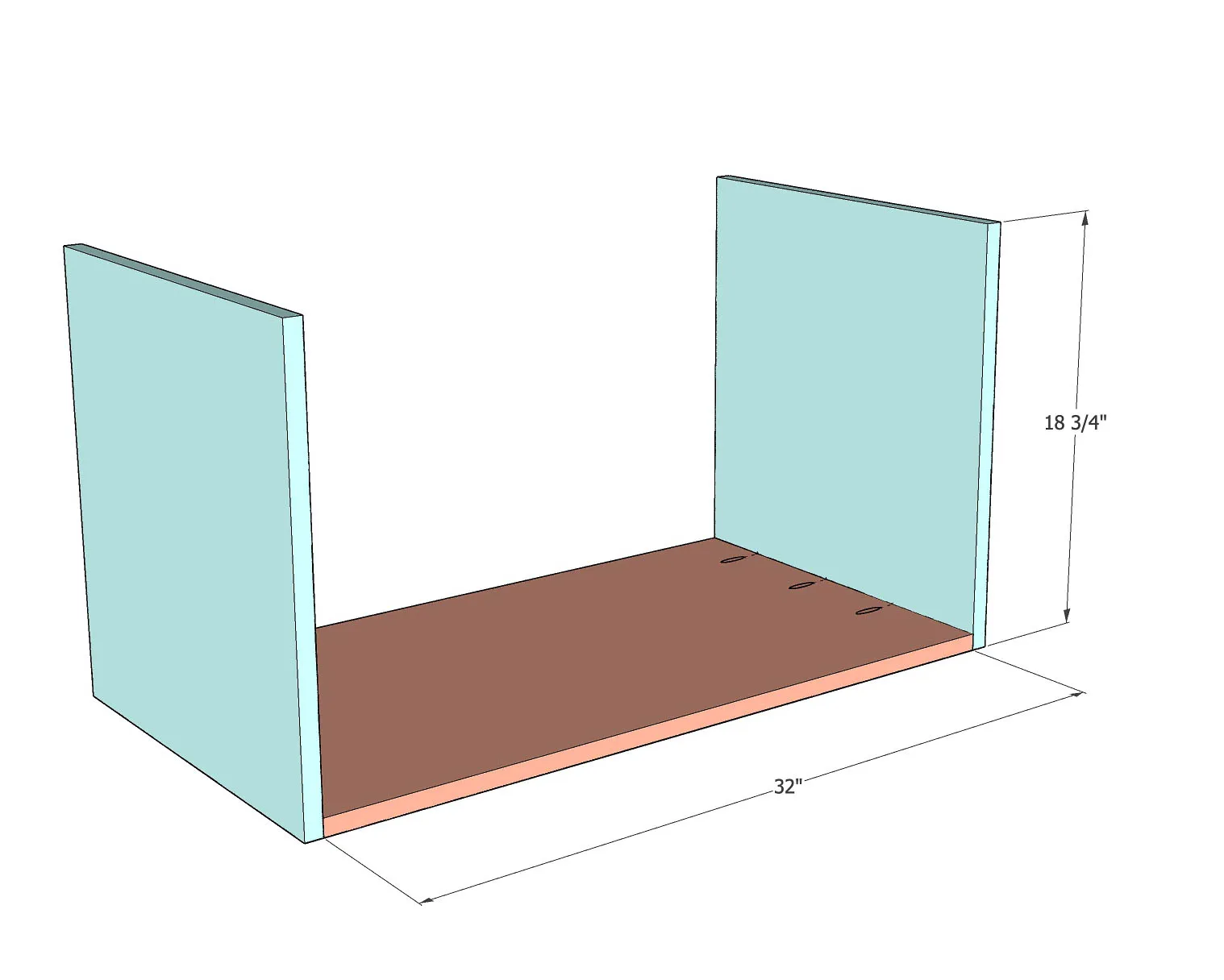

Attach the top and bottom to the side plywood using wood glue and pocket hole screws. The pocket hole screws are on the inside. Use 1-1/4" pocket hole screws.

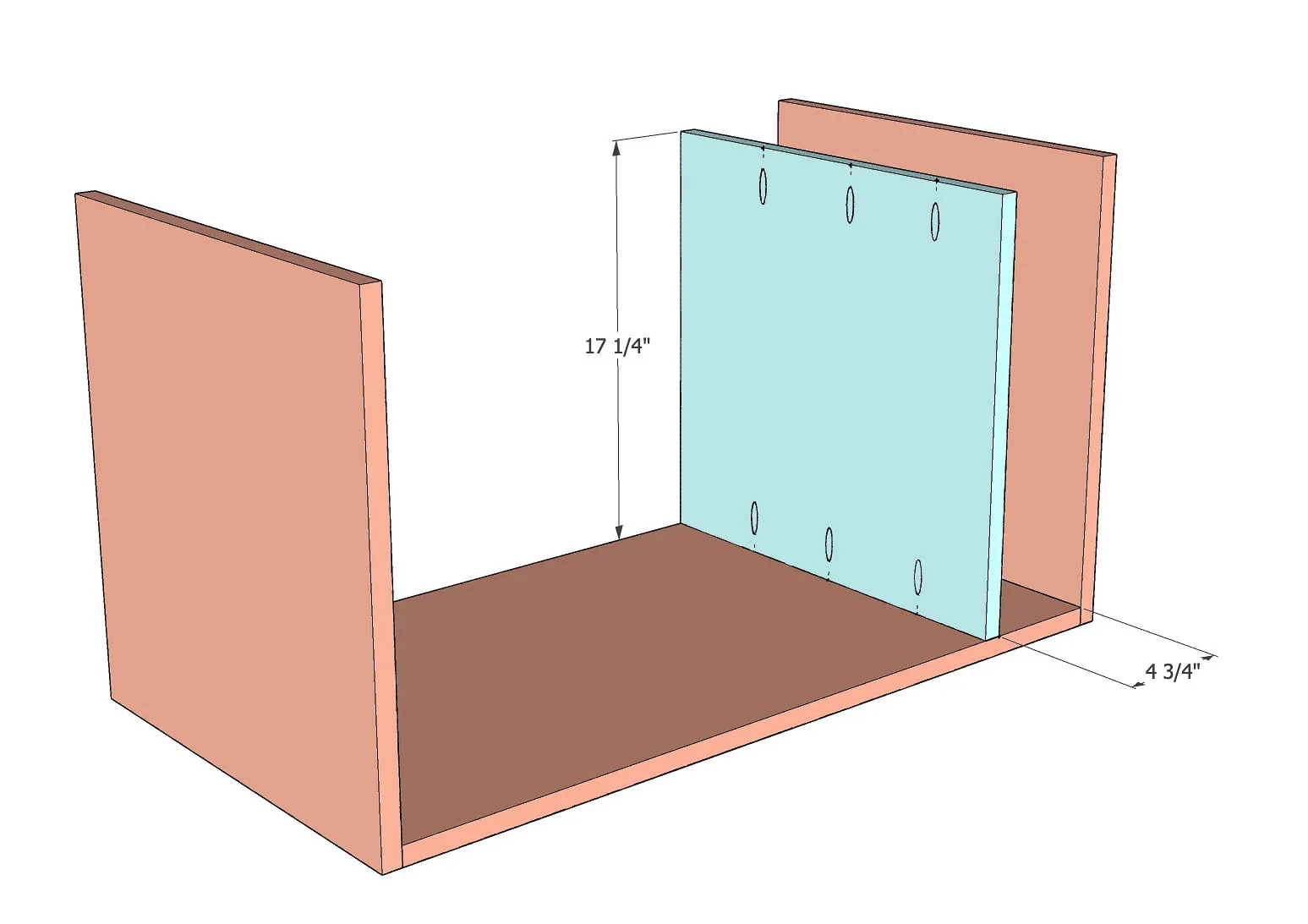

Attach the shelf as shown using wood glue and 1-1/4" pocket hole screws. You can clamp a scrap 2x4 board to help keep the shelf aligned as you attach it.

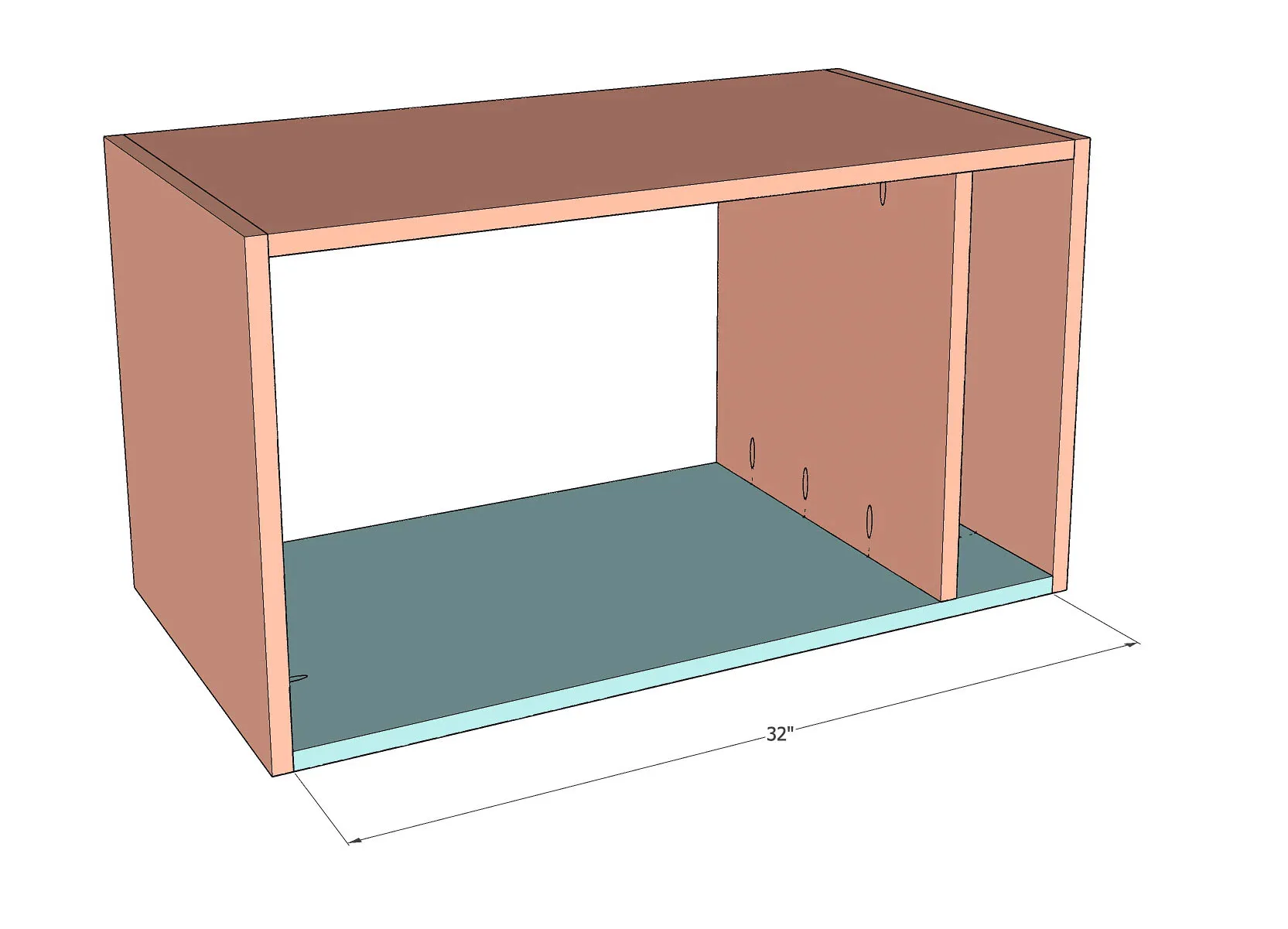

Attach the remaining side using pocket hole screws and wood glue to complete the cabinet.

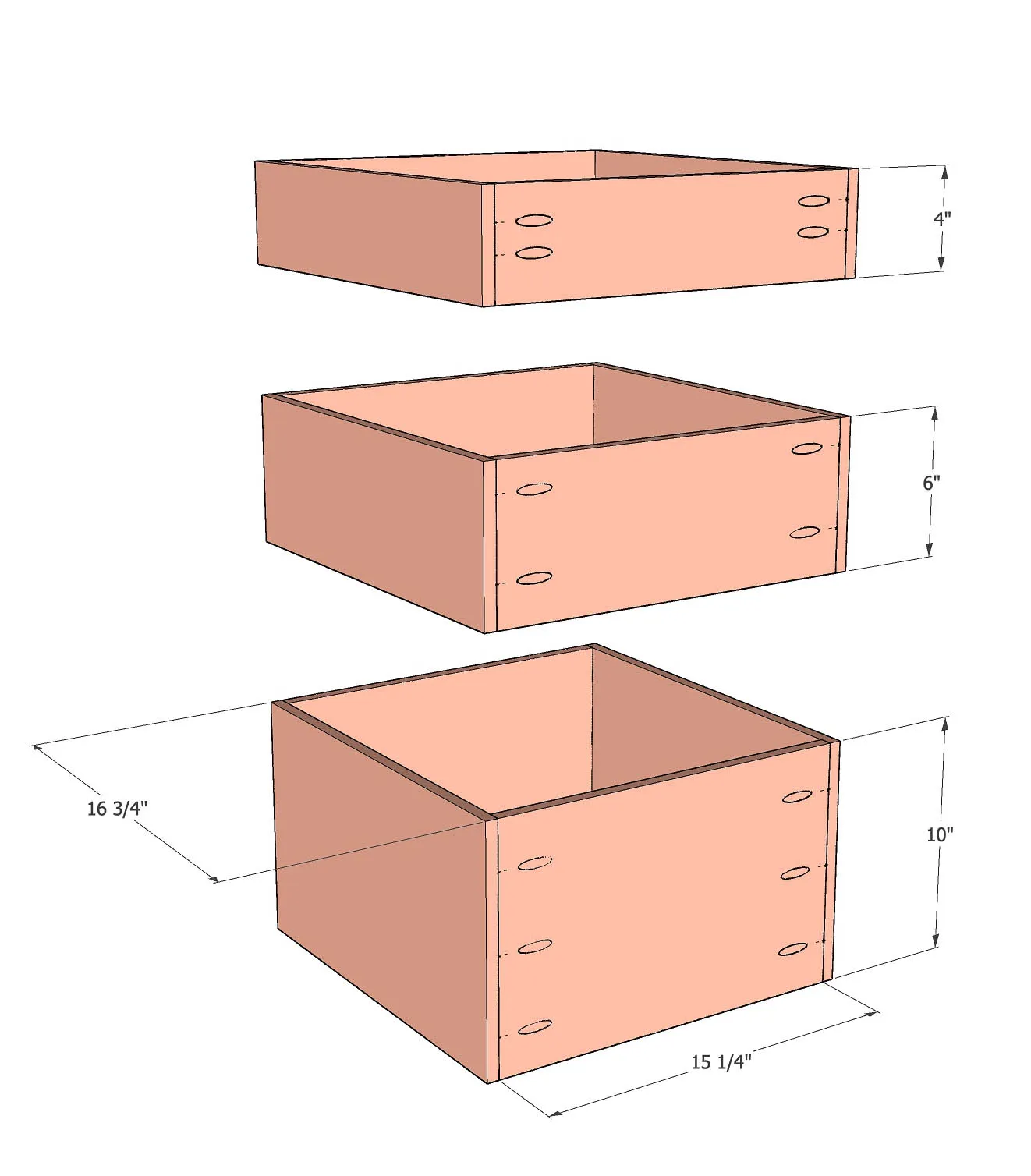

Build the three drawers using pocket hole screws and wood glue. Since we are using 1/2" plywood, we use 1" screws. There are three drawers with the exact same depth and width but different heights. Install the drawers into the cabinet built above using drawer slides. Full extension ball bearing drawer slides are highly recommended.

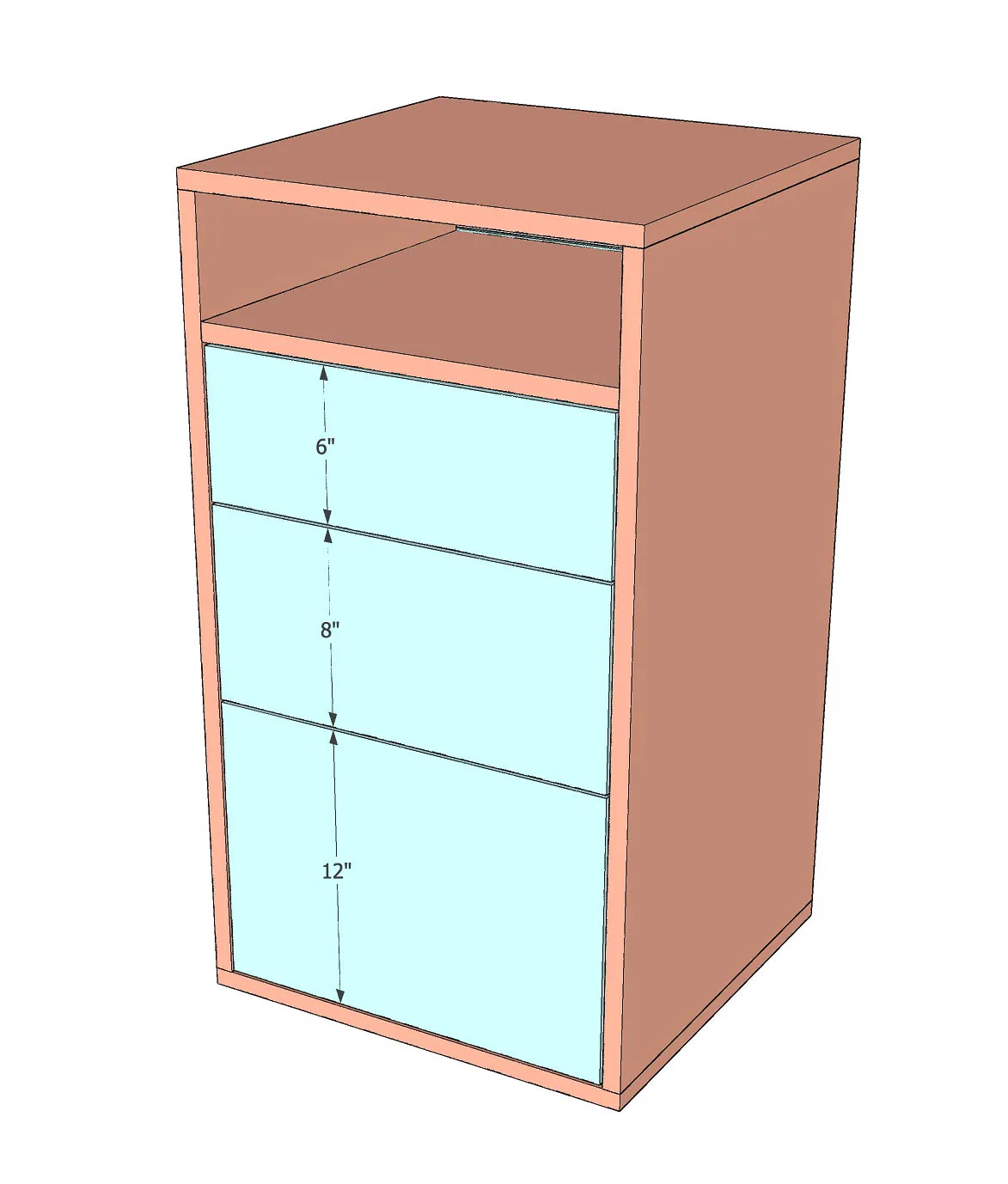

Attach drawer fronts to the drawers. These are inset drawers. You can use the Hardware jig to attach drawer hardware.
