With its extended rails, raised squares, and beveled glass, this decorative mirror recreates a classic Arts & Crafts style.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Rail | 2 | 3/4" × 2" × 30" | — | ☐ |
| Stile | 2 | 3/4" × 2" × 31" | — | ☐ |
| Thin Stile | 2 | 1/4" × 2" × 31" | — | ☐ |
| Rail End | 4 | 3/4" × 1" × 2" | — | ☐ |
| Decorative Square | 6 | 1/4" × 1" × 1" | — | ☐ |
| Back | 1 | 1" × 27" × 33" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Board, 1x3 96" | 1 board | ☐ |
| Board, 1x3 48" | 1 board | ☐ |
| Board, 1/4" x 3" 24" | 2 board | ☐ |
| Plywood, 1/4" Thick Half Sheet | 1 board | ☐ |
| 1 1/4" fine-thread pocket hole screws | 8 each | ☐ |
| #6 x 3/4" pan-head woodscrews | 16 each | ☐ |
| Heavy Duty Mirror/Picture Frame Hanging Kit | 1 each | ☐ |
| 24" x 30" Beveled Mirror | 1 each | ☐ |
| Mirror Adhesive | 1 each | ☐ |
| Wood Glue | 1 each | ☐ |
Overall cost: $$. Lumber varies by region, species, and season, so we give a band rather than a figure.

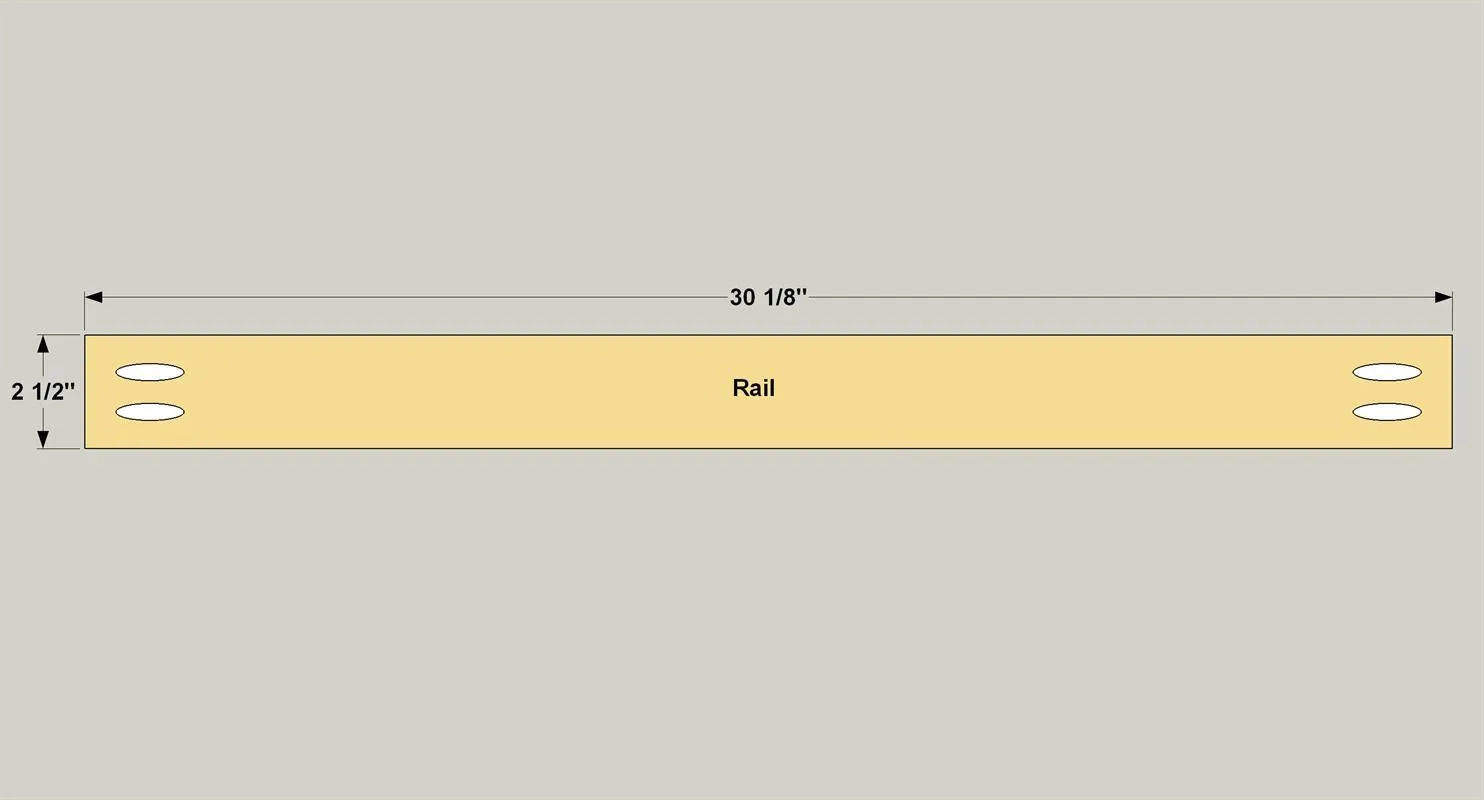

Cut two Rails to length from a 1x3 oak board, as shown in the cutting diagram. Set your pocket hole jig for 3/4" material, and then drill pocket holes in the Rails at the locations shown.

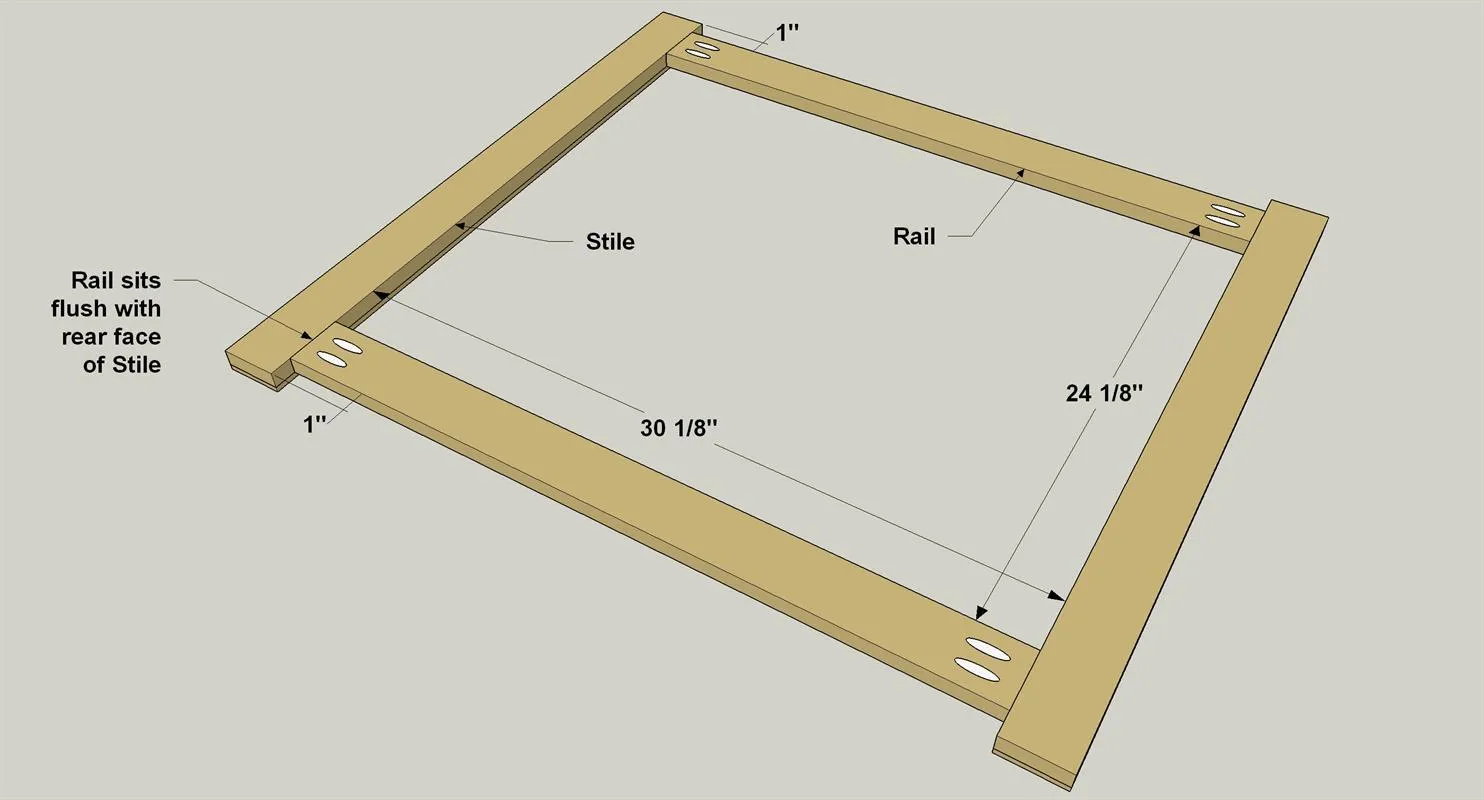

Attach the Rails to the two stile assemblies using 1 1/4" fine-thread pocket hole screws, as shown. Note that the Rails sit flush with the rear face of the thicker stiles.

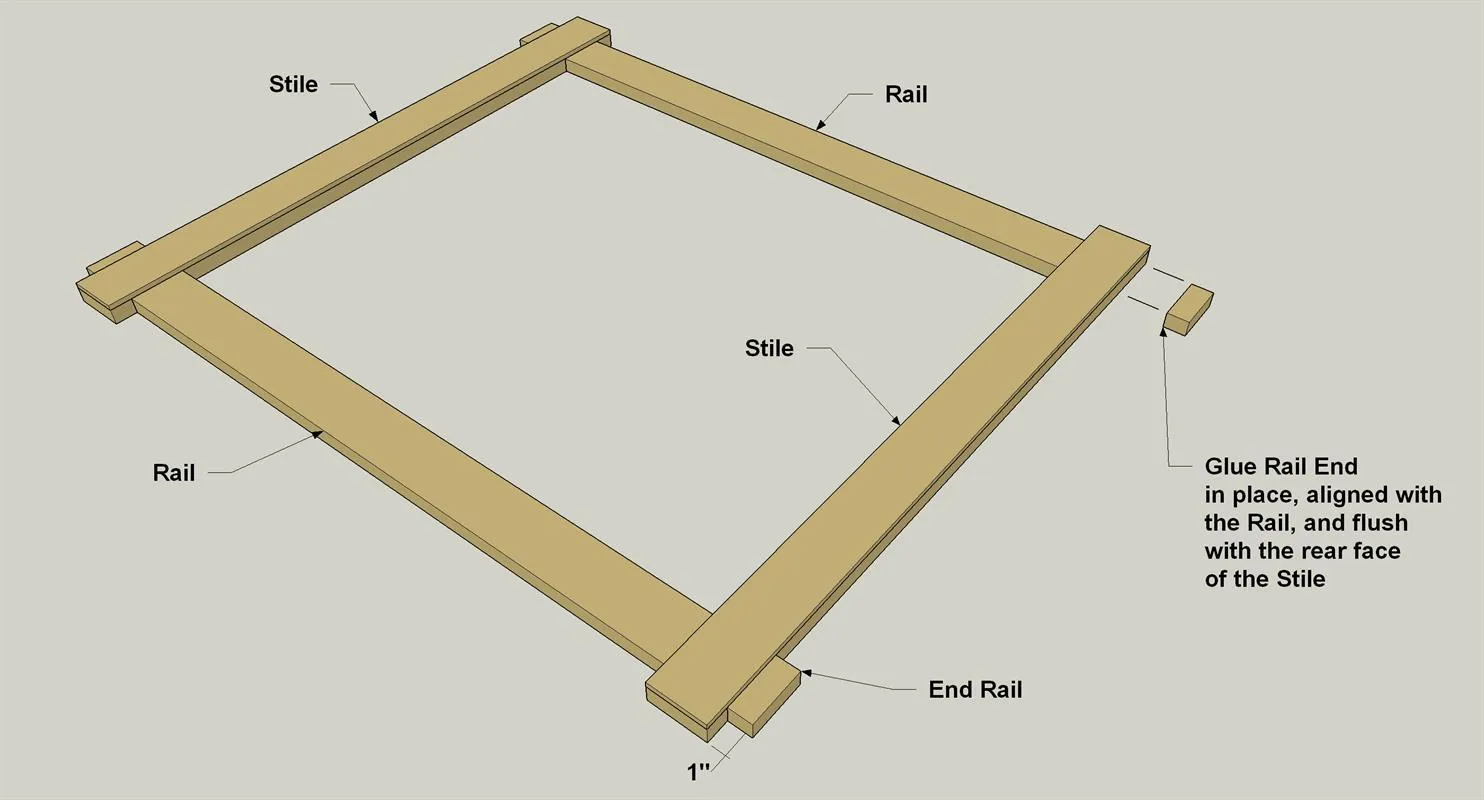

Now you can create the look of extended rails. To do that, glue the Rail Ends to the stiles at the locations shown. Make sure that the Rail Ends are aligned with the Stiles, and that they are flush with the rear face of each stile. Use clamps or tape to hold them in place while the glue dries.

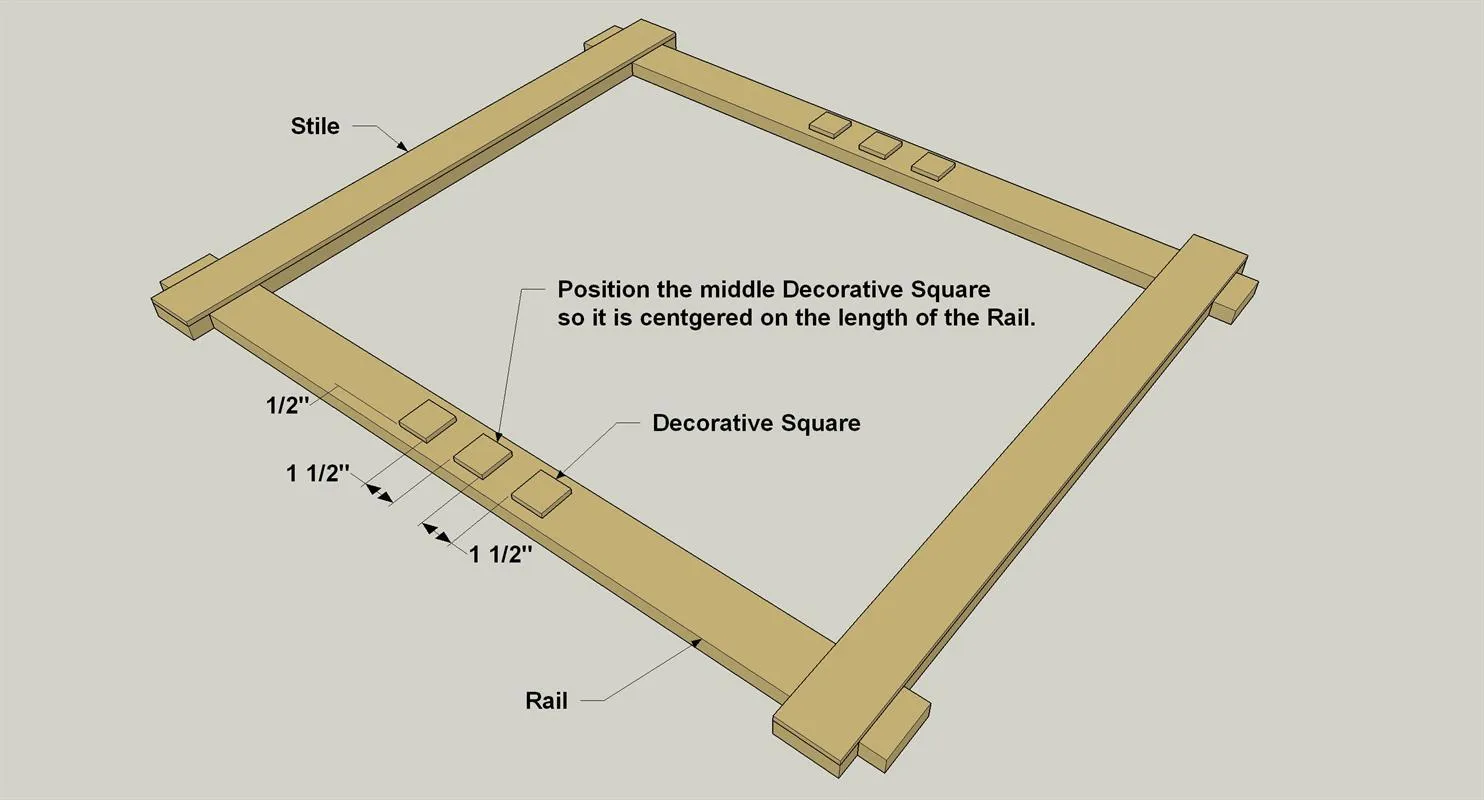

Cut six Decorative Squares, as shown in the cutting diagram. Dab some glue on the back of each one and set them on the Rails at the locations shown. An adjustable square is helpful here to get these pieces aligned.

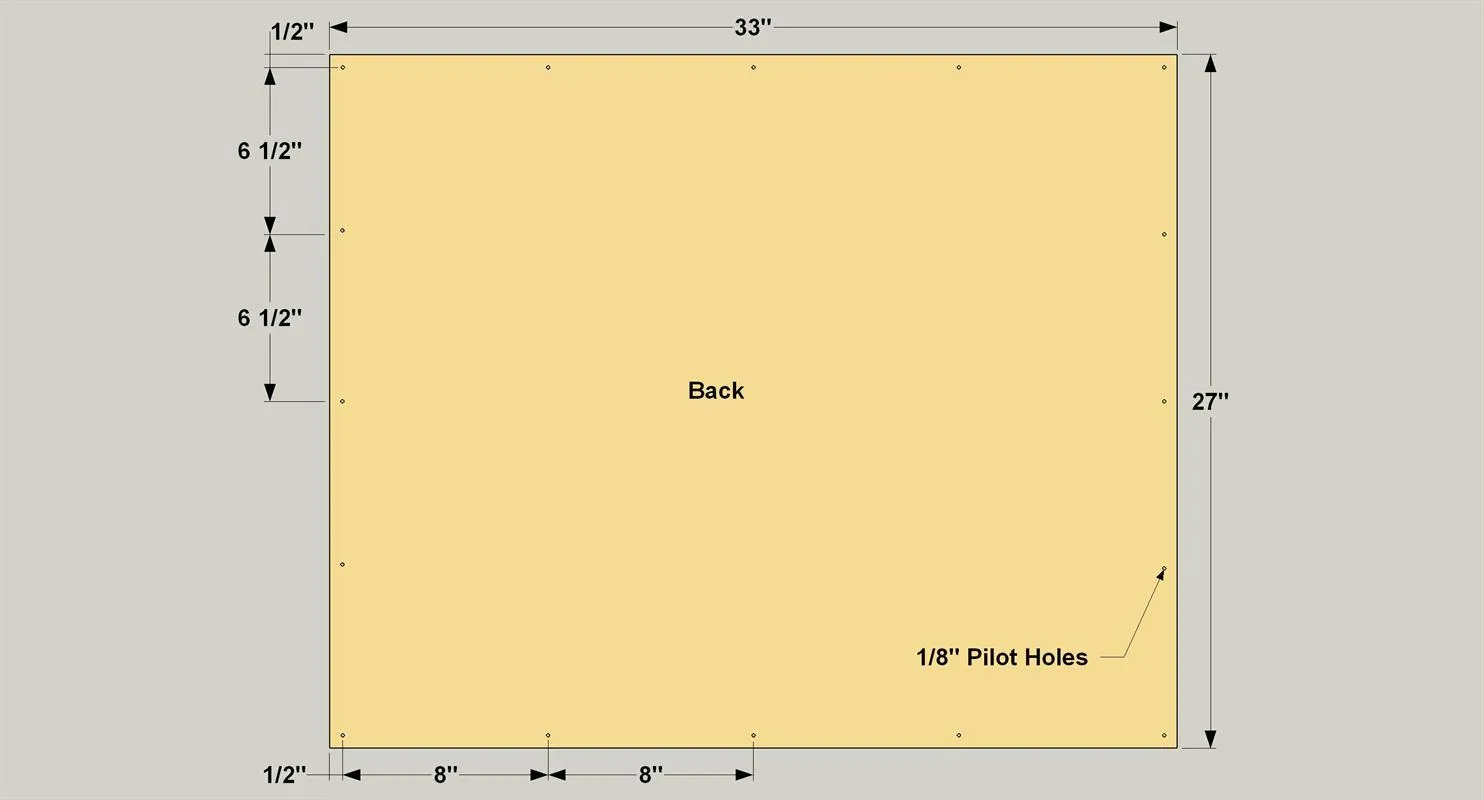

Cut the Back from 1/4" plywood as shown. Drill holes at the locations shown for screws that will be used to attach the Back to the mirror frame.
Sand the mirror assembly, wipe it down to remove the dust, and then apply your favorite stain and top-coat.

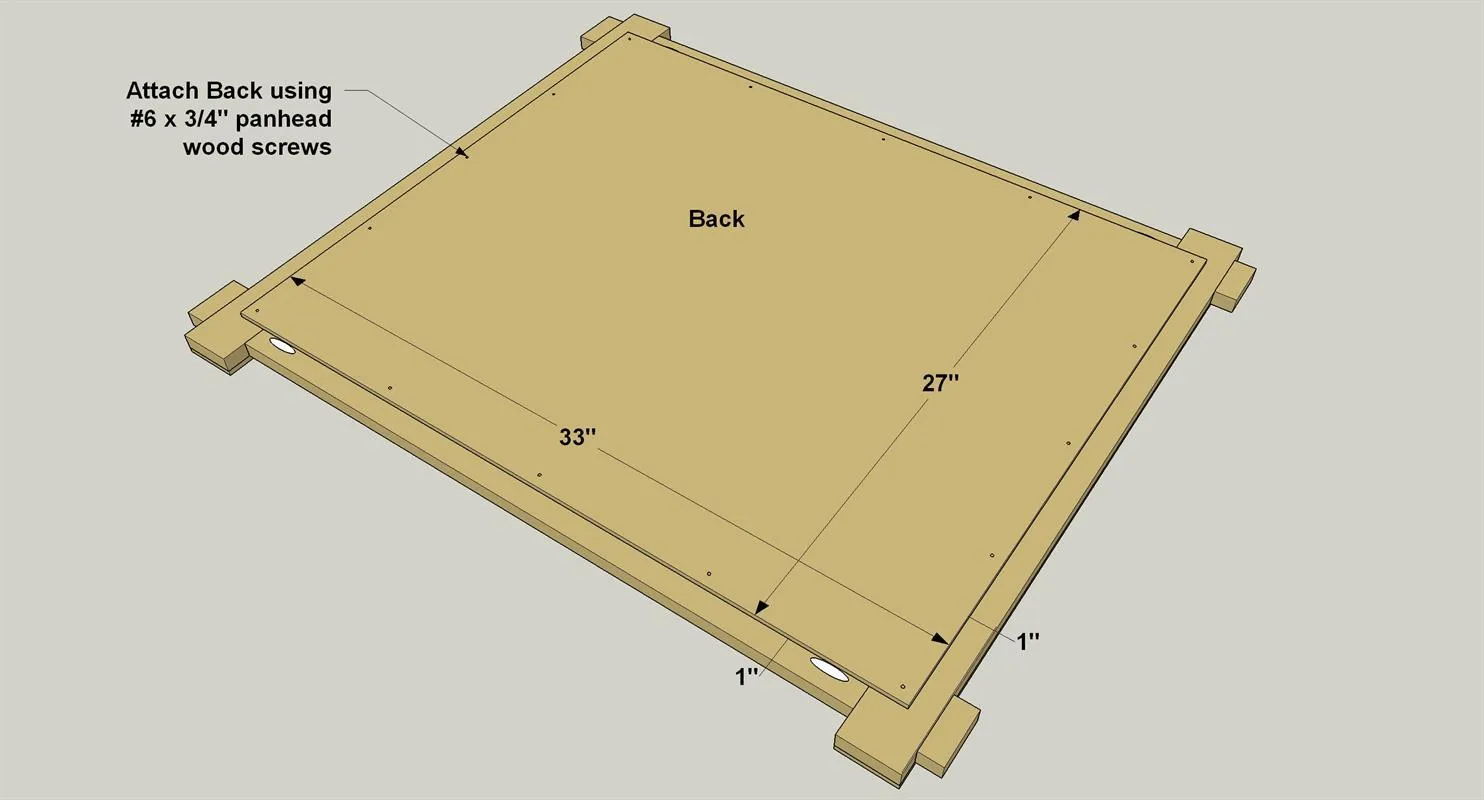

Screw the Back to the frame assembly using #6 x 3/4" pan-head screws, as shown.
Now you can add the glass mirror. It simply gets adhered to the plywood. For a mirror, though, you need to use the proper type of adhesive. Ordinary glue or construction adhesive can actually pull the silver coating off of the glass. So, make sure you get mirror adhesive. It’s widely available. Follow the instructions to apply adhesive to the plywood, and then press the mirror in place. There should be a small gap between the edges of the mirror and the inside edges of the frame. Make sure the adhesive dries per the manufacturer’s instructions before you add the hardware and hang the mirror.
