Use these simple plans to create a custom Cube Organizer, or follow these dimensions exactly and pair with my DIY Storage Box for a campaign styled furniture piece(link to tutorial found under "extras
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Long Sides | 2 | 1" × 10" × 72 3/4" | — | ☐ |
| Middle Shelf | 1 | 1" × 10" × 71 1/4" | — | ☐ |
| Short Sides | 2 | 1" × 10" × 17 1/4" | — | ☐ |
| Shelves | 14 | 1" × 8 1/4" × 10" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Board, 1x10 96" | 4 board | ☐ |
| 1" Kreg Screws | 81 each | ☐ |
| 1-1/4" Kreg Screws | 21 each | ☐ |
| Wood Filler | 1 each | ☐ |
| Stain + Sealer | 1 each | ☐ |
Overall cost: $$. Lumber varies by region, species, and season, so we give a band rather than a figure.

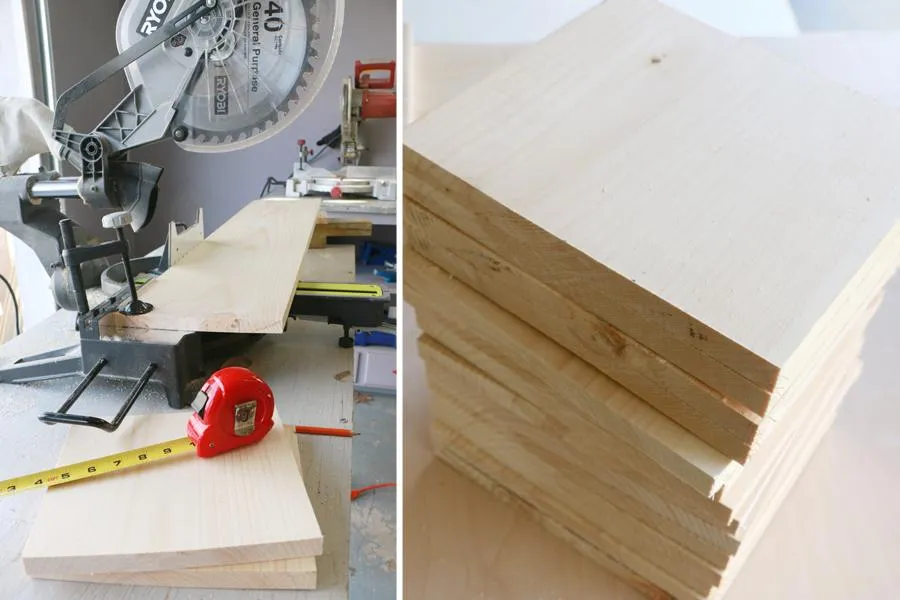

Follow the cut list to get all pieces to size using a miter saw, then sand any rough edges. An optional (and slightly cheaper but more difficult) alternative to 1"x10"x8' boards is to cut pieces from a 3/4"x4'x8' sheet.

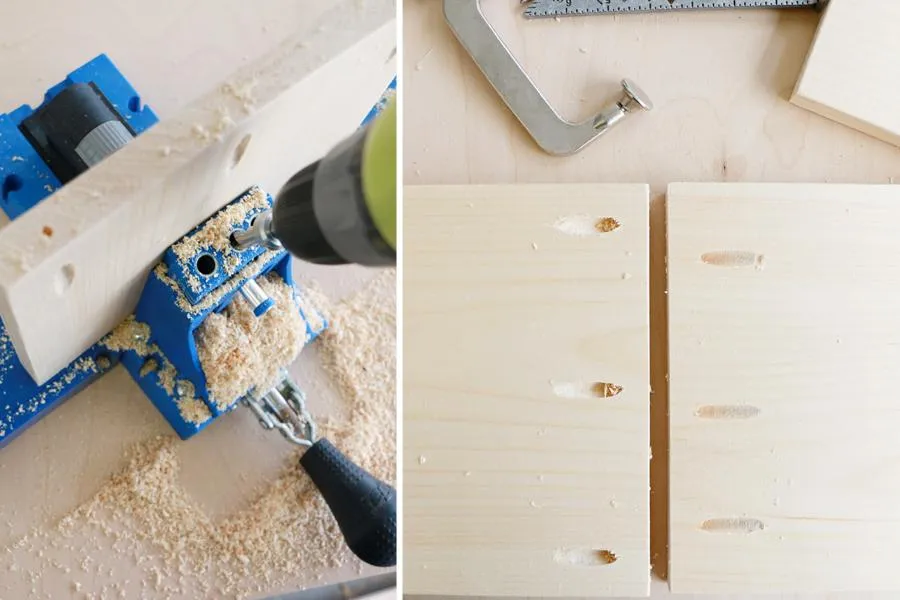

Next drill three pocket holes into either end of each 1"x10"x8-1/4" shelf. 7 shelves should have consistent pocket holes in the center and edges, the next 7 shelves should be staggered so that the holes are just off center from the first set of 7 pocket holes. This is so screws don't overlap and hit each other.

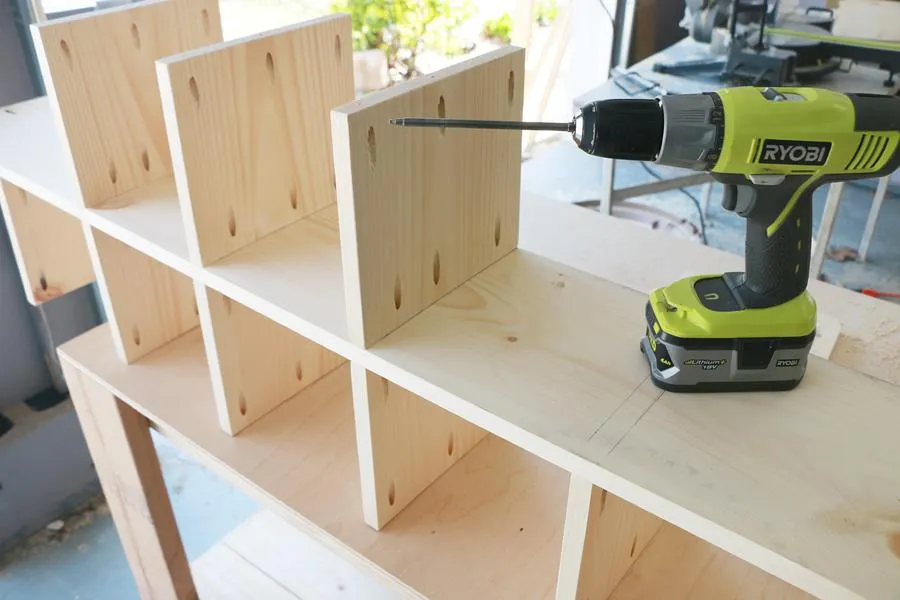

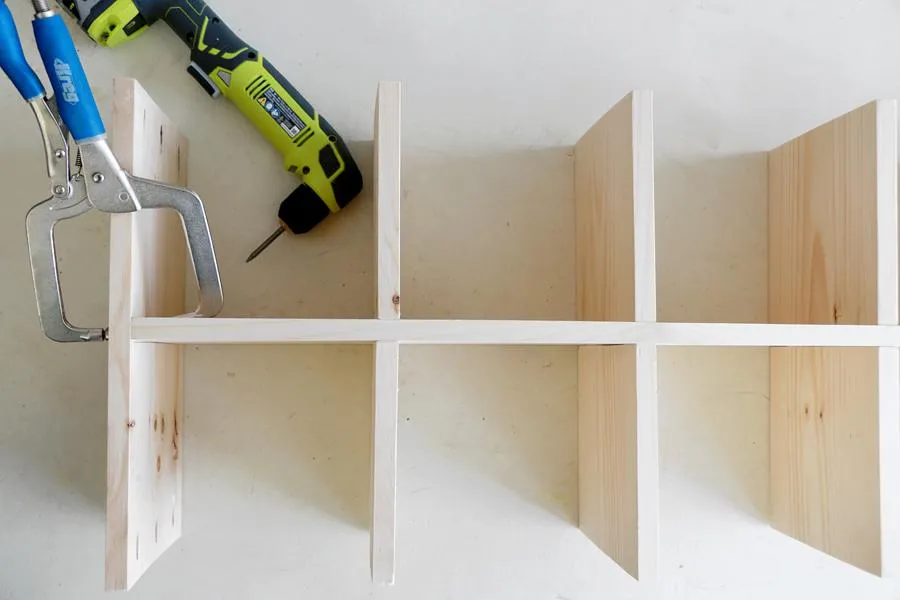

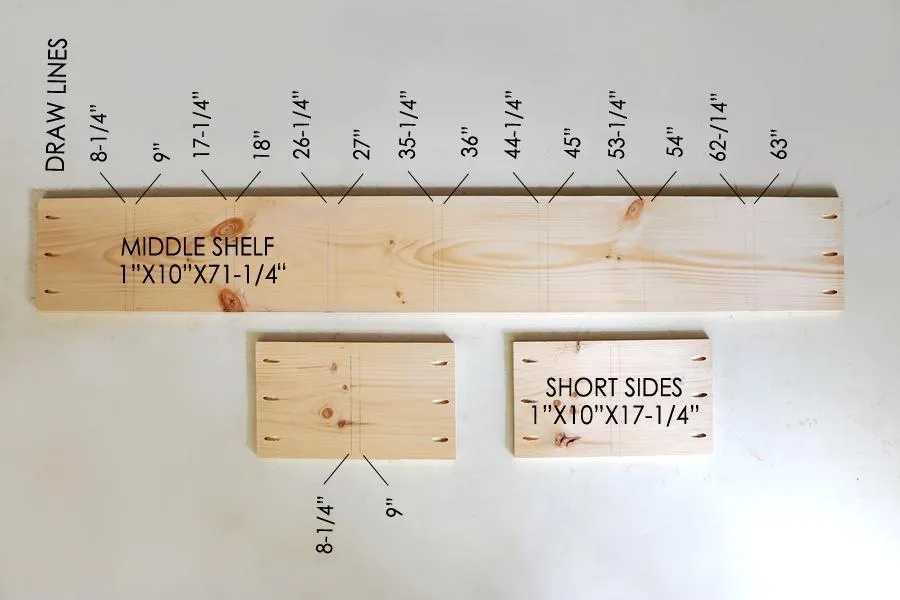

Attach the first seven 8-1/4" shelves to the 71-1/4" middle shelf. Use the guide lines you drew.

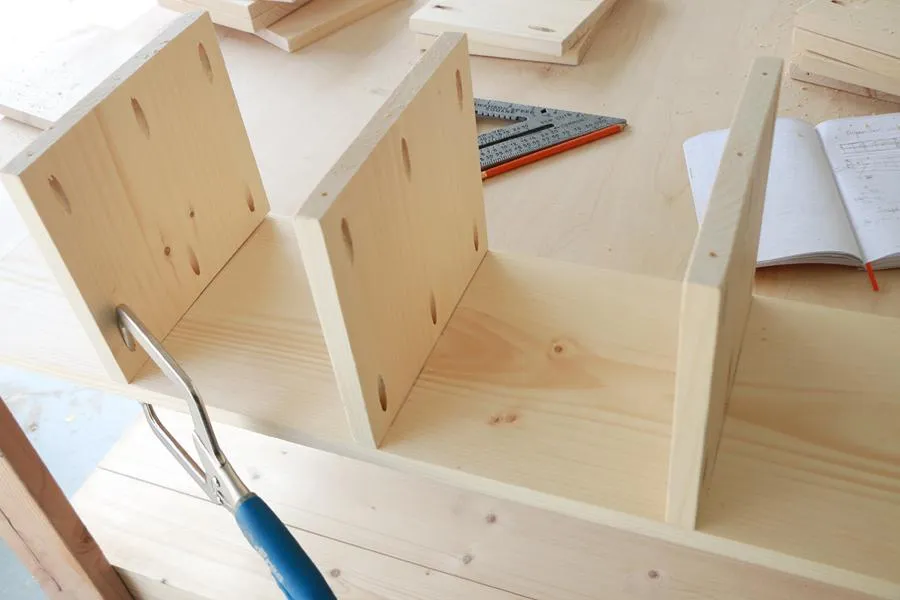

Attach the two short sides (1"x10"x17-1/4")to either end of the unit you have been building. Use the guide lines to center the pieces.

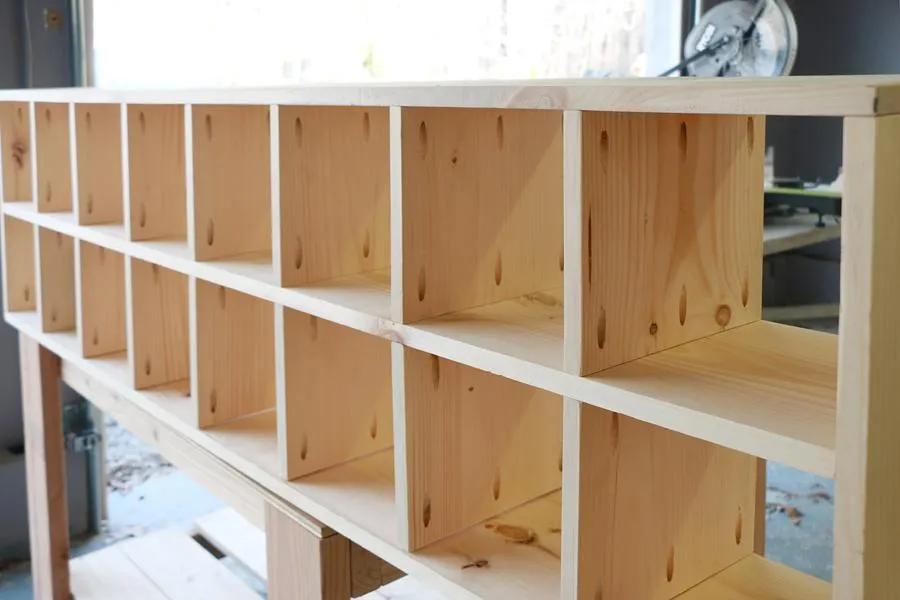

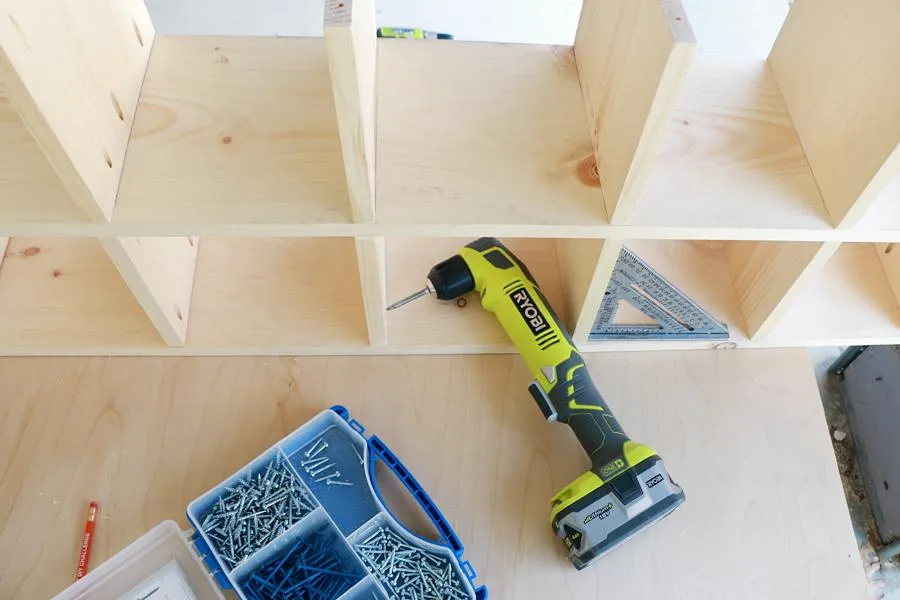

In order to attach the long sides (1"x10"72-3/4") place it on a flat work surface and place the unit you just assembled on top. Using a right angle screw driver attach both outside ends first, then use a square to ensure each 8-14" shelf is straight and attach those to the long side board below.
