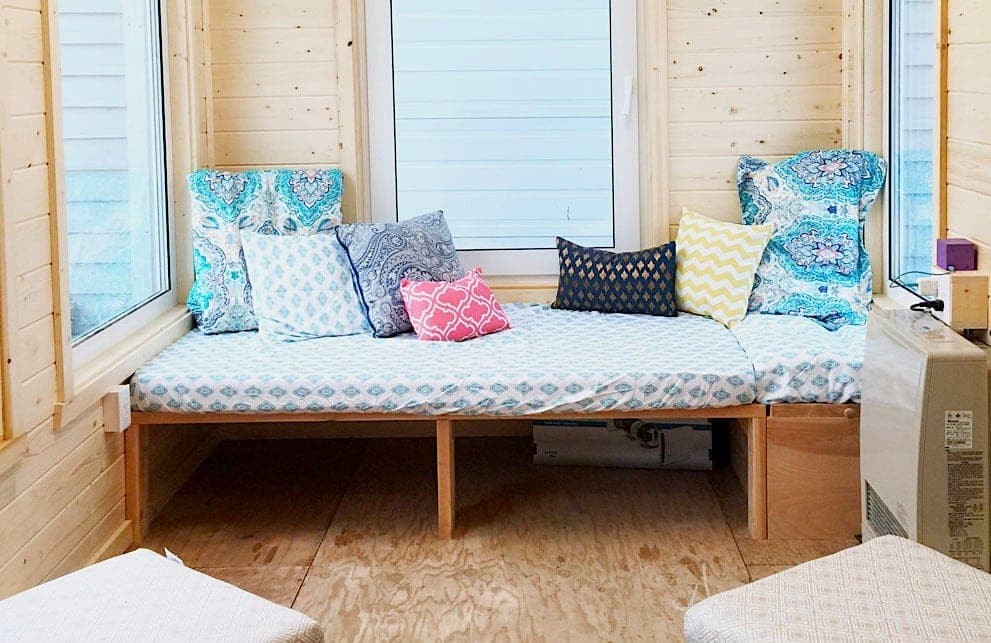

This is less a piece of furniture than a bit of light framing: three legs, a back cleat lag-screwed to the wall, and a run of 2x4 slats. Because it's built into the wall, it carries load like a bench ledger does, which is exactly why the wall connection is the whole safety story — a daybed that isn't tied to studs can rack, tip, or slide out from under someone. Anchor the back cleat and at least one (preferably both) outer legs to framing, not just drywall.
The design targets a 75"-wide span for a standard twin mattress. If you want it longer, the rule is simple: add a leg about every 3 feet so the 2x4 slats don't sag under a sitting adult. Spacing legs by feel on a longer run is how you end up with a bouncy middle.
It's built with construction 2x4s and pocket screws, so it's cheap and fast. The exposed leg ends can be wrapped in plywood or planking afterward for a finished sofa look, but structurally the bare frame is the whole job.
| Item | Qty |
|---|---|
| 2x4, 8 ftLegs, cleats, and slats. Stud-length is fine. | 9 each |
| 1x2, 4 ft | 1 each |
| Pocket hole screws, 2-1/2" | 1 box |
| Wall screws, 2-1/2" or longerLength depends on your wall material — must bite solidly into studs. | 1 box |
| Brad nails, 1-1/4" | 1 box |
| Finish | 1 kit |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Leg uprights2x4 | 3 | 1 1/2" × 3 1/2" × 37 3/4" |
| Leg feet2x4 | 3 | 1 1/2" × 3 1/2" × 10 1/2" |
| Leg braces1x2 | 3 | 3/4" × 1 1/2" × 14" |
| Slats / cleats2x4One serves as the wall back cleat; the rest are platform slats. | 7 | 1 1/2" × 3 1/2" × 75" |
Buy 10 boards at 8 ft.
9 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Build three legs for a 75"-wide daybed. If you're spanning a longer distance, add a leg about every 3 feet so the 2x4 slats don't sag under weight. Assemble with pocket screws.
Attach the back cleat to the wall studs with 2-1/2" (or longer) screws, level. Then attach the legs to the back cleat with pocket screws. At least one outer leg — preferably both — must be fastened to wall studs or a solid built-in. This wall connection is what keeps the daybed from tipping or sliding; do not skip it.
Attach the 2x4 slats across the legs with 2-1/2" screws. Space them evenly to support the mattress.
The exposed leg ends can be wrapped in plywood or planking for a finished sofa look. Sand and finish as desired.
