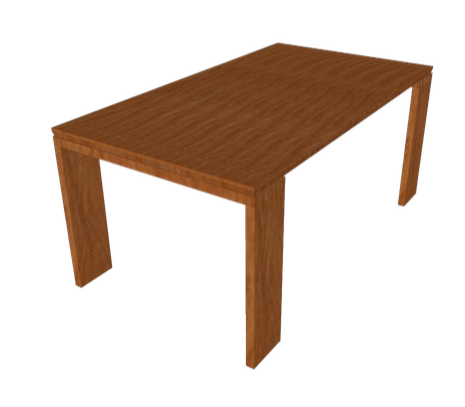

Building a Modern & Custom Dining Table

Instructions

1. 1. Know Before You Go

   Before beginning the assembly, all pieces need to be fully surfaced (S4S) to 1 1⁄2” to ensure an even finish. For a demonstration of this step, please reference the video listed in the Extras tab. You can also purchase S4S lumber and skip this step.

2. 2. Assembly (Part 1)

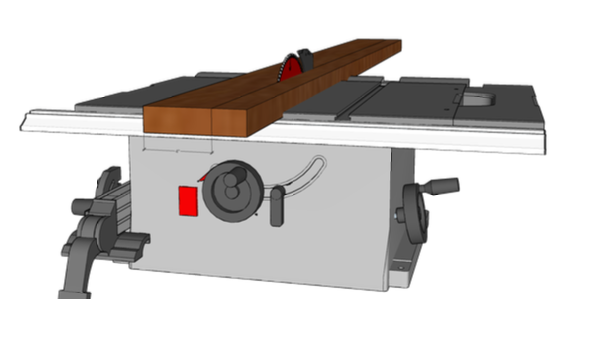

   Cut all the tabletop, table support, and leg pieces to measure 4” wide using a table saw or track saw.

3. 3. Assembly (Part 2)

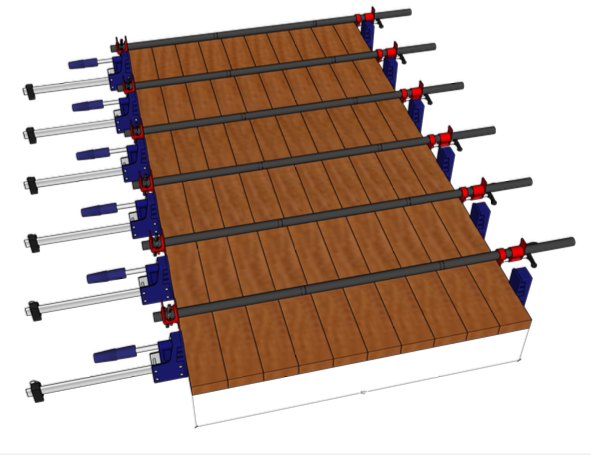

   To assemble the tabletop, add wood glue along the edge of each piece and clamp together using parallel and pipe clamps. Allow the wood to dry for at least 24 hours before moving to the next step.

4. 4. Assembly (Part 3)

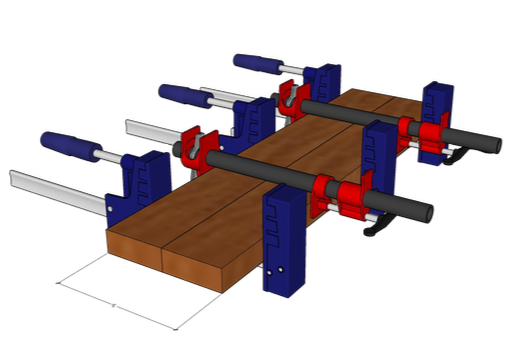

   • Add wood glue along the edge of each leg piece and the cross pieces and clamp together using parallel and pipe clamps. Allow the wood to dry for at least 24 hours before moving to the next step.
   • Repeat step for each leg panel and support panel.

5. 5. Assembly (Part 4)

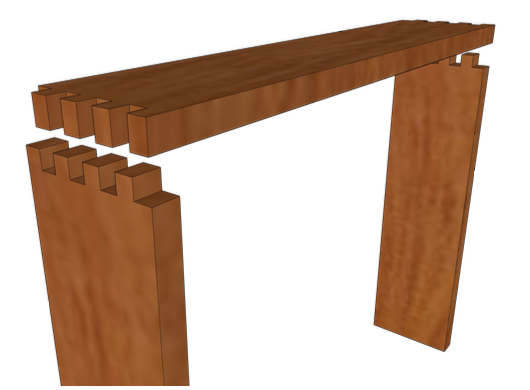

   Using a router and template, create a box joint to connect the legs with the table support, as shown here. For a demonstration of this step, please reference the video listed in the Extras tab.

6. 6. Assembly (Part 5)

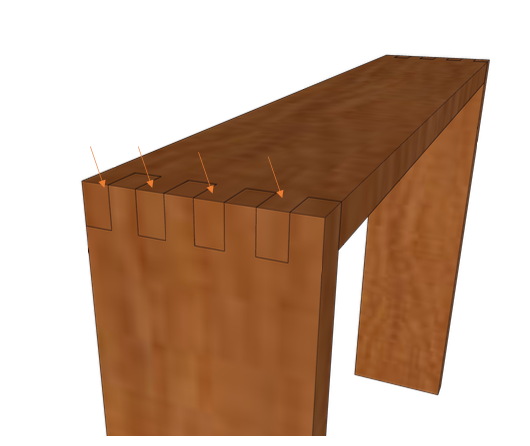

   Add wood glue along the inside of the joinery and allow the wood to dry for at least 24 hours before moving to the next step. Repeat steps 4 & 5 for each leg and table support piece.

7. 7. Assembly (Part 6)

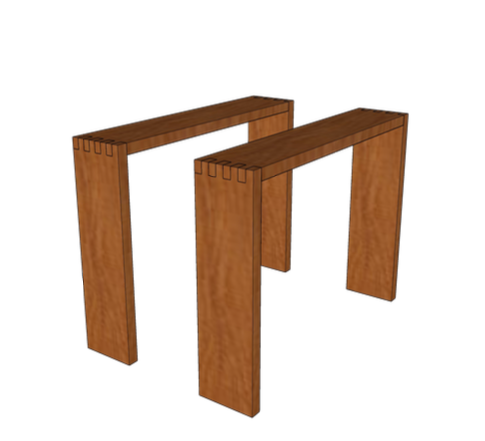

   There should be a total of 2 leg piece panels like this.

8. 8. Assembly (Part 7)

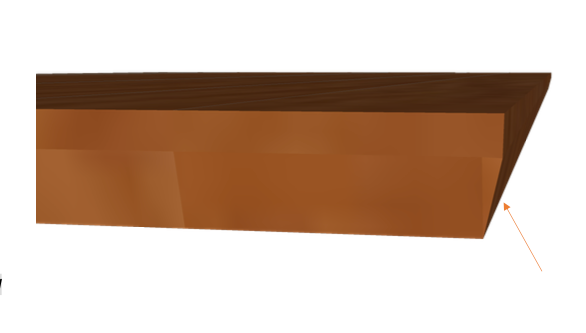

   Set your track saw to a 22- degree bevel and run it along the edge of your tabletop to create this profile. This step is fully optional, depending your desired final look.

9. 9. Assembly (Part 8)

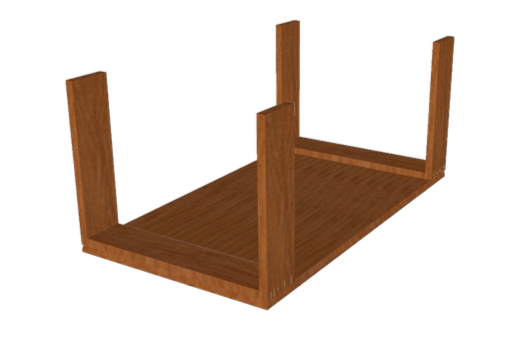

   Flip the tabletop over and place leg on each side, flush with the table, with the support section facing towards the tabletop, as shown here.

10. 10. Assembly (Part 9)

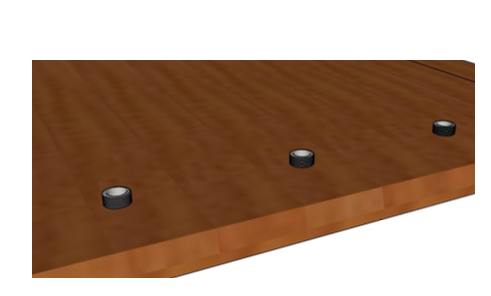

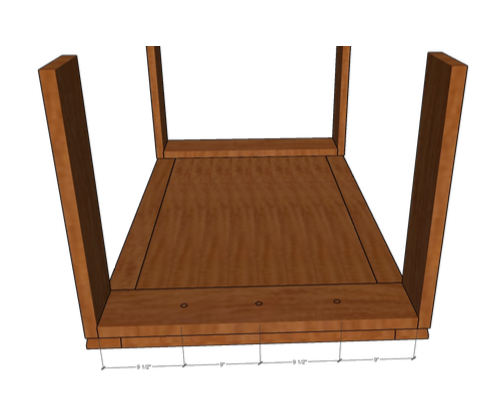

    Using a 3/8” drill bit, open three pilot holes to attach the legs to the tabletop. Repeat step for both sides. Make sure to drill through the table support until you reach the tabletop, but do not drill through the tabletop. (Tip: You can place tape on your drill bit to achieve the same depth)
