If you have kids then you know how important toy storage is.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Sides | 2 | 3/4" × 20" × 38" | — | ☐ |
| Mid Panel | 1 | 3/4" × 19 1/8" × 34 1/2" | — | ☐ |
| Top | 1 | 3/4" × 12 1/2" × 42" | — | ☐ |
| Front | 1 | 3/4" × 10 1/2" × 40 1/2" | — | ☐ |
| Bottom | 1 | 3/4" × 16 1/2" × 40 1/2" | — | ☐ |
| Support | 1 | 3/4" × 2 3/4" × 16 1/2" | — | ☐ |
| Shelf | 2 | 3/4" × 9 1/2" × 19 7/8" | — | ☐ |
| Shelf Front | 1 | 3/4" × 2" × 40 1/2" | — | ☐ |
| Back | 2 | 3/4" × 19 7/8" × 34 1/2" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Plywood, 3/4" Thick Full Sheet | 2 board | ☐ |
| Baseboard Trim, 3-1/4" 48" | 1 board | ☐ |
| Decorative Moulding, 3/4" Thick 48" | 1 board | ☐ |
| 1-1/4" Pocket Screws | 100 each | ☐ |
| 1-1/4" Brad Nails | 100 each | ☐ |
Overall cost: $$$. Lumber varies by region, species, and season, so we give a band rather than a figure.

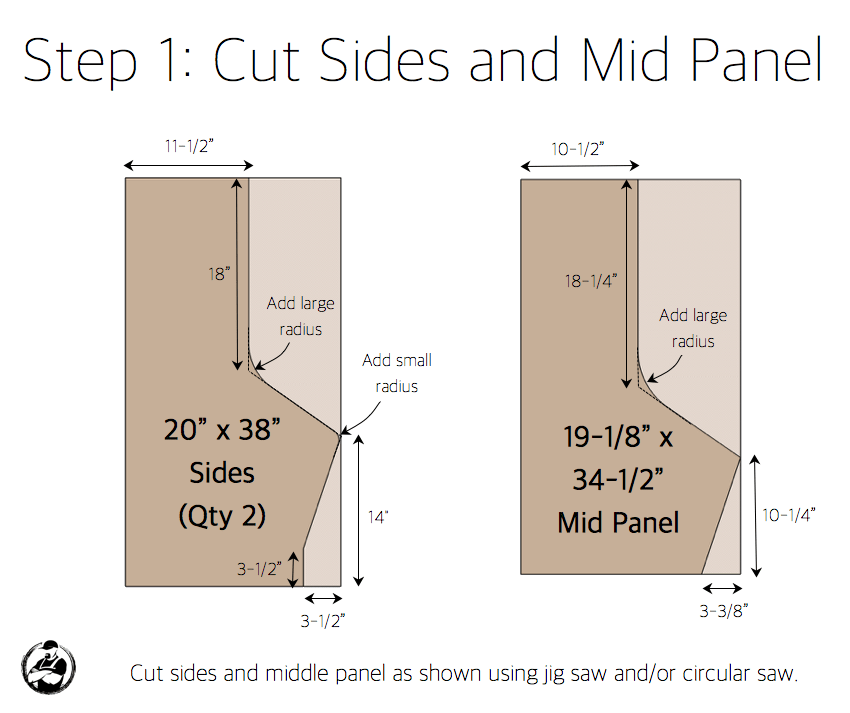

Use the diagrams shown to draw two sides and one middle panel. Then cut out using a circular saw and jig saw.

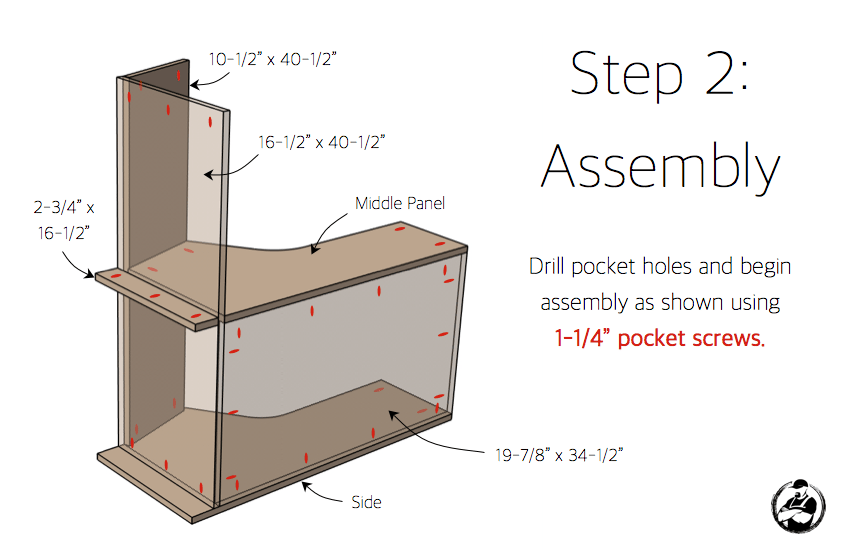

Drill pocket holes and begin assembly as shown using 1-1/4" pocket screws.

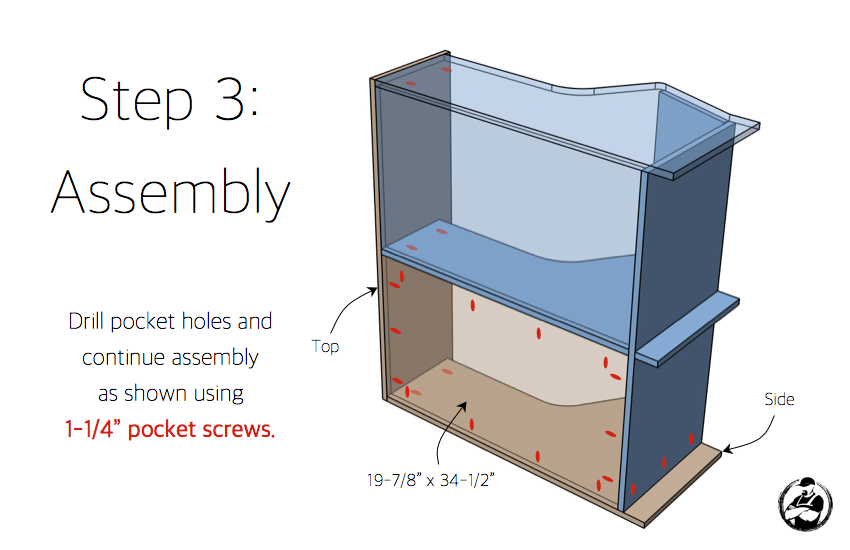

Drill pocket holes and continue assembly as shown using 1-1/4” pocket screws.

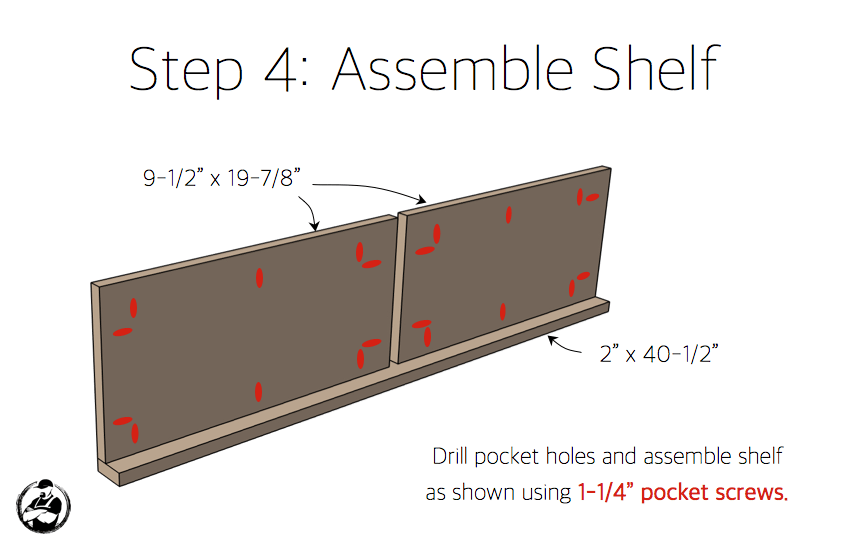

Drill pocket holes and assemble shelf as shown using 1-1/4” pocket screws.

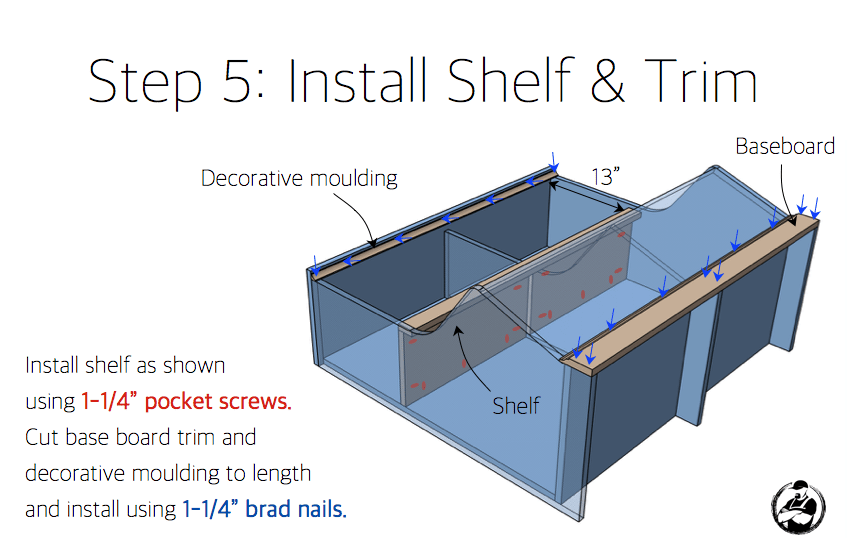

Install shelf as shown using 1-1/4” pocket screws. Cut base board trim and decorative moulding to length and install using 1-1/4” brad nails. For more plans like this be sure to visit RogueEngineer.com
