Assembly Table
A very strong and easy to make assembly table that can easily be modified to fit yours needs.
- Difficulty
- Easy
- Time
- 2.8–5.3 hours
- Cost
- $$$
Cut list
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Apron front and back | 4 | 2" × 4" × 47" | — | ☐ |
| Apron Sides | 4 | 2" × 4" × 20" | — | ☐ |
| Legs | 4 | 4" × 4" × 29" | — | ☐ |
| Table Top | 2 | 3/4" × 24" × 48" | — | ☐ |
| Base Deck | 1 | 3/4" × 23" × 47" | — | ☐ |
Materials
| Item | Qty | ✓ |
|---|---|---|
| Board, 2x4 96" | 4 board | ☐ |
| Board, 4x4 96" | 2 board | ☐ |
| Plywood, 3/4" Thick Full Sheet | 1 board | ☐ |
| 3" Screws | 80 each | ☐ |
| 1 5/8" screws | 12 each | ☐ |
| 3" Locking Casters | 4 each | ☐ |
Overall cost: $$$. Lumber varies by region, species, and season, so we give a band rather than a figure.
Tools
- Circular Saw
- Drill / Driver
- Impact Driver
- Jigsaw
- Miter Saw
- Random Orbit Sander
- Thickness Planer
Instructions

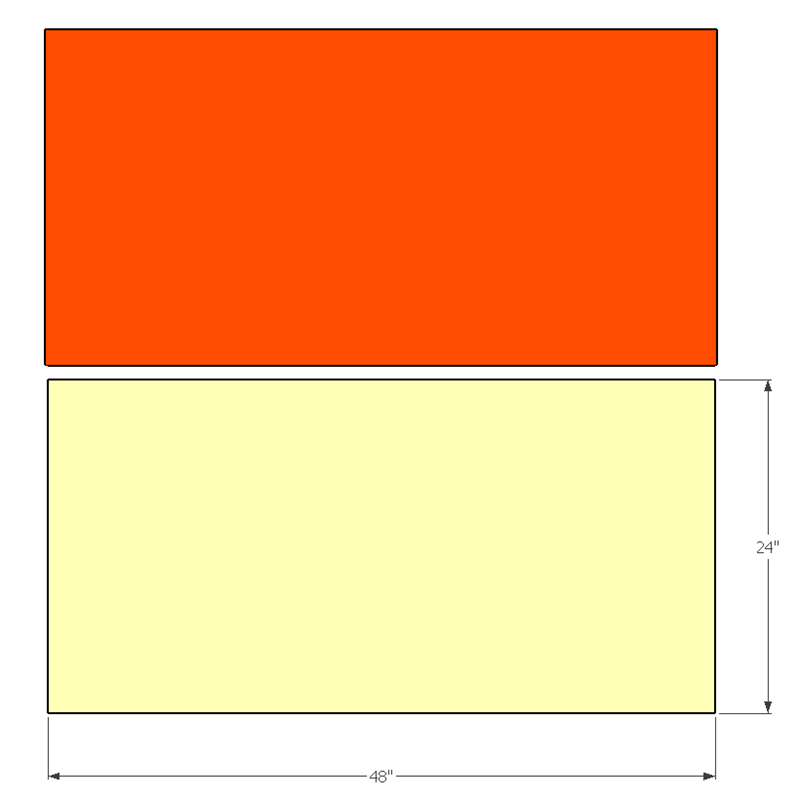

1. Table top
Take two pieces of plywood 48"x24"x3/4" and glued them together.

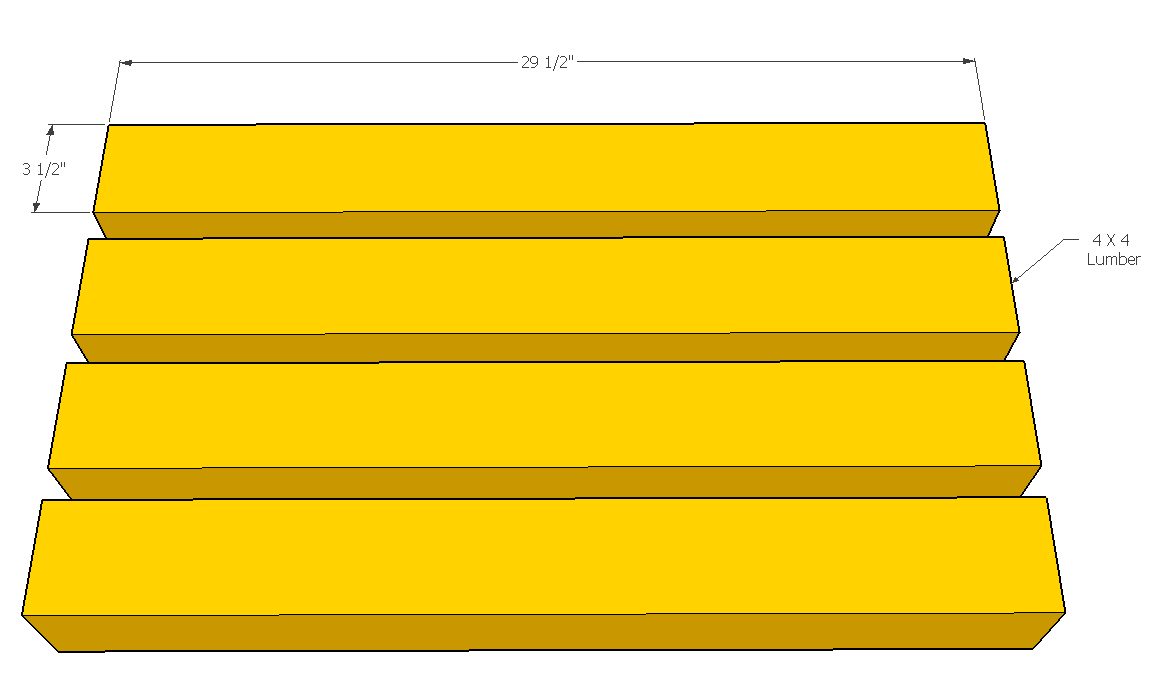

2. Legs
Cut 4 - 4x4 to 29 1/2"

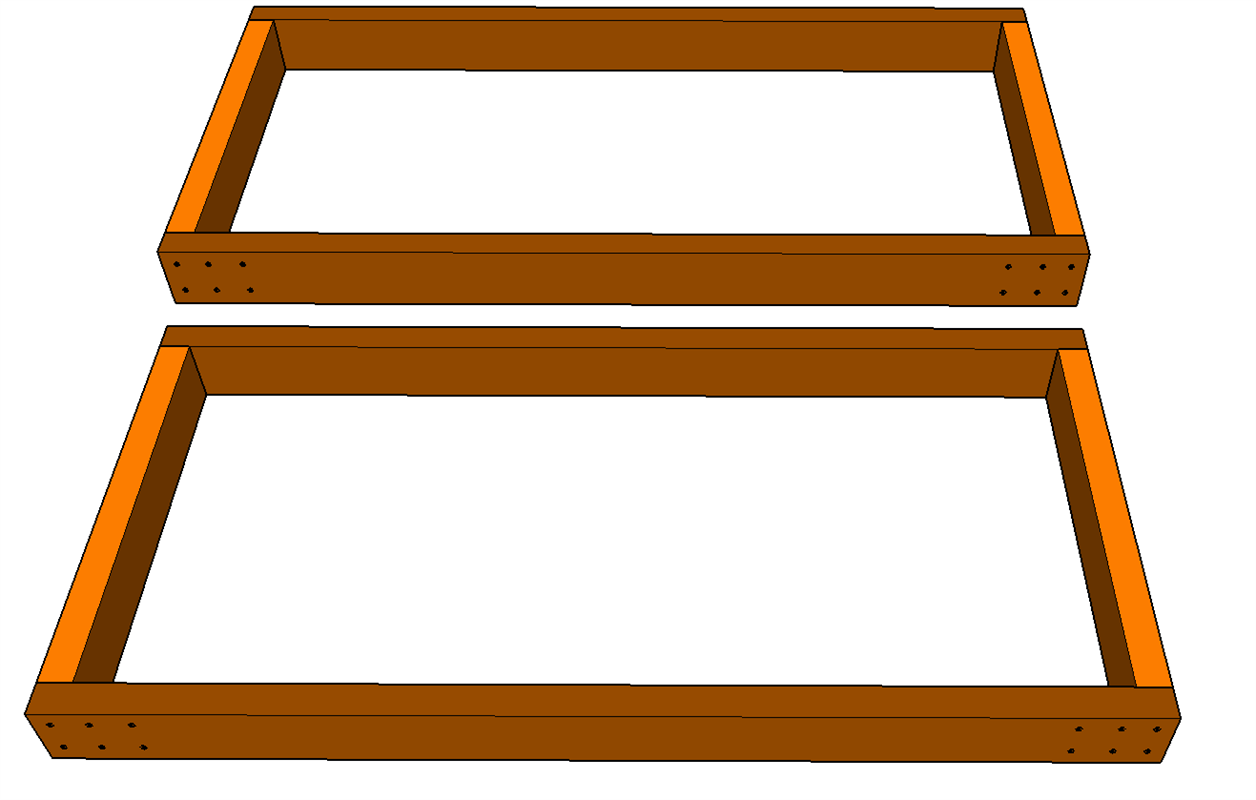

3. Aprons
4 - 2x4x47 4 - 2x4x20 Creat two Apron frames

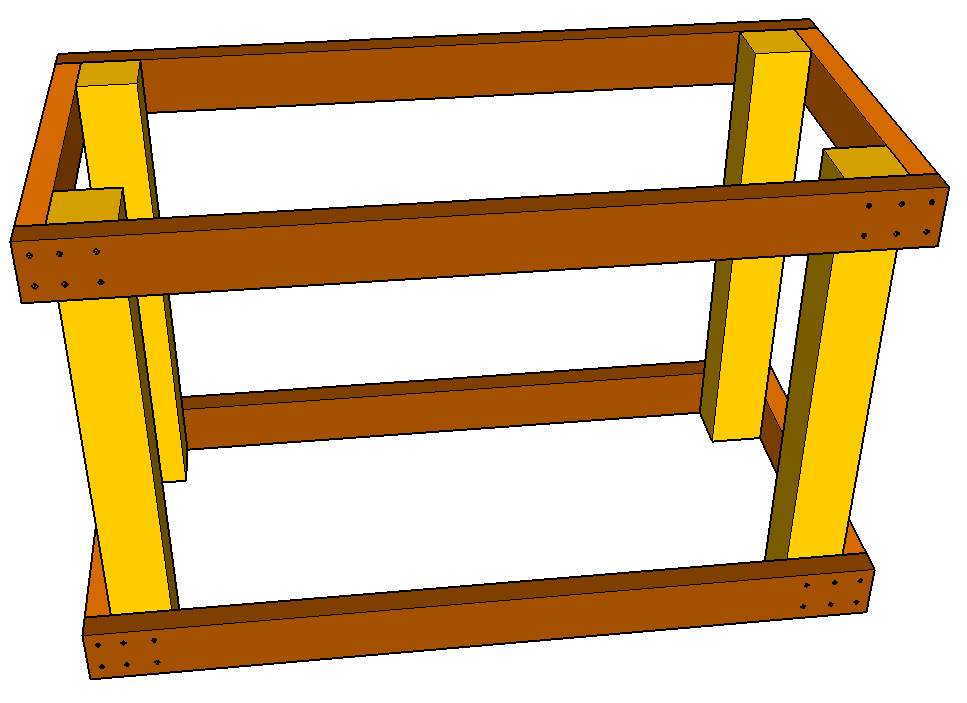

4. Assembly
The legs and aprons are put together with glue and screws

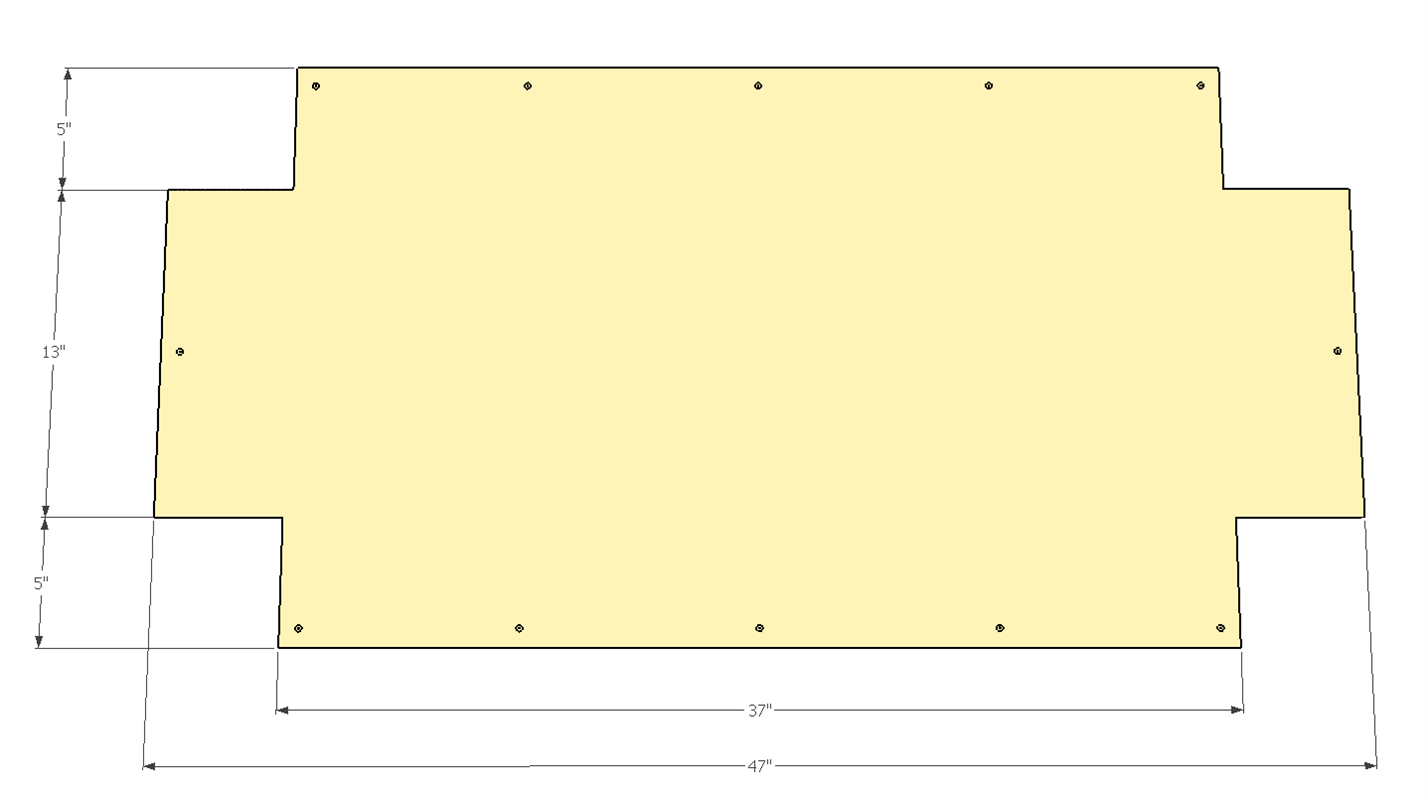

5. Base deck
Cut the base deck to fit on the bottom aprons

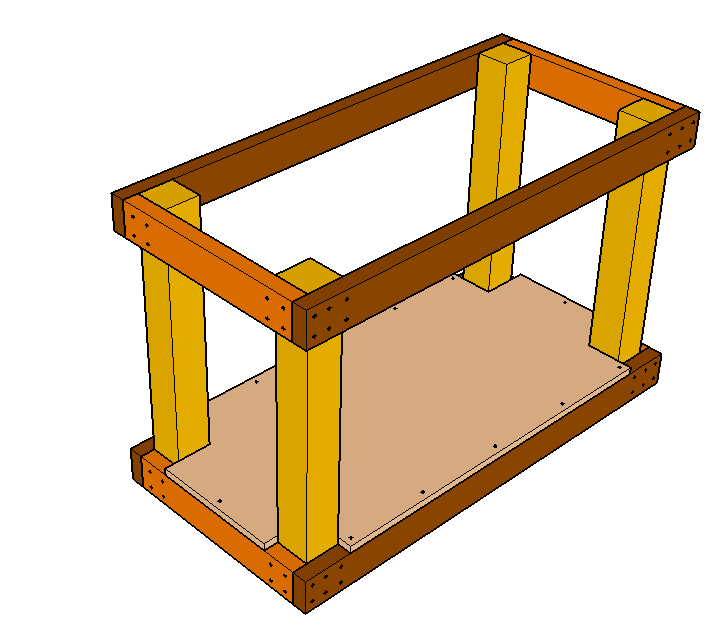

6. Assembly
slide the base deck in from the side at and angle, then rotate into place.

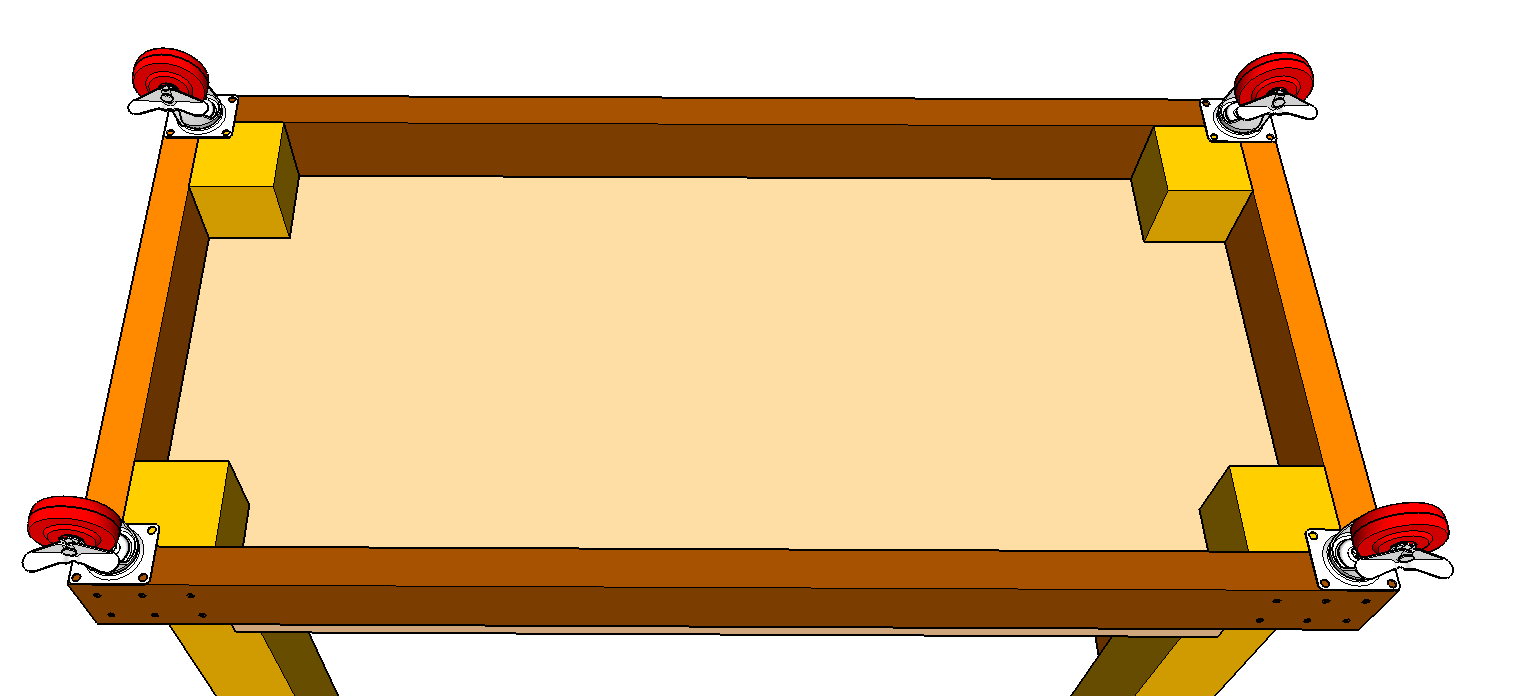

7. Casters
Place Casters on each corner

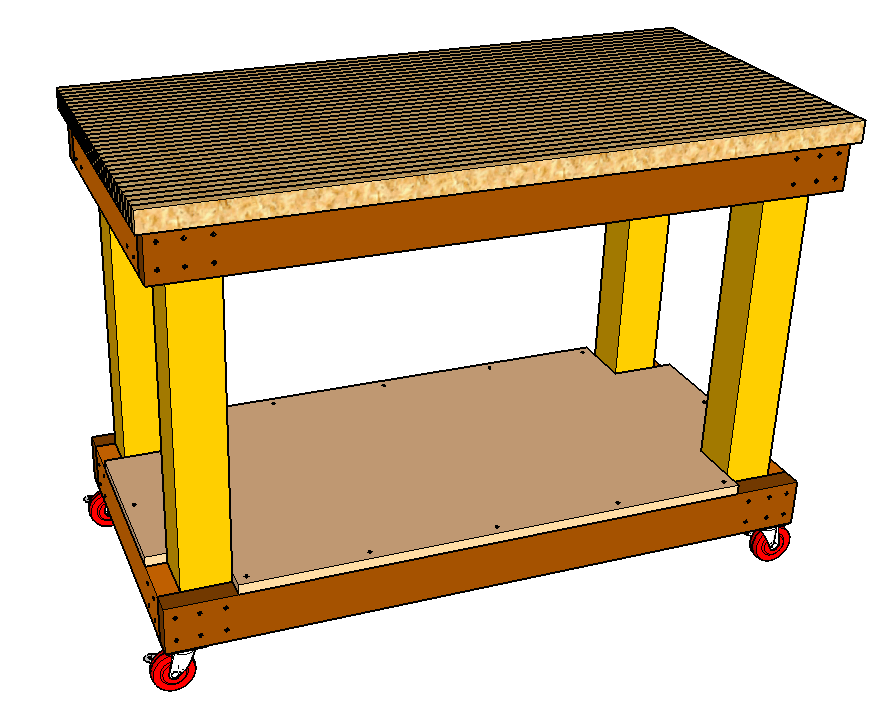

8. Table Top
Set table top in place centered on the frame. Predrill and countersink the screws into the frame.
