Notch- Difficulty
- Expert
- Time
- 7–14 hours
- Cost
- $$$
About this build

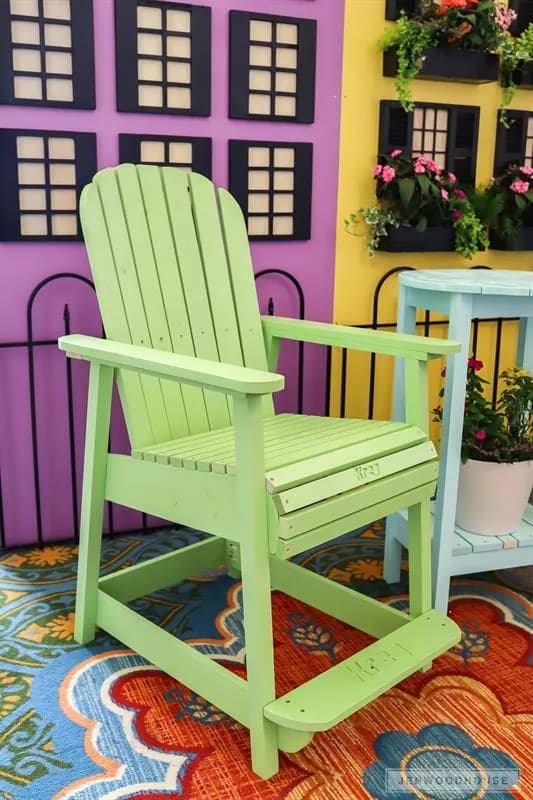

A comfortable and roomy Adirondack style chair with foot rest. Relax in style after building this counter height Adirondack stool complete with generous arm rests, a foot rest, sloped seat and curved back. The perfect chair for the patio, yard or any outdoor space.
Tools
Essential
- Drill / Driver
- Jigsaw
- Miter Saw
- Pocket Hole Jig
- Random Orbit Sander
Optional / nice to have
- Bar / Pipe Clamps
- Combination Square
- Tape Measure
Materials
| Item | Qty |
|---|---|
| Board, 1x2 96" | 4 board |
| Board, 1x3 96" | 3 board |
| Board, 1x4 96" | 2 board |
| Board, 1x5 72" | 1 board |
| Board, 1x6 72" | 1 board |
| Board, 2x2 72" | 2 board |
| Board, 2x4 24" | 1 board |
| 2" wood screws | 24 each |
| 1 1/4" pocket hole screws | 24 each |
| 1 1/4" wood screws | 24 each |
| 2" pocket hole screws | 4 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Foot rest | 1 | 3/4" × 4 1/2" × 4" |
| Foot rest rails | 2 | 3/4" × 3 1/2" × 30" |
| Foot rest front apron | 1 | 3/4" × 2 1/2" × 4" |
| Back stretcher | 1 | 3/4" × 3 1/2" × 4" |
| Arm rest | 2 | 3/4" × 3 1/2" × 27" |
| Arms | 2 | 3/4" × 2 1/2" × 2" |
| Bottom back support | 1 | 1 1/2" × 3 1/2" × 4" |
| Middle back support | 1 | 3/4" × 4 1/2" × 4" |
| Top back support | 1 | 3/4" × 3 1/2" × 19" |
| Front legs | 2 | 1 1/2" × 1 1/2" × 30" |
| Back legs | 2 | 1 1/2" × 1 1/2" × 30" |
| Seat side supports | 2 | 3/4" × 5 1/2" × 2" |
| Seat slats | 13 | 3/4" × 1 1/2" × 4" |
| Back slats | 2 | 3/4" × 2 1/2" × 28" |
| Back slats | 2 | 3/4" × 2 1/2" × 30" |
| Back slats | 3 | 3/4" × 2 1/2" × 31" |
What to buy
Buy 11 boards at 8 ft.
1 1/2" × 3 1/2"
1 board
1 1/2" × 1 1/2"
2 boards
3/4" × 5 1/2"
1 board
3/4" × 4 1/2"
1 board
3/4" × 3 1/2"
2 boards
3/4" × 2 1/2"
3 boards
3/4" × 1 1/2"
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions
1Dimensions

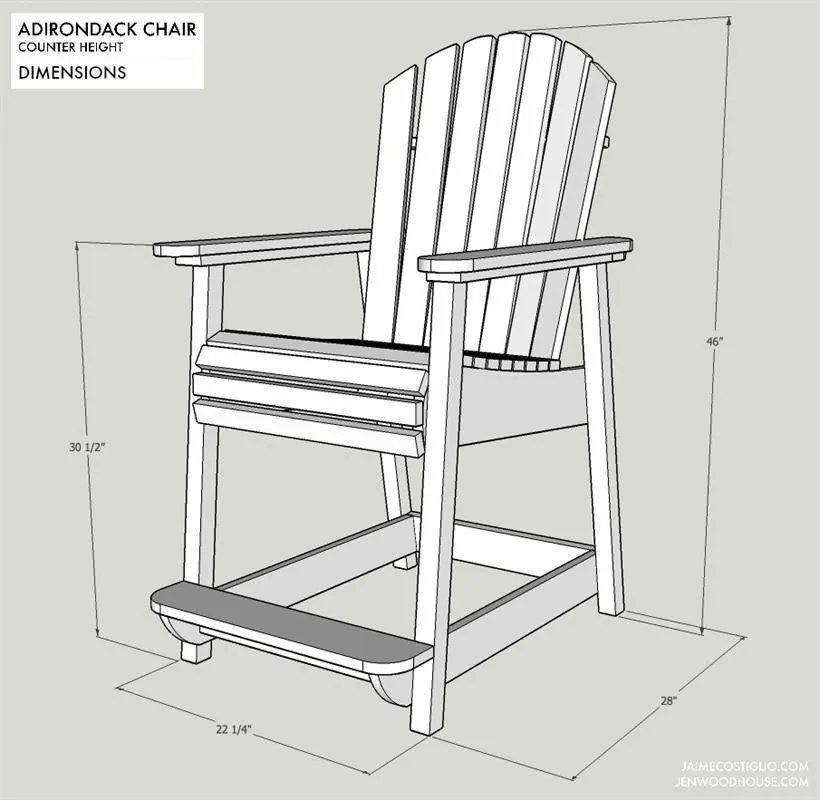

Overall size: 46"h x 28"d x 26 1/4"w
2Step 1

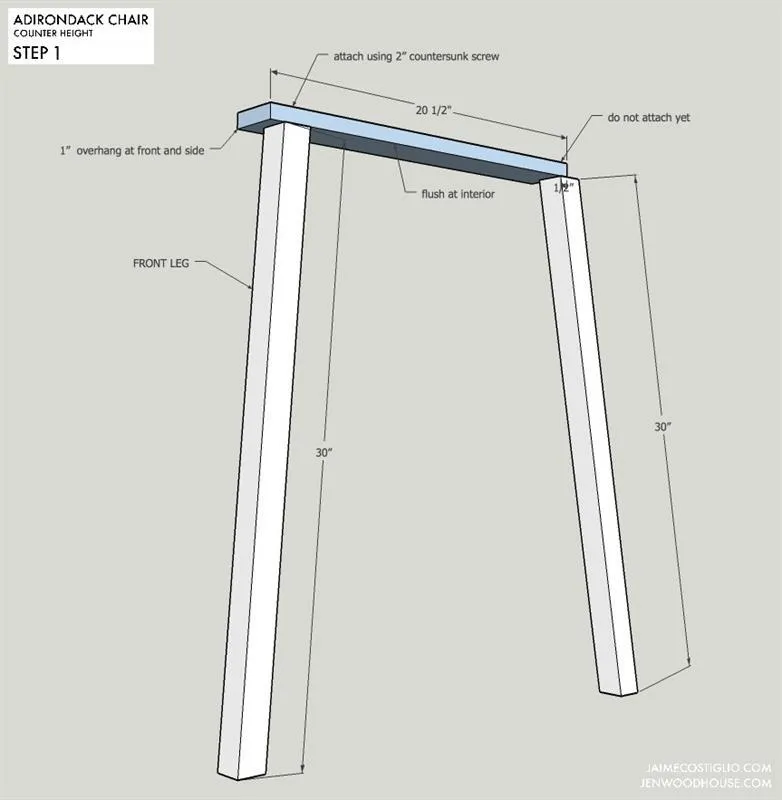

STEP 1: Attach arms to front leg using 2” countersunk screws. Make two opposing sets.
3Step 2

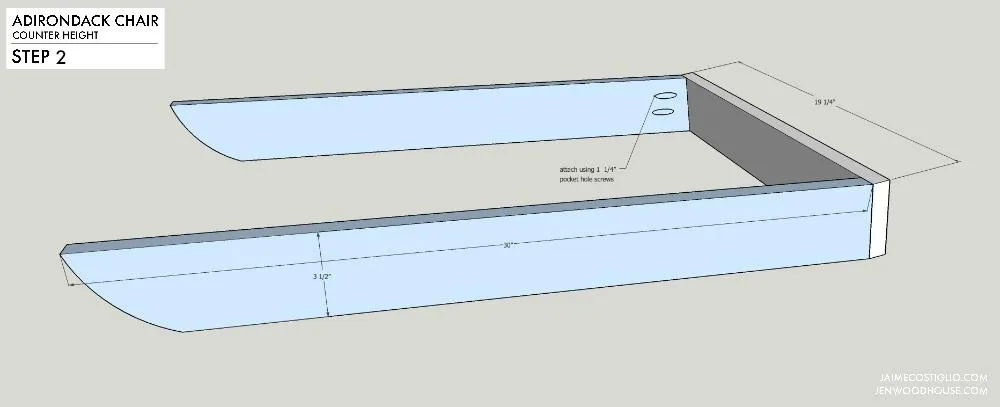

STEP 2: Assemble lower stretcher. Attach foot rest side rails to back stretcher using 1 ¼” pocket hole screws.
4Step 3

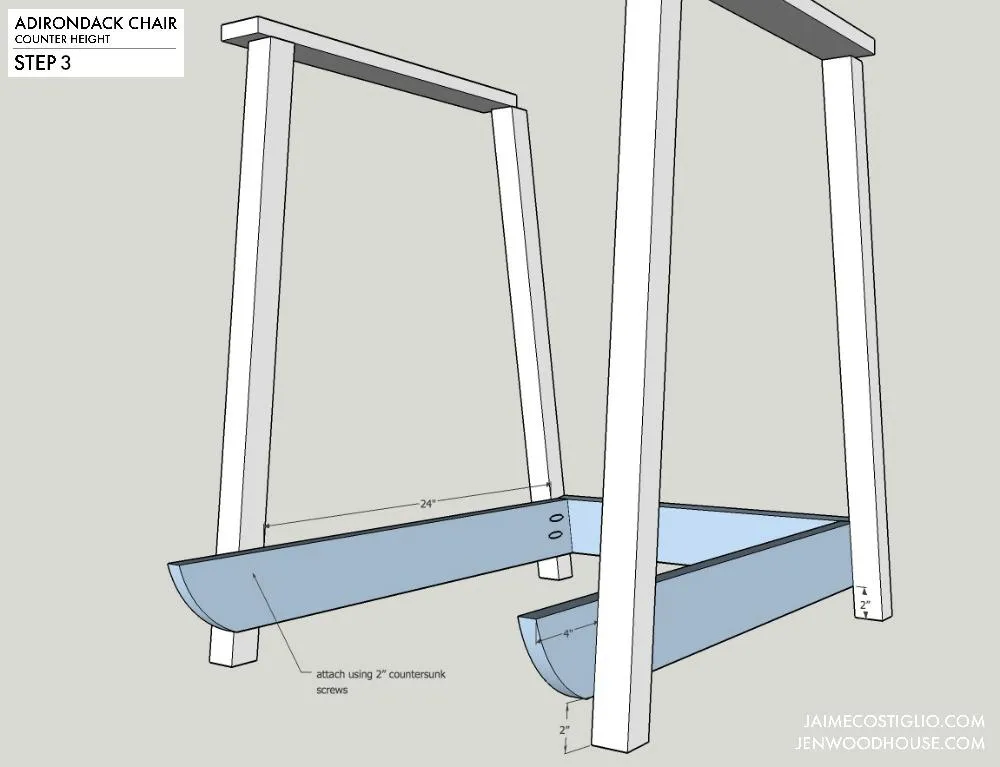

STEP 3: Attach lower stretcher to legs using 2” countersunk wood screws.
5Step 4

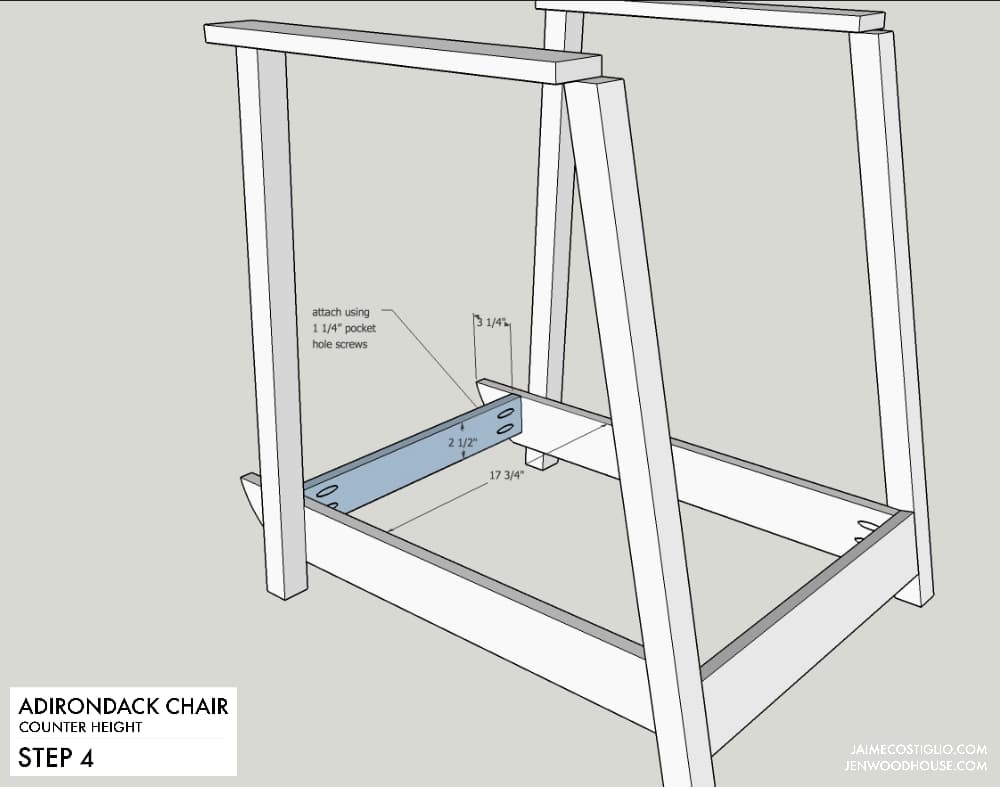

STEP 4: Attach foot rest front apron to side rails using 1 ¼” pocket hole screws.
6Step 5

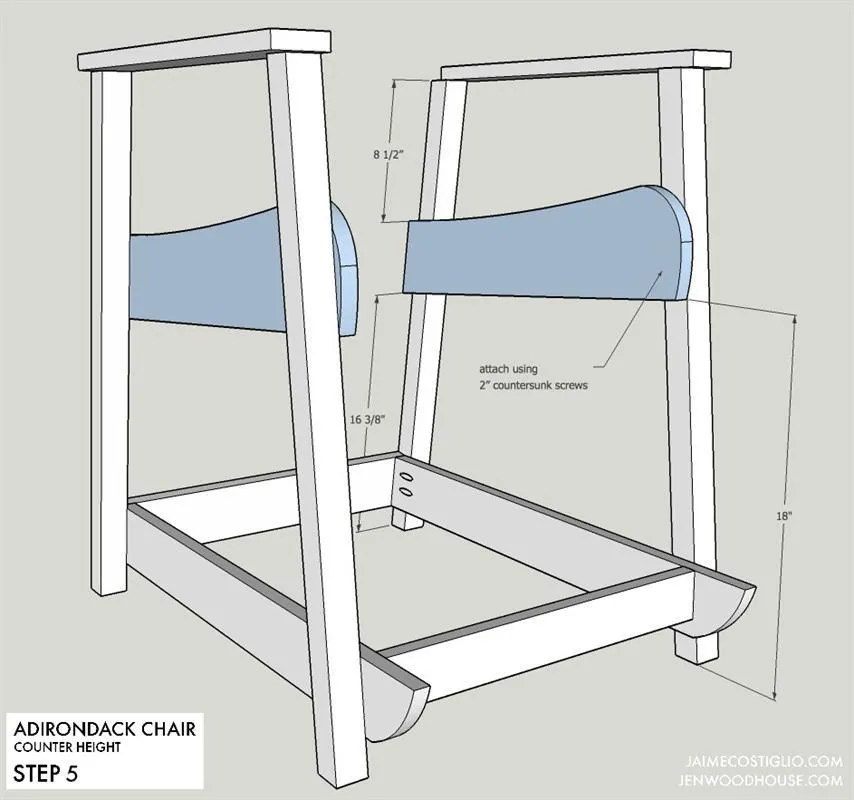

STEP 5: Attach seat side supports to legs using 2” countersunk screws.
7Step 6

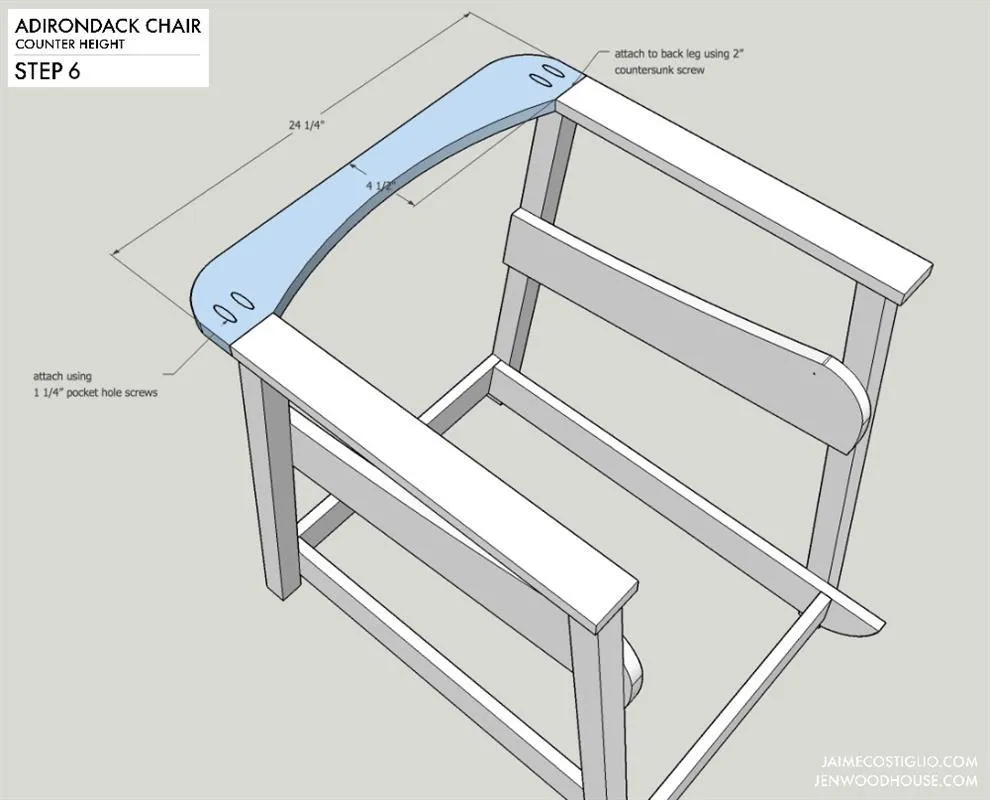

STEP 6: Attach back middle support to arms using 1 ¼” pocket hole screws. Then attach to back leg using 2” countersunk wood screws.
8Step 7

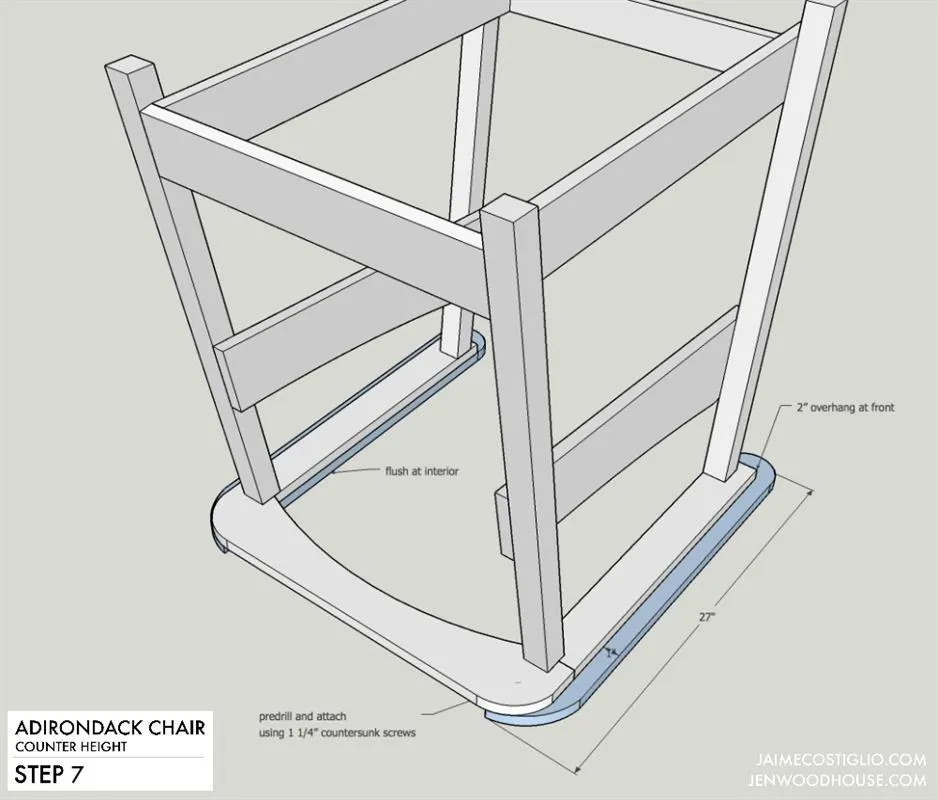

STEP 7: Attach arm rests to arm and back middle support using 1 ¼” countersunk screws from underside.
9Step 8

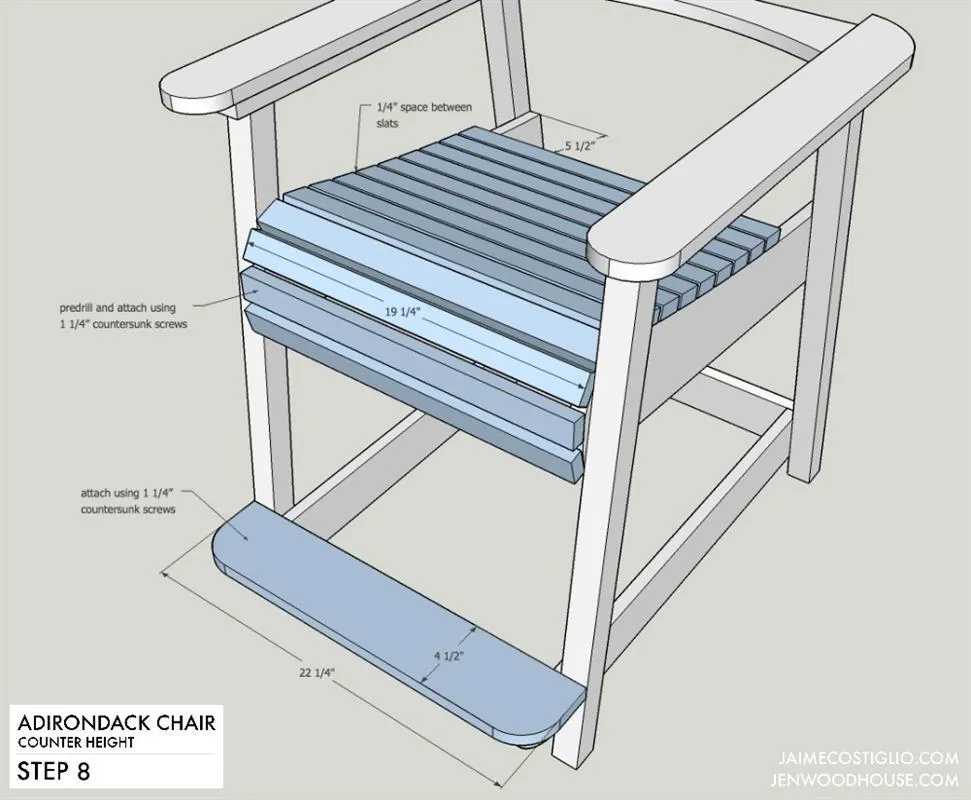

STEP 8: Attach foot rest to rails using 1 ¼” countersunk screws. Attach seat slats to supports using 1 ¼” countersunk screws.
10Step 9A

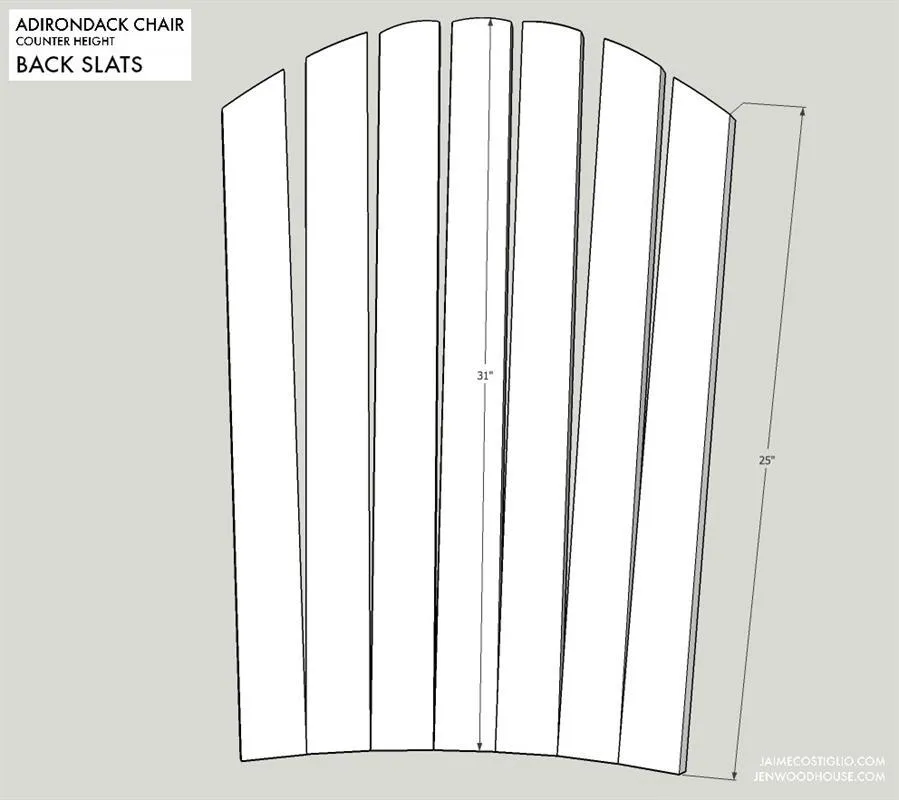

Use a jigsaw to cut curve into back slats before assembly.
11Step 9

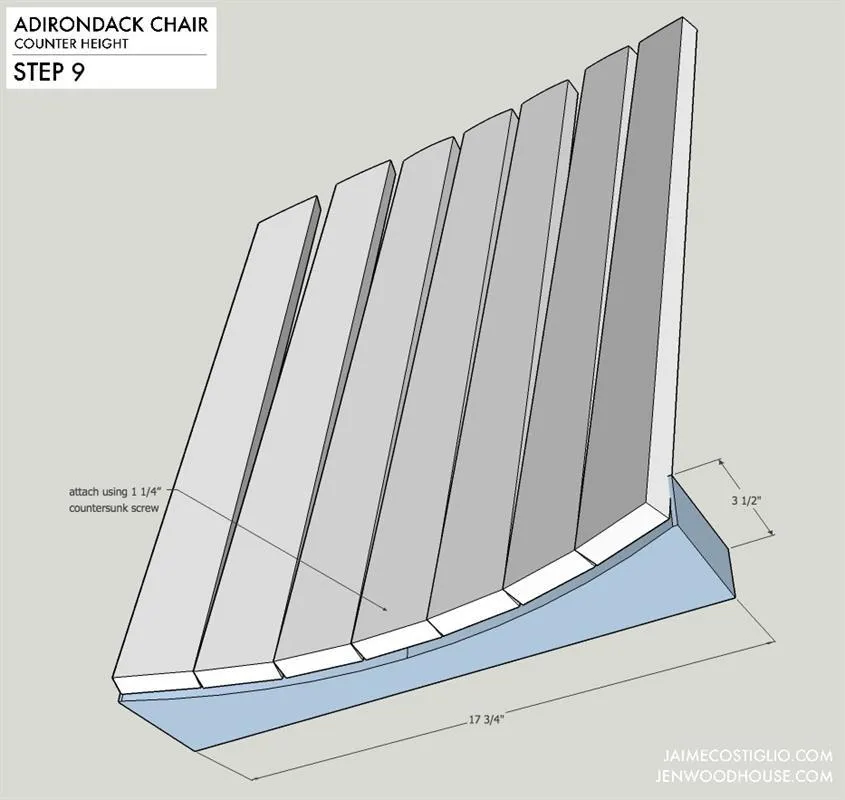

STEP 9: Attach back slats to back bottom support using (1) 1 1/4” countersunk wood screw at center of each board.
12Step 10

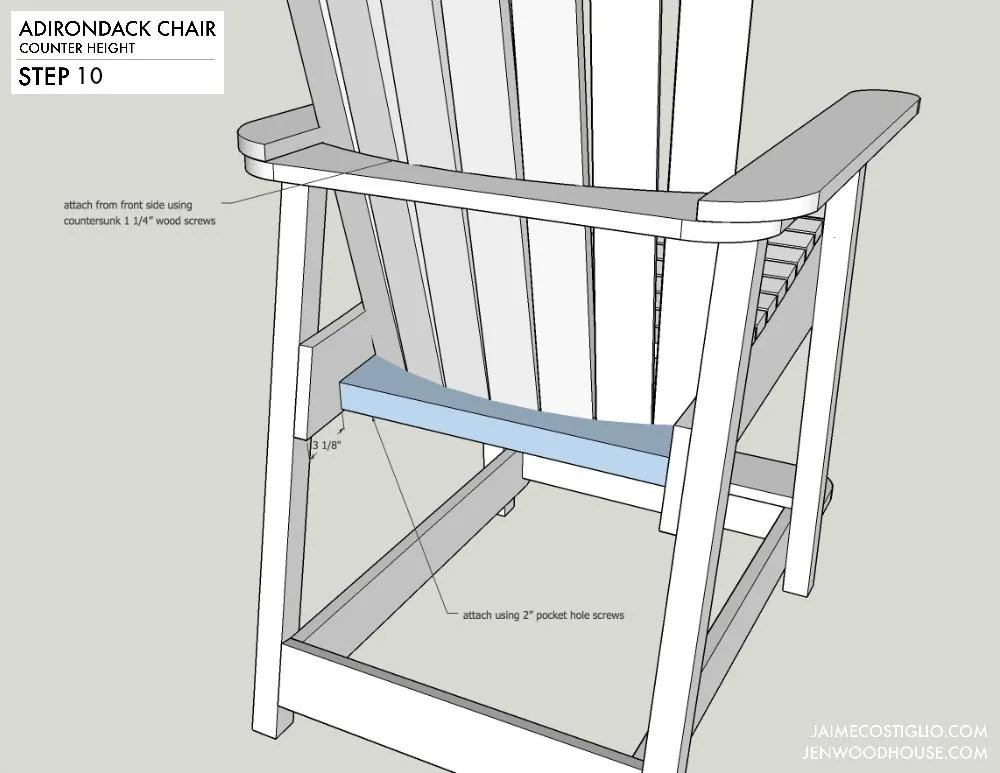

- STEP 10: Attach back bottom support to seat side support rails using 2” pocket hole screw.
- Adjust back slats to fan out and rest against back middle support.
- Attach to back middle support using 1 ¼” countersunk screw from front.
13Step 11

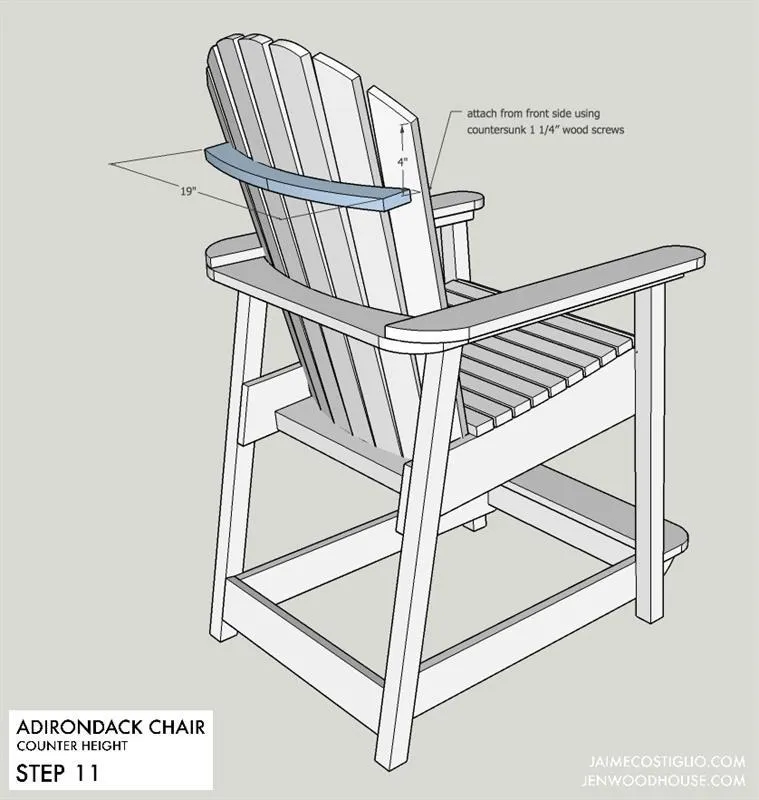

STEP 11: Attach back top support to back slats if desired. Use 1 ¼” countersunk wood screws from front.
