A classic three drawer nightstand with simple lines and generous storage.
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Legs | 4 | 1" × 1" × 29" | — | ☐ |
| Side panels | 2 | 3/4" × 16" × 22" | — | ☐ |
| Cross supports | 4 | 3/4" × 1" × 25" | — | ☐ |
| Cross supports | 2 | 1" × 1" × 25" | — | ☐ |
| Top | 1 | 3/4" × 20" × 30" | — | ☐ |
| Large drawer fronts | 2 | 3/4" × 7" × 25" | — | ☐ |
| Small drawer front | 1 | 3/4" × 7" × 25" | — | ☐ |
| Large drawer short sides | 4 | 3/4" × 5" × 16" | — | ☐ |
| Large drawer long sides | 4 | 3/4" × 5" × 22" | — | ☐ |
| Small drawer short sides | 2 | 3/4" × 1" × 16" | — | ☐ |
| Small drawer long sides | 2 | 3/4" × 1" × 22" | — | ☐ |
| Drawer bottoms | 3 | 1/4" × 16" × 24" | — | ☐ |
| Drawer glide supports | 6 | 3/4" × 1" × 16" | — | ☐ |
| Backing | 1 | 1/4" × 22" × 25" | — | ☐ |
| Item | Qty | ✓ |
|---|---|---|
| Select pine board, 2x2x96" | 2 board | ☐ |
| Select pine board, 1x2x96" | 3 board | ☐ |
| Select pine board, 1x8x72" | 1 board | ☐ |
| Select pine board, 1x3x72" | 1 board | ☐ |
| Select pine board, 1x6x96" | 2 board | ☐ |
| 3/4" plywood full sheet, 4' x 8' | 1 board | ☐ |
| 1/4" plywood full sheet, 4' x 8' | 1 board | ☐ |
| 2 1/2" pocket-hole screws | 8 each | ☐ |
| 1 1/4" pocket-hole screws | 70 each | ☐ |
| #8 x 2" wood screws | 6 each | ☐ |
| #8 x 3/4" wood screws | 32 each | ☐ |
| #8 x 1 1/4" wood screws | 20 each | ☐ |
| 18 gauge 3/4" brad nails | 12 each | ☐ |
| Wood glue | 1 each | ☐ |
| Sets of 16" soft close side mount drawer glides | 3 each | ☐ |
| Drawer pulls | 3 each | ☐ |
Overall cost: $$$. Lumber varies by region, species, and season, so we give a band rather than a figure.

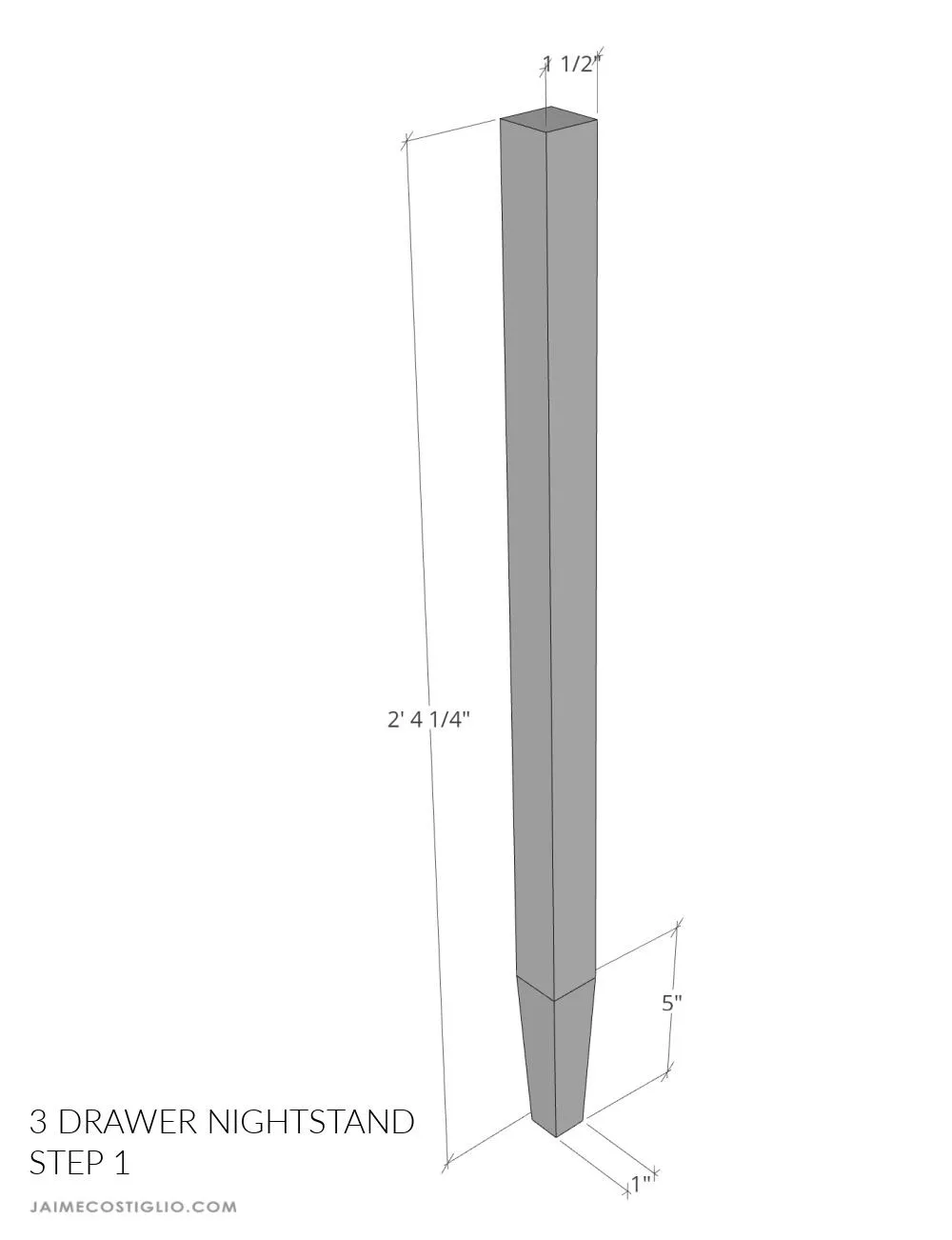

If desired use a tapering jig to make bottom portion of legs tapered.

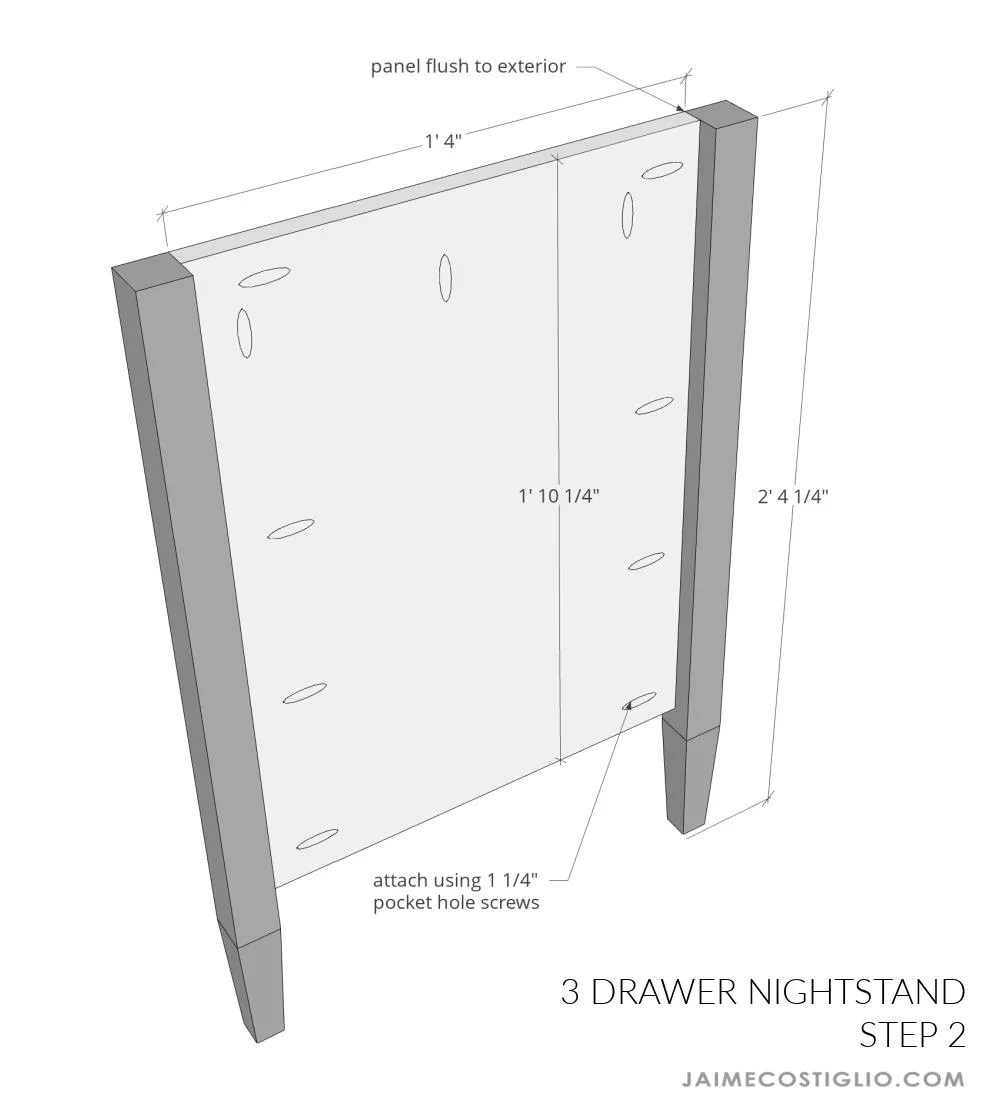

Attach legs to side panels using 1 ¼” pocket hole screws. Keep side panel flush to leg at exterior. Make 2.

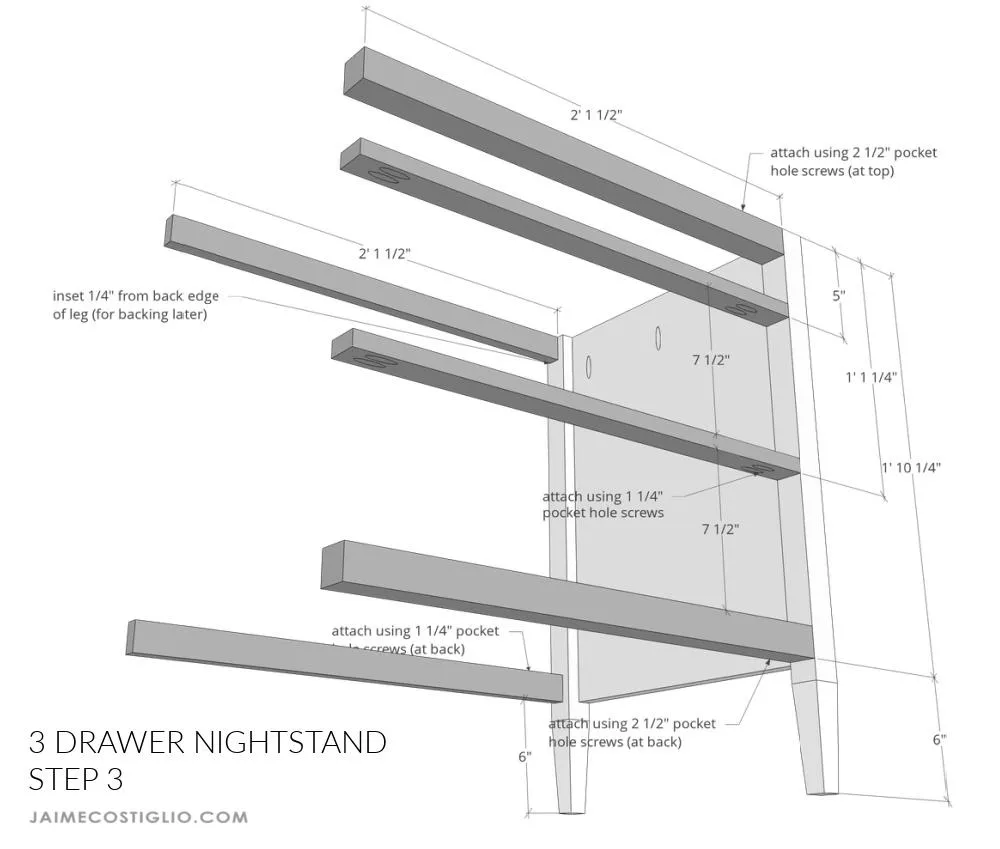

Attach cross supports to side panel. Use wood glue and corresponding pocket hole screws. Keep pocket holes at back, top or underside when possible.

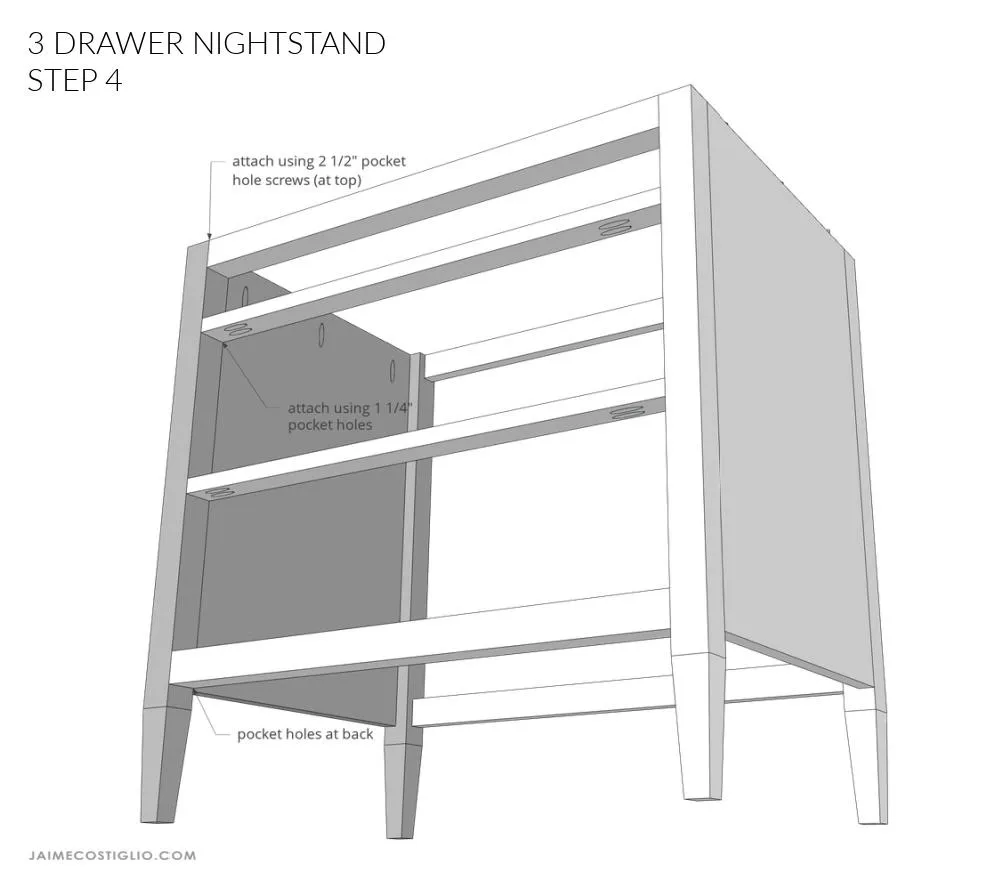

Attach other side panel to cross supports, same as Step 3.

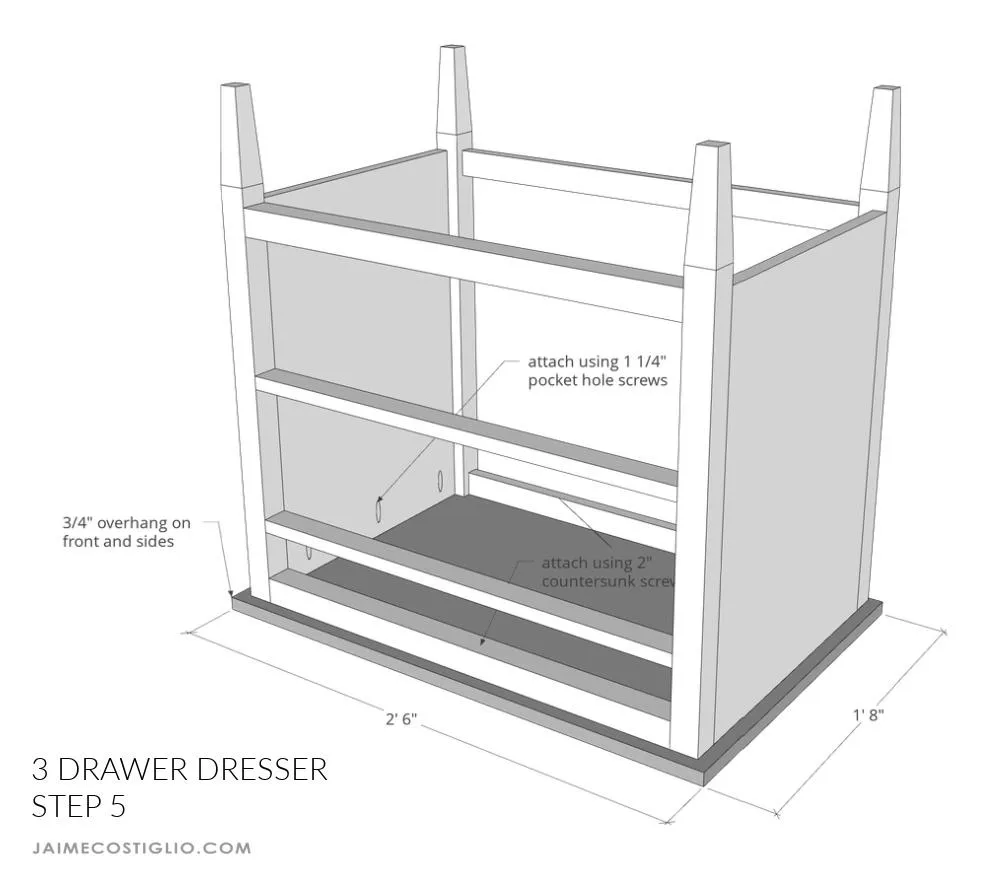

Attach top to body using 1 ¼” pocket hole screws. Keep ¾” overhang at front and sides. Secure front and back cross supports to top using 2” countersunk wood screws.

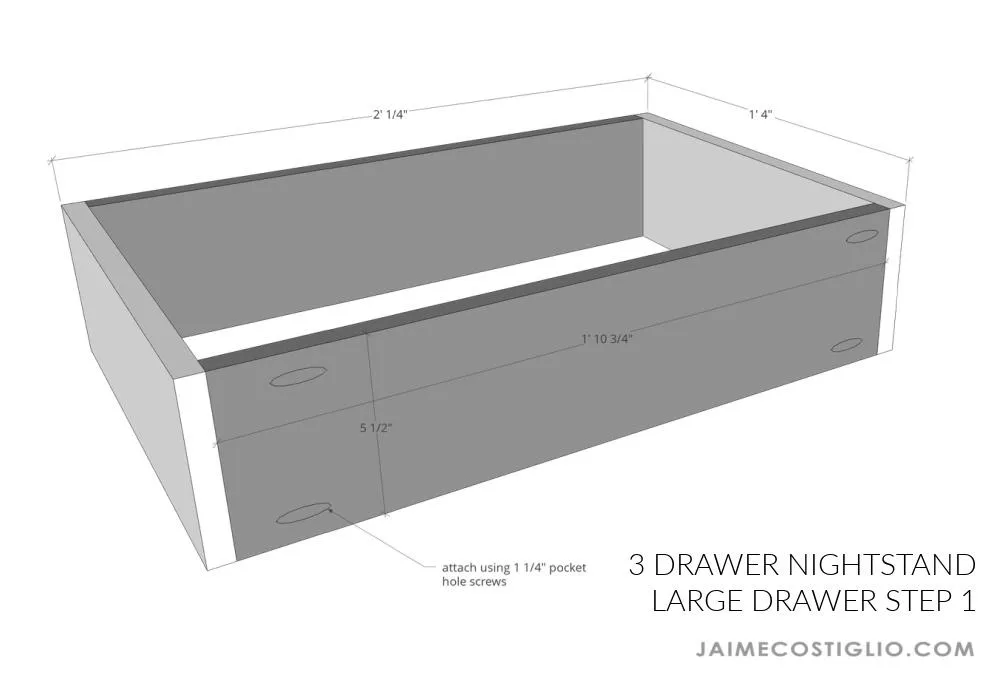

Attach long sides to short sides using wood glue and 1 ¼” pocket hole screws.

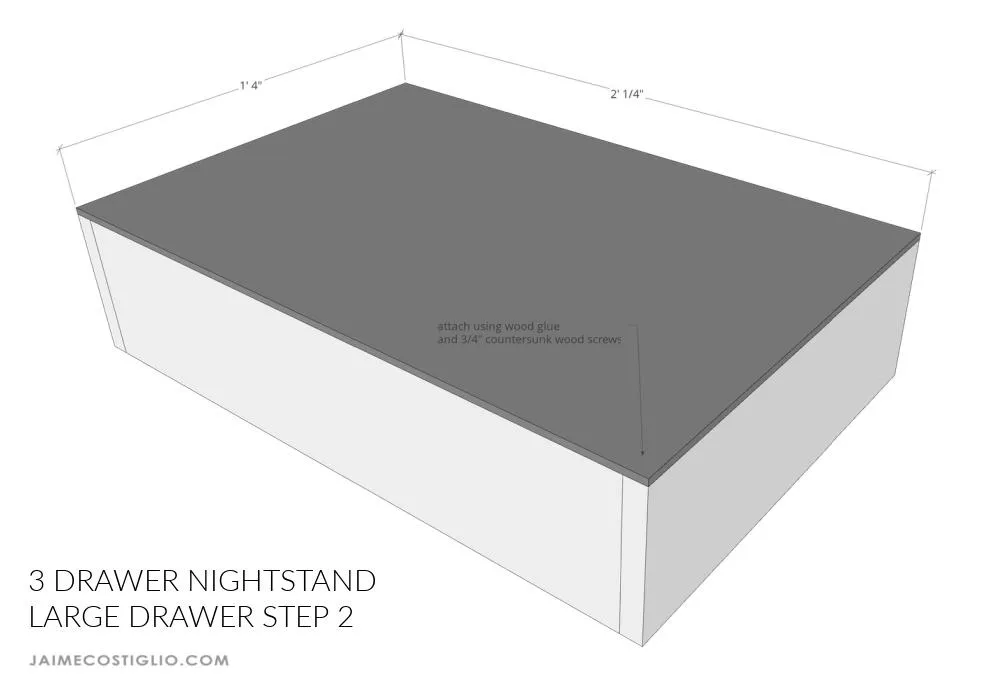

Attach drawer bottom to box using wood glue and ¾” countersunk wood screws.

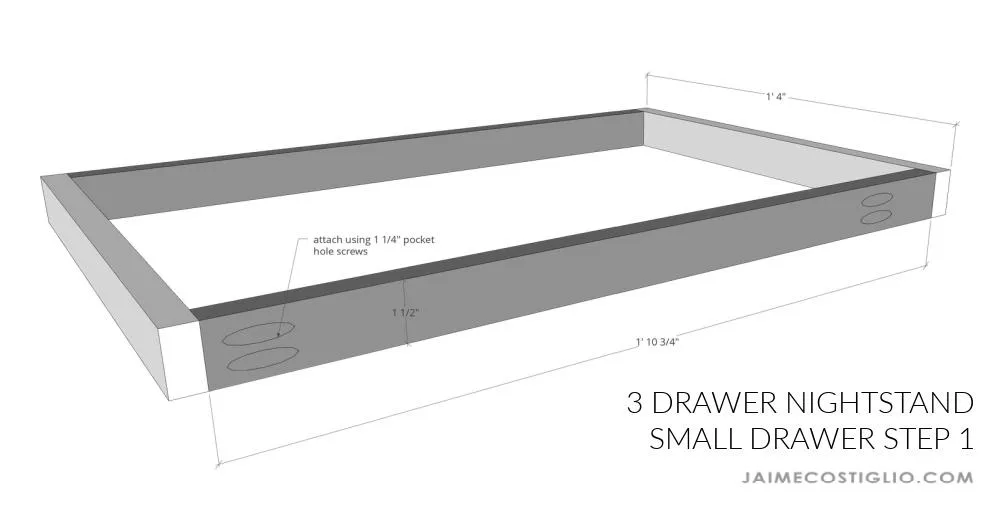

Attach long sides to short sides using wood glue and 1 ¼” pocket hole screws.

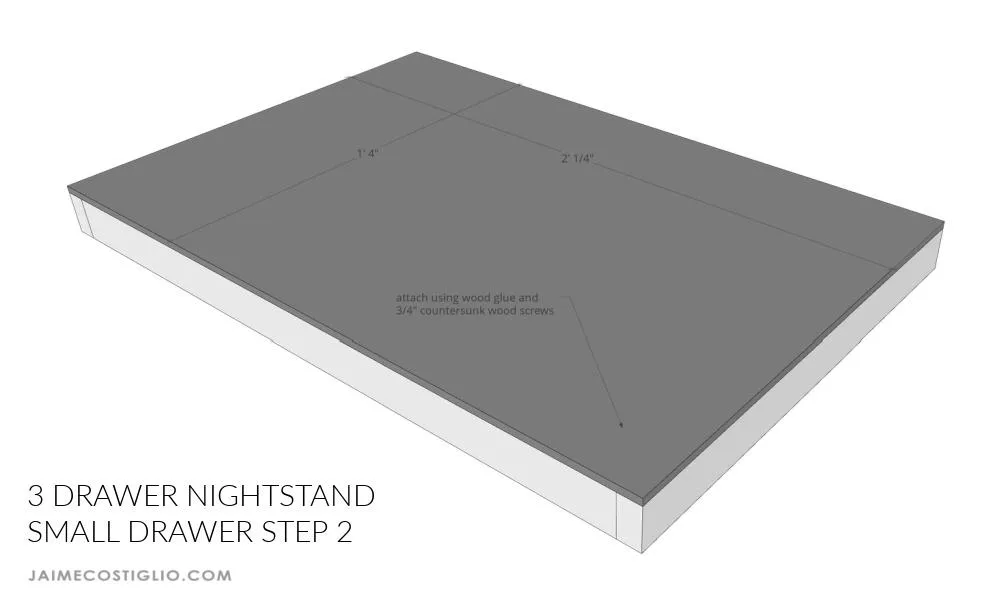

Attach drawer bottom to box using wood glue and ¾” countersunk wood screws.

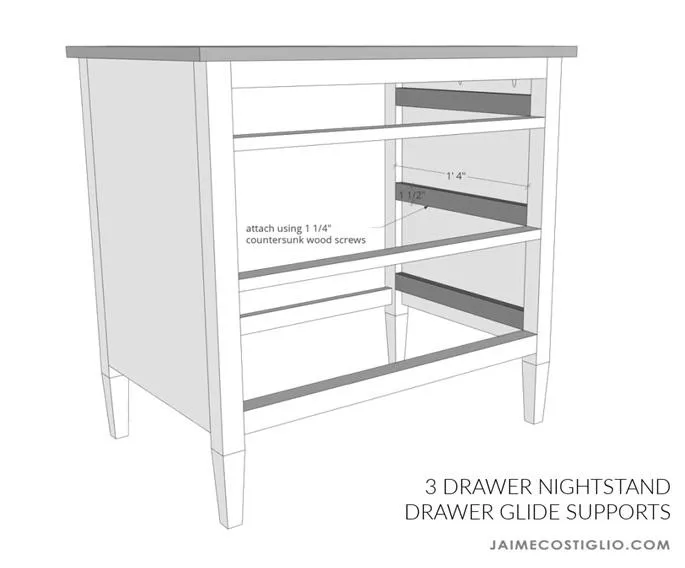

Before installing drawer glides attach supports to interior side panels using wood glue and 1 ¼” countersunk wood screws.

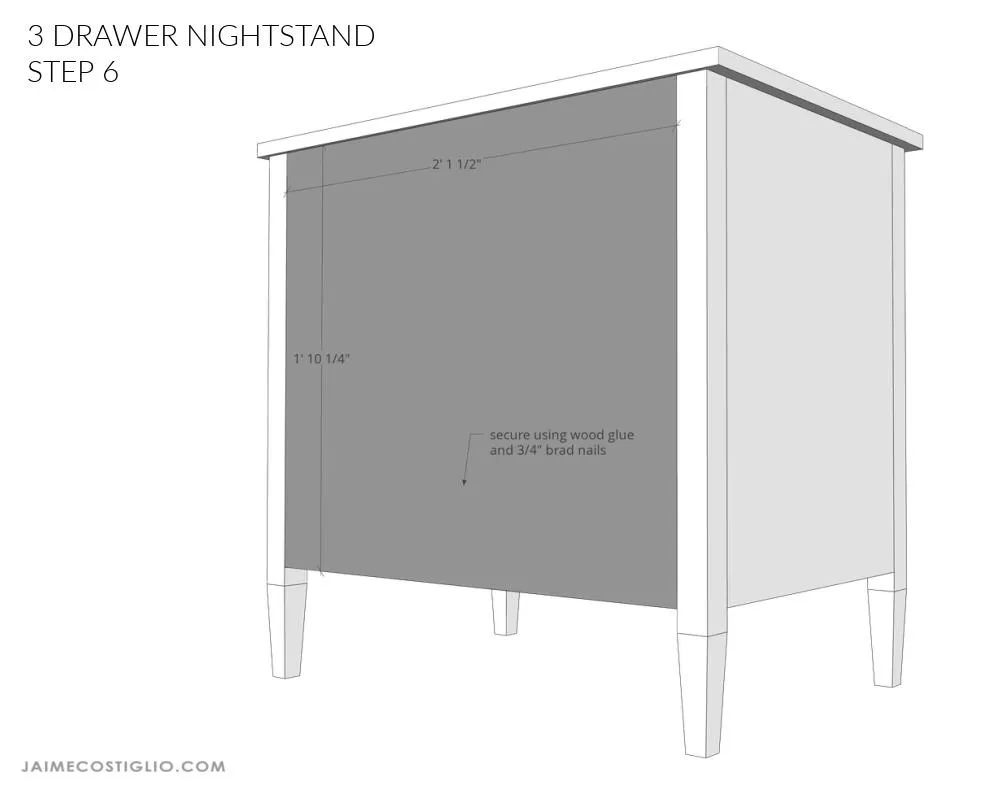

Attach backing to cross supports using wood glue and ¾” brad nails.
