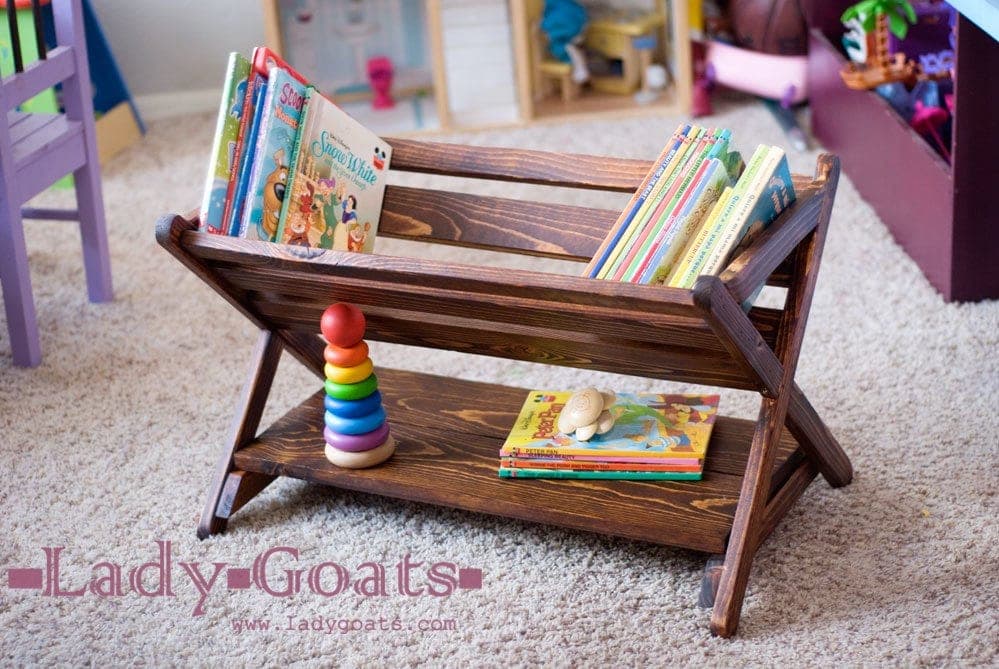

The X ends are the whole design: two 1x2 arms mitered to cross at 45°, joined with a single pocket hole where they meet. Get that crossing point centered and the caddy looks intentional; get it off-center and it reads as a mistake, so dry-fit the X before committing to a permanent joint.
Save the corner-rounding for last. It's much easier to round over the top and bottom corners of the assembled X panels with a jigsaw and sander once everything else is attached than to try to match two separately-rounded panels during assembly.
| Item | Qty |
|---|---|
| Pine, 1x2, 8 ft | 2 each |
| Pine, 1x3, 4 ft | 1 each |
| Pine, 1x4, 4 ft | 1 each |
| Pine, 1x6, 4 ft | 1 each |
| Pocket hole screws, 1-1/4" | 1 box |
| Wood glue | 2 oz |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| X end uprightsPine 1x2 | 2 | 3/4" × 1 1/2" × 22" |
| X end bottom supportsPine 1x2 | 4 | 3/4" × 1 1/2" × 10 1/4" |
| X arm, shortPine 1x2Both ends cut at 45°, not parallel. | 2 | 3/4" × 1 1/2" × 12 1/2" |
| X arm, longPine 1x2Both ends cut at 45°, not parallel. | 2 | 3/4" × 1 1/2" × 14 3/4" |
| Bottom shelf boardsPine 1x6 | 2 | 3/4" × 5 1/2" × 24" |
| Top shelf bottom slatPine 1x4 | 2 | 3/4" × 3 1/2" × 24" |
| Top shelf middle slatPine 1x3 | 2 | 3/4" × 2 1/2" × 24" |
| Top shelf top slatPine 1x2 | 2 | 3/4" × 1 1/2" × 24" |
Buy 6 boards at 8 ft.
1 board
1 board
1 board
3 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Join the mitered X arms at their crossing point with a single 3/4" pocket hole and 1-1/4" pocket hole screw, plus glue. Dry-fit first and check the crossing point is centered on both arms before you commit.
Attach the bottom support pieces to the bottom of each X panel on the insides, using 1-1/4" finish nails and glue, or countersunk screws.
Attach the bottom shelf boards to the bottom supports with 1-1/4" screws or finish nails and glue.
Attach the three top shelf slats (bottom, middle, top) with either pocket holes or countersunk screws and glue. Once everything is assembled, use a jigsaw to round over the top and bottom corners of the X end panels, then sand the curves smooth.
