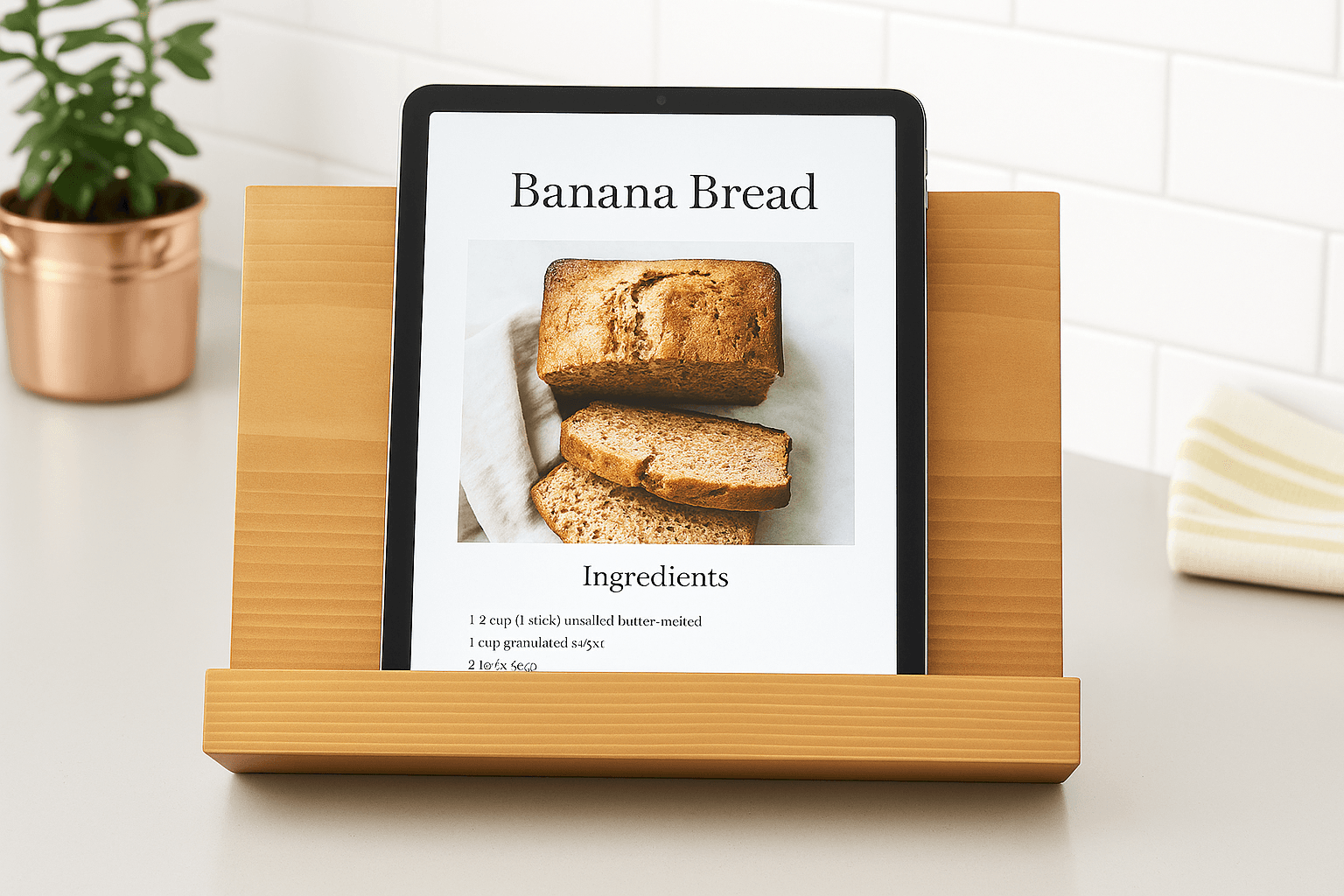

This stand is about as small and fast a build as this catalog offers — three boards, glue, and brad nails, finished in one sitting. The back support piece is genuinely the only board that needs careful bevel work: one end is cut at 30° and the other at 40°, two different bevel angles on the same short board, which is what gives the stand its lean and its base contact angle simultaneously.
Attach the two 1x2 side rails together first, forming the shallow trough that holds a tablet or a cookbook's spine, then attach that assembly to the double-beveled back piece. The final step is simple but worth doing by eye rather than trusting a single fixed measurement: measure and mark out the support location against your actual tablet or book before final attachment, since screen sizes and book thicknesses vary enough that a support position tuned for one may not balance another.
This is a genuinely good project for scrap 1x8 and 1x2 offcuts, and a fast, useful gift.
| Item | Qty |
|---|---|
| 1x8, 20 in | 1 each |
| 1x2, 26 in | 1 each |
| Wood glue | 1 oz |
| Brad nails, 1-1/4" | 10 each |
| Wood stain | 2 oz |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Back support1x8, 20 inOne end cut at 30° bevel, other end at 40° bevel, long point to long point. | 1 | 3/4" × 7 1/4" × 5" |
| Base1x8, 20 in | 1 | 3/4" × 7 1/4" × 12 3/4" |
| Side rails1x2, 26 in | 2 | 3/4" × 1 1/2" × 12 3/4" |
Buy 2 boards at 8 ft.
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Attach the two 1x2 side rails together as shown, forming the shallow trough that will hold a tablet or book.
Attach the side rail assembly to the double-beveled back piece.
Measure and mark the support location against your actual tablet or book, then attach the base with glue and nails. Sand and apply wood stain.
