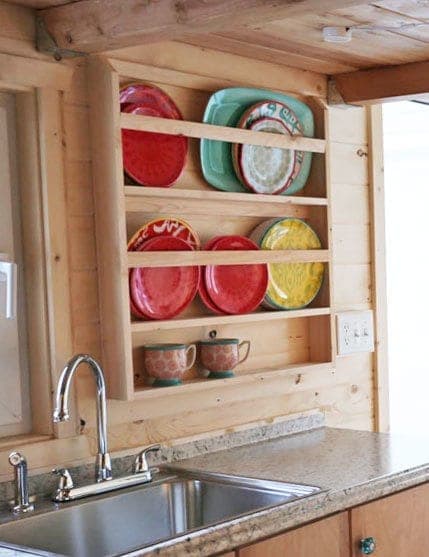

A plate rack is a classic farmhouse-kitchen fixture: plates stand on edge in slots, on display and draining. This one is deliberately minimal — two 1x4s for the sides, three for the shelves, and a set of rails and back supports — because once it's screwed to the wall, the wall provides most of the structure, so it doesn't need heavy joinery.
That's the key insight the plan leans on: you can build the rack with just glue and nails because the finished piece gets lag-anchored to wall studs, which stiffens the whole assembly. Always glue when you nail, but you don't need to over-build the box itself.
The rails are what actually hold the plates upright, spaced so a plate's rim rests against them without tipping out. Space them to the plates you own — dinner plates and salad plates want slightly different gaps. Hang it into studs through the back 1x2s under the shelves with 3" wood screws (on a standard stud-framed drywall wall); that back cleat is the load path, so it has to catch framing, not just drywall.
| Item | Qty |
|---|---|
| 1x4 board, 8 ftSides, shelves, rails. | 2 each |
| 1x2 board, 8 ftBack supports and cleats. | 2 each |
| Wood screws, 3"For hanging into studs — size to your wall. | 8 each |
| Finish nails, 1-1/4" | 40 each |
| Wood glue | 3 oz |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Sides1x4 | 2 | 3/4" × 3 1/2" × 32" |
| Shelves1x4 | 3 | 3/4" × 3 1/2" × 28 1/2" |
| Rails and back supports1x4 | 5 | 3/4" × 3 1/2" × 28 1/2" |
Buy 4 boards at 8 ft.
4 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Attach the 1x4 sides and shelves to create the box. Nails are fine here since the finished rack gets anchored to the wall for extra structure — just always add glue when you nail. Keep it square.
Glue and nail the rails and back supports to the framing to complete the rack, spacing the rails so your plates rest on edge without tipping out. Hang it on the wall into studs through the back 1x2s under the shelves with 3" screws — that cleat is the load path, so it must catch framing. Level it, sand, and finish.
