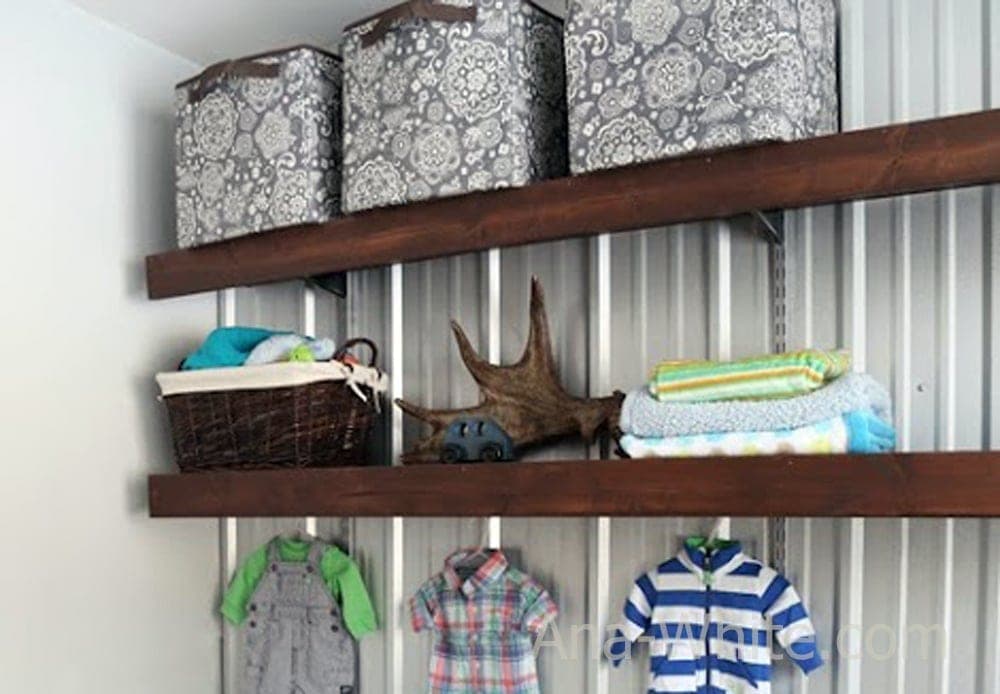

This project keeps the existing wire shelving bracket-and-track hardware entirely in place and simply covers it with solid wood shelves, rather than tearing out wire shelving to build something from scratch. Wall mounting has two legitimate methods: securing the vertical track standards directly to studs (fewer visible parts, but you need studs where you want the tracks), or using a horizontal hang track across the top that the standards clip onto (more beginner-friendly and flexible, but the hang track itself stays visible). Choose based on your wall and your tolerance for visible hardware, not just whichever is easier.
The tops of all vertical standards need to land at the same height — the plan recommends this height match your desired top shelf position — since uneven standards will make every shelf below them subtly out of level even if each individual bracket reads level on its own.
Building the shelf covers themselves is genuinely simple: a 1x12 cut to your desired shelf length, with a 1x4 nailed and glued to the front edge for a finished look and a bit of extra rigidity. Cut each shelf to the length that matches your own closet or space — this is inherently a custom-width project, so the cut list below shows a representative 36" shelf length as a worked example rather than a fixed universal size. Secure the finished shelf covers to the brackets with short screws sized to your specific bracket hardware, driving about 1/2" into the wood.
| Item | Qty |
|---|---|
| Vertical shelf track standards | 4 each |
| Shelf brackets, 11–12 in long | 8 each |
| Horizontal hang track (optional) | 1 each |
| 1x12, 3 ft (per shelf, representative 36 in length) | 2 each |
| 1x4, 3 ft (per shelf, representative 36 in length) | 1 each |
| Brad nails, 1-1/4", or pocket hole screws | 20 each |
| Short wood screws, for securing shelves to brackets | 16 each |
| Primer and paint, or stain and poly | 1 set |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Shelf board (representative 36 in shelf)1x12, 3 ft (per shelf, representative 36 in length)Cut to your own desired shelf length. | 1 | 3/4" × 11 1/4" × 36" |
| Front trim (representative 36 in shelf)1x4, 3 ft (per shelf, representative 36 in length)Cut to match the shelf board length. | 1 | 3/4" × 3 1/2" × 36" |
Buy 2 boards at 8 ft.
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
If you want the wall tracks to match your walls, spray paint them and let dry before installing, or purchase white tracks for white walls.
Secure the vertical track standards to the wall either directly into studs (every other stud for light loads, every stud for heavy loads) or via a horizontal hang track installed across the top. Keep the tops of all standards level at your desired top shelf height.
Clip the shelf brackets into the vertical tracks wherever you want a shelf.
Cut a 1x12 to your desired shelf length. Nail and glue a 1x4 to the front edge with 1-1/4" brad nails, or use hidden pocket holes for a more polished look.
Paint or stain the shelves as desired, then secure to the brackets with short screws sized to your bracket hardware, driving about 1/2" into the wood.
