Wall-Mounted Christmas Tree Display
Check out how to make a DIY flush mount wall Christmas tree!
- Difficulty
- Easy
- Time
- 3–6 hours
- Cost
- $$
Cut list
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| Base 1 | 1 | 2" × 3" × 20" | — | ☐ |
| Base 2 | 1 | 2" × 3" × 16" | — | ☐ |
| Base 3 | 1 | 2" × 3" × 12" | — | ☐ |
| Base 4 | 1 | 2" × 3" × 8" | — | ☐ |
| Sides | 6 | 2" × 3" × 11" | — | ☐ |
| Top Left | 1 | 2" × 3" × 8" | — | ☐ |
| Top Right | 1 | 2" × 3" × 7" | — | ☐ |
Materials
| Item | Qty | ✓ |
|---|---|---|
| Board of choice, 3/4" x 3 1/2" x 8' 8' | 1 board | ☐ |
| 1 1/4" Kreg Screws | 30 each | ☐ |
| Kreg pocket hole plugs | 30 each | ☐ |
| Picture hanging hooks | 2 each | ☐ |
| Stain or paint | 1 each | ☐ |
| Wood glue | 1 each | ☐ |
Overall cost: $$. Lumber varies by region, species, and season, so we give a band rather than a figure.
Tools
- Drill / Driver
- Pocket Hole Jig
- Random Orbit Sander
- Table Saw
Instructions
1. Cuts and pocket holes
- Cut down your board into 2" wide, or cut down a strip of plywood. - Cut all the beveled angles on each piece. - Drill all your pocket holes at once. - Drill two pocket holes in each end of all the Side and Top Right pieces. - Drill two pocket holes on one end of the Top Left piece.

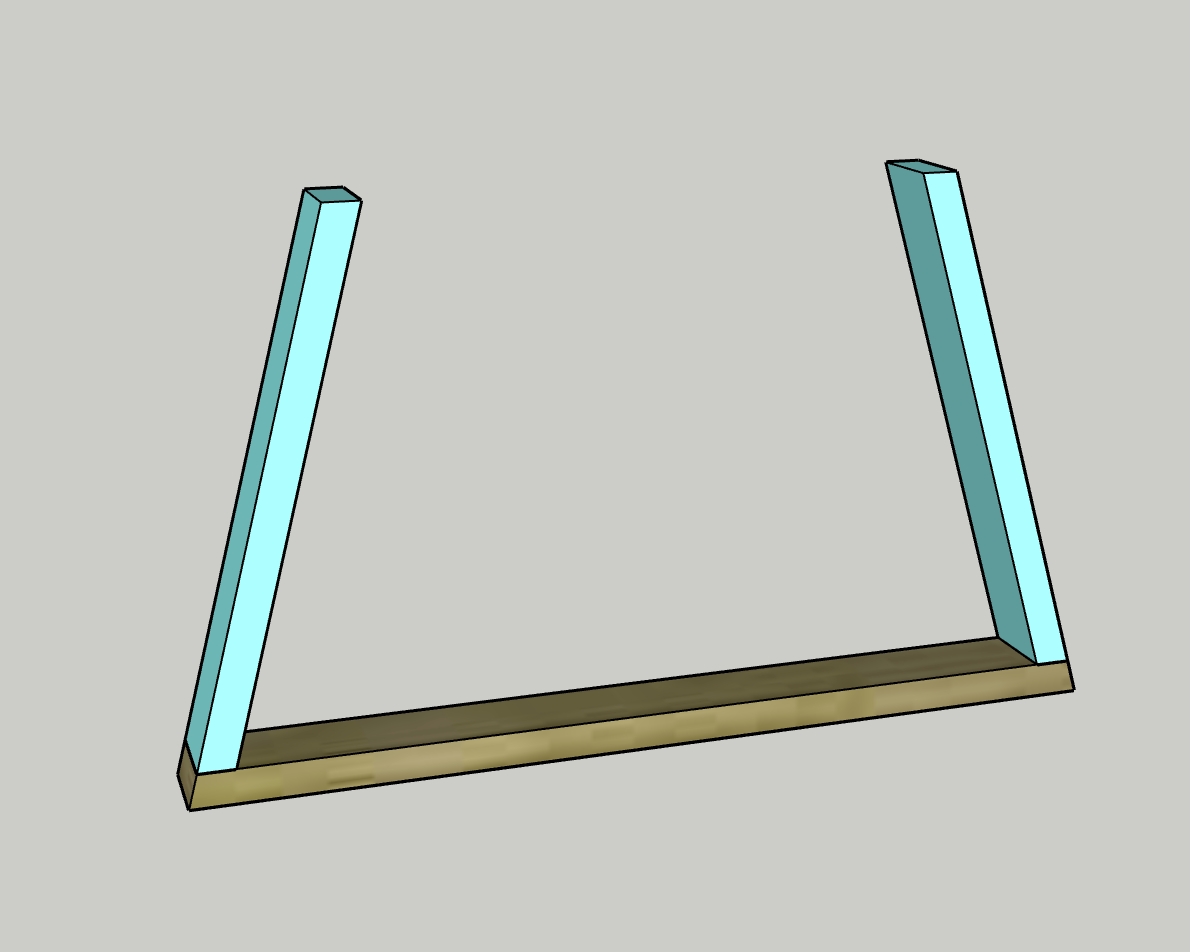

2. Create tree layers
- Using wood glue and pocket hole screws, connect two of the Side pieces on top of Base 1, flush against the angled edges so the angles align. - Clamp down on these boards because you're drilling at an angle and you don't want the boards to slip! - Repeat these steps for the next two layers using Base 2 and Base 3.

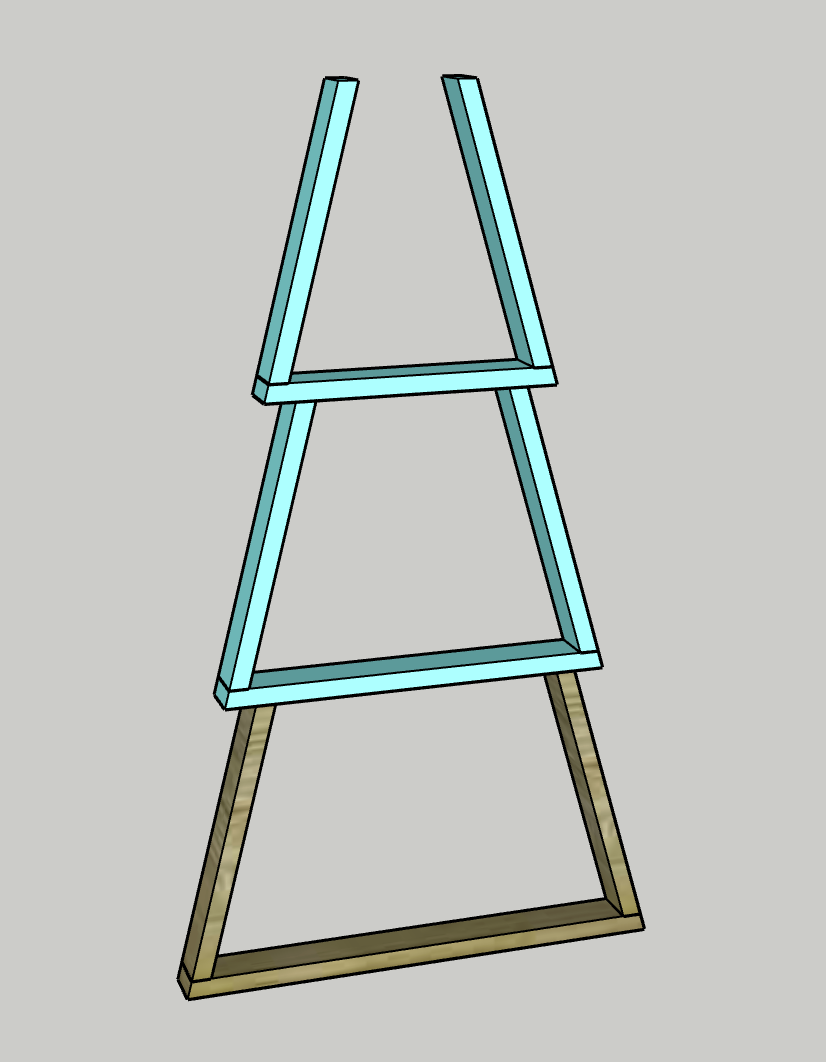

3. Connect layers
- Using wood glue and pocket hole screws, attach the Sides connected to Base 1 into the bottom of Base 2. These should be 1 1/4" away from the ends. - Repeat to connect this unit into the bottom of Base 3 the same way.

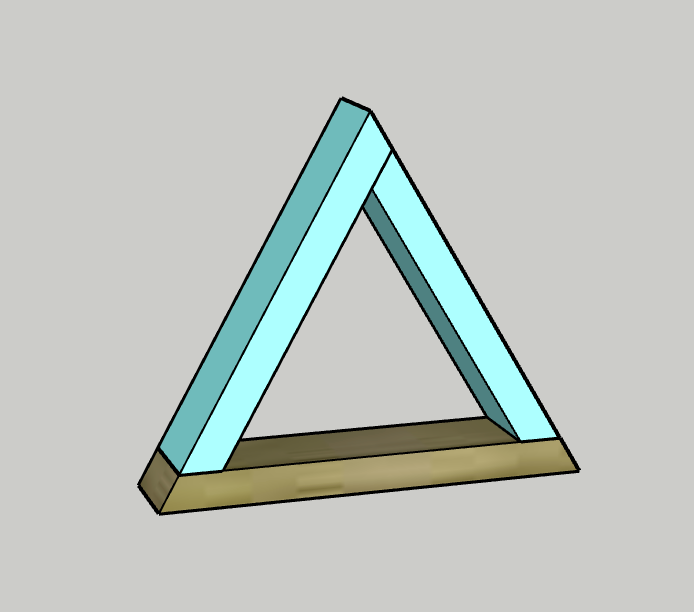

4. Build Top
- Using wood glue and pocket hole screws, attach the Top Left into the top of Base 4 so that the angles align on the left side. - Using wood glue and pocket hole screws, attach the Top Right into Base 4 and the Top Left.

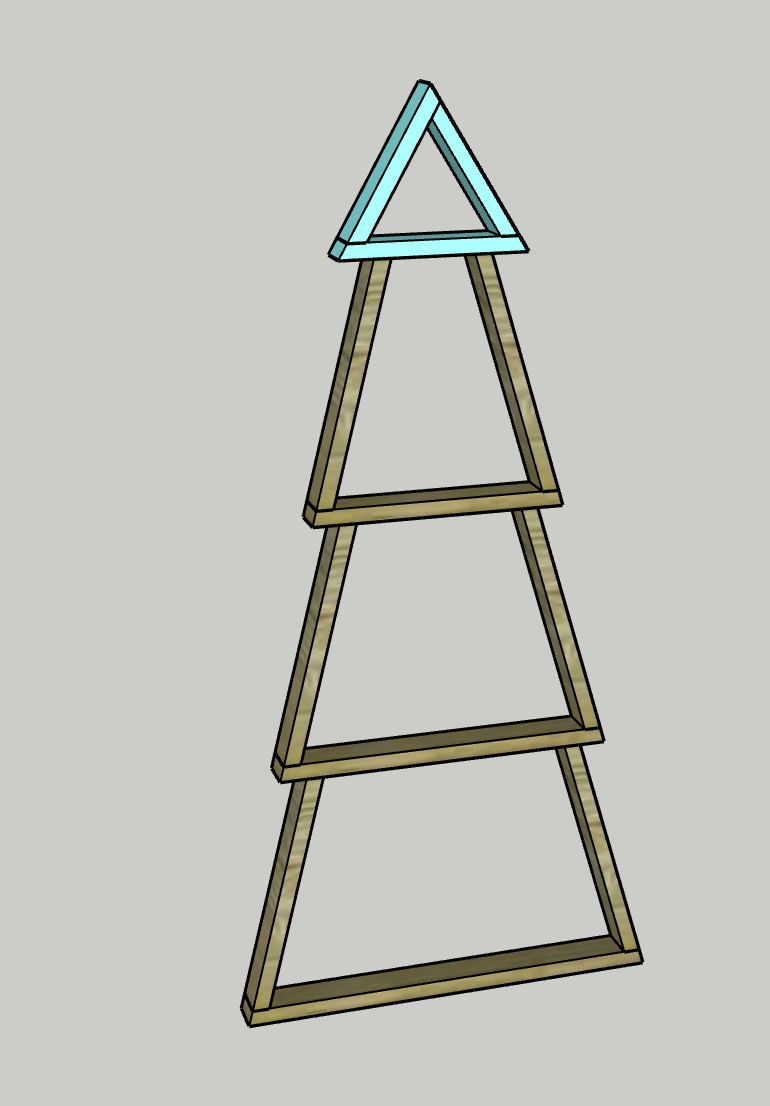

5. Connect Top
- Using wood glue and pocket hole screws, attach the Sides connected to Base 3 into the bottom of Base 1. These should be 1 1/4" away from the ends.
6. Fill Pocket Holes
- If you’d like, use wood glue and Kreg pocket hole plugs to fill all the pocket holes and conceal them. - Once dry, use a flush cut saw to cut them flush with the sides and then sand smooth.

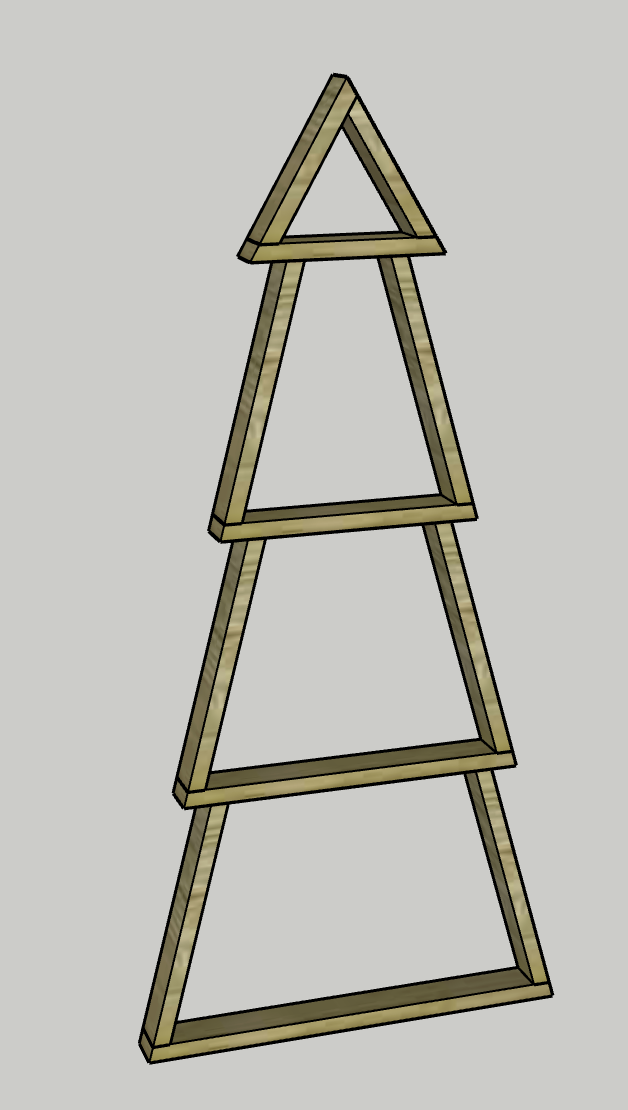

7. Stain
- Apply your favorite color of wood stain and a layer of polyurethane to your Christmas tree.

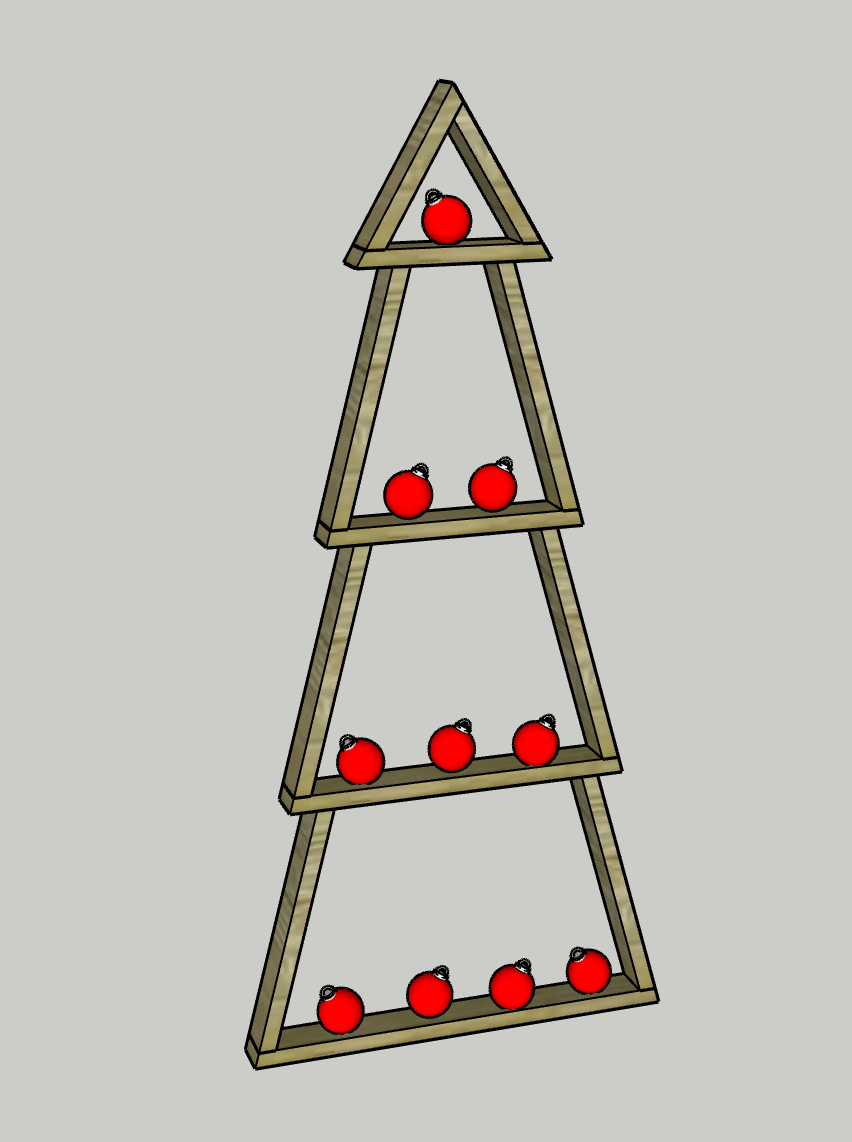

8. Hang
- Attach wall hangers to the back of the Sides in the third section. - Add brackets to the wall and then hang your tree. - Decorate with Christmas lights, ornaments or any holiday decor you’d like!
9. Enjoy!
Enjoy your handiwork and tag @CharlestonCrafted on Instagram with a picture!
