Notch- Difficulty
- Beginner
- Time
- 2.3–4.3 hours
- Cost
- $
About this build

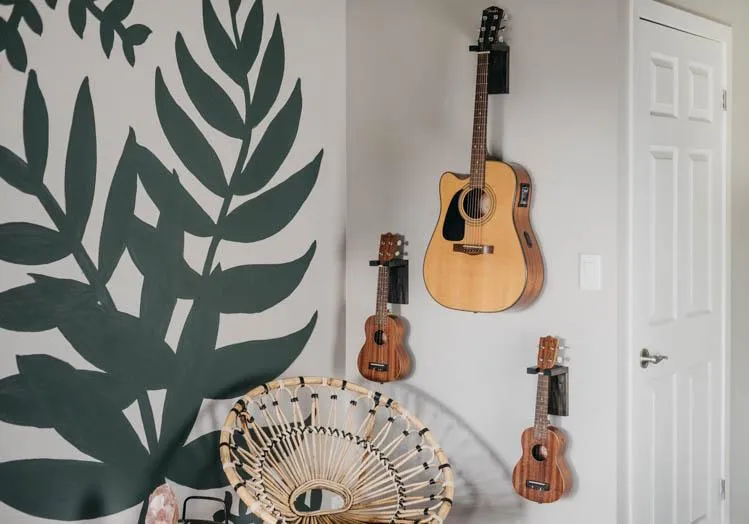

This simple wall mount guitar holder is perfect for displaying your guitars without taking up floor space. Simple design means they look rad even if theres no guitar hung.
Tools
Essential
- Drill / Driver
- Miter Saw
- Pocket Hole Jig
- Scroll Saw
Materials
| Item | Qty |
|---|---|
| Board, 1x4 12" | 1 board |
| Pocket Screws 1 1/4" | 2 each |
| 2" Black Screws for Mounting | 2 each |
| Ebony Stain | 1 each |
| Satin Clear Coat | 1 each |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Wall Mount | 1 | 3/4" × 3" × 5" |
| Guitar Holder | 1 | 3/4" × 3" × 4" |
What to buy
Buy 1 board at 8 ft.
3/4" × 3"
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions

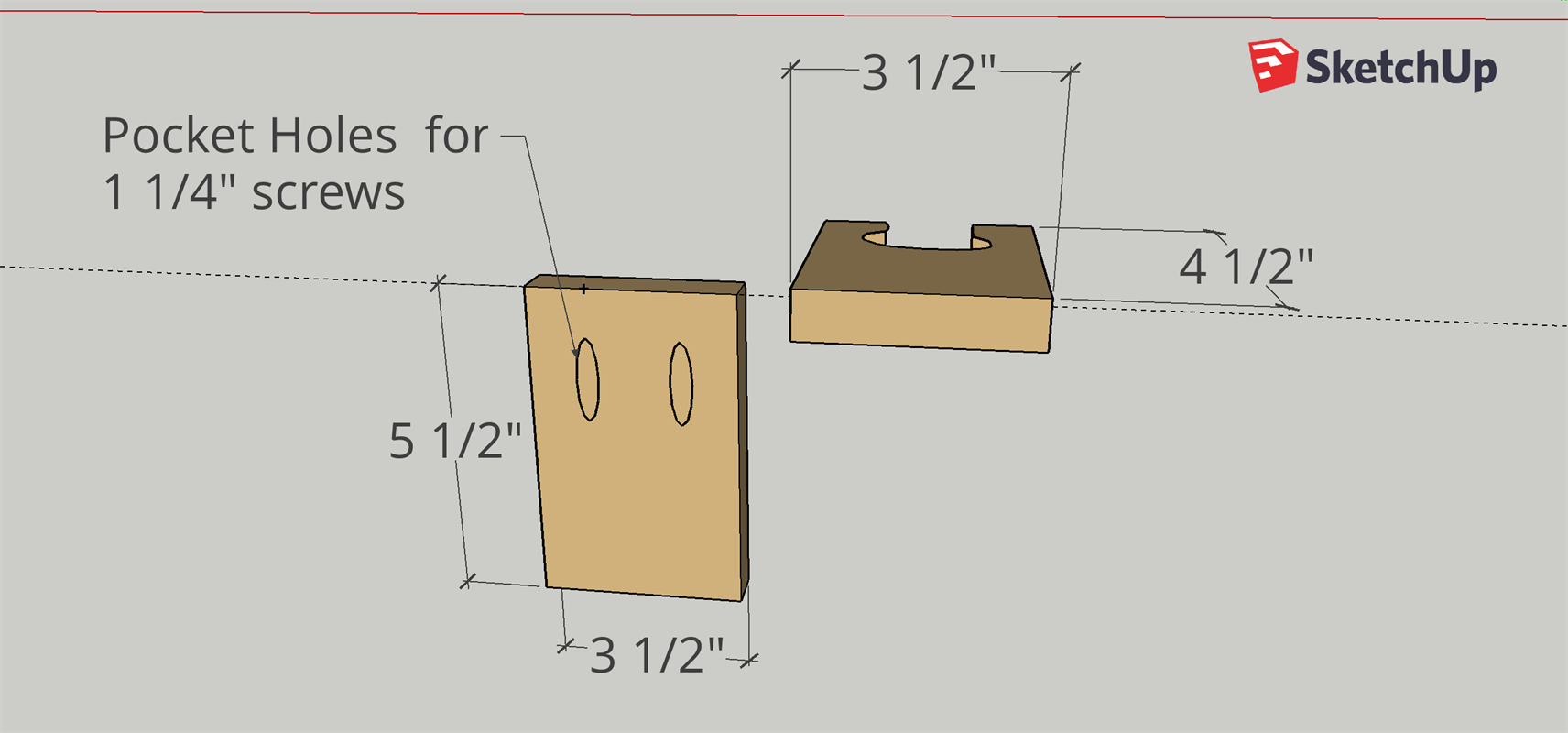

1Plans
These plans illustrate the sizing and cuts for each piece in the holder.

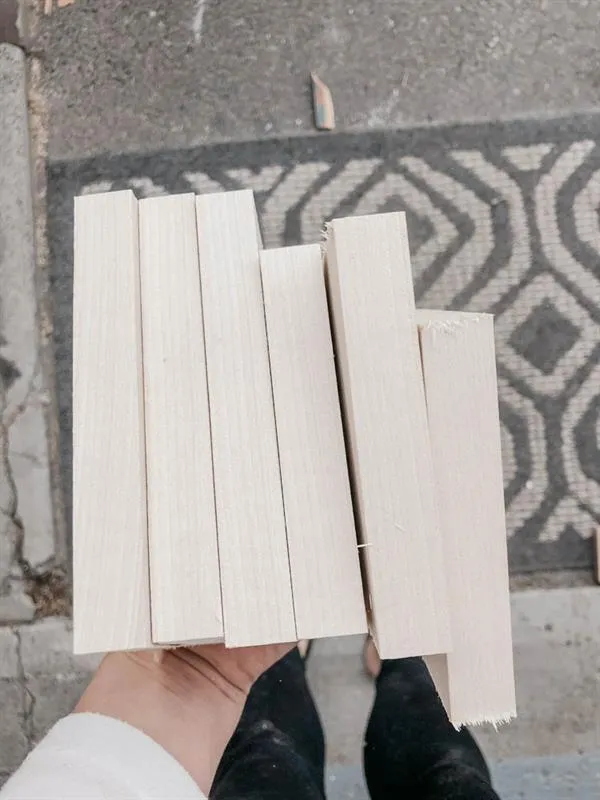

2Cut Wood
Cut the board (I used maple) into two pieces, one 5 1/2" and one 4 1/2"

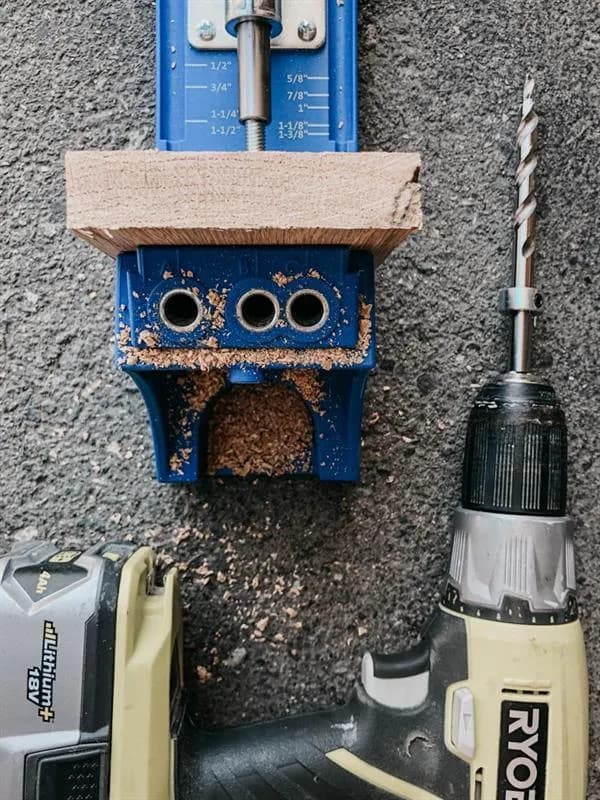

3Drill Pocket Holes
Drill two pocket holes according to Kreg Jig directions in the longer piece of wood as shown in plans.

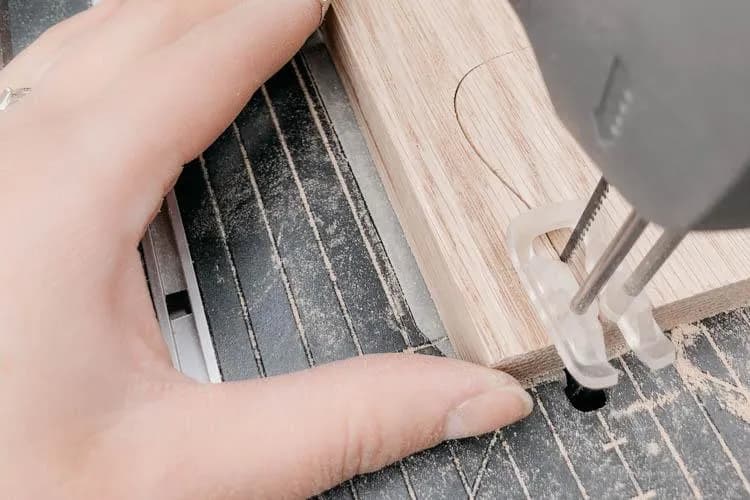

4Cut Guitar Neck Hold
Use a jigsaw or scroll saw to cut a space for your guitar neck. Cut according to the size of your guitar, making it no larger than the bottom of the headstock.

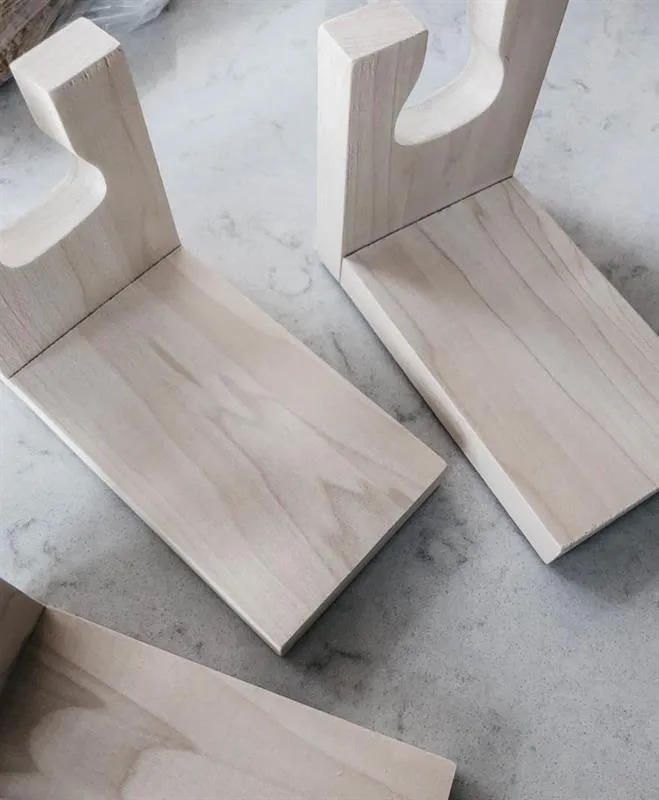

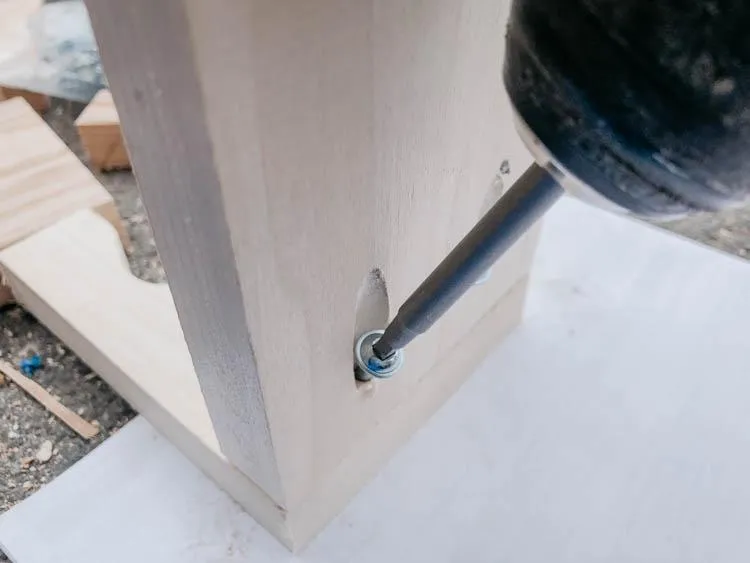

5Attach Wood Pieces
Use the pocket hole screws and attach the two pieces of wood as shown.
6Sand, Stain, Seal
Sand, stain and seal your guitar holders. I used Ebony stain and a satin poly.

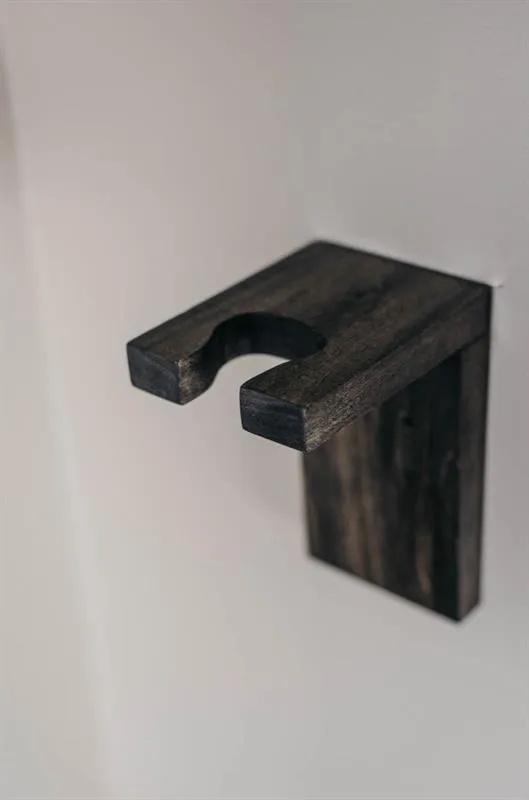

7Mount to wall
Using wall anchors if necessary, sink two screws through the top half of the wall mount into the wall.
