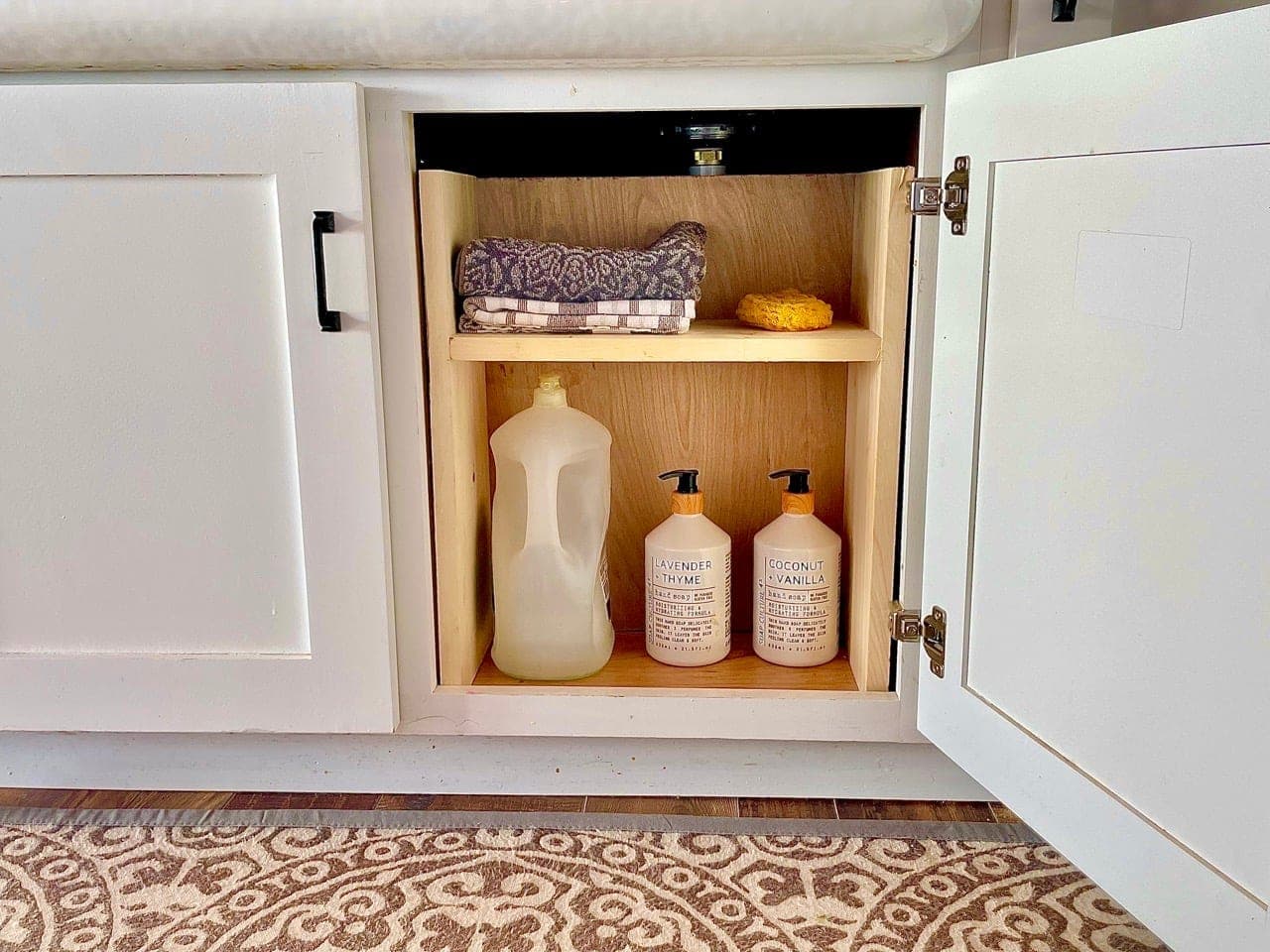

This is a measure-first build with no fixed cut list — every dimension comes from your own cabinet opening, not a number on this page. Cut the overall height about 1" shorter than the cabinet opening so the organizer can actually be lifted in and out around the plumbing, and cut the shelf board 2" narrower than your desired final width, which leaves about 1/2" of side clearance for an easy fit.
Choose your back style based on what you're hiding: a pass-through design (an open lower section with just a 1x8 board partway up the back) works when you want to reach behind the shelf, while covering the full back with 1/4" plywood gives a cleaner look when there's nothing back there you need access to.
| Item | Qty |
|---|---|
| 1x board, in your desired depth (1x8, 1x10, or 1x12) | 1 each |
| 1x8 board or 1/4" plywood, for the back1x8 for a pass-through back, plywood to cover the full back. | 1 each |
| 1-1/4" brad nails or 1-1/2" SPAX self-tapping screwsAbout 10 screws needed if not using a brad nailer. | 1 box |
| Wood glue | 1 oz |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Side boards1x board, in your desired depth (1x8, 1x10, or 1x12)10" tall example — cut to about 1" less than your cabinet opening height. | 2 | 3/4" × 9 1/4" × 10" |
| Shelf board1x board, in your desired depth (1x8, 1x10, or 1x12)24" wide example — cut 2" narrower than your desired final width. | 1 | 3/4" × 9 1/4" × 22" |
| Back panel1x8 board or 1/4" plywood, for the back | 1 | 1/4" × 22" × 10" |
Buy 2 boards at 8 ft.
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Cut two boards to match the desired height of your under-sink organizer. The overall height should be about 1" less than the cabinet opening so the organizer can be placed under the sink easily.
Cut the shelf board 2" narrower than your desired final width, giving about 1/2" of clearance to fit under the sink. Attach with screws or 1-1/4" brad nails and glue. If using a pass-through back design, position the shelf so a 1x8 board can fit above it for the back.
If using plywood, cut a piece of 1/4" plywood to fit either the upper part of the back (pass-through) or the full back. Attach with brad nails or screws and glue.
