Notch- Difficulty
- Easy
- Time
- 3.3–6.5 hours
- Cost
- $$
About this build

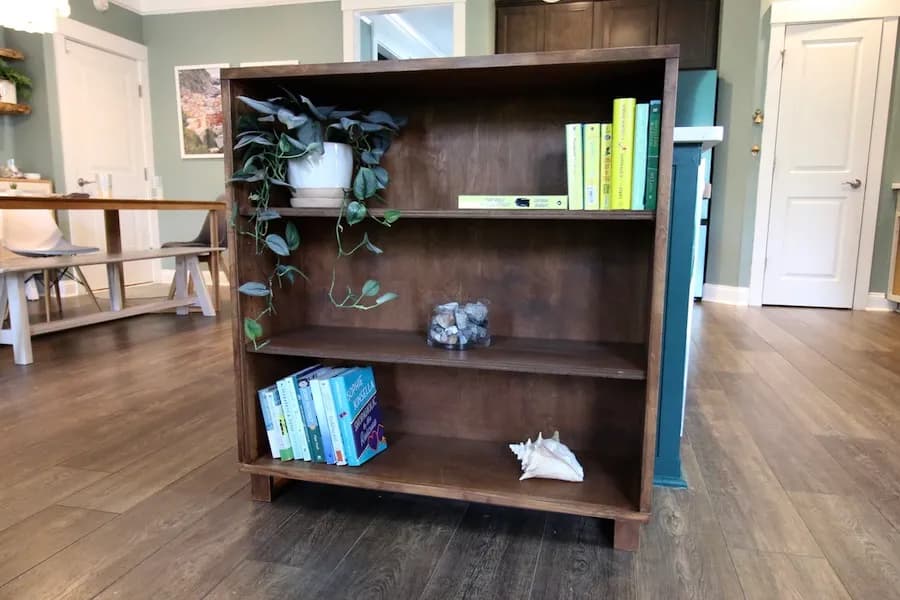

Looking to build a simple DIY bookshelf but want to give it a modern twist?! This bookshelf is a standard body construction but the legs give it that special element. Give this project a go next time you need storage for books or decor!
Tools
Essential
- Drill / Driver
- Miter Saw
- Pocket Hole Jig
- Random Orbit Sander
Materials
| Item | Qty |
|---|---|
| 3/4" plywood, 4'x8' | 1 board |
| 1/4" plywood, 4'x4' | 1 board |
| 3/4" board, 3/4"x3 1/2" x 8' | 1 board |
| 1 1/4" Kreg Screws | 32 each |
| 1" brad nails | 1 each |
| Wood glue | 1 each |
| Paint or stain | 1 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Top | 1 | 3" × 12" × 37" |
| Base | 1 | 3" × 11" × 36" |
| Shelves | 2 | 3" × 11" × 36" |
| Sides | 2 | 3/4" × 12" × 36" |
| Legs | 4 | 3/4" × 2" × 3" |
| Leg Spans | 2 | 3/4" × 2" × 10" |
| Leg Middle | 1 | 3/4" × 2" × 32" |
| Back | 1 | 1/4" × 36" × 36" |
| Top/Bottom Face | 2 | 3/4" × 1" × 37" |
| Side Face | 2 | 3/4" × 1" × 34" |
What to buy
Buy 8 boards at 8 ft.
3" × 12"
1 board
3" × 11"
2 boards
3/4" × 12"
1 board
3/4" × 2"
1 board
3/4" × 1"
2 boards
1/4" × 36"
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions

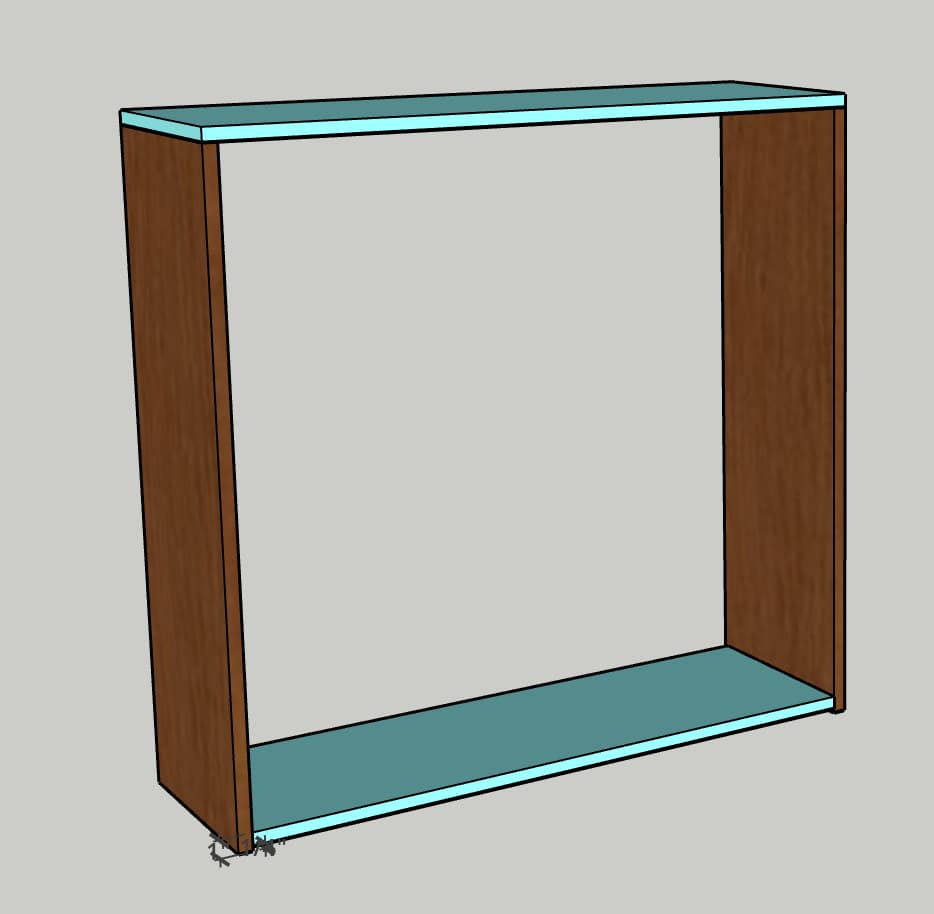

1Build Frame
- Drill three pocket holes on one end of each Side. - Drill three pocket holes on both ends of the Base. - Using wood glue and pocket hole screws, attach the two Sides into the bottom of the Top on the ends. - Using wood glue and pocket hole screws, attach the Base between the two sides so that it is 1/4" up from the bottom.
2Drill Shelf Pin Holes
Using a shelf pin jig, drill shelf pin holes up and down the front and back of both of the Sides.

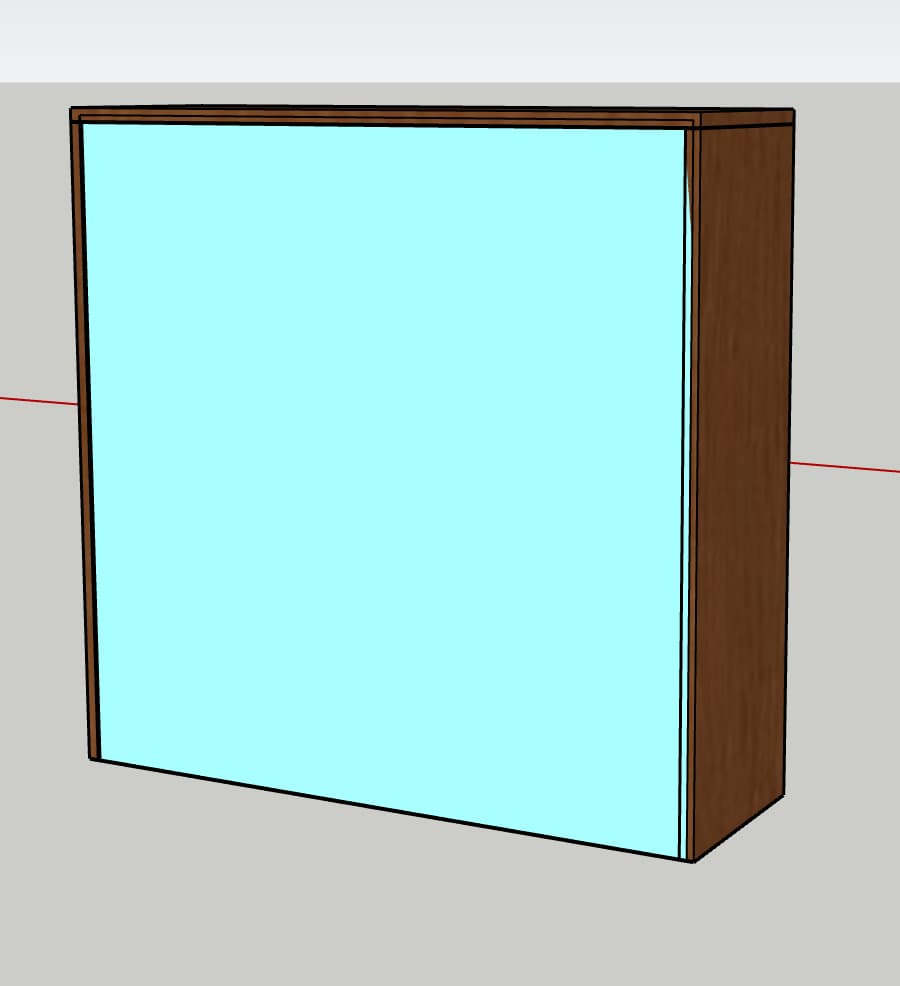

3Attach Back
- If you want the Back to be inset and not visible from the sides and top, use a router to carve out a 1/4" deep groove around the inner back side of the frame. - If you don’t have a router or don’t care if the Back is visible, you can skip this. - Using wood glue and 1" nails, attach the Back into the frame.

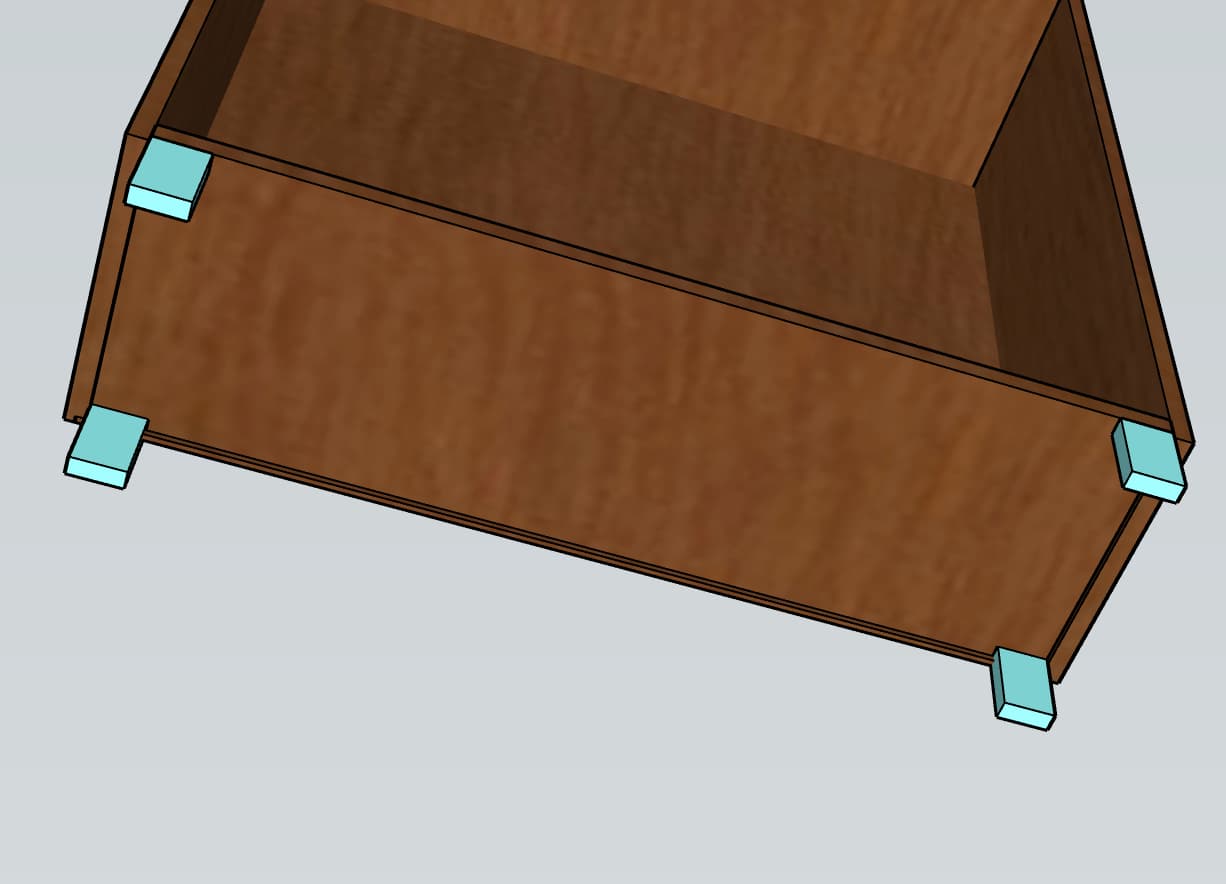

4Attach Legs
- Drill two pocket holes in one end of each Leg. - Using wood glue and pocket hole screws, attach the Legs into each corner of the Base, making sure the pocket holes face the back.

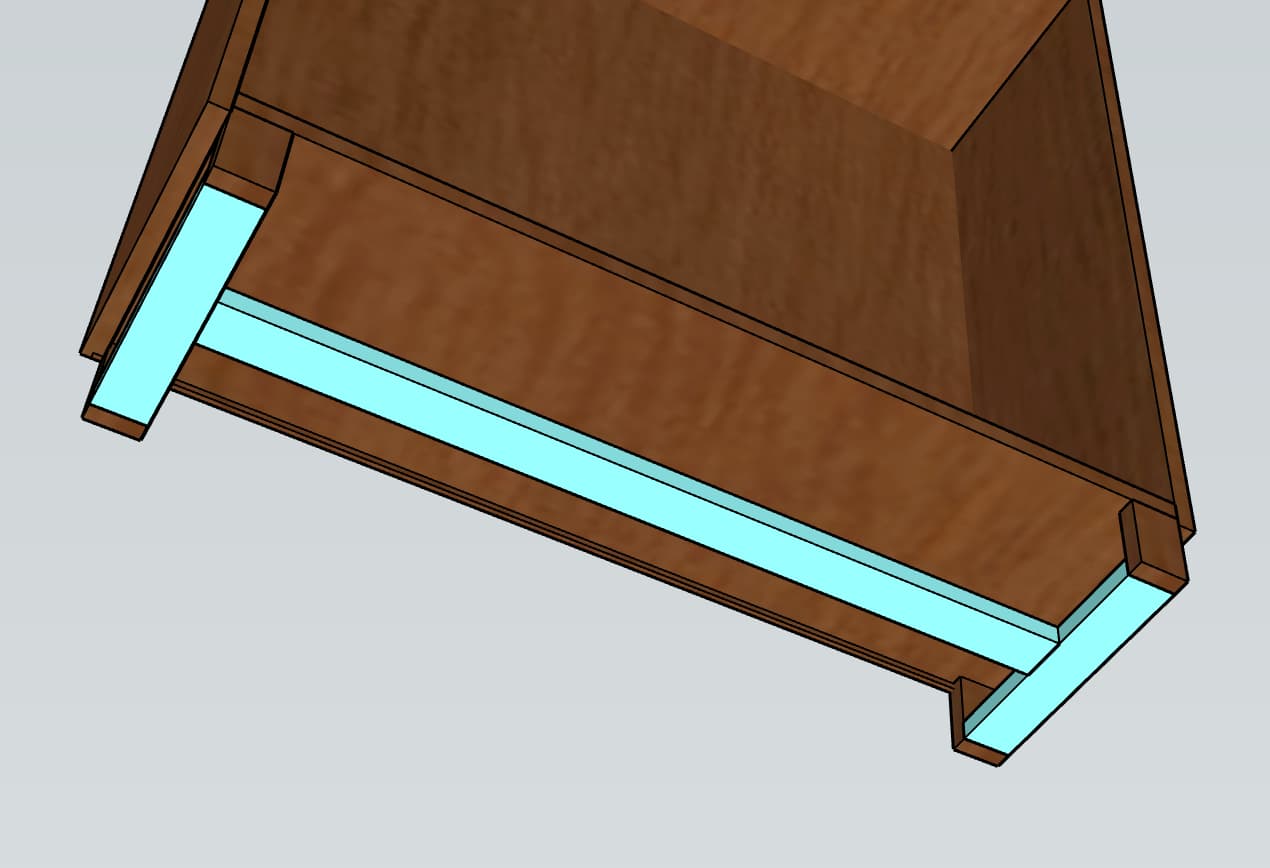

5Add Leg Supports
- Drill two pocket holes in each end of the Leg Spans and the Leg Middle. - Using wood glue and pocket hole screws, attach the Leg Spans between the front and back Legs on each side, flush against the bottom of the Legs. - Using wood glue and pocket hole screws, attach the Leg Middle centered between the two Leg Spans.

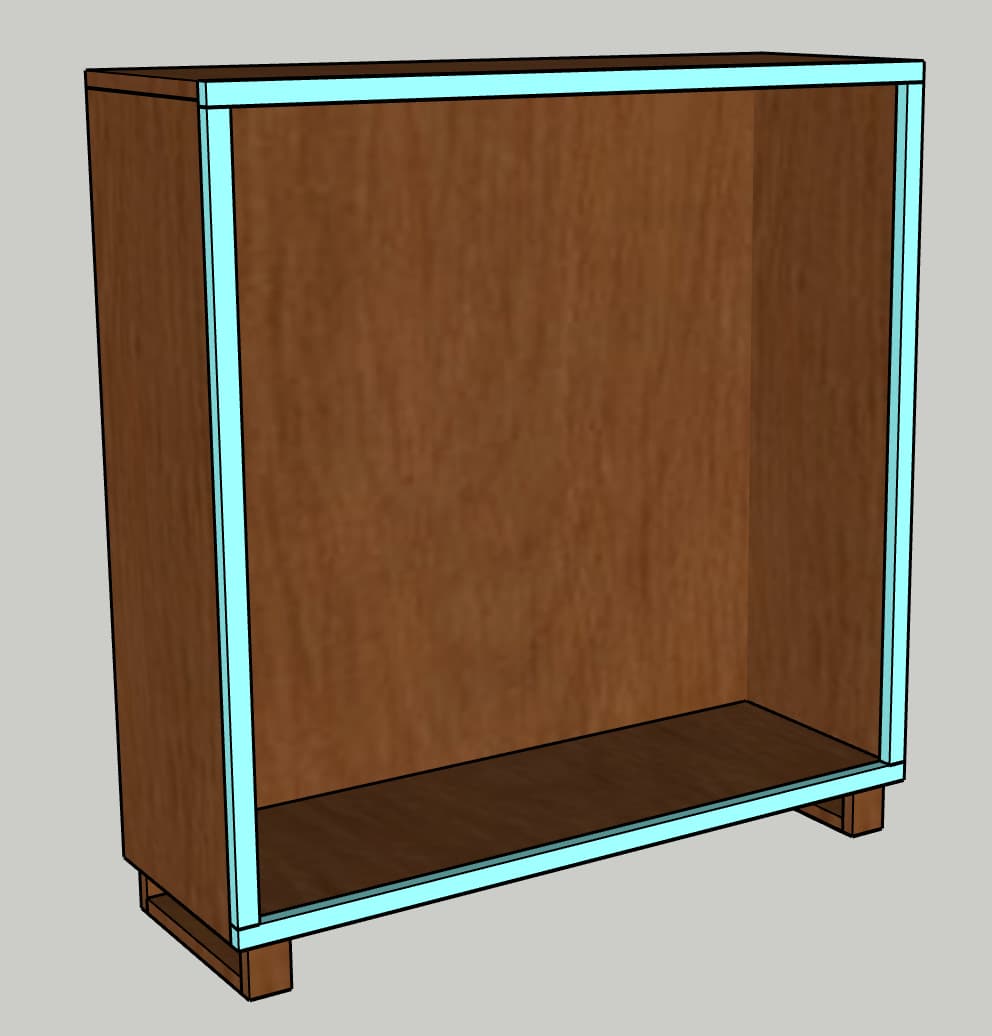

6Attach Face Frame
- Using wood glue and nails, attach the Top Face flush along the front edge of the Top and Sides. - Using wood glue and nails, attach the Side Faces flush along the outside edge of the Sides. There will be a little overhang into the bookshelf. - Using wood glue and nails, attach the Bottom Face flush along the front edge of the Bottom and Sides.
7Stain or Paint
- Add whatever stain or paint you want for your aesthetic. Apply to the body and the shelves that haven’t been installed. - Add a coat of polyurethane to help protect the shelves from wear and tear.

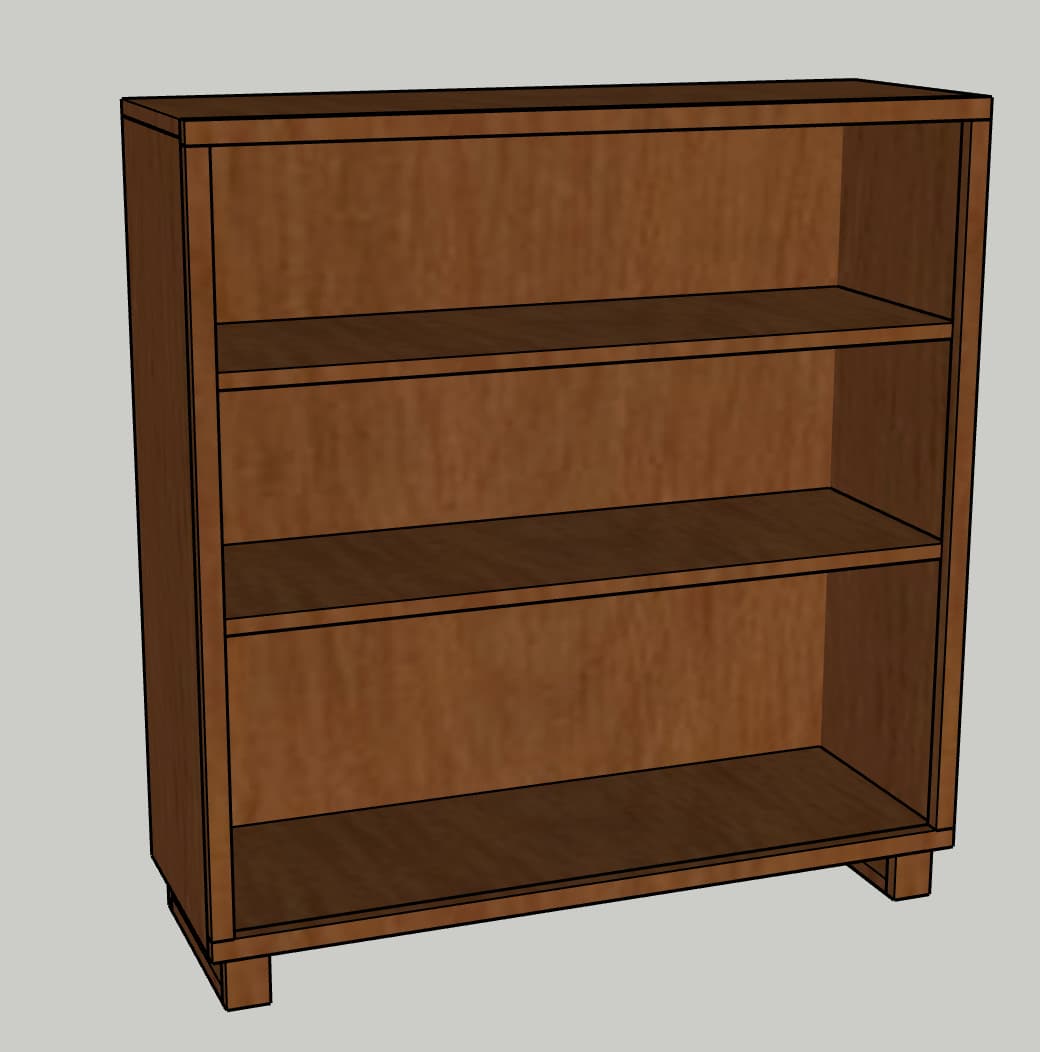

8Install Shelves
- Select your desired height for your shelves and insert four shelf pins at level height in each corner. - Inserting at a slight angle, slide each Shelf into place on top of the shelf pins.
9Enjoy!
Enjoy your handiwork and tag @CharlestonCrafted on Instagram with a picture!
