Notch- Difficulty
- Easy
- Time
- 4–7.8 hours
- Cost
- $$

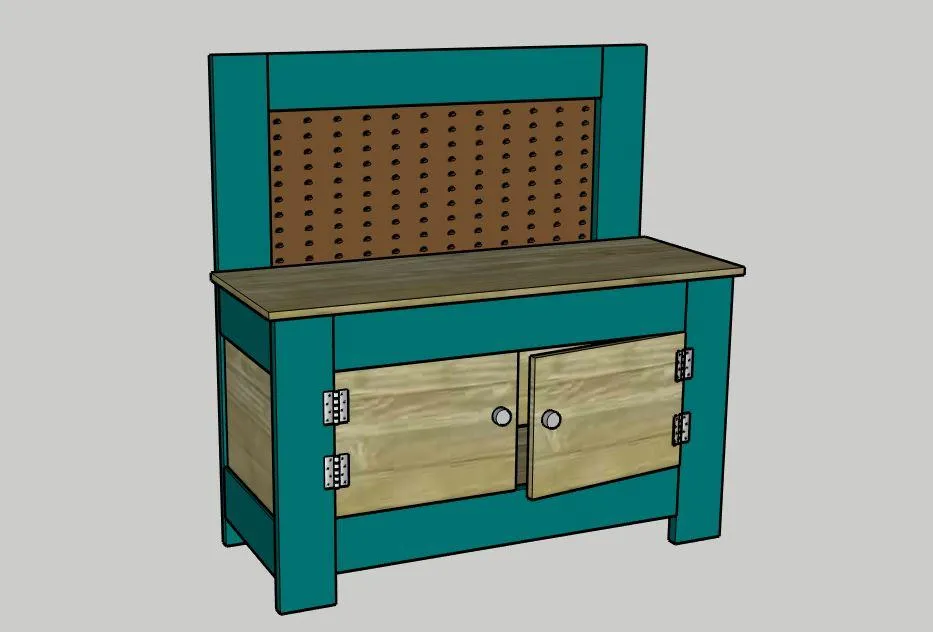

About this build
Get your toddler started learning about DIY projects right alongside you as they use their very own kid workbench! This workbench is designed for small kids who can work in the shop with mom or dad and play pretend as they build new things, just like you!
Tools
Essential
- Drill / Driver
- Miter Saw
- Pocket Hole Jig
- Random Orbit Sander
- Table Saw
Optional / nice to have
- Bar / Pipe Clamps
- Tape Measure
Materials
| Item | Qty |
|---|---|
| Board, 1x4 96" | 3 board |
| Plywood, 1/2" Thick Half Sheet | 1 board |
| Pegboard, 1/4" Thick Quarter Sheet | 1 board |
| Hinges | 4 each |
| Knobs | 2 each |
| 1 1/4" Kreg Screws | 36 each |
| 1" Kreg Screws | 24 each |
| Wood Glue | 1 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Front Legs | 2 | 3/4" × 3" × 18" |
| Back Legs | 2 | 3/4" × 3" × 32" |
| Horizontal Beams | 5 | 3/4" × 3" × 24" |
| Side Beams | 4 | 3/4" × 3" × 10" |
| Back Plywood | 1 | 1/2" × 9" × 24" |
| Side Plywood | 2 | 1/2" × 9" × 10" |
| Bottom Plywood | 1 | 1/2" × 10" × 29" |
| Front Doors | 2 | 1/2" × 9" × 12" |
| Top | 1 | 1/2" × 11" × 32" |
| Pegboard | 1 | 1/2" × 11" × 25" |
What to buy
Buy 6 boards at 8 ft.
3/4" × 3"
3 boards
1/2" × 11"
1 board
1/2" × 10"
1 board
1/2" × 9"
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions
1Make Cuts and Pocket Holes
- Make all cuts according to the cut list.
- Add pocket holes in the ends of the Horizontal Beams and the Side Beams.
- Add pocket holes around the edges of all plywood pieces except for the Top and Doors.

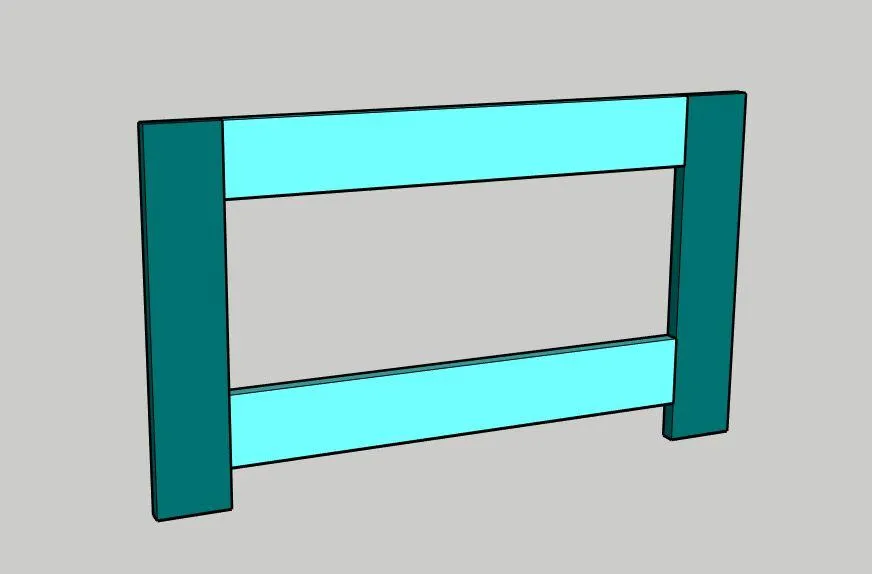

2Build Front
Build the front of the workbench by connecting two Horizontal Beams to the two Front Legs. Attach one Horizontal Beam flush with the top of the Legs and one 2" up from the bottom of the Legs.

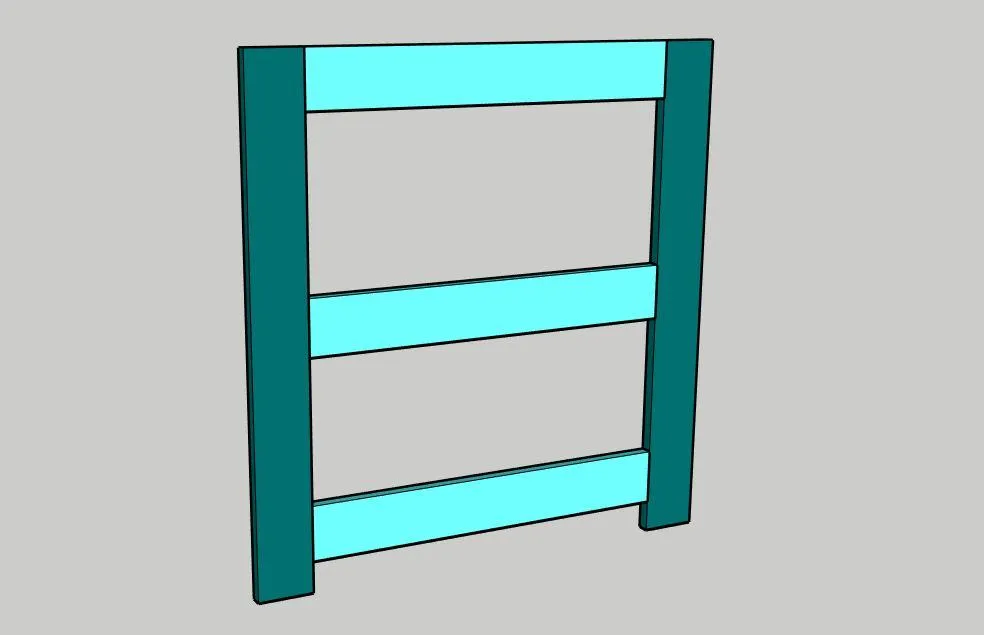

3Build Back
Build the back by connecting three Horizontal Beams to the two Back Legs. Connect one beam flush with the top of the Back Legs. The other two Horizontal Beams should be lined up with the beams from the front section. One should be 2" up from the bottom and one should be 18" up.

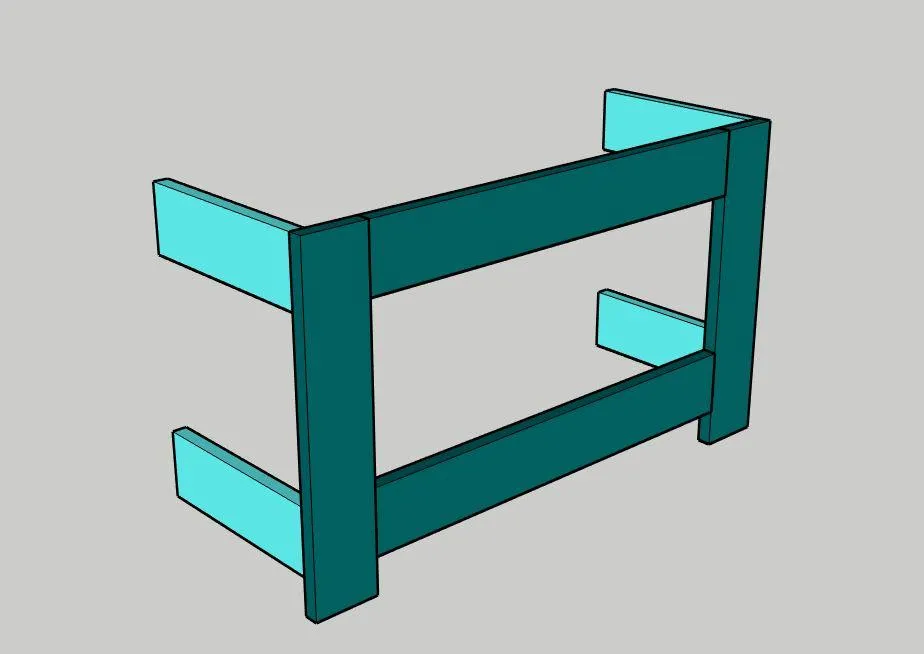

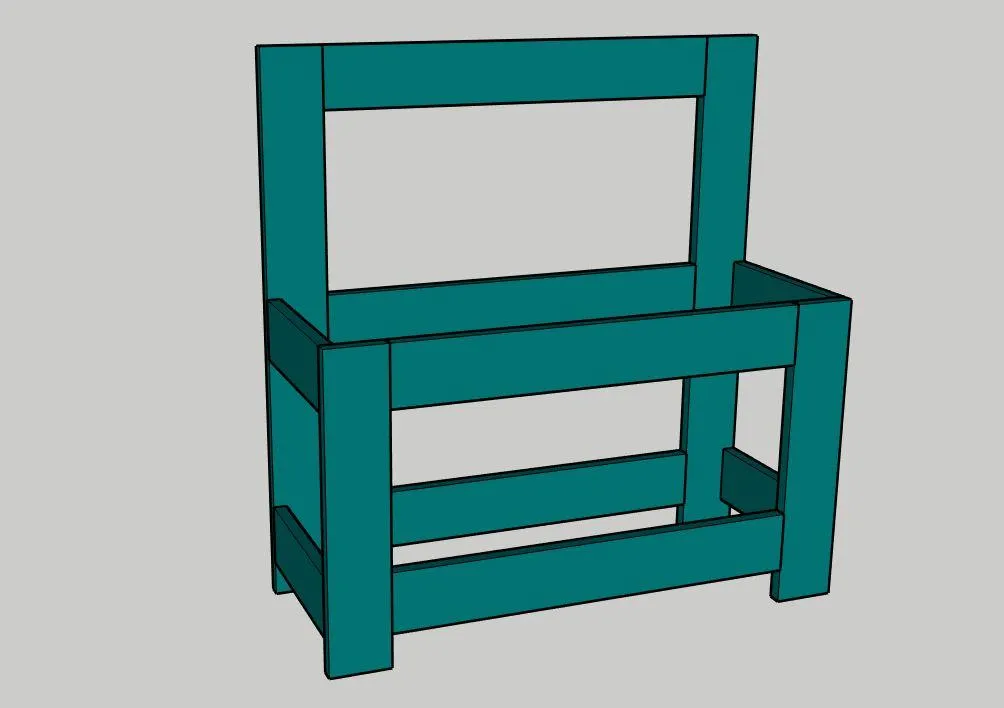

4Connect Front and Back
Connect the front and back sections with the Side Beams, attaching the beams flush with the outside edges and even with the Horizontal Beams. Attach to the front section first, then attach to the back.
5Stain
If you'd like to do a two-toned look like we did, take the opportunity to stain the frame now, before connecting all the plywood pieces.

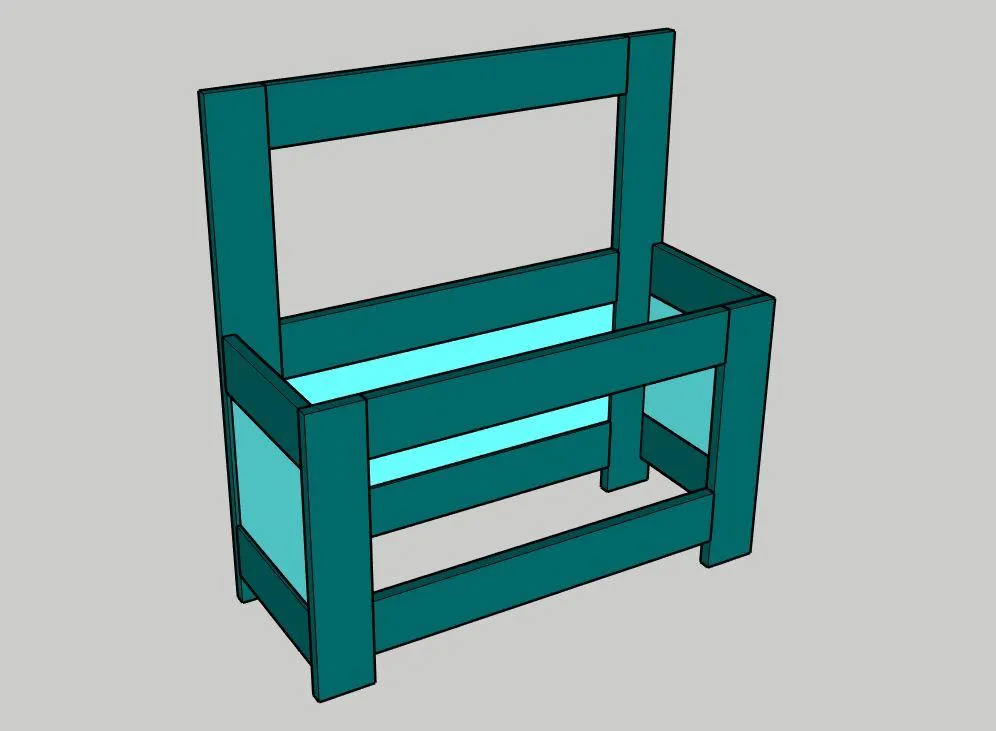

6Connect Plywood Sides
Attach the Side Plywood pieces and the Back Plywood piece using pocket screws. We recommend attaching the plywood flush with the inside edge of the boards, so you have a 1/4" indentation on the outside, which adds to the look.

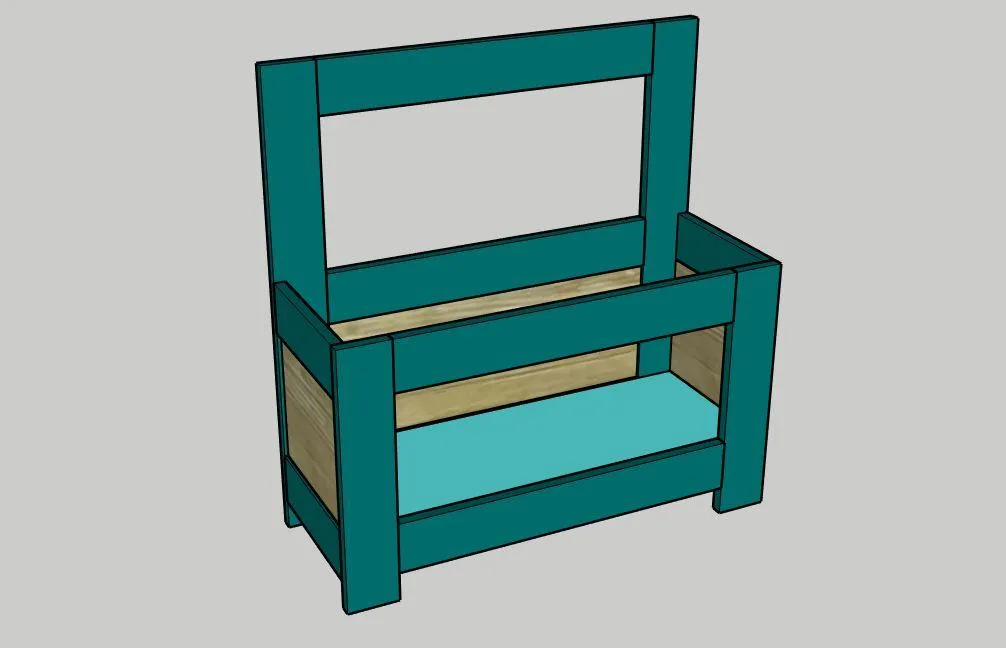

7Connect Bottom Plywood
Attach the Bottom Plywood to the underside of the bench using pocket screws.

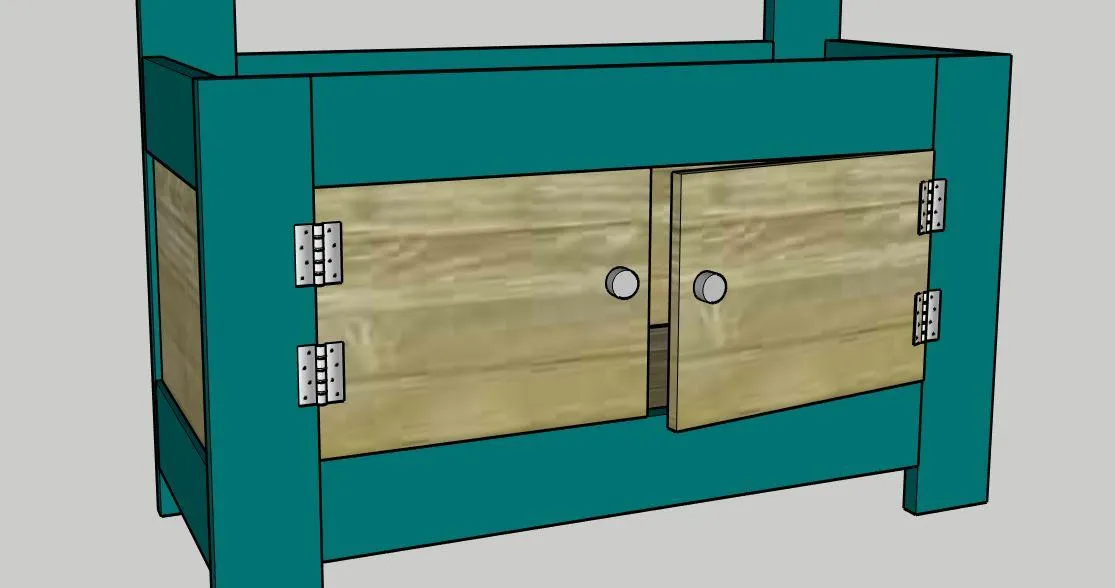

8Attach Doors
Attach the two Doors to the front of the workbench using four hinges. Add a knob to each door, centered down the board and 1" in from the edge.

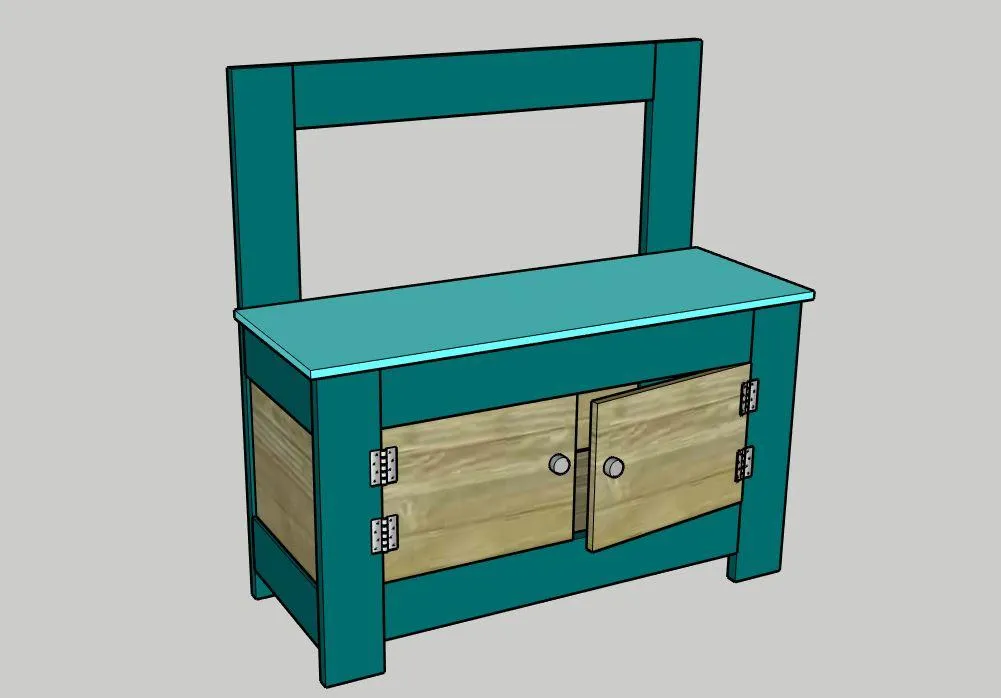

9Attach Top
Attach the Top using wood glue and clamps. Put a bead of wood glue down along the upper edge of the bench and clamp down the Top.

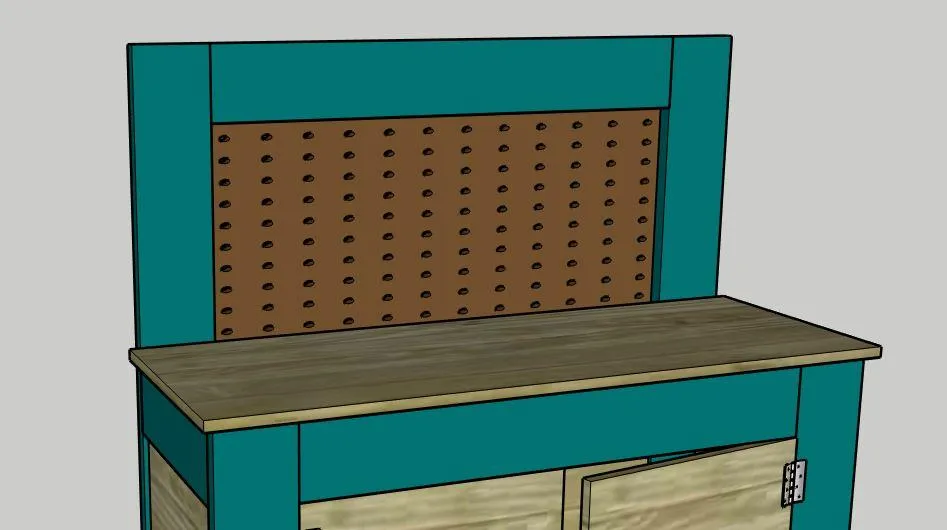

10Attach Pegboard
Attach the pegboard piece to the back of the kid workbench using 1/2" or 3/4" screws.
11Enjoy!
Enjoy watching your child work on the workbench and playing with their imagination while you build something else next to them.
12Visit www.CharlestonCrafted.com
Visit https://www.charlestoncrafted.com/diy-toddler-workbench-plans/ for more photos and the behind the scenes of the build! You can also get lots of other plans for great kid projects on our site!
