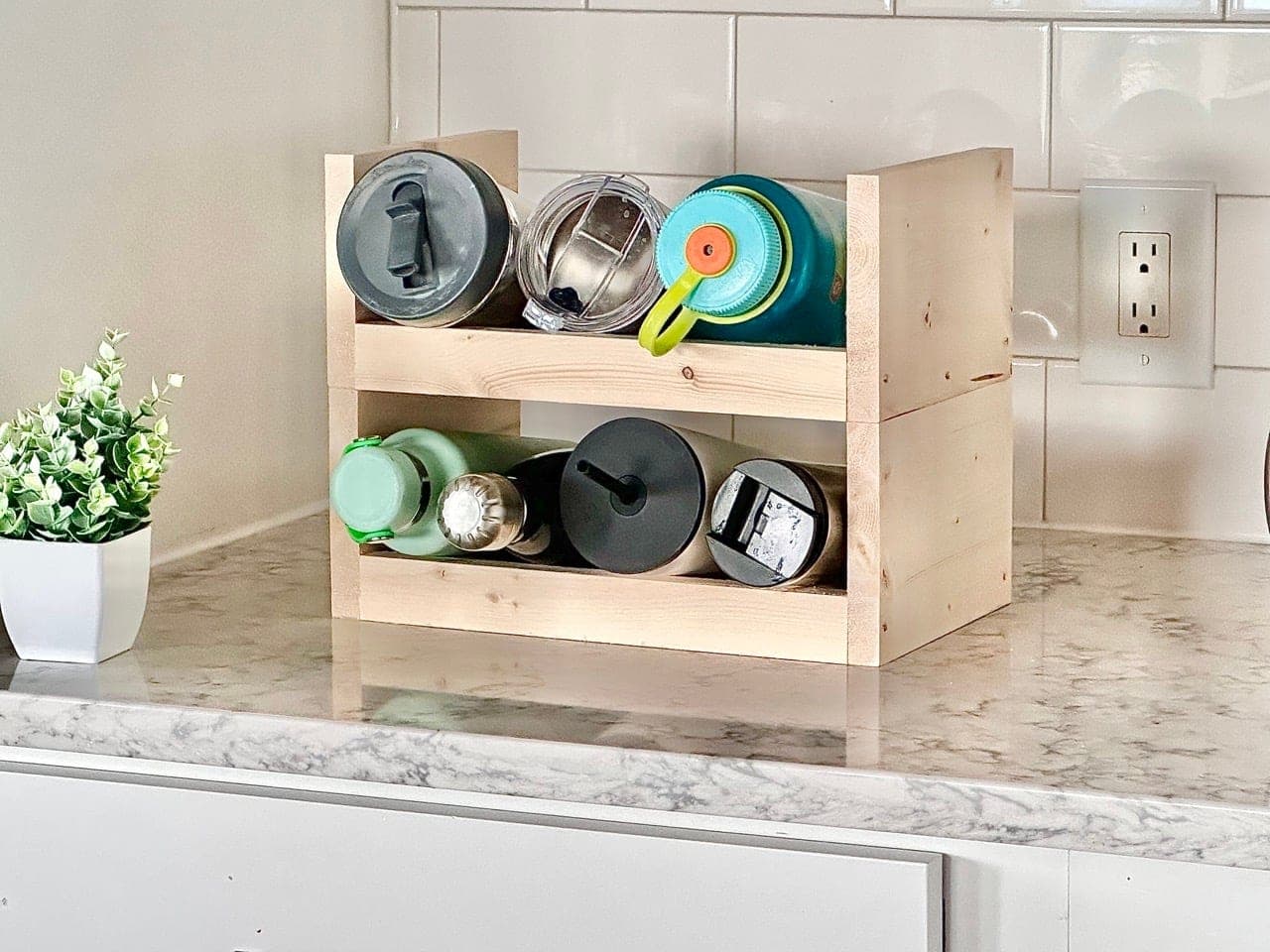

This is a build-to-fit pattern rather than a single fixed size: pick the length that fits your cabinet or drawer first, then cut the three 1x2 rails to that length minus 1-1/2" — the example below uses a 12" rack that holds about three or four standard bottles, but the same steps scale to whatever width you need. The two outer 1x2 rails stand on edge as raised side walls that keep bottles from rolling off, while the center 1x2 lies flat as a bottom support between the two end panels.
Build several and stack them with mounting tape (or similar) for a taller pantry or cabinet system — each rack is a complete, independent unit, so there's no interlocking joinery to align between layers.
| Item | Qty |
|---|---|
| Pine, 1x6, 16 in per rack | 1 each |
| Pine, 1x2 (3x the desired rack width) | 1 each |
| 1-5/8" trim screws or 1-1/4" brad nails and wood glue | 1 box |
| 120 grit sandpaper | 1 pack |
| Mounting tapeOnly needed if stacking multiple racks. | 1 each |
| Paint or stainOptional. | 1 each |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| End panelsPine 1x6 | 2 | 3/4" × 5 1/2" × 8" |
| RailsPine 1x212" rack shown — cut to your own desired rack length minus 1-1/2". | 3 | 3/4" × 1 1/2" × 10 1/2" |
Buy 2 boards at 8 ft.
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Decide how long your water bottle organizer will be and cut the three 1x2 rails to that length minus 1-1/2". Cut two 1x6 end panels at 8" long. Sand any rough cut edges.
Screw or nail the 1x6 end panels to the 1x2 rails. One screw per joint is enough if screwing; if nailing, use glue and two nails per joint. The outer 1x2 rails stand vertically as side walls; the center 1x2 lies flat.
If building multiple racks to stack, use mounting tape to hold them together.
