Simple Kayak/SUP Storage Rack
Plans to build an extremely simple but useful kayak and/or SUP (stand-up paddleboard) storage rack.
- Difficulty
- Beginner
- Time
- 1.5–3 hours
- Cost
- $$
Cut list
| Part | Qty | T × W × L | Material | ✓ |
|---|---|---|---|---|
| End rails | 4 | 2" × 4" × 36" | — | ☐ |
| Side rails | 4 | 2" × 4" × 66" | — | ☐ |
| Legs | 4 | 4" × 4" × 48" | — | ☐ |
Materials
| Item | Qty | ✓ |
|---|---|---|
| Board, 2x4 120" | 4 board | ☐ |
| Board, 4x4 96" | 4 board | ☐ |
| 2-1/2" Kreg pocket screws | 36 each | ☐ |
| Wood glue | 1 each | ☐ |
| Hooks | 4 each | ☐ |
Overall cost: $$. Lumber varies by region, species, and season, so we give a band rather than a figure.
Tools
- Drill / Driver
- Miter Saw
- Pocket Hole Jig
- Tape Measure — optional
Instructions
1. Cut
Cut wood to sizes specified using miter saw, circular saw, or table saw.

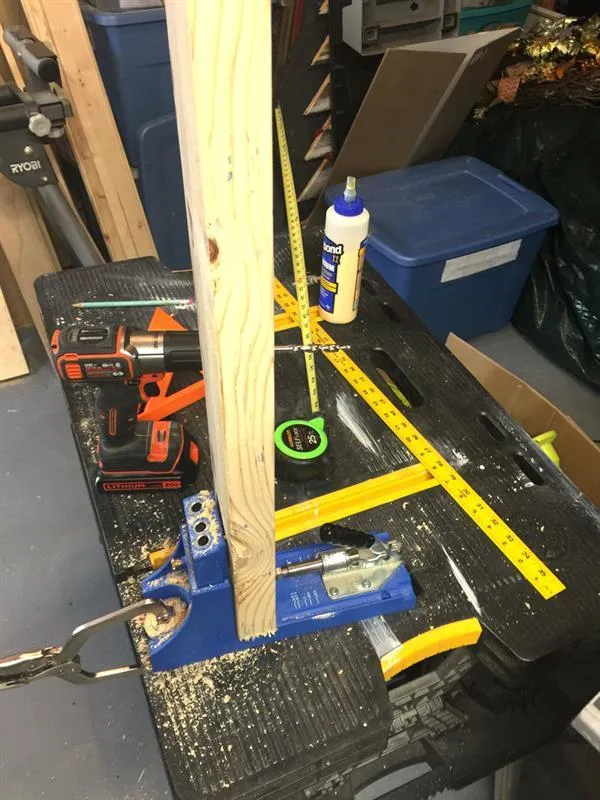

2. Drill Pocket Holes
Using a Kreg Jig drill pocket holes into ends of each cut 2" x 4" piece
3. Assembly
This is a very simple and basic build. Simply assemble the rack using wood glue and 2-1/2" pocket screws. You are building a frame of a rectangle box.

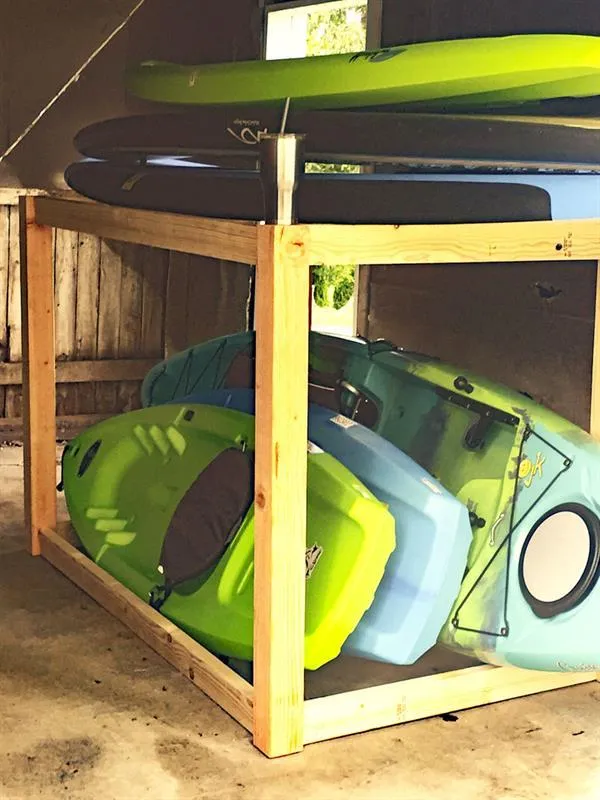

4. Load it up!
Load up the rack with kayaks on the bottom and paddleboards on the top. Add hooks to the rack for hanging PFDs, drybags, etc.
