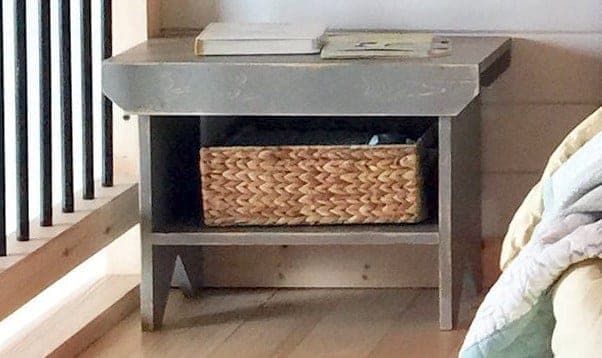

This is about as simple as a real piece of furniture gets — two 1x12 legs, a shelf, a top, and a pair of side trim boards, with all the visual interest coming from a jigsaw-cut leg profile rather than any added parts. Cut the bottom of each leg into a shape using a jigsaw, following a traced or measured curve rather than leaving the legs as plain rectangles — this is the one step that takes any real technique, and it's worth taking slowly since both legs need to end up matching.
Attach the shelf and top to the legs next, and if you're using pocket holes, attach the top before the shelf — the plan is specific about this order because once the shelf is in place, there's no longer room to fit a drill inside the cavity to reach the top's pocket holes. Nails and glue don't have this constraint and can go in either order.
The side support trim goes on last, running the full length of the piece from front to back — this single board is what actually ties the top, shelf, and both legs into one rigid unit, rather than four parts that happen to be fastened near each other. At this scale it works equally well as a slim bedside table or a small entry bench.
| Item | Qty |
|---|---|
| 1x12, 8 ft | 1 each |
| 1x4, 4 ft | 1 each |
| Brad nails, 1-1/4" and 2", or pocket hole screws, 1-1/4" | 30 each |
| Wood glue | 2 oz |
| Primer and paint, or stain and poly | 1 set |
Overall cost: $. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Legs1x12, 8 ftBottom shaped with a jigsaw. | 2 | 3/4" × 11 1/4" × 17 1/4" |
| Bottom shelf1x12, 8 ft | 1 | 3/4" × 11 1/4" × 18 1/2" |
| Top1x12, 8 ft | 1 | 3/4" × 11 1/4" × 24" |
| Side trim1x4, 4 ft | 2 | 3/4" × 3 1/2" × 24" |
Buy 2 boards at 8 ft.
1 board
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Use a jigsaw to cut a shape into the bottom of the two leg pieces, following the diagram or your own traced curve. Keep both legs matching.
Attach the top and shelf to the legs with 1-1/4"–2" nails and glue, or pocket holes if you have a jig — attach the top first if using pocket holes, since the shelf will block drill access afterward.
Attach the side support pieces to the top and legs with 1-1/4" finish nails and glue, tying the whole piece together.
Sand all surfaces and apply primer and paint, or stain and poly.
