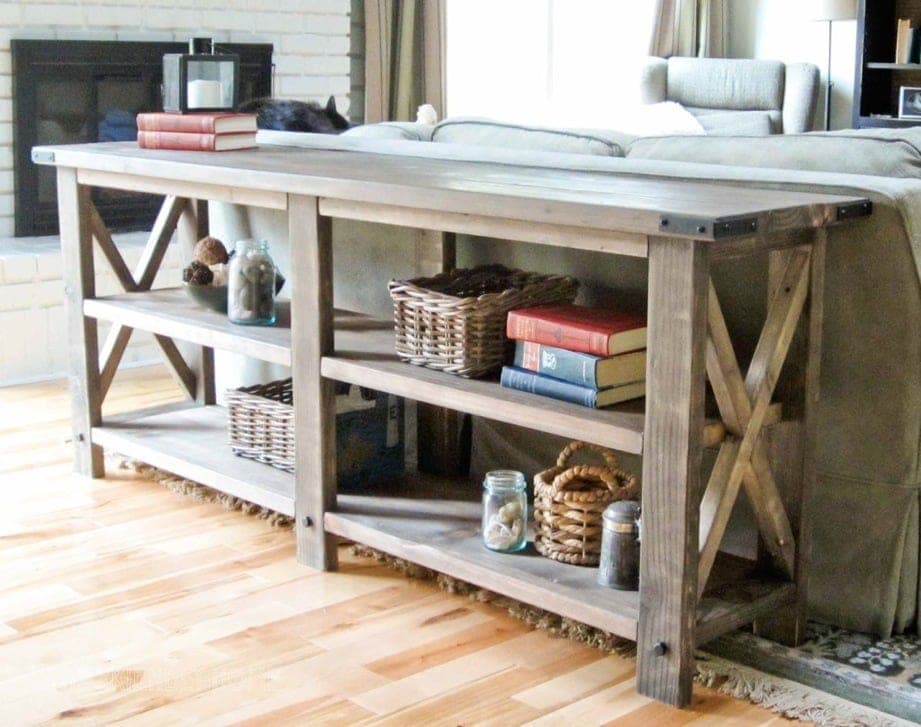

The Rustic X is probably the most-built console design of the farmhouse era, and the X ends are why. What the plan actually teaches is scribing: instead of trusting the cut list's angles blindly, you hold the uncut X board against its opening, trace the overlaps in pencil, and cut the lines. Wood by wood, your table's real dimensions — not the drawing's — define the joint. The listed 60°/30° cuts get you close; the pencil gets you tight.
The order matters for the X: fit the long diagonal first, leave it loose, fit and cut the two short pieces against it, then join the shorts to the long OUTSIDE the table and install the whole X as one unit. Trying to assemble it inside the opening is the classic frustration this sequence avoids.
Two checks the plan flags. The 2x4 end supports must match your actual 1x12 width — nominally 11-1/4", but measure, because shelf trim that overhangs or falls short at the ends is glaring. And the corner hardware with decorative bolts is what sells the industrial-farmhouse look; it's cosmetic over structural screws, so position it by eye, symmetrically, after finishing.
| Item | Qty |
|---|---|
| 2x2, 8 ftFrame uprights and X pieces. | 6 each |
| 2x4, 8 ftFrame rails and end supports. | 3 each |
| 1x12, 12 ftThe two shelves. Measure its true width — the end supports are cut to match it. | 1 each |
| 2x6, 8 ftThe planked top. | 3 each |
| Corner hardware and decorative boltsThe industrial-farmhouse jewelry. Cosmetic — position by eye after finishing. | 8 each |
| Pocket hole screws, 1-1/4" | 50 each |
| Pocket hole screws, 2-1/2" | 30 each |
| Wood screws, #9 x 2-1/2" | 20 each |
| Wood glue | 8 oz |
| Stain and topcoat | 1 quart |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Frame uprights2x2 | 12 | 1 1/2" × 1 1/2" × 30" |
| Frame rails2x4 | 6 | 1 1/2" × 3 1/2" × 28 1/2" |
| Shelves1x12 | 2 | 3/4" × 11 1/4" × 63 1/2" |
| End supports2x4Cut to match your 1x12's TRUE width — measure first. | 5 | 1 1/2" × 3 1/2" × 11 1/4" |
| Shelf trim2x2 | 2 | 1 1/2" × 1 1/2" × 11 1/4" |
| X long diagonals2x2Long point to short point, ends parallel, 60° off square — then scribe-fit in place. | 2 | 1 1/2" × 1 1/2" × 22 1/2" |
| X short pieces2x2Long end 60°, short end 30°, angles same direction — scribe-fit against the installed long diagonal. | 4 | 1 1/2" × 1 1/2" × 11 1/4" |
| Top planks2x6 | 3 | 1 1/2" × 5 1/2" × 74 1/2" |
Buy 14 boards at 8 ft.
3 boards
3 boards
6 boards
2 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Assemble each end frame from 2x2 uprights and 2x4 rails per the diagram — pocket holes on the faces that end up hidden. These frames are the table's whole skeleton; square them carefully.
Before attaching, drill 3/4" pocket holes around all edges of both 1x12 shelves — you'll want them later for the shelf trim, and drilling them now beats drilling inside an assembled table. Then attach the frames to the shelves with 1-1/4" pocket screws.
Measure your 1x12s' actual width and cut the five 2x4 end supports to exactly that — nominal 11-1/4", real boards vary. Attach to the frames and shelves, 1-1/2" pocket holes with 2-1/2" pocket screws into the frames.
Attach the 2x2 shelf trim using the pocket holes you pre-drilled in step 2, with 1-1/4" screws. The trim thickens the shelf edge visually to match the table's chunky frame.
Hold the long diagonal board against its opening and trace the overlaps at both ends. Cut the lines, set it in place — but DON'T attach. Fit the two short pieces against it the same way: place, trace, cut.
Now trace where the shorts meet the long piece, pull everything out, and join the shorts to the long diagonal outside the table. Install the completed X as one unit and fasten. Repeat for the other end.
Scribing beats measuring here because the X inherits your table's true geometry — including every sixteenth it differs from the drawing.
Join the three 2x6 top planks with 1-1/2" pocket holes and 2-1/2" pocket screws (or lay them individually for a more rustic gappy top — both are legitimate), then fasten the top down through the aprons using the same 2-1/2" pocket screws.
Sand, stain, topcoat. Last, the costume: hammer-set the corner hardware and decorative bolts symmetrically at the frame corners. It's fake structure over real screws, and it's what makes people ask where you bought the table.
