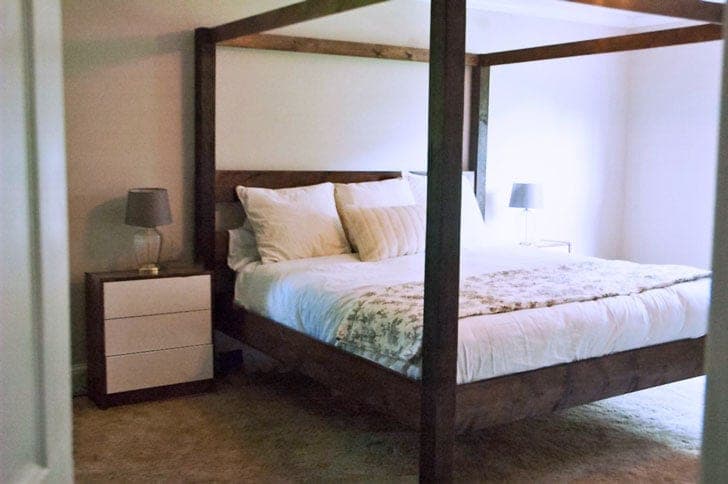

This canopy bed skips the ornate turned posts and drapery of a traditional four-poster and just runs plain 4x4 posts straight up, with a simple open 2x4 frame connecting the tops — the canopy is a structural outline, not a curtain rod. That restraint is what makes it read as modern rather than rustic-cottage, even though the joinery underneath is genuinely simple: pocket-hole rails into posts, stacked in courses.
The headboard stacks three 2x8 rails (at 13", 27", and 41" up the post) while the footboard gets just one at 13" — building both with the same pocket-hole method but different rail counts is what gives the bed its height contrast front to back. Finish the headboard, footboard, and side rails before final assembly; the 2x4 support structure and slats underneath never show, so they don't need it.
If you can't find untreated 4x4 posts, pressure-treated lumber works and stains close enough to match once finished — just let it dry out fully before staining if it's still wet from the treatment process.
| Item | Qty |
|---|---|
| 4x4, 8 ftPosts. Pressure-treated works fine and stains close to untreated once dry. | 4 each |
| 2x8, 8 ftHeadboard, footboard, and side rails. | 6 each |
| 2x8 or 1x8, 8 ftBed slats — whichever is cheaper locally. | 6 each |
| 2x4, 8 ftCanopy frame. | 4 each |
| 2x4, 8 ftBottom support structure. | 6 each |
| Pocket hole screws, 2-1/2" | 1 box |
| Wood stain | 1 each |
| Polyurethane | 1 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Posts4x4 | 4 | 3 1/2" × 3 1/2" × 80" |
| Headboard rails2x8Set at 13", 27", and 41" up from the floor. | 3 | 1 1/2" × 7 1/4" × 76 1/2" |
| Footboard rail2x8Set at 13" up from the floor. | 1 | 1 1/2" × 7 1/4" × 76 1/2" |
| Side rails2x8 | 2 | 1 1/2" × 7 1/4" × 80" |
| Canopy end boards2x4 | 2 | 1 1/2" × 3 1/2" × 76 1/2" |
| Canopy side boards2x4 | 2 | 1 1/2" × 3 1/2" × 80" |
| Side rail top supports2x4 | 2 | 1 1/2" × 3 1/2" × 82" |
| Bottom width supports2x4Run width-wise under the bed. | 4 | 1 1/2" × 3 1/2" × 73 1/2" |
| Bottom-to-support legs2x4Run from the floor up to the width supports. | 2 | 1 1/2" × 3 1/2" × 16 1/2" |
| Slats2x8 or 1x8Set on top of the 2x4 supports instead of using a box spring. | 6 | 1 1/2" × 7 1/4" × 82" |
Buy 26 boards at 8 ft.
4 boards
12 boards
10 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Predrill pocket holes on the ends of the 2x8 headboard rails, two per side. Attach the first rail to the two posts at 13" up from the floor, the second at 27", and the third at 41".
Attach a single 2x8 rail to the footboard posts at 13" up, using the same pocket-hole method as the headboard.
Assemble the 2x4 bottom frame with pocket holes. Sand and finish the headboard, footboard, and 2x8 side rails now — the 2x4 supports and slats never show once the bed is built, so they don't need finishing.
Bring the pieces into the bedroom and assemble there — a finished king canopy bed rarely fits through doorways in one piece. Screw the bed frame to the headboard and footboard with 2-1/2" screws, keeping the bottom of the 2x4s flush with the bottom of the 2x8s, and drive additional screws at an angle into the 4x4 posts for extra hold.
Use pocket holes to attach the top 2x4 canopy boards to the posts. Attach each 2x8 side rail to its post at the top with a pocket hole, then reinforce by screwing from inside the 2x4 support into the back of the side rail with 2-1/2" screws.
Attach the center support legs down to the floor under the 2x4 width supports — this keeps the middle of a king-size frame from sagging under a mattress.
Lay the 1x8 or 2x8 slats across the bottom supports and screw each one down so it can't shift.
