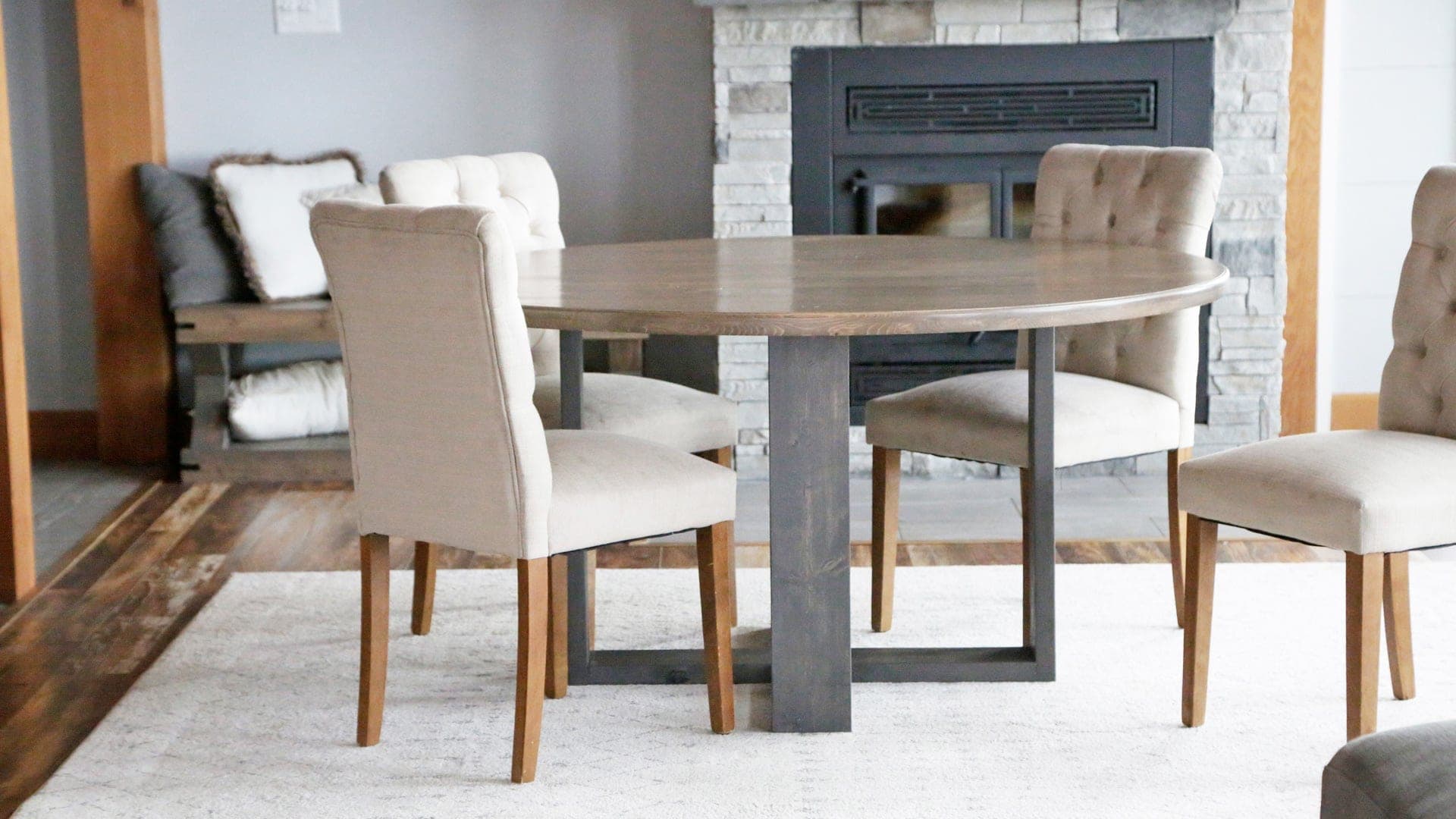

This is a base-only project — build the rectangular 2x6 frame and its center cross brace, then attach a round tabletop you've already sourced or built separately, rather than building an octagon top and cutting it into a circle as this catalog's other round-table project does. Attach the longer 2x6 boards to the legs first to create a simple rectangle, using pocket holes and glue at every joint.
Then attach the shorter pieces to the remaining legs, and find the true center of the assembled rectangle before attaching the cross brace pieces — this center point is what the whole base's stability rests on, since the cross brace is what keeps a round top from feeling like it's balanced on a rectangle underneath it. The plan offers two base sizes (48" and 60"), and if you're building the larger 60" version, the source build intentionally added an extra inch to the base dimensions beyond the plan's original numbers specifically to reduce tipping risk under a bigger top — a real consideration worth keeping if you're building at that size.
Once the base is square and the cross brace is centered and attached, flip the tabletop upside down and attach the base to its underside — a genuinely short final step for a base this simple.
| Item | Qty |
|---|---|
| 2x6, 8 ft or stud length (for 48" base) | 2 each |
| 2x6, 10 ft (for 60" base) | 2 each |
| Pocket hole screws, 2-1/2" | 24 each |
| Wood glue | 3 oz |
| Screws for attaching tabletop, 2-1/2" (if top is 1-1/2" thick) | 8 each |
| Primer and paint, or stain and poly | 1 set |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Legs, 48" base2x6, 8 ft or stud length (for 48" base) | 4 | 1 1/2" × 5 1/2" × 28 1/2" |
| Rectangle long sides, 48" base2x6, 8 ft or stud length (for 48" base) | 2 | 1 1/2" × 5 1/2" × 23" |
| Cross brace, 48" base2x6, 8 ft or stud length (for 48" base) | 4 | 1 1/2" × 5 1/2" × 8 3/4" |
| Legs, 60" base2x6, 10 ft (for 60" base) | 4 | 1 1/2" × 5 1/2" × 28 1/2" |
| Rectangle long sides, 60" base2x6, 10 ft (for 60" base)1" added beyond the original plan dimension to reduce tipping. | 2 | 1 1/2" × 5 1/2" × 34" |
| Cross brace, 60" base2x6, 10 ft (for 60" base)1" added beyond the original plan dimension to reduce tipping. | 4 | 1 1/2" × 5 1/2" × 14 1/4" |
Buy 5 boards at 8 ft.
5 boards
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Attach the longer 2x6 boards to the legs to create a rectangle, using 2-1/2" pocket hole screws and glue.
Attach the shorter remaining pieces to the legs with 2-1/2" pocket hole screws. Find the center of the rectangle and attach the cross brace pieces to it with 2-1/2" pocket holes and glue.
Flip the round tabletop upside down and attach the assembled base to its underside with screws sized to your tabletop's thickness.
Sand all surfaces and apply primer and paint, or stain and poly.
