Notch- Difficulty
- Advanced
- Time
- 6.8–12.8 hours
- Cost
- $$
About this build

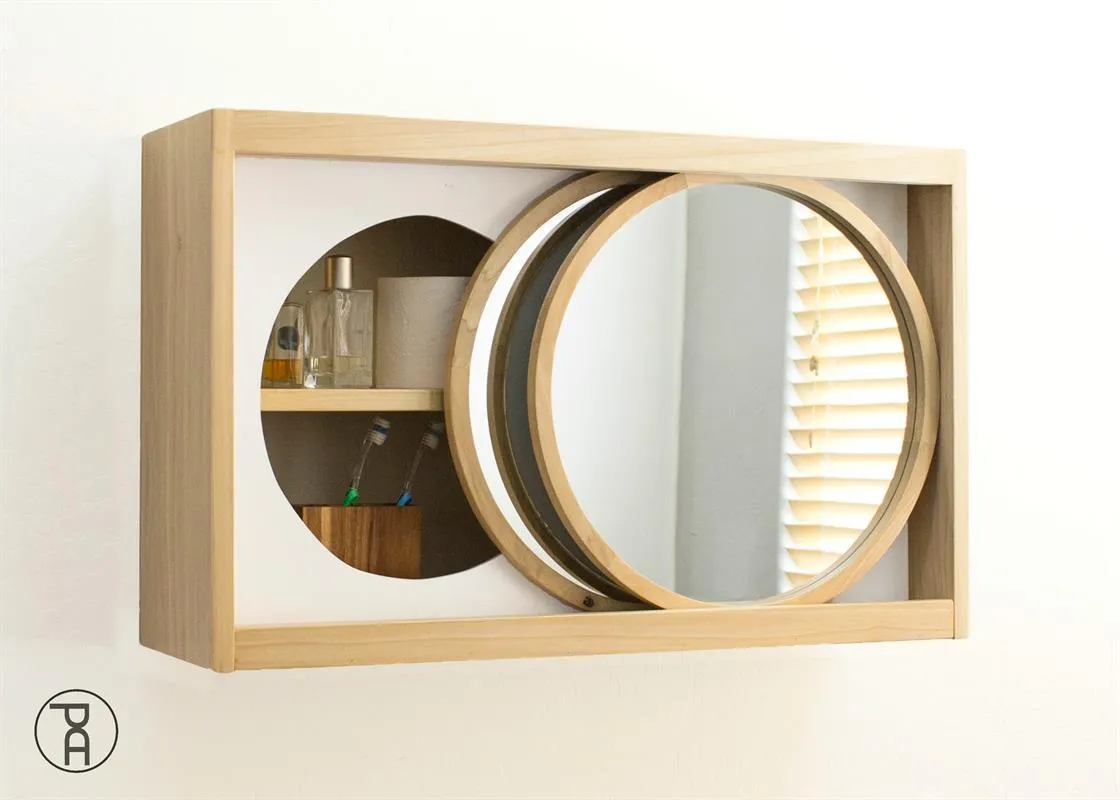

Elevate a simple wall cabinet into something amazing by swapping traditional doors for rolling round mirrors. Use this cabinet for a unique medicine cabinet, vanity mirror, or over the toilet organization. A perfect, modern storage solution for any room.
Tools
Essential
- Drill / Driver
- Jigsaw
- Miter Saw
- Pocket Hole Jig
- Random Orbit Sander
- Router
Optional / nice to have
- Bar / Pipe Clamps
- Combination Square
- Tape Measure
Materials
| Item | Qty |
|---|---|
| Board, 1x12 96" | 1 board |
| Board, 1x6 36" | 1 board |
| Board, 1x4 72" | 2 board |
| Plywood, 1/4" Thick Quarter Sheet | 1 board |
| Square Dowel, 3/4" x 3/4" 36" | 2 board |
| 16" diameter mirror | 2 each |
| 1-1/4" pocket hole screws | 24 each |
| 1-1/4" 18 gauge brad nails | 50 each |
| Wood glue | 1 each |
Overall cost: $$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
Cut list
| Part | Qty | T × W × L |
|---|---|---|
| Sides | 2 | 3/4" × 9" × 18 5/8" |
| Top & Bottom | 2 | 3/4" × 8 1/4" × 28" |
| Shelf | 1 | 3/4" × 5 1/2" × 28" |
| Plywood Panel | 1 | 1/4" × 17 5/8" × 28 1/2" |
| Center Rails | 2 | 3/4" × 3/4" × 28" |
| Fame Frame | 2 | 3/4" × 1 1/2" × 28" |
What to buy
Buy 6 boards at 8 ft.
3/4" × 9"
1 board
3/4" × 8 1/4"
1 board
3/4" × 5 1/2"
1 board
3/4" × 1 1/2"
1 board
3/4" × 3/4"
1 board
1/4" × 17 5/8"
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →
Instructions
1Cut boards and Gooves
- Following the cut diagram, use a Kreg Accu-Cut and circular saw or table saw to cut your box pieces to size from a 1 x 12 x 96" and a 1 x 6 x 36" board.
- Cut two at 8-1/4" x 28" Cut two at 9" x 18-5/8" Cut one at 5-1/2" x 28" Grooves need to be cut into the top, bottom and sides to accommodate a 1/4" inset plywood panel. This can be done by taking multiple passes using the Kreg Accu-Cut guide track and a circular saw, on a table saw, or by using a router and 1/4" straight cutting bit.

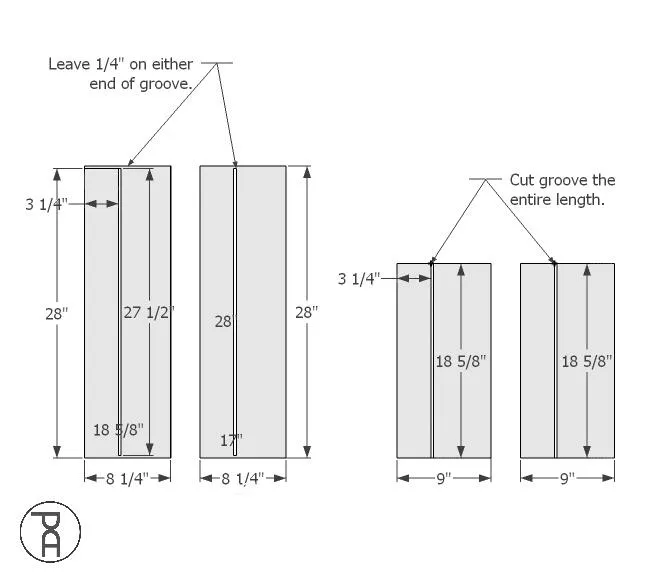

- Cut 1/4" x 1/4" grooves along the length of the side pieces, 3-1/4" from the front edge of the board.
- Cut a 1/4" x 1/4" groove along the length of the top and bottom pieces, but stop 1/4" from either end. Do not cut through the ends of the board.
2Assemble Mirror Frames

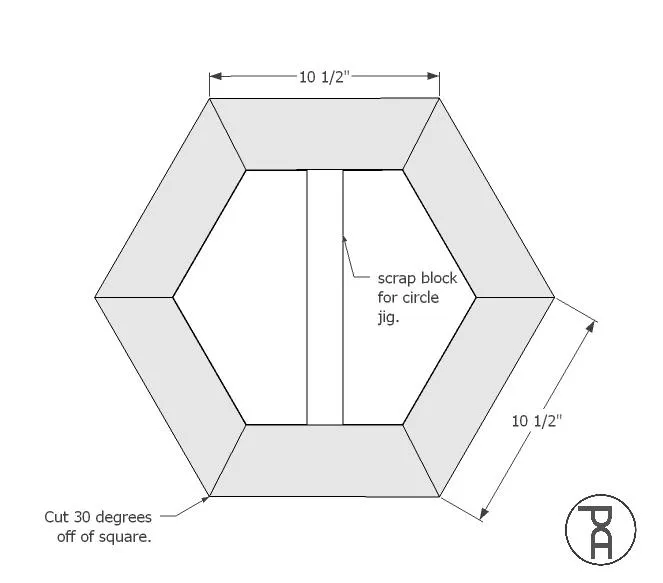

- Cut 12 trapezoids from 1 x 4 boards, 30 degrees off of square, the longest side measuring 10-1/2". For each frame: Align 6 trapezoids in a hexagon shape.
- Measure the exact length between two parallel pieces and cut a scrap piece of wood to fit between them.
- Apply glue to all adjoining faces and clamp together to create a hexagon. Allow to dry overnight.
3Cut Mirror Frames

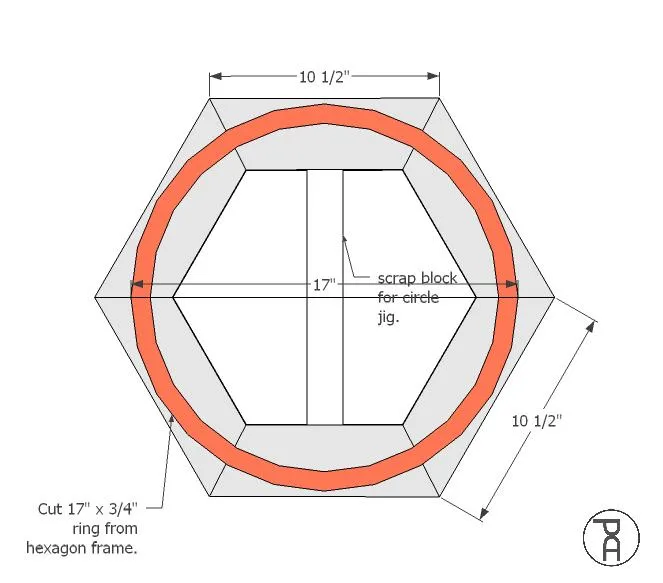

Using a router and circle jig, bandsaw, or jigsaw, cut a 3/4" wide ring with an outer diameter of 17" and an inner diameter of 15-1/2".

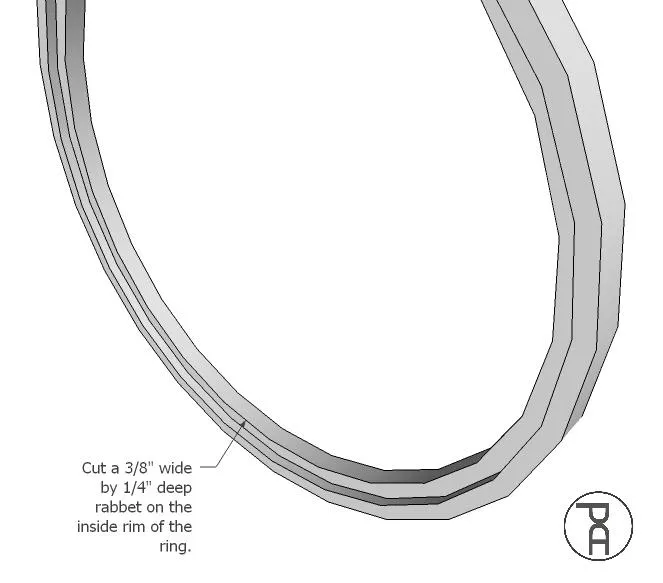

4Cut Rabbet
Use a router to cut a 3/8" wide by 1/4" deep rabbet on the inside rim of the mirror frame ring.
5Add Mirror to Frame

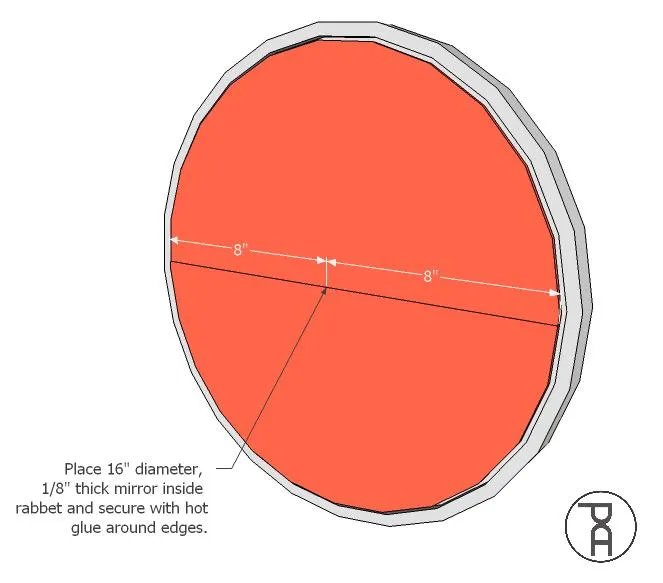

Sand and apply finish to both mirror frame rings and allow to dry. Inside each each frame, place a 16" diameter, 1/8" thick mirror within the rabbet. Secure in place using hot glue around edges.

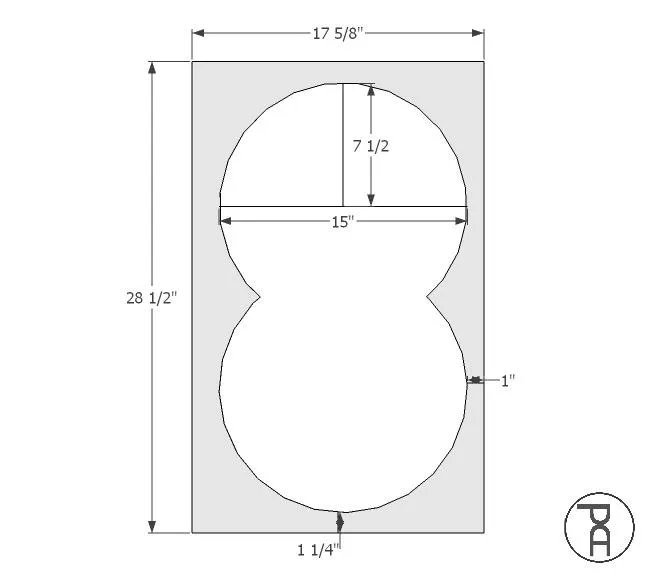

6Cut Plywood Panel
Use a Kreg Accu-Cut track and circular saw to cut a 17-5/8" x 28-1/2" panel from 1/4" plywood or MDF. Measure 1-1/4" from both short sides and 1" from both long sides. Use a jigsaw to cut two, intersecting, 15" diameter circles.
7Insert Panel Into Sides

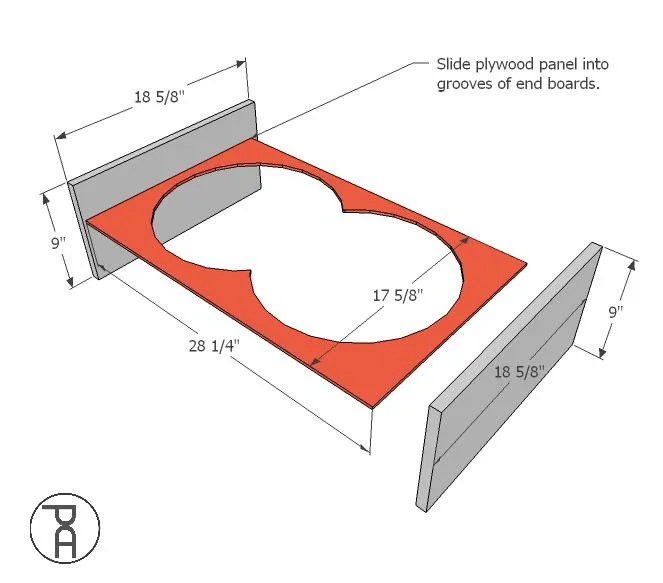

Slide the plywood panel into 1/4" grooves of side boards.

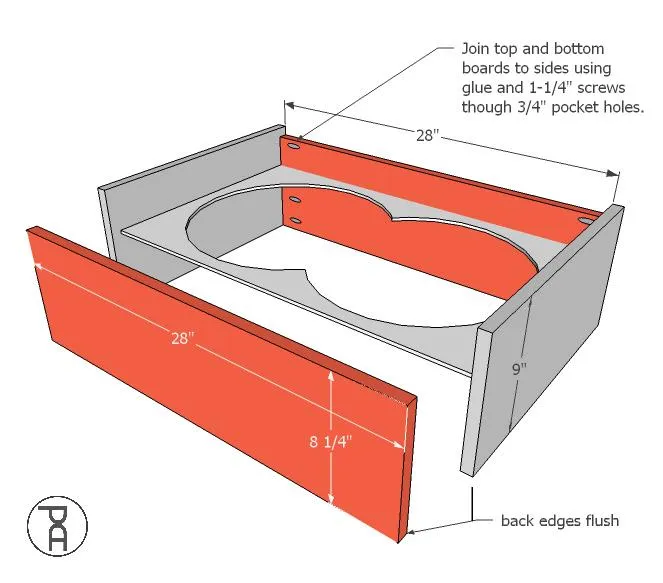

8Insert Panel Into Top & Bottom
Align the plywood panel inside the grooves of the top and bottom boards. Join top and bottom boards to sides using glue and 1-1/4" screws though 3/4" pocket holes.

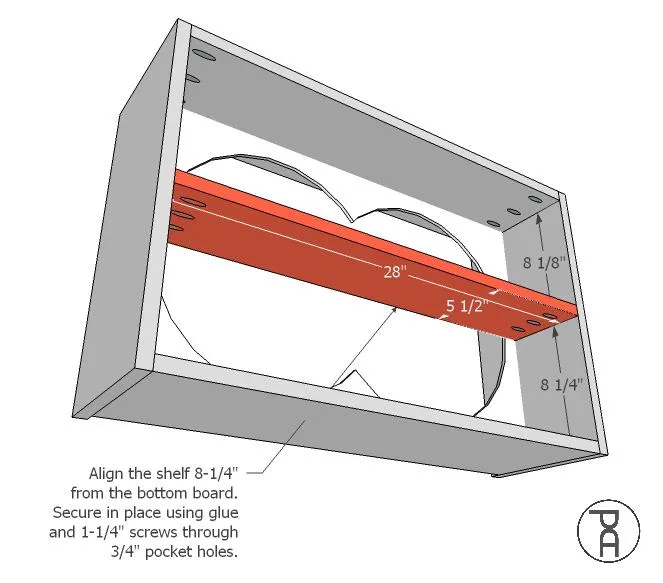

9Add Shelf
On the inside of the box, align the shelf 8-1/4" from the bottom board. Secure in place using glue and 1-1/4" screws through 3/4" pocket holes. Sand and apply finish to cabinet box, unattached face frame pieces and center rails.

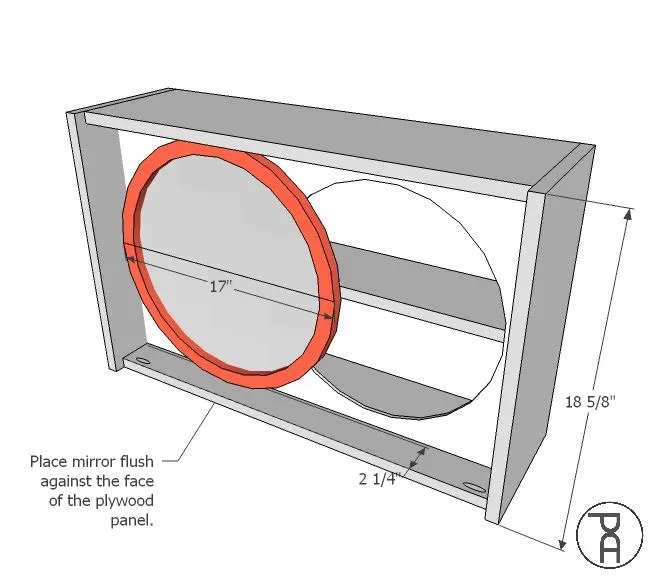

10Place First Mirror
Place first mirror flush against the front face of the plywood panel.
11Add Center Rails

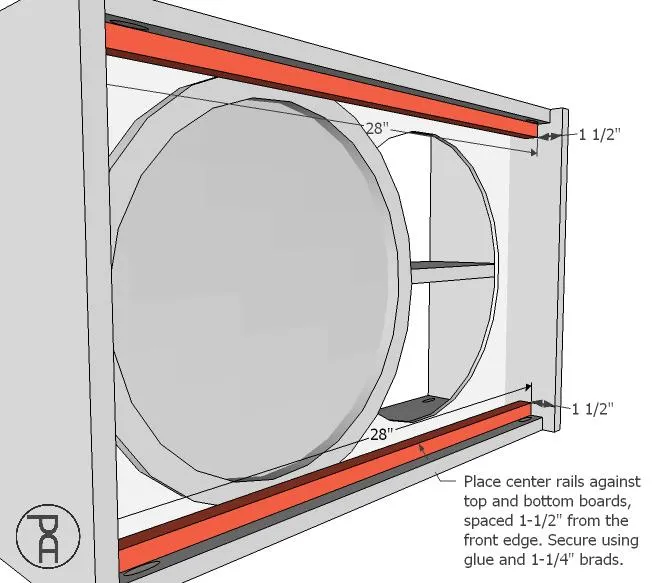

Place 3/4" x 3/4" x 28" center rails against top and bottom boards, spaced 1-1/2" from the front edge. Secure in place using glue and 1-1/4" brads.
12Place Second Mirror

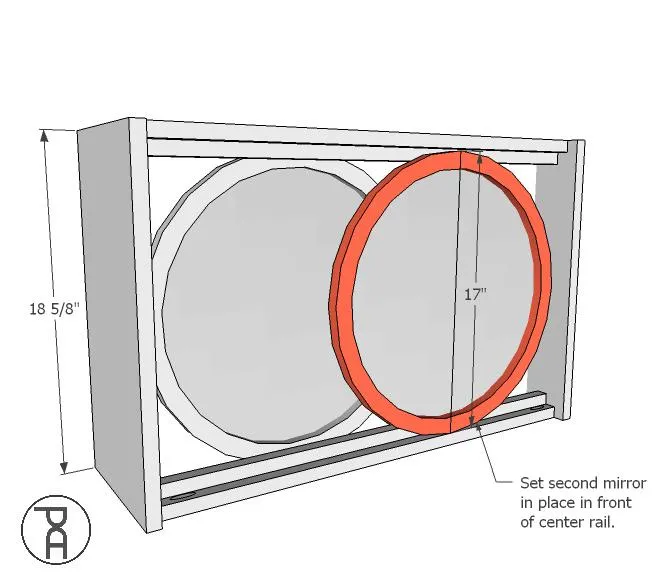

Place the second mirror in place in front of the center rails.

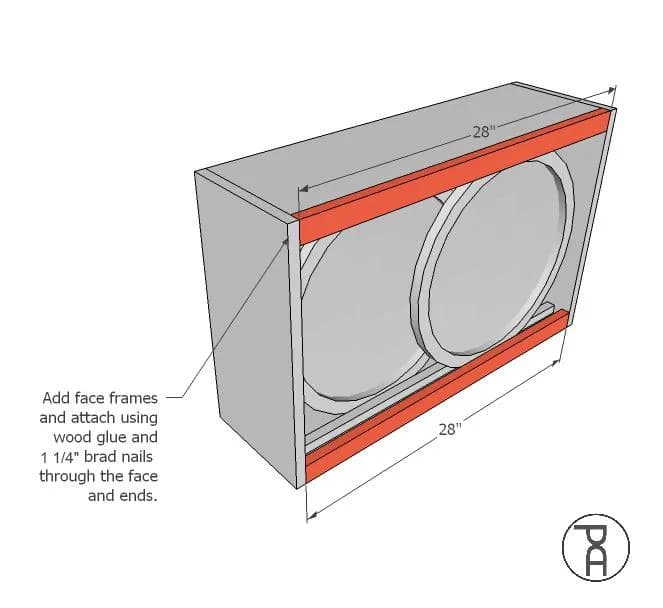

13Attach Face Frames
Add 1 x 2 x 28" face frames, flush to the front edges of top and bottom boards. Attach using wood glue and 1-1/4" brad nails through the face and ends.
14Get More Tips and Tricks
Head to www.PneumaticAddict.com for additional DIY tips, ideas, and free building plans.
