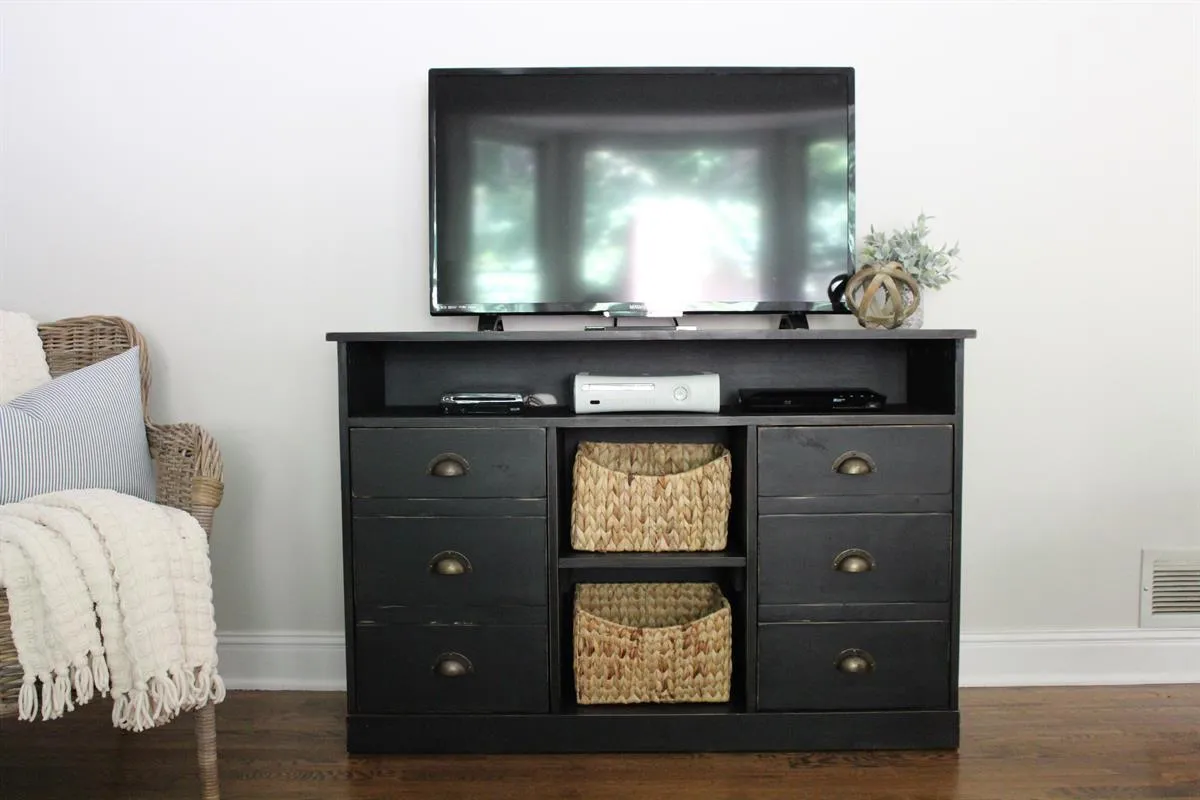

This vintage style media console is inspired by the Pottery Barn Printer’s TV stand. It’s a simple build that has a top shelf, two open middle shelves as well as two closed cabinets for plenty of storage. This TV stand accommodates a large flat screen TV.
| Item | Qty |
|---|---|
| Plywood, 3/4" Thick Full Sheet | 1 board |
| Board, 1x3 96" | 1 board |
| Board, 1x4 72" | 1 board |
| Backer Board, 1/4" Thick Full Sheet | 1 board |
| 3/4" Roll at 25 ft. Veneer Tape | 1 each |
| Pulls of knobs of choice | 6 each |
| Euro Hinges | 4 each |
| Box of Kreg 1 1/4" Pocket Hole Screws | 1 each |
| Paint or stain of choice | 1 each |
| 120 grit sand paper | 1 each |
| Pack 2" Finishing nails | 1 each |
| Magnetic Catch for the doors | 2 each |
Overall cost: $$$. Lumber prices vary by region, species, and season, so we give a band rather than a figure we would only be pretending to know.
| Part | Qty | T × W × L |
|---|---|---|
| Sides | 2 | 3/4" × 15 1/2" × 33" |
| Bottom & Middle Shelf | 2 | 3/4" × 15 1/2" × 48" |
| Top | 1 | 3/4" × 16" × 50" |
| Middle Inserts | 2 | 3/4" × 15 1/2" × 23" |
| Small inside shelves | 3 | 3/4" × 14 1/2" × 15" |
| Large door boards | 4 | 3/4" × 7 1/4" × 15 1/2" |
| Small door boards | 2 | 3/4" × 5 1/2" × 15 1/2" |
| Faux drawer spacers | 4 | 3/4" × 1 1/2" × 15 1/2" |
| Bottom support | 1 | 3/4" × 2 1/2" × 48" |
| Bottom trim piece | 1 | 3/4" × 3 1/2" × 16" |
| Shelf braces | 6 | 3/4" × 2 1/2" × 13" |
Buy 11 boards at 8 ft.
1 board
3 boards
1 board
1 board
1 board
1 board
2 boards
1 board
Assumes 8 ft stock, a 1/8" saw kerf, and buying each part at its own width. Change the board size or kerf on the full board plan →

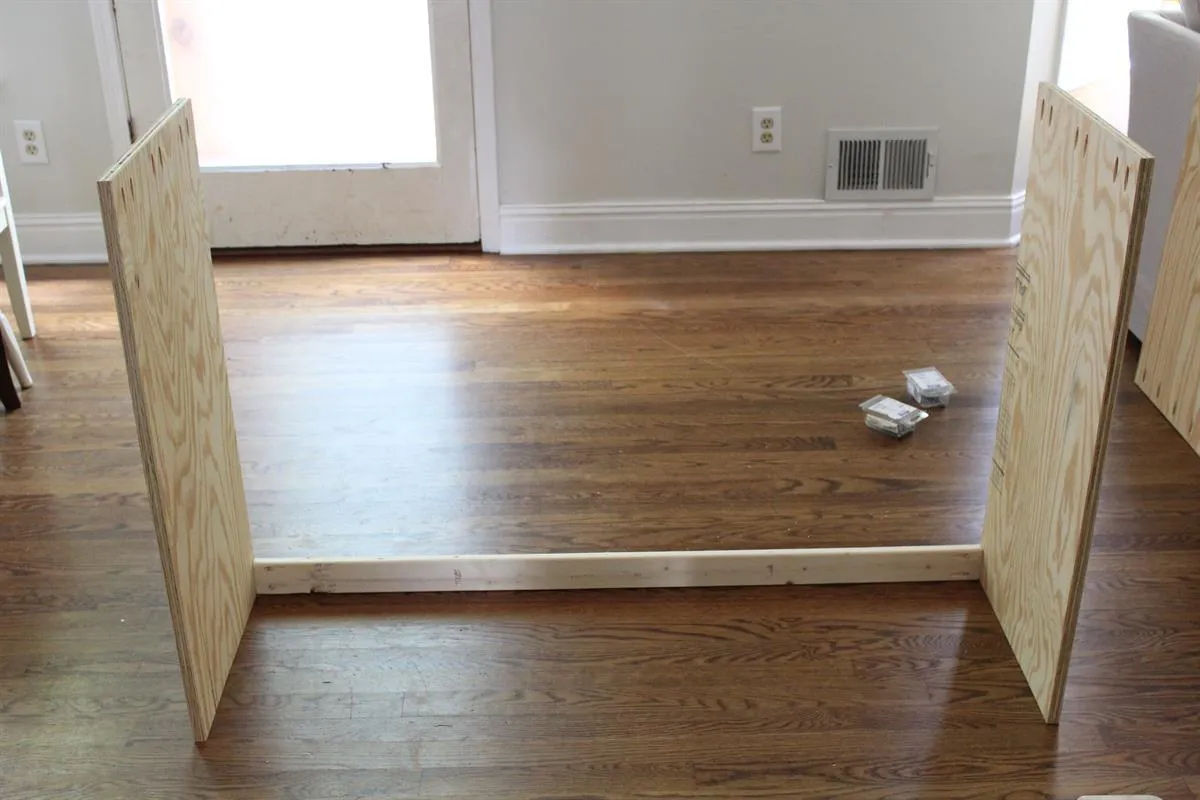

Attach both of your sides to the 1x3/bottom support using 1 1/4" pocket holes screws.

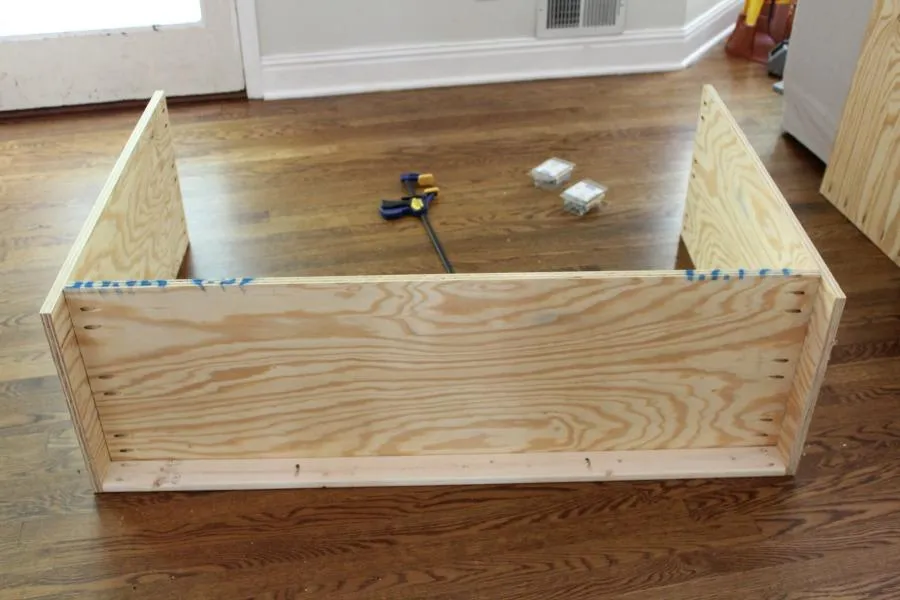

Attach the bottom shelf to the two sides, making sure it's flush on the front and sides. Use 1 1/4" pocket hole screws.
Attach the top of your console using 1 1/4" pocket hole screws. The back should be flush. The sides and the front should over hang 3/4".

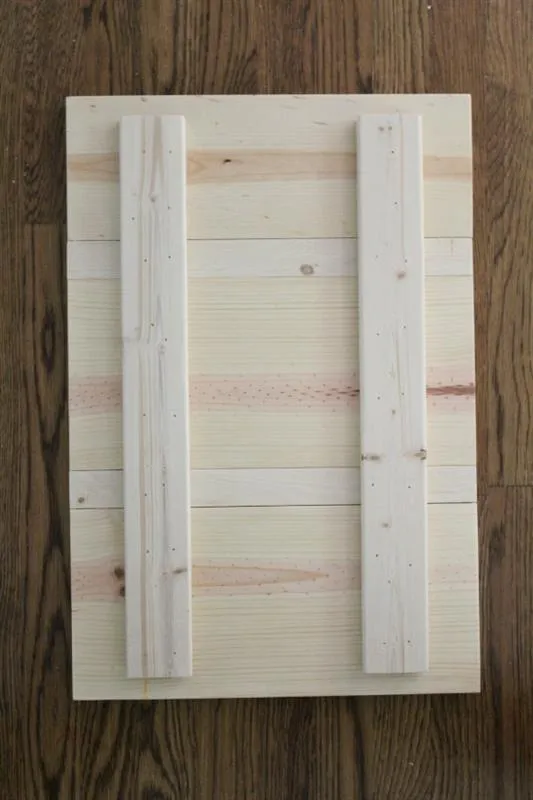

Lay two 1x8" boards cut to 15.5" long and a 1x6" board cut to 15.5" above them with 1x2"s cut to 15.5" long in between each board to create your "drawer like" cabinet doors. Glue and nail 2 - 1x3" to the back of the planked boards to hold your door together.

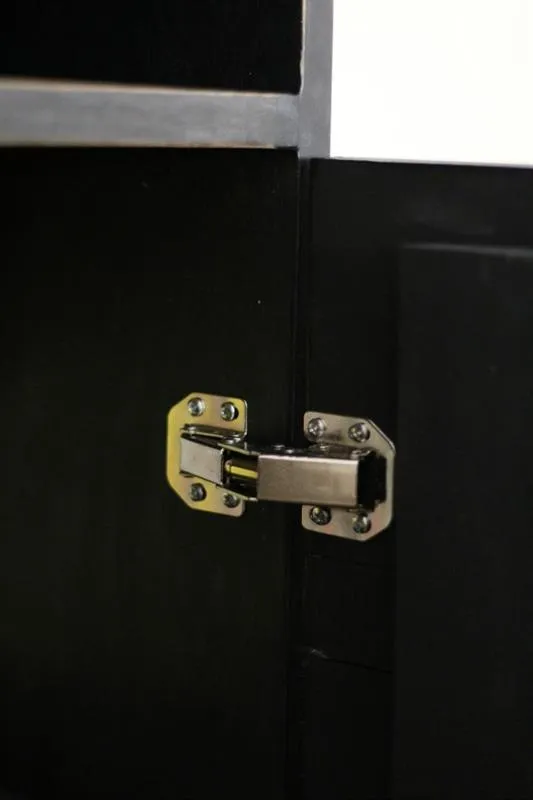

Attach the cabinet doors to the sides using euro hinges. Make sure to leave an even gap around the sides of the doors.

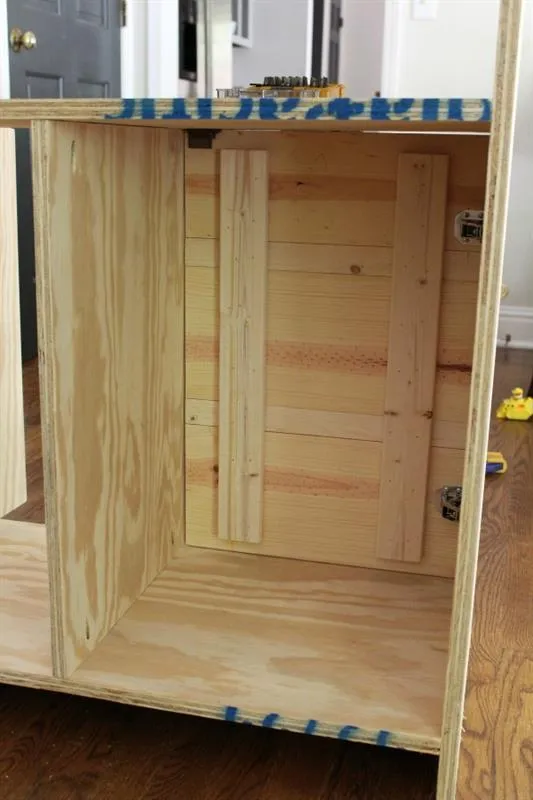

Install your side inserts using 1 1/4" pocket hole screws. Make sure to line up against the cabinet door with just a small gap so that the door closes completely. Repeat this step on the other side as well. The Kreg clamp comes in really handy for this step. It's very important to keep your sides level and flush.
Using finishing nails, nail the 1x4" across the bottom of the cabinet to trim it out. We ripped our 1x4" down slightly for a perfect fit.
We added veneer tape to all the exposed plywood edges using the instructions included with the tape. This will get rid of those ugly plywood edges.
Using the 3/4" setting on your Kreg Jig, make 4-5 pocket holes in the top of your sides as well as 4-5 pocket holes in the bottom and top shelves. Make 4 holes total on the middle inserts as well.
Cut backer board to fit the back of the cabinet and nail in place using a nail gun.
